Neff N70 D95XAM2S0B Canopy Hood

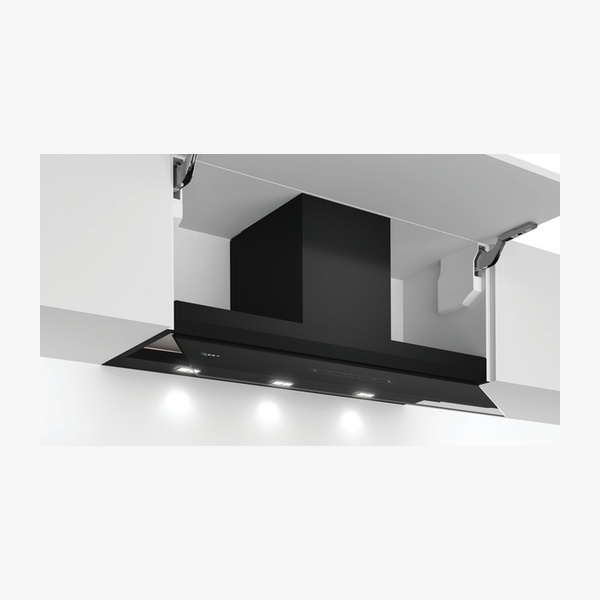

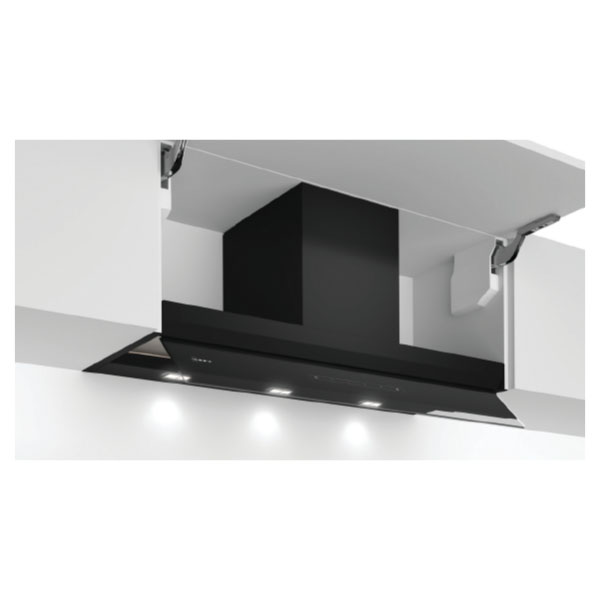

The N 70 D95XAM2S0B is a 90 cm integrated design hood with clear glass black printed in black, designed for flush-fitted installation in wall cupboards. Its hidden design offers seamless integration while providing extra storage space of up to 10 kg per side. With touch controls, automatic glass panel recognition, multiple speed settings including intensive, and quiet extraction performance, it suits users seeking an efficient, space-saving hood for ducted extraction or recirculation.

SKU:D95XAM2S0B

EAN:4242004260103

Category::Cooker Hoods

Quantity:

Key Features

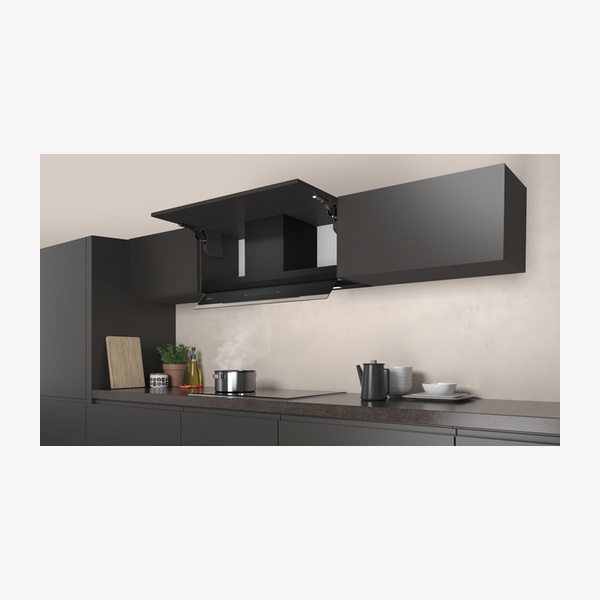

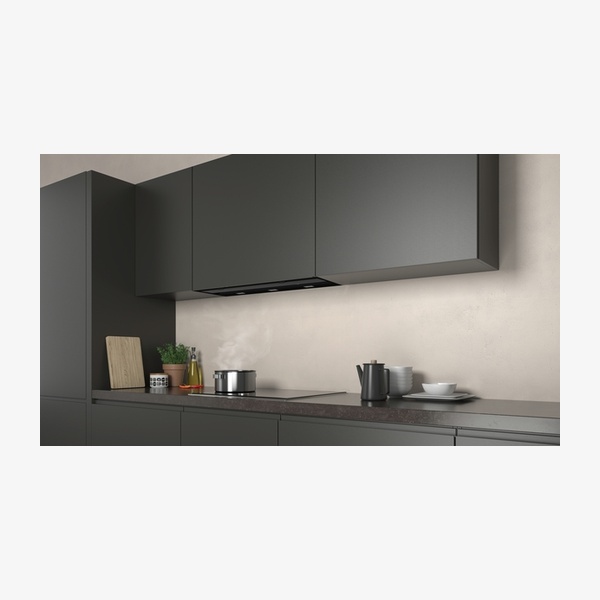

Hidden Design – Seamlessly integrates the hood in a flush-fitted cupboard design for an invisible look.

Extra Storage Space – T-shaped design creates extra space for many large and handy items, up to max. 10 kg storage weight per side.

Reduced Noise – Optimised motor is designed to guarantee a quiet cooking experience.

Intensive Speed Setting – Increases the extraction rate when steam gets intense, with automatic intensive revert after 6 minutes.

Comfort Control – Automatic recognition of the glass panel position switches hood and light on/off when opening or closing the panel.

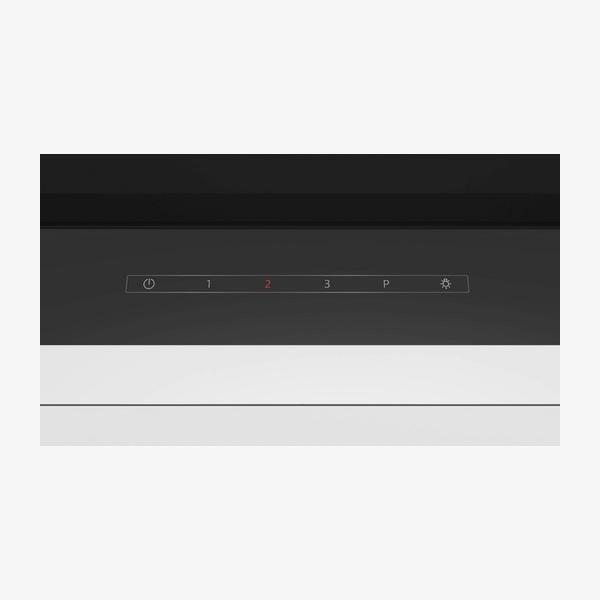

Touch Control Glass Panel – Glass panel with touch control for easy operation and enhanced vapour capture.

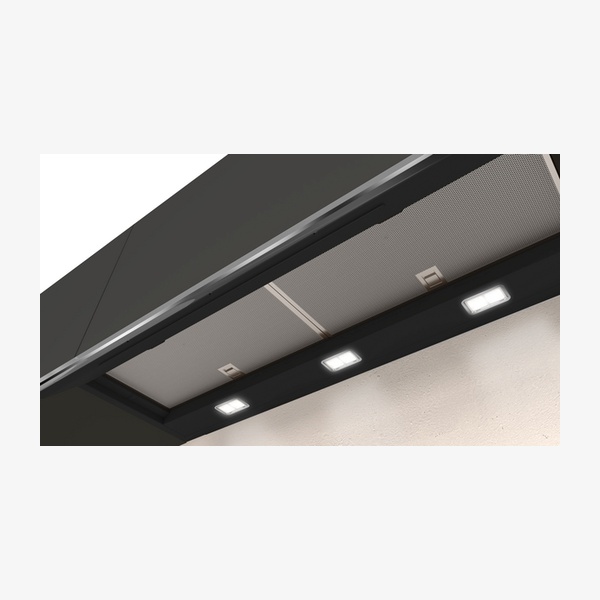

SoftLight with Dimmer – 3 × 2 W LED lights with dimmer function, 3500 K colour temperature and 517 lux light intensity.

Flexible Venting – Suitable for ducted extraction and recirculation; various recirculation kits available as optional accessories.

Efficient Performance – Maximum extraction rate in normal use 460 m³/h (EN 61591) and intensive 749 m³/h with exhaust air.

Recirculation with Clean Air Plus Kit – With the Clean Air Plus recirculation kit, reaches up to 451 m³/h in normal use and 652 m³/h intensive in recirculation mode.

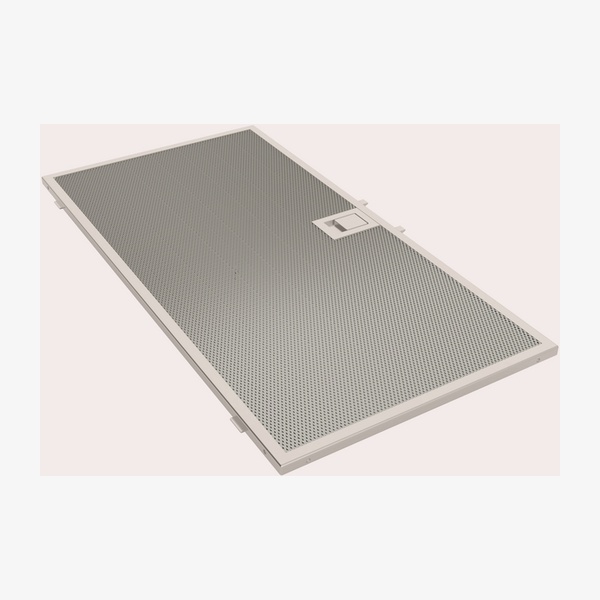

Washable Filters – Washable stainless steel grease filters with stainless steel filter covers and 2 metal grease filter cassettes.

Easy Cleaning – Easy to clean smooth surfaces and materials, with included mats for hood storage areas to help prevent scratches and item movement.

Energy Performance – Energy Efficiency Class B, Lighting Efficiency Class A, Blower Efficiency Class B and Grease Filtering Efficiency Class B (EU-Regulation No 65/2014).

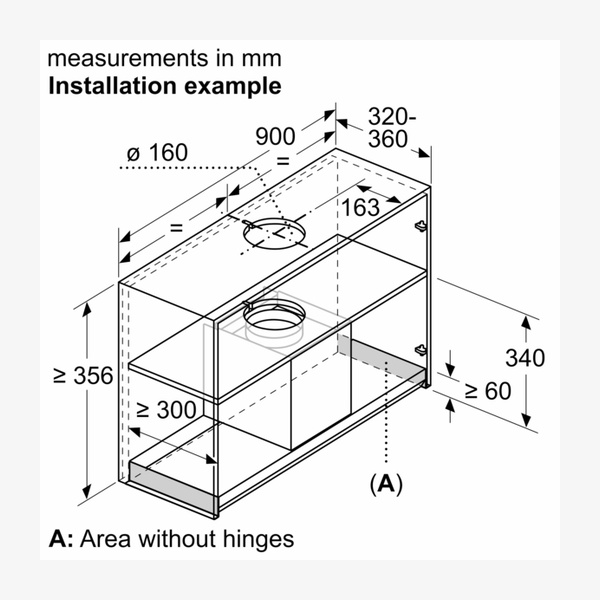

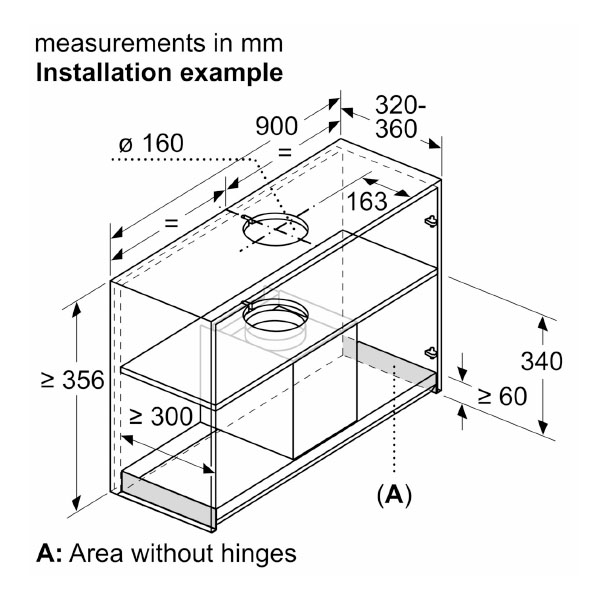

Installation Flexibility – Suitable for installation in bottomless wall cupboards with enclosed spacers for cupboards up to 360 mm depth and compatible chimney extensions.

Technical Spec

Product nameN 70 Integrated Design Hood, 90 cm, clear glass black printed, black

Model referenceD95XAM2S0B

TypologyBuilt-in/Built-under

Installation typologyBuilt-in, flush-fitted installation in wall cupboards, suitable for installation in bottomless wall cupboards

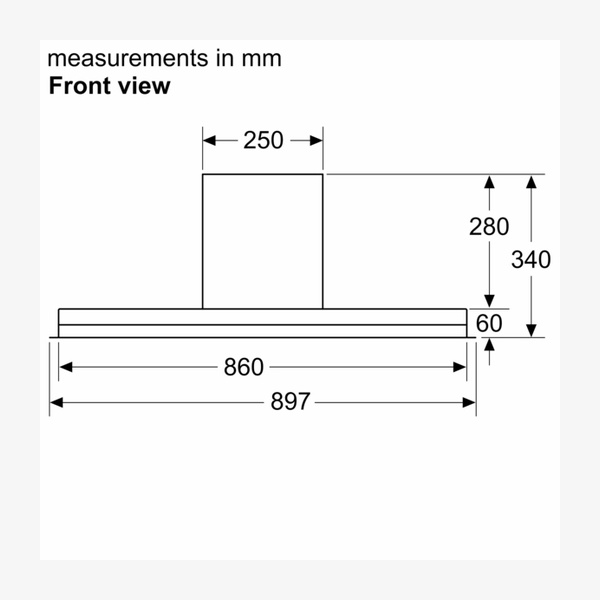

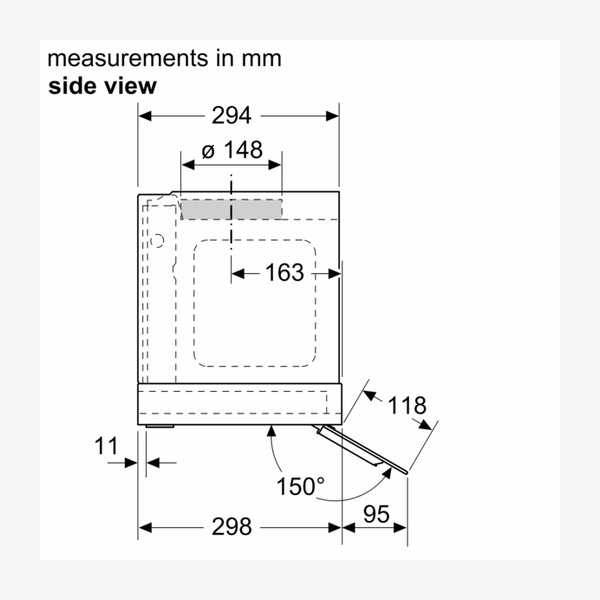

Width90 cm wide; appliance dimensions 340 x 897 x 298 mm (HxWxD)

Built-in dimensions (HxWxD)340 x 860 x 300 mm

Required niche size (HxWxD)340 mm x 860.0 mm x 300 mm

Height of appliance60 mm

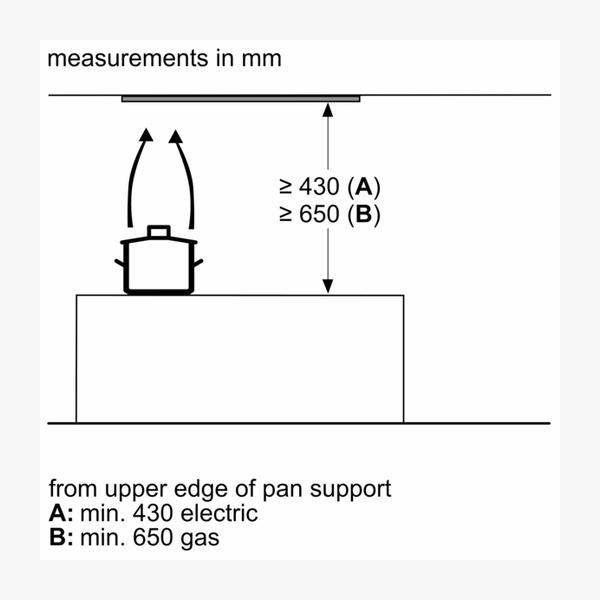

Minimum distance above electric hob430 mm

Minimum distance above gas hob650 mm

Net weight10.6 kg

Type of controlElectronic Touch control via glass panel

Speed settings3 speeds plus intensive setting; automatic intensive revert (6 mins); automatic revert setting

Maximum output air extraction460 m³/h

Boost position air extraction749 m³/h

Maximum airflow460 m³/h

Boost position output recirculating652 m³/h (with Clean Air Plus recirculation kit)

Maximum output recirculating air451 m³/h (with Clean Air Plus recirculation kit)

Noise level (exhaust air)Max. normal use: 63 dB(A) re 1 pW; intensive: 73 dB(A) re 1 pW

Noise level (recirculation)Max. normal use: 67 dB(A) re 1 pW; intensive: 74 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Number of lights3 x 2 W LED lights

Colour temperature3500 K

Light intensity517 lux

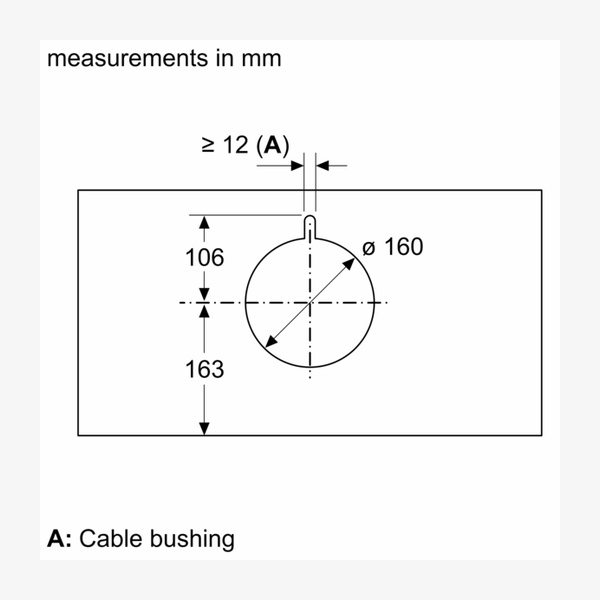

Diameter of air outlet150 mm (120 mm enclosed)

Grease filter materialWashable stainless steel, 2 metal grease filter cassettes, stainless steel filter covers

Back-pressure flapYes

Energy Efficiency ClassB (range A+++ to D)

Average energy consumption64.7 kWh/year (in accordance with EU-Regulation No 65/2014)

Blower Efficiency ClassB*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassB*

Connection rating259 W

Voltage220–240 V

Frequency50 Hz

Plug typeGB plug

Length electrical supply cord130 cm (electrical cable length 1.3 m)

Installation systemIDH comfort installation

EAN code4242004260103

Downloads

Download product documentation, manuals, and specification sheets.

D95XAM2S0B Spec

PDF

Frequently Asked Questions

Is this hood suitable for both ducted extraction and recirculation?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculated extraction, various recirculation kits are available as optional accessories, including Clean Air Standard and Clean Air Plus kits.

What is the maximum extraction rate of the D95XAM2S0B?

According to EN 61591 with a 15 cm duct, the maximum extraction rate in normal use is 460 m³/h, and the intensive setting reaches 749 m³/h in exhaust air mode.

How loud is the hood during operation?

In exhaust air mode, the noise level is 63 dB(A) re 1 pW at maximum normal speed and 73 dB(A) re 1 pW in intensive mode. With Clean Air Plus recirculation, noise levels are 67 dB(A) and 74 dB(A) re 1 pW in normal and intensive modes respectively.

What type of filters does this hood use?

The hood uses washable stainless steel grease filters with stainless steel filter covers and 2 metal grease filter cassettes. For recirculation, Clean Air Standard and Clean Air Plus odour filter kits are available as optional accessories.

What are the minimum installation heights above hobs?

The minimum distance above an electric hob is 430 mm and the minimum distance above a gas hob is 650 mm.

What optional accessories are available?

Optional accessories listed include chimney extensions Z51IBK1S1 (450–854 mm) and Z51IBN1S1 (187–360 mm), long life recirculation kit external Z51ITD1X1, long life odour filter replacement Z51ITP0X0, Clean Air Plus odour filter replacement Z51IXB1X6, Clean Air Plus recirculation kit external Z51IXC1X6, Clean Air Standard odour filter replacement Z51IBB6X4 and Clean Air Standard recirculation kit Z51IBI6X4.
