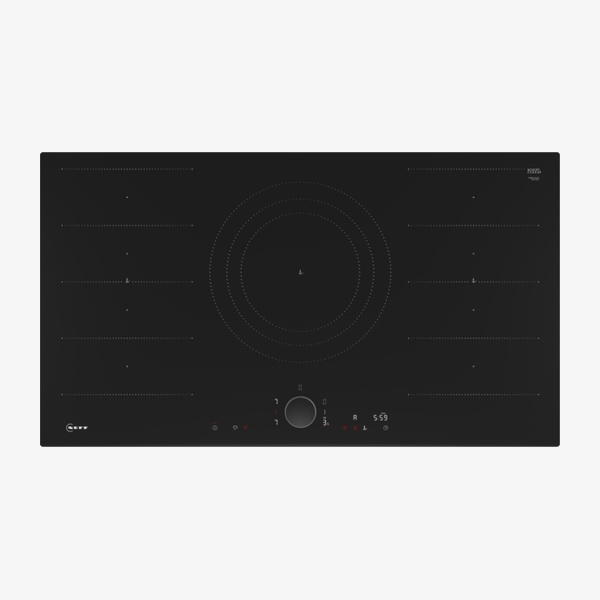

Neff N90 T69FUV4L0 FlexInduction Hob

The N 90 T69FUV4L0 is a 90 cm built–in Flex Induction hob designed for surface mounting without a frame, offering space for five pots or pans. It features two Flex zones, a ring zone triple for extra large cookware and Twist Pad® magnetic control. Power Boost, Extended Frying Sensor, Favourite Button and Home Connect compatibility provide convenient, precise cooking, while multiple safety functions support everyday use in modern kitchens.

SKU:T69FUV4L0

EAN:4242004269137

Category::Hobs

Quantity:

Key Features

90 cm width with 5 cooking zones – space for 5 pots or pans.

Flex Induction zones – 2 Flex zones allow cookware of any shape or size anywhere within the 40 cm long zone.

Ring zone triple – expandable cooking zone for regular up to extra large cookware such as paella pans.

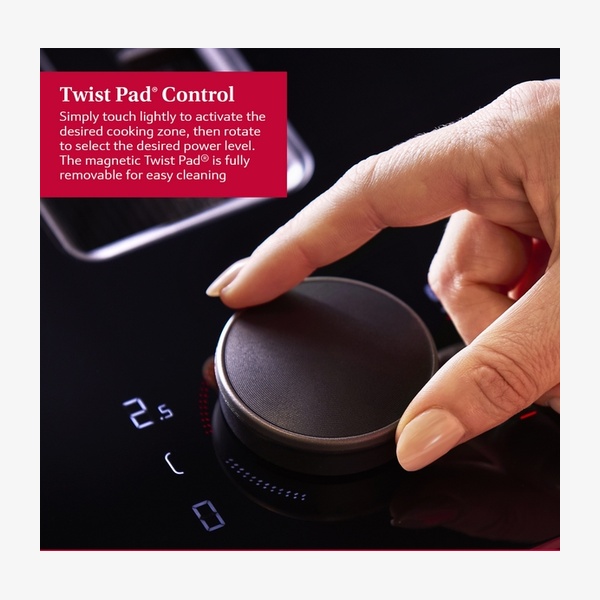

Twist Pad® magnetic control – directly control power with a removable magnetic knob.

Variable 17–stage power settings – precisely adapt heat with 9 main levels and 8 intermediate levels for each zone.

Power Boost for all zones – boil water faster with up to 50 % more energy than at the highest standard level.

Pan Boost function – selectable via Favourite Button or Home Connect app to heat pans faster while protecting pan coating.

Automatic join split on Flex zones – hob automatically connects two cooking zones into one large continuous zone for large cookware.

PowerTransfer and automatic zone selection – transfer settings to a new zone and automatically select the zone with newly placed cookware.

QuickStart and ReStart functions – automatic zone selection on start and restoration of previous settings after unintentional switch–off.

Extended Frying Sensor with 11 frying levels – monitors the desired temperature and helps prevent burning or overcooking.

Favourite Button – save, manage and directly access preferred settings and functions (available with connected Home Connect account).

Keep warm function – via Home Connect app/MyButton to keep dishes warm at a preset low power level.

Dish assistant via app – helps find the right temperature setting for specific dishes through the Home Connect app.

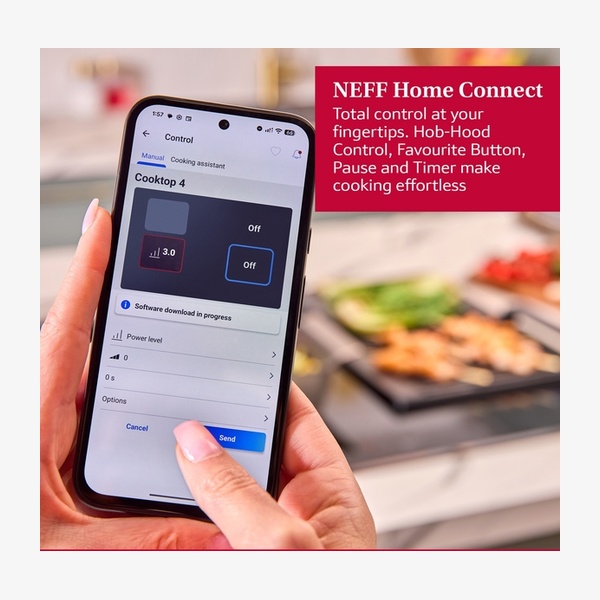

Home Connect with remote monitoring – check if the hob is switched off and access recipes or additional functions in the app.

Hob Hood Control and Smart Hood Automatic – suitable Wi–Fi enabled hoods can be automatically activated and fan speed adapted.

Updateable appliance – software can be kept up to date via a connected Home Connect account.

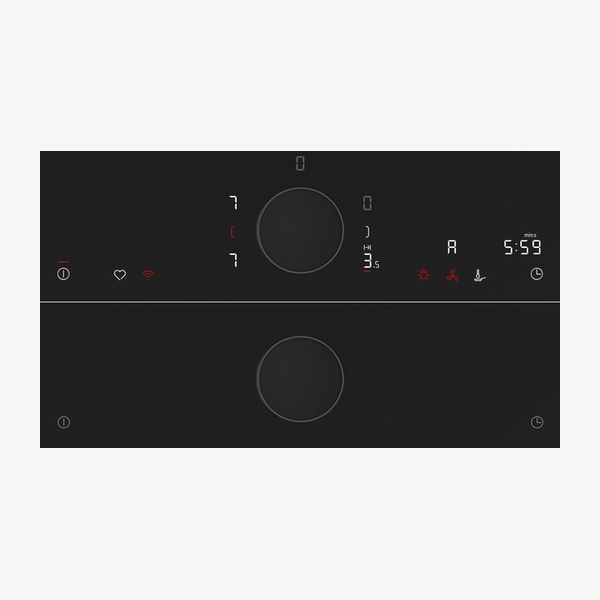

Two–coloured display (white/red) – clearly shows which functions are activated.

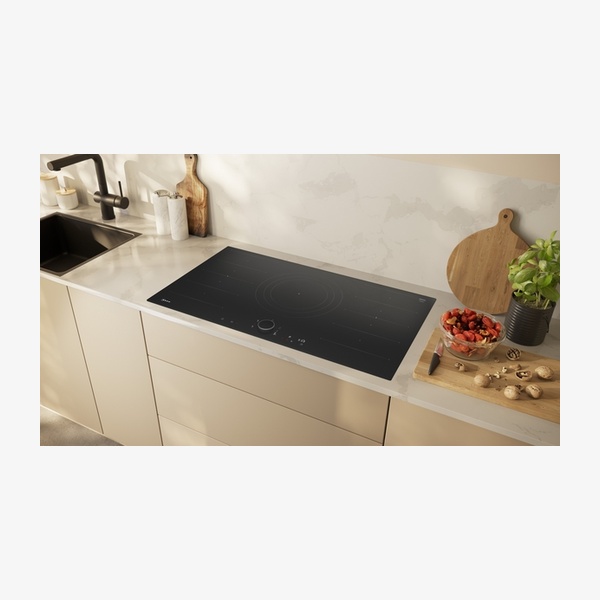

Design with bevelled front edge – black ceramic glass surface with bevelled front edge.

Advanced safety functions – 2–stage residual heat indicators, control panel lock, pause function, main switch and safety cut–out facility.

Flexible power management – 11.1 kW connected load with 4.6 kW power output (20 A) and options for 16 A, 13 A or 10 A connection.

Optional accessories – compatible with a wide range of pans, pots, Teppan Yaki plates, thermometer and Twist Pad Flex (anthracite grey).

Technical Spec

Product name/familyCooking zone ceramic

Model designationT69FUV4L0

SeriesN 90

TypeStandalone Flex Induction hob with Twist Pad® control

Installation typeBuilt-in, surface mount without frame

Energy inputElectric

Number of cooking zones5

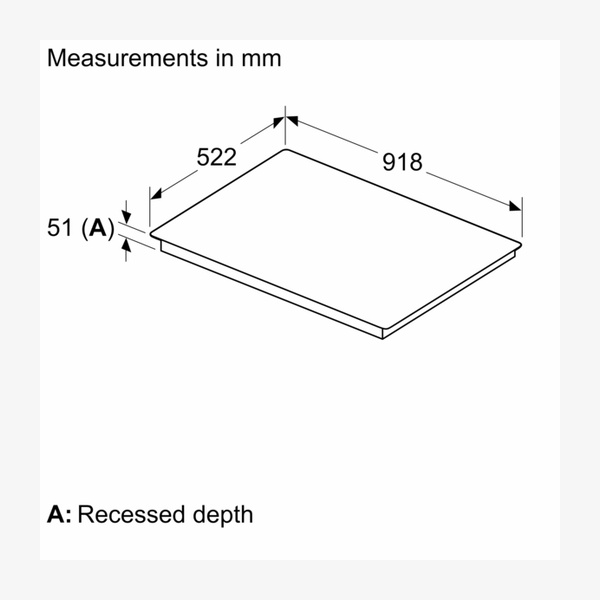

Dimensions (H x W x D)51 x 918 x 522 mm

Required niche size (H x W x D)51 x 880–880 x 490–500 mm

Width of the appliance918 mm

Dimensions of packed product (H x W x D)130 x 1080 x 610 mm

Net weight20.7 kg

Gross weight22.5 kg

Residual heat indicatorSeparate; 2 stage residual heat indicators

Location of control panelFront

Surface materialCeramic

Surface colourBlack

EAN code4242004269137

Voltage220–240 V

Frequency50–60 Hz

Connected load11.1 kW

Power output and current options4.6 kW power output (20 A); current management options for 16 A, 13 A or 10 A connection

Minimum worktop thickness16 mm

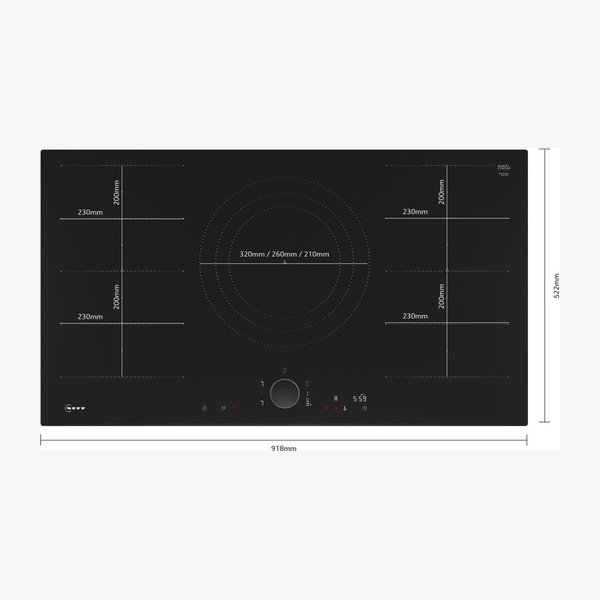

Front left cooking zone200 mm, 230 mm, 2.2 kW (max. power 3.7 kW)

Rear left cooking zone200 mm, 230 mm, 2.2 kW (max. power 3.7 kW)

Middle cooking zone210 mm, 260 mm, 320 mm, 2.2 kW (max. power 3.7 kW)

Rear right cooking zone200 mm, 230 mm, 2.2 kW (max. power 3.7 kW)

Front right cooking zone200 mm, 230 mm, 2.2 kW (max. power 3.7 kW)

Downloads

Download product documentation, manuals, and specification sheets.

T69FUV4L0 Spec

PDF

Frequently Asked Questions

How many cooking zones does the N 90 T69FUV4L0 hob have?

The hob has five cooking zones, including two Flex zones and a ring zone triple that supports regular to extra large cookware.

What are the main advantages of the Flex Induction zones?

The two Flex zones allow you to place cookware of any shape or size anywhere within the 40 cm long zone. When large cookware is used, the hob can automatically join two zones into a large continuous zone, and settings adapt to the cookware size.

How does the Twist Pad® control work?

Twist Pad® is a removable magnetic knob that directly controls the power levels of the cooking zones. It works with a two coloured display that clearly shows which functions are active.

What smart features does the hob offer with Home Connect?

With a connected Home Connect account, you can remotely monitor whether the hob is switched off, access recipes and additional functions, configure the Favourite Button, use dish assistance, control Pan Boost, enable Hob Hood Control and Smart Hood Automatic with compatible hoods, and keep the appliance software up to date.

What safety features are included?

Safety features include 2 stage residual heat indicators, a separate residual heat indicator, a control panel lock to prevent unintended activation, a pause function, a main switch to turn off all zones and a safety cut–out facility that stops heating after a preset time if not used.

What installation space and electrical connection are required?

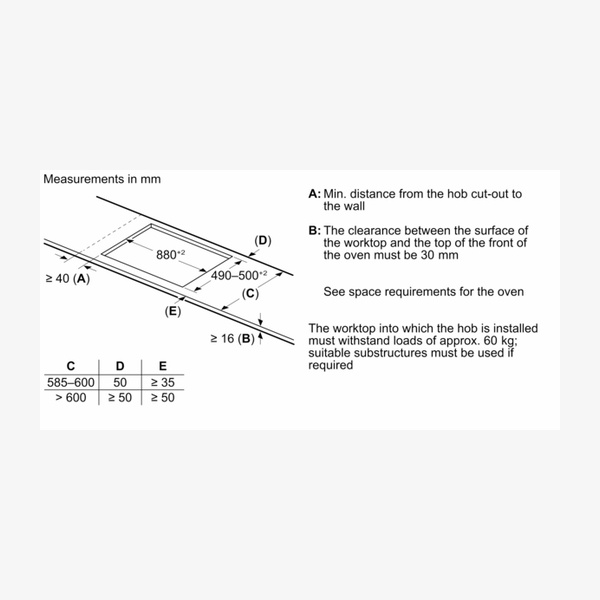

The required niche size is 51 x 880 x 490–500 mm with a minimum worktop thickness of 16 mm. The connected load is 11.1 kW, with 4.6 kW power output at 20 A and current management options to limit power for 16 A, 13 A or 10 A connections, depending on fuse protection of the electrical installation.
