Neff N90 I98WMM1S7B Downdraft

The N 90 downdraft hood I98WMM1S7B is a 90 cm built-in glass draft hood in clear glass and black, designed to integrate seamlessly behind the hob. It offers Guided Air Technology for effective extraction across the cooktop, with a climateControl Sensor to optimise power and noise. An extendable illuminated glass panel, Home Connect functionality, and high extraction rates support flexible use in ducted or recirculation mode, including suitability for island and semi-island kitchen solutions.

SKU:I98WMM1S7B

EAN:4242004252290

Category::Cooker Hoods

Quantity:

Key Features

Guided Air Technology – equally powerful steam extraction over the entire cooktop regardless of pans or pots location.

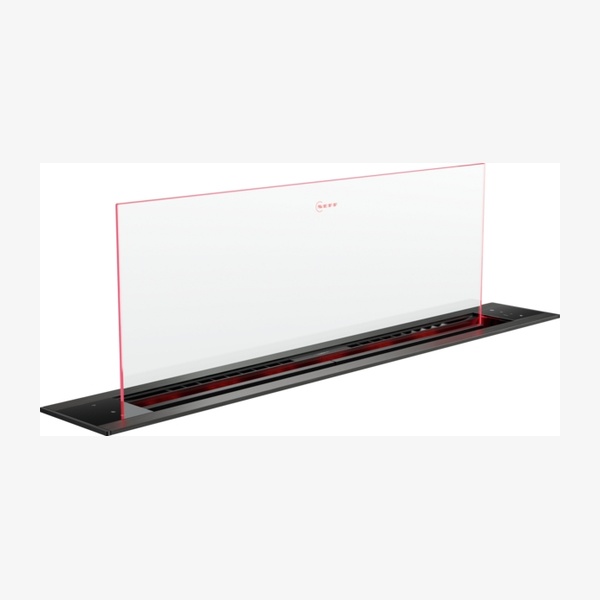

Glass Panel with Illumination – extendable clear glass panel with edge lighting offering 25 million colour options for ambient illumination.

High Extraction Rate – maximum exhaust air extraction of 519 m³/h, with intensive level up to 833 m³/h.

Home Connect connectivity – remote monitoring and control via compatible smartphone or tablet, plus integration with applications from cooperation partners (where available).

Voice control enabled – can be operated via popular voice assistants in countries where this service is available.

Cooktop-based hood control – hob-hood control with Wi-Fi enabled hob to adjust extraction level and lighting.

Fully automatic hood operation – climateControl Sensor optimises power and noise levels as you cook.

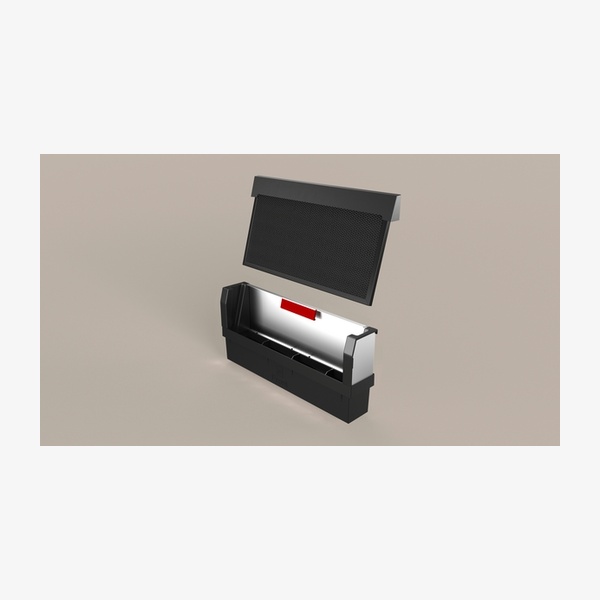

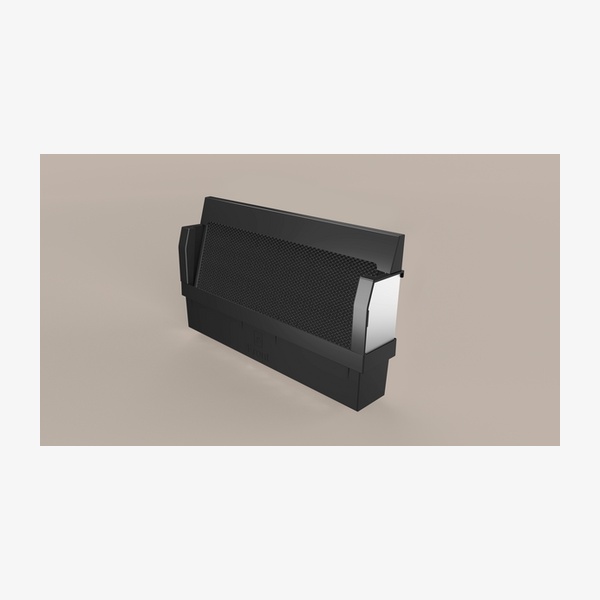

Easy access filters – a push button lifts metal grease filter cassettes into service position for easy removal and dishwasher cleaning.

Recirculation option – suitable for ducted extraction and recirculation; Clean Air Plus recirculation kit available as an accessory.

Energy Efficiency Class A – average energy consumption 37.8 kWh/year (according to EU-Regulation No 65/2014).

Multiple power levels – 3 power levels and 2 intensive settings with automatic intensive revert (6 minutes).

Automatic after-running – automatic after-running function of 10 minutes.

Washable stainless steel grease filters – 2 metal grease filter cassettes with saturation indicators for metal and charcoal filters.

Touch control interface – electronic touch control with standard functions located on the right-hand user interface.

BLDC motor technology – efficient BLDC technology for extraction performance.

Planning flexibility – suitable for installation in island or semi-island kitchen solutions, with integrated installation design.

Technical Spec

Model nameI98WMM1S7B

Product type / typologyDowndraft / Glass Draft Hood

Colour / finishClear glass, Black

Width90 cm / 90 cm wide

Energy Efficiency ClassA (range of energy efficiency classes from A+++ to D)

Average energy consumption37.8 kWh/year*

Blower Efficiency ClassA*

Lighting Efficiency Class-*

Grease Filtering Efficiency ClassC*

Installation typeBuilt-in / integrated; suitable for island or semi-island kitchen solution

Suitable hob typesNot suitable for combination with gas hobs

Dimensions (H x W x D)709 x 918 x 140 mm

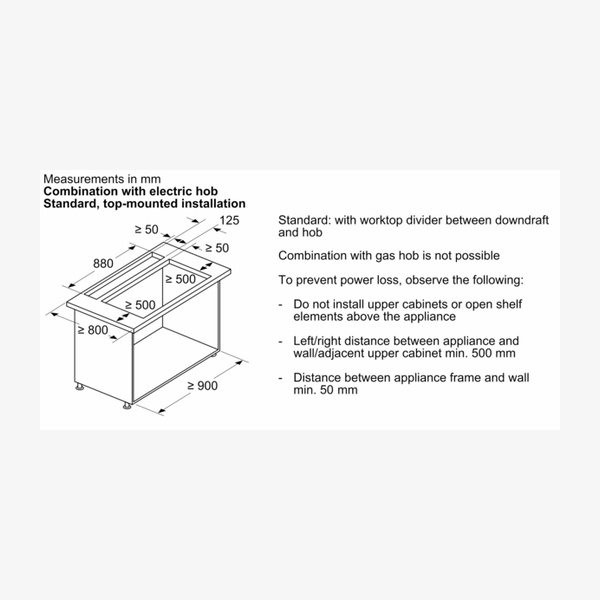

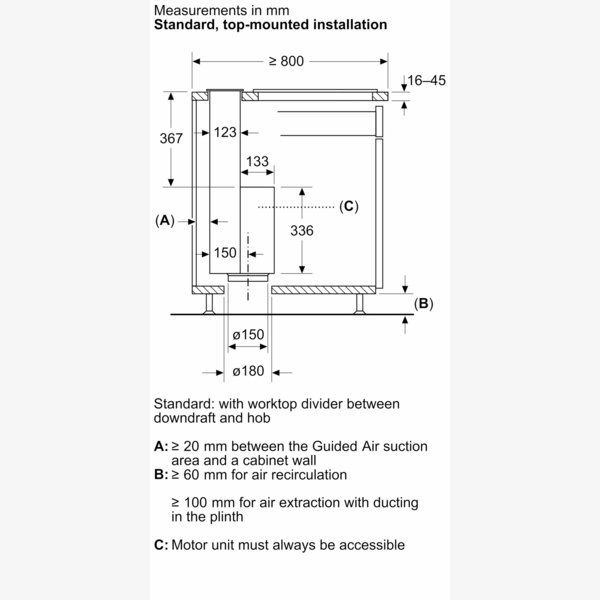

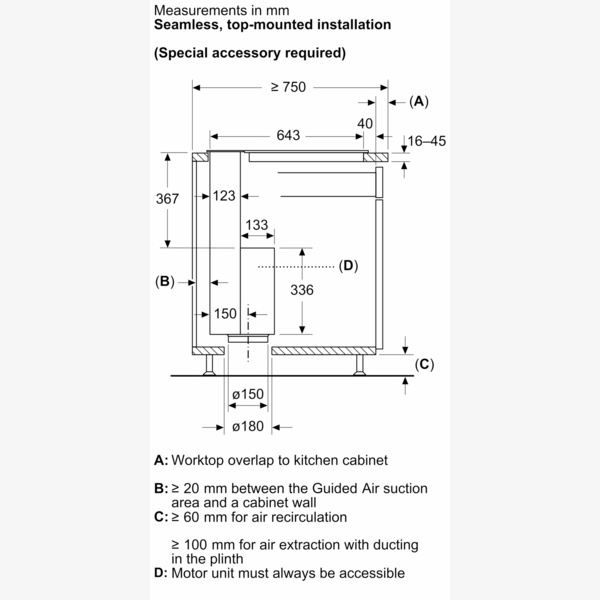

Built-in dimensions (H x W x D)703 x 854 x 123 mm

Extension height250 mm

Height of appliance709 mm

Net weight39.7 kg

Length of electrical supply cord130 cm / 1.3 m

Type of controlElectronic touch control; standard functions on right-hand user interface

Number of speed settings3-stage + 2 intensive

Maximum output air extraction (exhaust)519 m³/h (max. normal use according to EN 61591)

Boost position air extraction (exhaust)833 m³/h (intensive according to EN 61591)

Maximum output recirculating air456 m³/h (max. normal use with Clean Air Plus recirculation kit)

Boost position output recirculating596 m³/h (intensive with Clean Air Plus recirculation kit)

Maximum air flow519 m³/h

Noise level (exhaust, max. normal use)62 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)

Noise level (exhaust, intensive)71 dB(A) re 1 pW

Noise level (recirculation, max. normal)66 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Noise level (recirculation, intensive)71 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Diameter of air outlet150 mm (extractor hose 150 mm)

Grease filter materialWashable stainless steel (2 metal grease filter cassettes)

Filter indicatorsSaturation indicator for metal and charcoal filter; filter service button

Connection rating300 W

Fuse protection10 A

Voltage220–240 V

Frequency60; 50 Hz

Plug typeGB plug

ConnectivityHome Connect, remote monitoring and control, interval function, silence function (availability depends on country)

Additional functionsAmbient light RGB; fully automatic hood; automatic intensive revert (6 mins); automatic after running (10 minutes)

EAN code4242004252290

Compliance note* In accordance with EU-Regulation No 65/2014

Downloads

Download product documentation, manuals, and specification sheets.

I98WMM1S7B Spec

PDF

Frequently Asked Questions

Can this downdraft hood be used with gas hobs?

No. The appliance is not suitable for combination with gas hobs.

Is the N 90 downdraft hood suitable for both ducted and recirculation use?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculated extraction, a Clean Air Plus recirculation kit is needed as an accessory.

How many power levels does the hood offer?

The hood has 3 standard power levels and 2 intensive settings. Intensive mode includes an automatic revert function after 6 minutes.

Are the grease filters dishwasher safe?

Yes. The easy access metal grease filter cassettes are made from washable stainless steel and can be cleaned in the dishwasher.

Does the hood support smart home and voice control?

Yes. Home Connect enables remote monitoring and control via smartphone or tablet, and voice control is enabled via popular voice assistants where this service is available.

What is the maximum extraction rate in intensive mode?

In exhaust air mode, the maximum extraction rate in intensive setting is 833 m³/h according to EN 61591. With the Clean Air Plus recirculation kit, the intensive extraction rate in recirculation mode is 596 m³/h.
