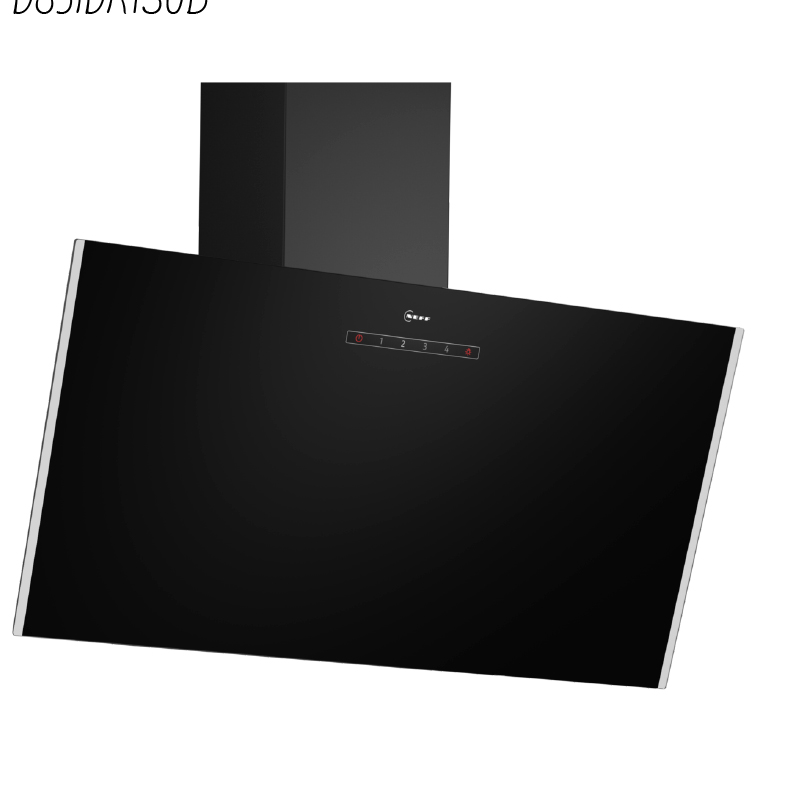

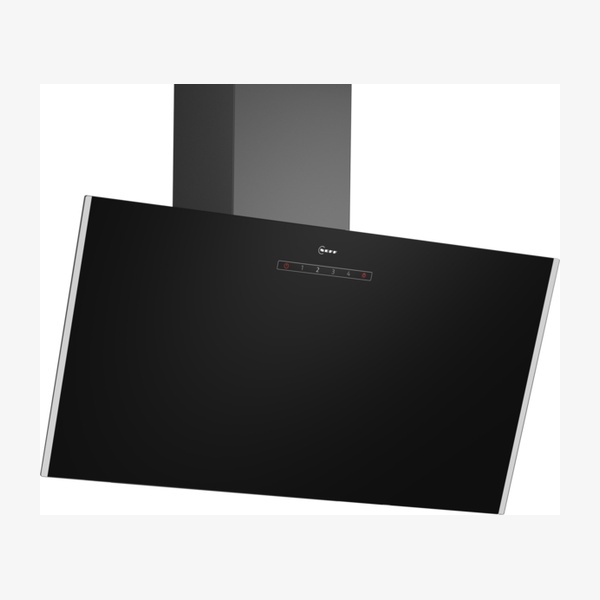

Neff N30 D83IDK1S0B Chimney Hood

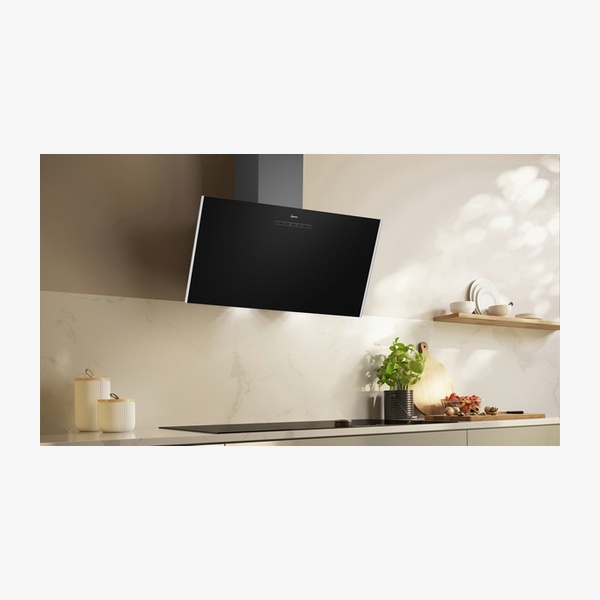

The N 30 D83IDK1S0B is an 80 cm wall‑mounted inclined glass cooker hood in black glass, designed for ducted extraction or recirculation. It features a low‑noise motor, electronic touch control and three speeds plus intensive setting for stronger steam. With LED lighting, washable aluminium grease filter and easy‑clean smooth surfaces, it offers clear visibility and convenient maintenance for everyday cooking.

SKU:D83IDK1S0B

EAN:4242004273332

Category::Cooker Hoods

Quantity:

Key Features

Low‑noise motor – optimised motor for a quiet cooking experience.

Intensive speed setting – increases extraction rate when steam becomes intense, with automatic reset to normal after 5 min.

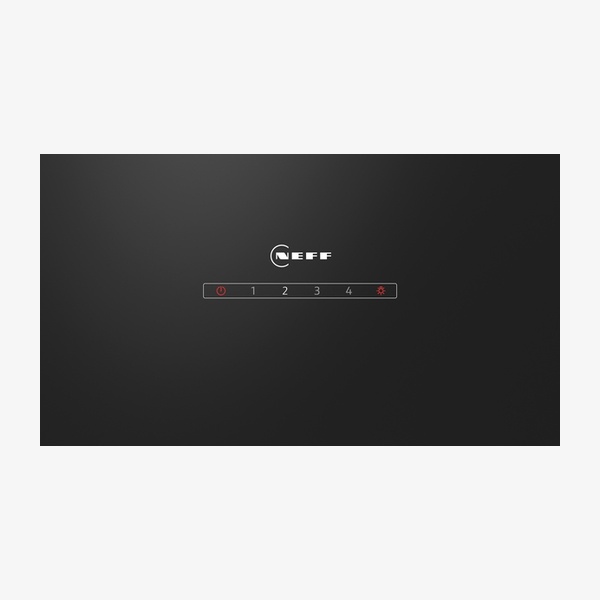

Touch Control panel – integrated flat electronic control with backlighting for smooth operation with a finger swipe.

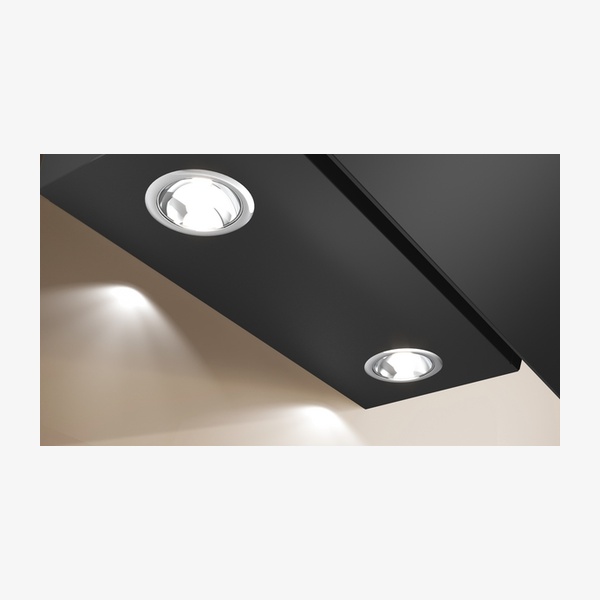

LED lighting – 2 x LED lights (4000 K, 127 lux) provide clear illumination while you cook.

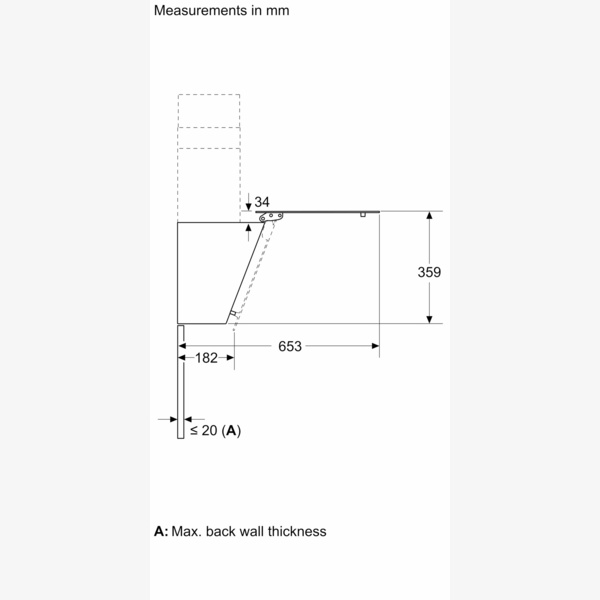

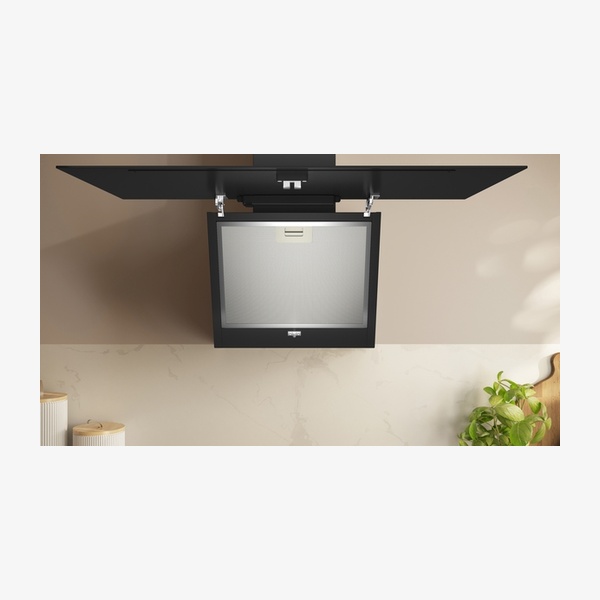

Inclined glass design – wall‑mounted black glass hood with large opening angle and locking function for easy filter access.

Ducted or recirculation use – suitable for extraction to outside air or recirculated operation (recirculation kit required for recirculation).

3 speeds plus intensive – flexible performance levels up to 430 m³/h in normal extraction and 550 m³/h in boost mode.

Washable aluminium grease filter – metal grease filter is dishwasher‑safe for easier cleaning.

Saturation indicators – alerts for metal and charcoal filter saturation.

Energy Efficiency Class A – average energy consumption 43.8 kWh/year (A+++ to D scale).

Standard accessories – compatible with optional standard odour filter (Z51GIA1X3) and standard recirculation kit (Z51GIU1X3).

Technical Spec

Product nameN 30, Wall‑mounted cooker hood, 80 cm, clear glass black printed, black

Model codeD83IDK1S0B

TypologyWall‑mounted

Design & colourInclined glass common design; black glass; colour chimney: Black

Installation typologyWall‑mounted; suitable for ducted extraction and recirculation

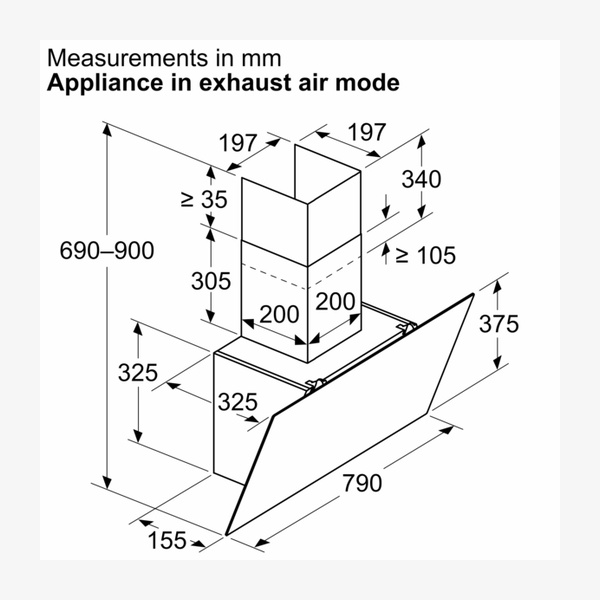

Dimensions exhaust air (H×W×D)690–900 x 790 x 325 mm

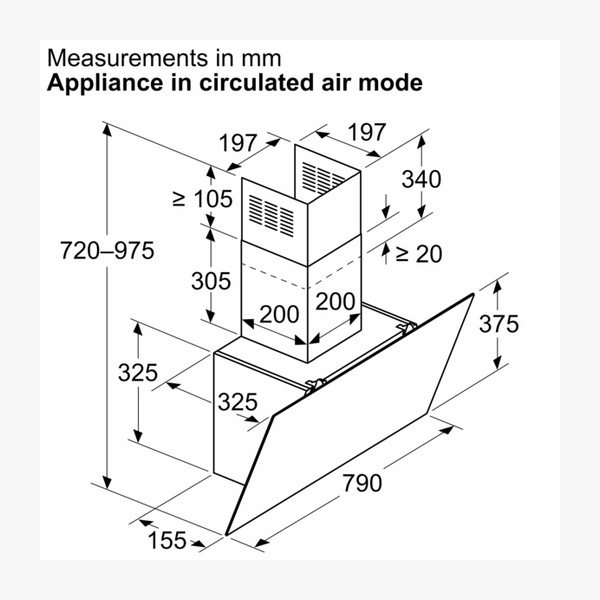

Dimensions recirculating (H×W×D)720–975 x 790 x 325 mm

Appliance height325 mm

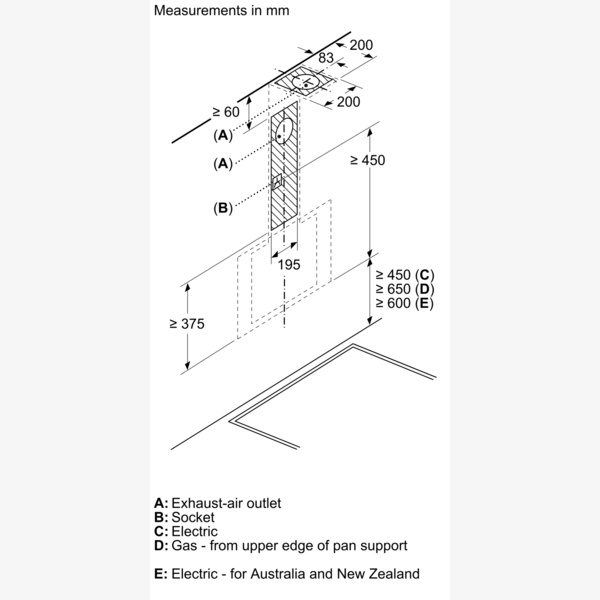

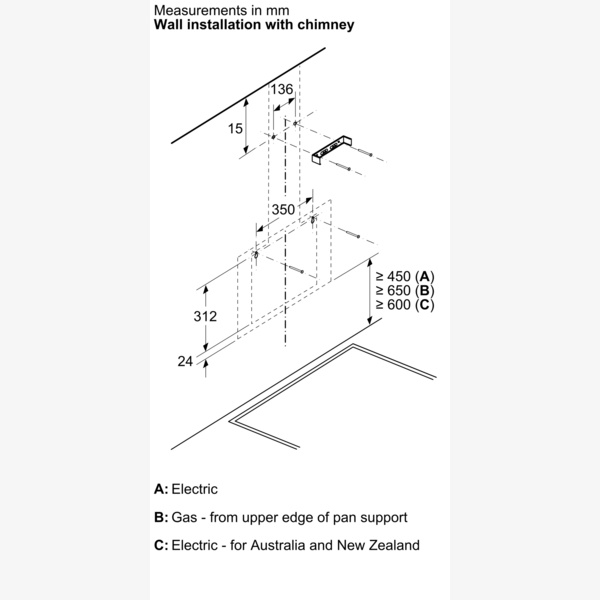

Minimum distance above electric hob450 mm

Minimum distance above gas hob650 mm

Net weight11.3 kg

Type of controlElectronic control via Touch control, backlighted

Speed settings3 stages + intensive setting; 3 speeds plus intensive; automatic reset from intensive after 5 min

Maximum extraction (ducted)Maximum output air extraction: 430 m³/h; Boost position air extraction: 550 m³/h; Maximum Air flow: 430 m³/h

Extraction performance by speed (exhaust)Speed 1: 220 m³/h; Speed 2: 315 m³/h; Speed 3: 430 m³/h; Intensive 1: 550 m³/h (according to EN 61591 and EN/IEC 60704-2-13)

Maximum recirculating outputMaximum output recirculating air: 445 m³/h; Boost position output recirculating: 550.0 m³/h

Recirculation performance by speedSpeed 1: 215 m³/h; Speed 2: 300 m³/h; Speed 3: 445 m³/h; Intensive Speed 1: 550 m³/h (with standard recirculation kit, according to EN 61591 and EN/IEC 60704-2-13)

Noise level (maximum)60 dB(A) re 1pW

Noise levels by speed (exhaust)Speed 1: 46 dB(A) re1pW; Speed 2: 53 dB(A) re1pW; Speed 3: 60 dB(A) re1pW; Intensive 1: 65 dB(A) re1pW

Noise levels by speed (recirculation)Speed 1: 51 dB(A) re1pW; Speed 2: 61 dB(A) re1pW; Speed 3: 69 dB(A) re1pW; Intensive Speed 1: 72 dB(A) re1pW

Motor typeCapacitor motor

Number of lights2 x LED lights

Light colour temperature4000 K

Light intensity127 lux

Grease filter materialWashable aluminium; 1 metal grease filter(s); metal grease filter dishwasher‑safe

Odour / recirculation accessoriesZ51GIA1X3 Standard odour filter (replacement); Z51GIU1X3 Standard recirculation kit

Energy Efficiency ClassA (range of energy efficiency classes from A+++ to D)

Average energy consumption43.8 kWh/year*

Blower Efficiency ClassA*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassE*

Connection rating / Power rating223 W

Fuse protection4 A

Voltage220–240 V; nominal voltage: 220–240 V

Frequency50 Hz

Plug typeGB plug

Length of electrical supply cord150 cm; electrical cable length 1.5 m

Diameter of air outlet / pipe150 mm; diameter pipe Ø 150 mm (Ø 150 mm enclosed)

Back‑pressure flapYes

EAN code4242004273332

Downloads

Download product documentation, manuals, and specification sheets.

D83IDK1S0B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in recirculation mode?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculated extraction, a recirculation kit is needed. A standard recirculation kit (Z51GIU1X3) is available as an optional accessory.

What are the maximum extraction rates?

In exhaust mode, the maximum output air extraction is 430 m³/h, with a boost position of 550 m³/h. In recirculation mode with the standard recirculation kit, the maximum output is 445 m³/h, with an intensive extraction rate of 550 m³/h.

How loud is the hood during operation?

The noise level at maximum normal extraction is 60 dB(A) re 1pW. In exhaust mode, noise levels range from 46 dB(A) at speed 1 up to 65 dB(A) in intensive mode. In recirculation mode, noise levels range from 51 dB(A) at speed 1 up to 72 dB(A) in intensive mode.

Is the grease filter dishwasher‑safe?

Yes. The hood includes one metal grease filter made of washable aluminium, and the metal grease filter is described as dishwasher‑safe.

What type of lighting does the hood use?

The cooker hood uses 2 x LED lights with a colour temperature of 4000 K and a light intensity of 127 lux, providing clear illumination of the cooking area.

What are the energy efficiency details?

The hood has an Energy Efficiency Class of A on a scale from A+++ to D. Average energy consumption is 43.8 kWh/year*. The Blower Efficiency Class is A*, the Lighting Efficiency Class is A*, and the Grease Filtering Efficiency Class is E*.
