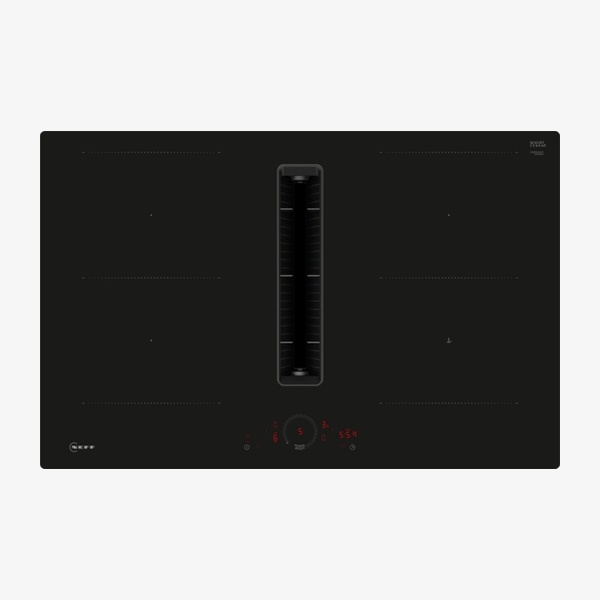

Neff N70 V58PHQ4C0 Venting FlexInduction Hob

This 80 cm N 70 induction hob with integrated downdraft ventilation combines a four-zone cooktop and powerful extractor in one flush-mount appliance. It is designed for built-in installation and offers flexible combi induction zones, multitouch control, Power Boost and advanced frying levels. High extraction rates, reduced noise and easy-clean filters support clear views and convenient maintenance, while Home Connect features add smart control and helpful cooking assistance.

SKU:V58PHQ4C0

EAN:4242004277392

Category::Hobs

Quantity:

Key Features

80 cm cooktop – space for 4 pots or pans across four induction cooking zones.

Combi Induction zones – connect two classic cooking zones into one large zone for bigger cookware.

Twist Touch® / Multitouch+ control – directly control power with an imprinted touch ring operated with a twist of your finger.

High extraction rate – integrated downdraft system with max. boost extraction of 622 m³/h for ducted operation.

Reduced noise ventilation – optimised, low-noise blower and acoustic filters for quiet cooking.

Easy-clean filters – stainless-steel grease filters and liquid collector parts are easy to detach, dishwasher-safe and heat resistant.

17-stage power settings – 9 main levels and 8 intermediate levels for precise heat control on each zone.

Power Boost for all zones – boil water faster with 50 % more energy than at the highest standard level.

Pan Boost function – selectable via Favourite button or Home Connect app to heat pans faster while protecting coatings.

11 frying levels – automatic temperature regulation with integrated sensor to help prevent overcooking.

Home Connect connectivity – remote monitoring, dish assistant and additional functions via a connected Home Connect account.

Favourite Button – configurable button for direct access to favourite functions when connected.

Keep warm function – keeps dishes warm at a preset low power level via app/MyButton.

Timers and reminders – switch-off timer, count-down timer and clean filter reminders for added convenience.

Flushline design – fully flush air intake with floating, heat-resistant glass-ceramic element and minimalistic zone printing.

Integrated liquid management – liquid collectors totalling 900 ml capacity and watertight blower system for accidental spillages.

Energy-efficient extraction – Energy Efficiency Class B, Fluid Dynamic Efficiency A and grease filtration efficiency of 94 %.

Safety functions – 2-stage residual heat indicators, control panel lock, main switch, safety cut-out facility and pause function.

Flexible installation options – suitable for ducted or recirculated extraction, island or wall configurations, and 60 cm base cabinets.

Included accessories – slider for unducted recirculation and Clean Air Plus odour filter supplied.

Technical Spec

Product name/familyCooking zone ceramic

Built-in / Free-standingBuilt-in

Energy inputElectric

Number of cooking zones4

Width of the appliance792 mm

Dimensions (H×W×D)227×792×512 mm

Packed product dimensions (H×W×D)430×950×670 mm

Net weight26.1 kg

Gross weight30.8 kg

Residual heat indicatorSeparate

Location of control panelFront

Surface materialCeramic

Colour of surfaceBlack

Length of electrical supply cord110 cm

Sealed burnersNo

Heating with boosterAll

Power of 2nd heating element3600.0 W

Number of speed settings (ventilation)9-stage + 2 intensive

Maximum output air extraction500 m³/h

Boost position output recirculating595.0 m³/h

Maximum output recirculating air487 m³/h

Boost position air extraction622 m³/h

Noise level69 dB(A) re 1 pW

Odour filterNo

Clean filter remindersYes

Voltage220–240/380–415 V

Frequency50–60 Hz

Included accessories1× Slider for unducted recirculation, 1× Clean Air Plus odor filter

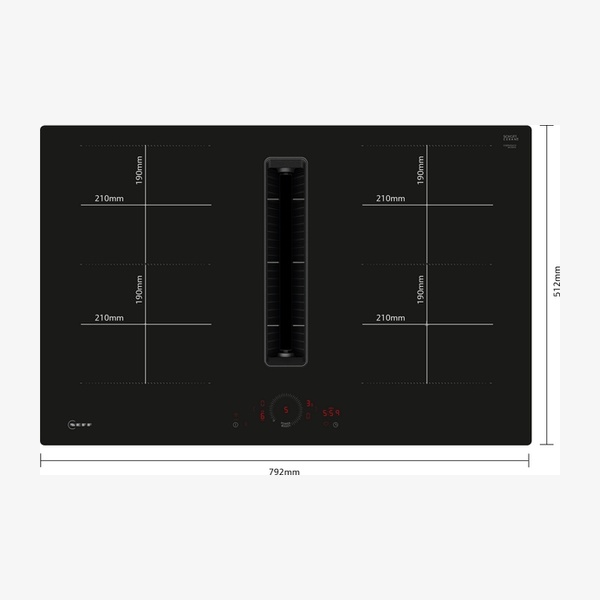

Cooking zone front left190 mm, 210 mm, 2.5 kW (max. power 3.7 kW)

Cooking zone rear left190 mm, 210 mm, 2.5 kW (max. power 3.7 kW)

Cooking zone rear right190 mm, 210 mm, 2.5 kW (max. power 3.7 kW)

Cooking zone front right190 mm, 210 mm, 2.5 kW (max. power 3.7 kW)

Power levels per zoneVariable 17-stage (9 main, 8 intermediate)

Energy Efficiency Class (ventilation)B (A+++ to D scale)

Fluid Dynamic EfficiencyA

Average energy consumption (ventilation)57

Grease filtration efficiency94 %

Grease filtration efficiency classB

Noise ducted extraction (min / max / boost)42 dB re 1 pW / 69 dB re 1 pW / 74 dB re 1 pW

Noise recirculated extraction (min / max / boost)41 dB re 1 pW / 68 dB re 1 pW / 72 dB re 1 pW

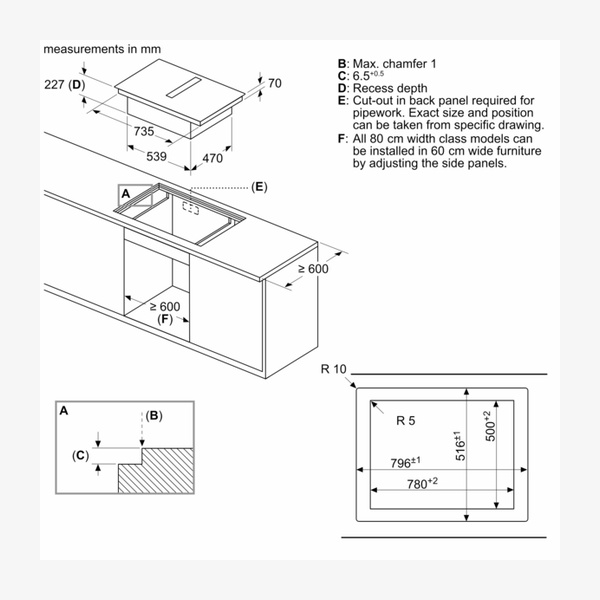

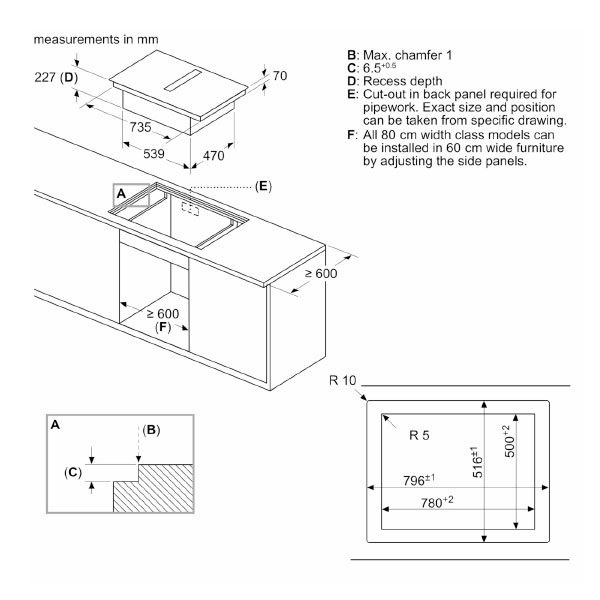

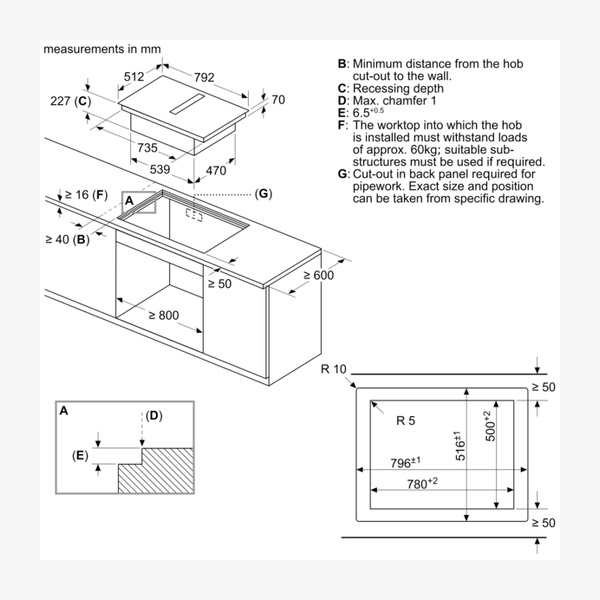

Dimensions of product (H×W×D) for installation227×792×512 mm

Required niche size (H×W×D)227×796×516 mm

Minimum worktop thickness16 mm

Connected load7.4 kW

Power output (20 A)4.6 kW; current management options for 16 A, 13 A or 10 A connection

Power cord1.1 m, cable included in packaging

Suitable base cabinet width60 cm

Functions, Usage and Installation

Cooking and control functions

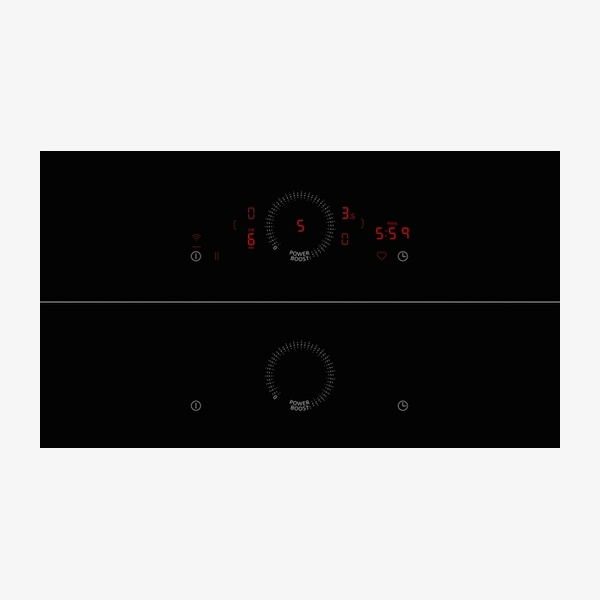

Multitouch+ touch ring for direct power control.
Favourite Button for quick access to favourite functions (with connected Home Connect account).
Variable 17-stage power settings per zone.
Keep warm function via Home Connect app/MyButton.
Switch-off timer to turn off a cooking zone after a set time.
Count-down timer with acoustic signal as an alternative to the switch-off timer.
Sound volume adaptable to personal preference and needs.
Power Boost and Pan Boost functions for faster heating.
QuickStart function automatically selects a zone with cookware when switching on.
ReStart function restores previous settings after unintentional switch-off if reactivated within 4 seconds.
11 frying levels with automatic temperature regulation and integrated sensor.
Dish assistant via Home Connect app to help find the right temperature setting for certain dishes.
Pause function to temporarily stop the heating process.

Integrated ventilation downdraft system

Induction cooktop with fully integrated high-performance downdraft extractor.
Suitable for ducted or recirculated extraction, including differentiated software modes.
Aesthetically integrated, fully flush air intake with floating, heat-resistant glass-ceramics element.
Automatic switch-on of ventilation when a cooking zone is used.
Automatic delayed shut-off after cooking in ultra low-noise fan level (12 min ducted, 30 min recirculated), with manual shut-off option.
High-performance, low-noise blower with energy-efficient BLDC technology and enclosed, non-visible blower.
Pressure-drop resistant design for longer and more complex ducting.
Grease filtration efficiency of 94 % with large-scale stainless-steel grease filters (12 filtration layers and black top layer).

Cleaning and maintenance

Convenient one-hand removal of the grease filter and liquid collector unit via floating glass-ceramics handle.
All parts of the unit are easy to clean, fully dishwasher-safe and heat resistant.
Upper liquid collector unit with 200 ml capacity for standard spillages or condensate.
Powerful drainage system for spillages exceeding 200 ml.
Liquid safety collector with additional 700 ml capacity, dishwasher-safe and accessible from below.
Overall capturing capacity of 900 ml (200 ml + 700 ml).
Watertight blower system for added protection.
Clean filter reminders to prompt maintenance.

Clean Air and acoustic filters

For recirculation: 2×2 battery of directly integrated, high-performance cleanAir odour filters.
Optimised odour reduction performance for cooking with complex odour molecules.
Large filter surface with high odour reduction capability.
Anti-pollen functionality: filter retains airborne pollen and deactivates allergens retained by the filter.
Lifetime of 360 hours of cooking (non-regenerative).
Low-noise filters with optimised psycho-acoustics, easy to access and remove from above.
Replenishment cleanAir filter set: Z821VR0.
For ducted extraction: 2×2 sets of directly integrated, high-performance low-noise acoustic filters.

Safety features

2-stage residual heat indicators show which zones are still hot or warm.
Control panel lock to prevent unintended activation.
Main switch to turn off all cooking zones at the touch of a button.
Safety cut-out facility stops heating after a preset time if not used.
Product and accessories comply with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94).

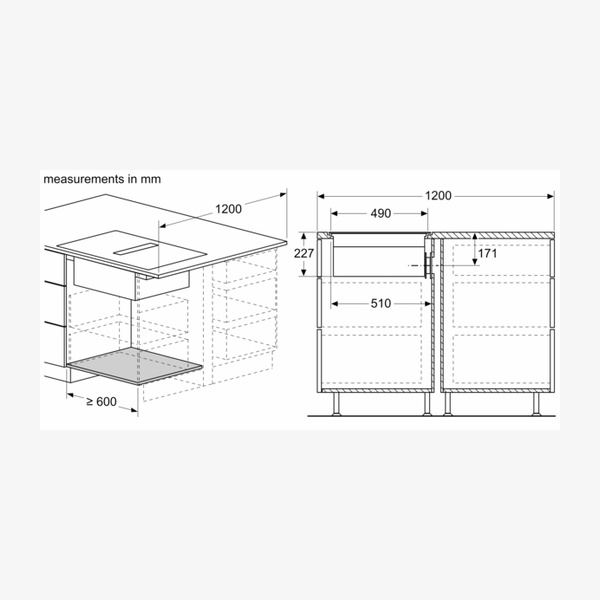

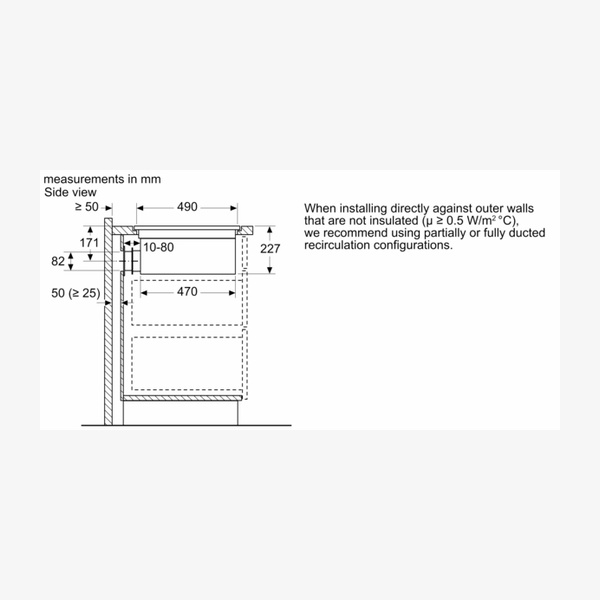

Installation guidance

Suitable for installation into stone, granitic or synthetic worktops; other materials require suitability check with worktop manufacturer.
Suitable for installation into a 60 cm base cabinet.

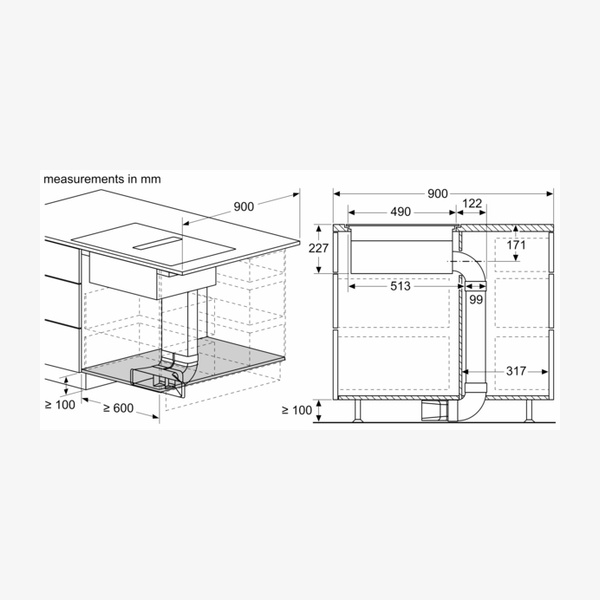

Can be installed in island or wall-oriented configurations.
Maximum immersion depth is 227 mm below worktop surface.
Appliance must be freely accessible from below for access to the lower liquid safety collector.
No false floor is necessary; drawers or shelves in the floor unit must be removable.
Back panel of the floor unit can be kept, with cut-out for air outlet as per installation instructions.

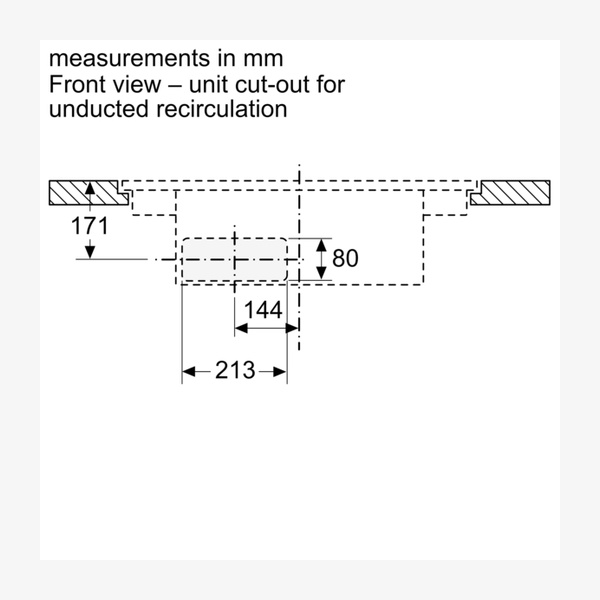

Unducted recirculation installation requires a vertical aperture of at least 25 mm behind the furniture back panel (50 mm suggested).
Minimum worktop thickness is 16 mm for top-mounted and flush installations with standard system.
Overall appliance weight is 26 kg; bearing capacity and stability must be supported, especially with thin worktops.
For partly ducted and unducted recirculation, a return-flow aperture of at least 400 cm² is required in the plinth area.

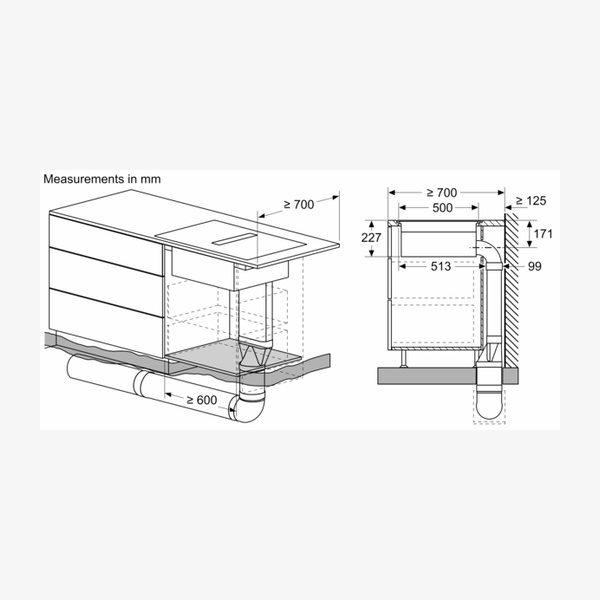

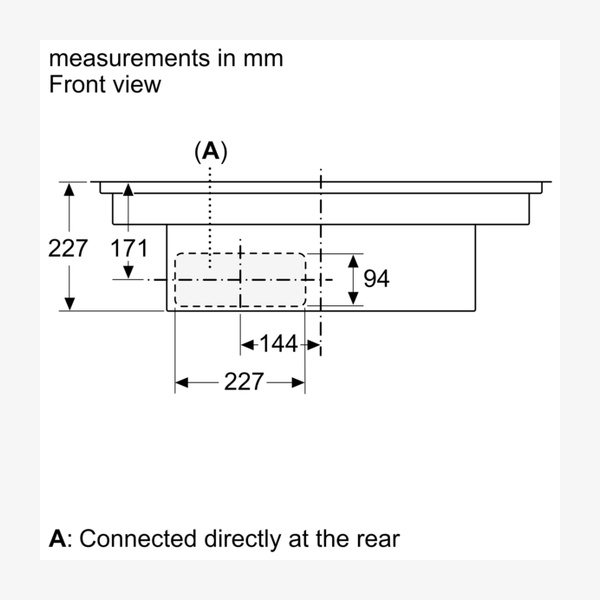

Air outlet at the back can be accessed directly with a male flat duct element (DN 150).

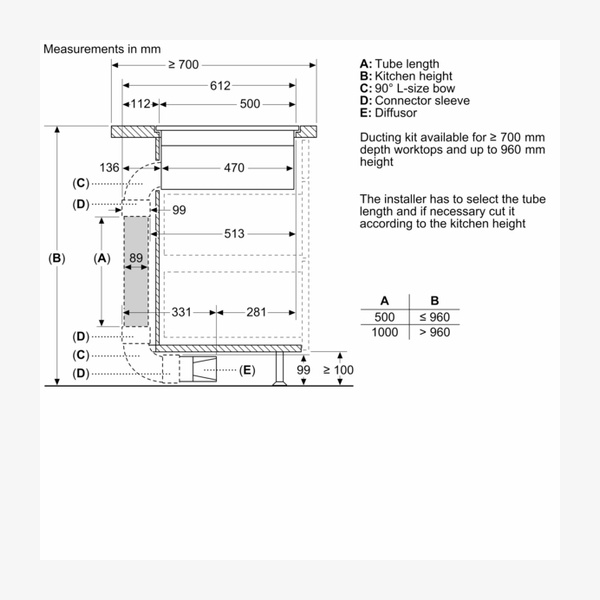

Blower supports ducting up to 8 m with three 90° bends while maintaining performance.
For ducted extraction with a chimney-vented fireplace, the power supply line needs a suitable safety switch (not required for recirculation).
In ducted extraction configuration, a one-way flap or backflow trap with maximum opening pressure of 65 Pa should be installed.

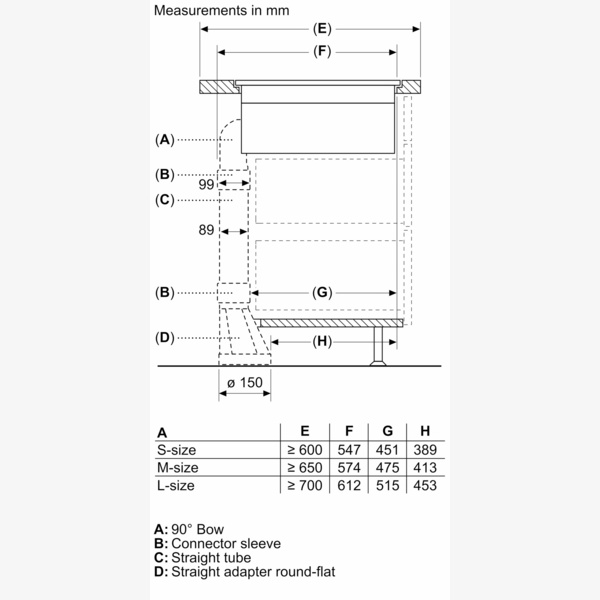

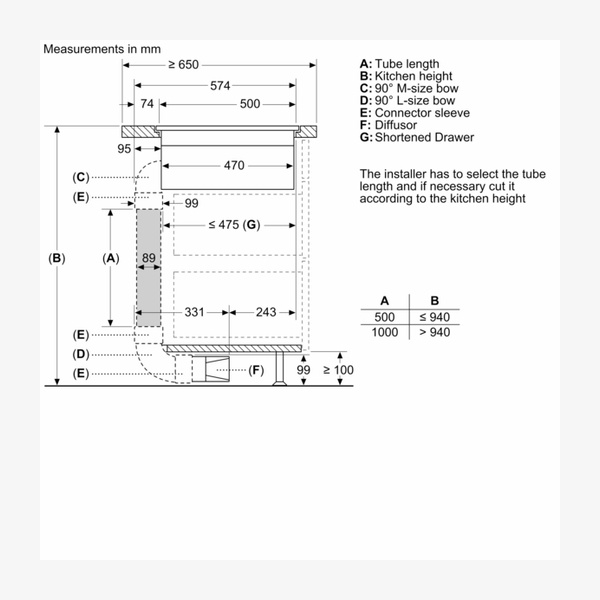

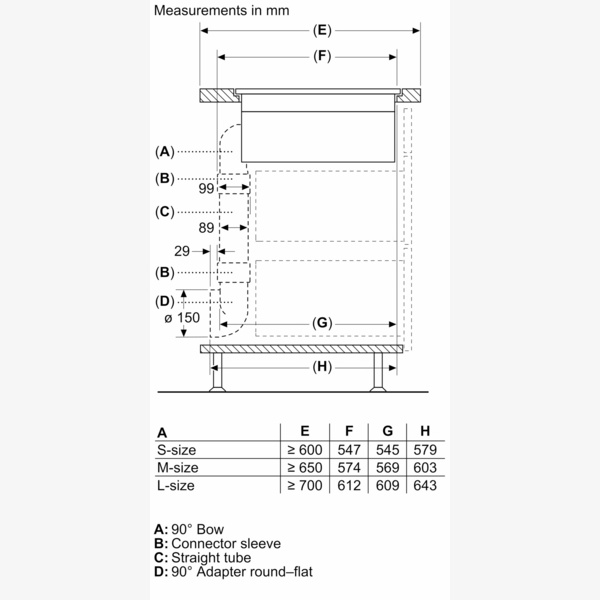

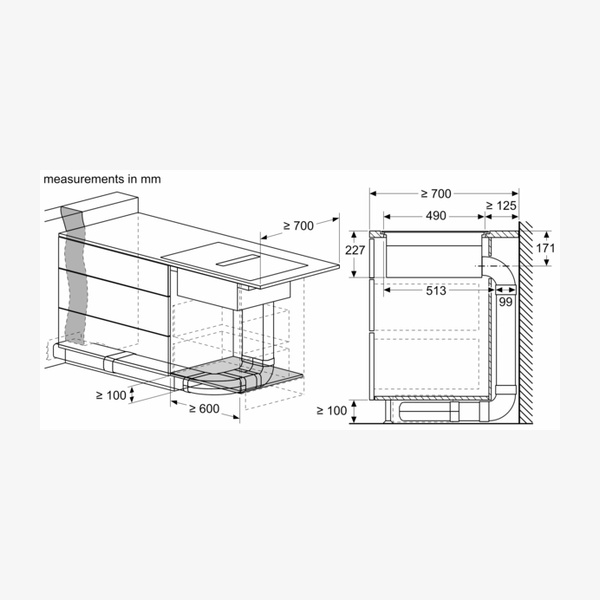

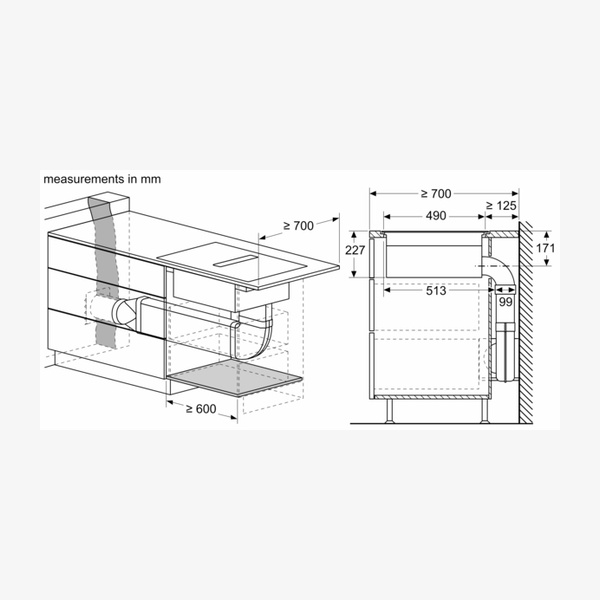

Planning allows four extraction options: unducted, partly ducted recirculation, fully ducted recirculation or ducted extraction.

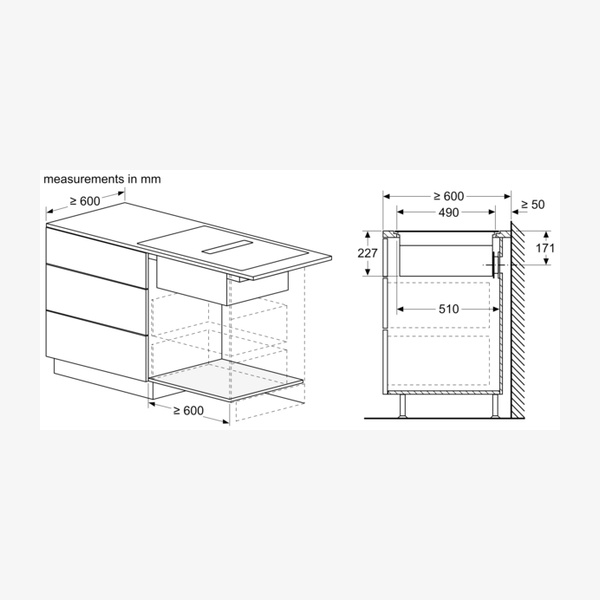

Included accessories support unducted recirculation installations in worktop depths ≥60 cm.

Optional accessories

The following optional accessories are listed for this model:

Z1365WX0 Wireless food thermometer
Z811DU0 Acoustics Filter
Z821PD1 Plinth Diffusor
Z821VR1 Clean Air Plus odor filter (replacement)
Z861KE1 Exhaust kit
Z861KR0 Recirculation kit 2 L-bow (70 cm)
Z861KR1 Recirculation kit S and L-bow (60 cm)
Z861KR2 Recirculation kit 1× L-bow
Z861SB1 90° flat duct bend horizontal
Z861SB2 90° flat duct L vertical
Z861SB3 90° flat duct M vertical
Z861SB4 90° flat duct S vertical

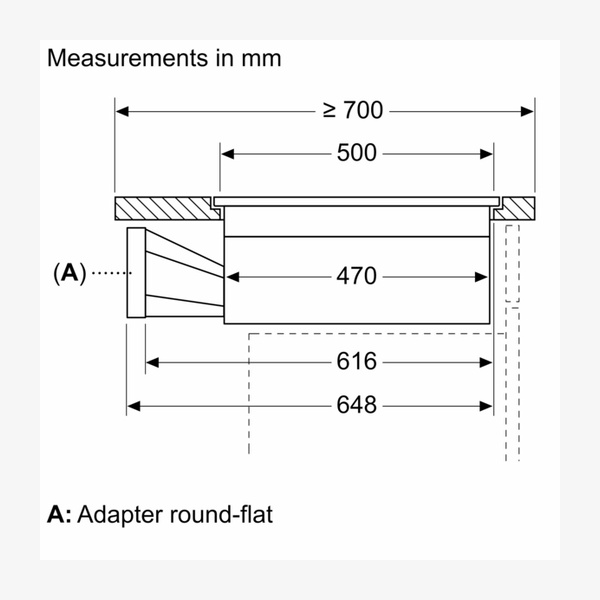

Z861SI0 Adapter round-flat
Z861SI1 90° Adapter round-flat
Z861SM1 Straight tube 500 mm
Z861SM2 Straight tube 1000 mm
Z861SS1 Connector sleeve (female)
Z861SS2 Flex sleeve (female)
Z9404SE0 4 pieces Set
Z9406SE0 6 pieces Set
Z9410ES0 Espresso maker 4 cups
Z9424CF0 Fry pan, coated 24 cm Ø
Z9428CF0 Fry pan, coated 28 cm Ø
Z9428FE0 Iron pan Ø 18 / 28 cm
Z943SE0 Set of 2 pots and 1 pan

Downloads

Download product documentation, manuals, and specification sheets.

V58PHQ4C0 Spec

PDF

Frequently Asked Questions

How many cooking zones does the hob have and how large are they?

The hob has 4 induction cooking zones. Each zone can operate at 190 mm or 210 mm, with a power of 2.5 kW and maximum power of 3.7 kW per zone.

Can I combine zones for larger cookware?

Yes. Two combi zones allow you to connect two classic cooking zones into one large zone, making it suitable for bigger cookware.

Is this hob suitable for ducted and recirculation extraction?

The integrated downdraft system is suitable for both ducted and recirculated extraction configurations. Installation accessories for unducted recirculation are included, and additional accessory kits are available for other options.

What is the maximum extraction rate and noise level?

In ducted extraction, the maximum normal extraction rate is 500 m³/h with a boost of 622 m³/h. The sound power level ranges from 42 dB re 1 pW at minimum normal setting to 74 dB re 1 pW at boost.

Does the hob support smart connectivity and remote monitoring?

Yes. Home Connect with remote monitoring allows you to check if the hob is switched off when away and access recipes or additional functions via the Home Connect app, with a connected Home Connect account.

What accessories are included with the appliance?

The appliance comes with 1× slider for unducted recirculation and 1× Clean Air Plus odor filter. A wide range of optional accessories and ducting kits is also available.
