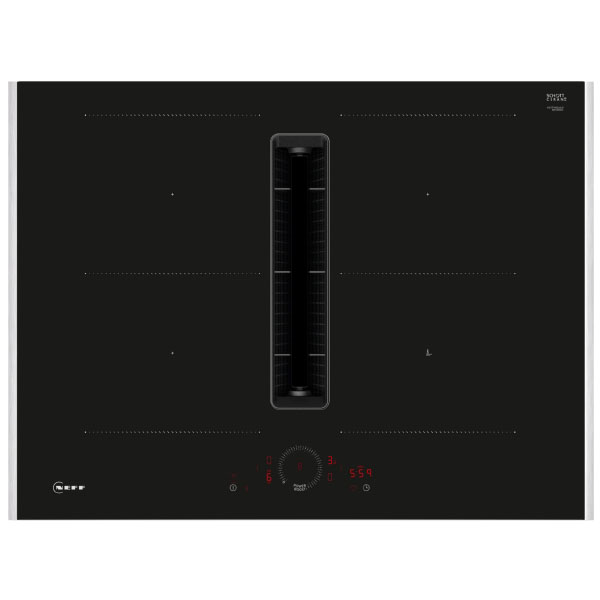

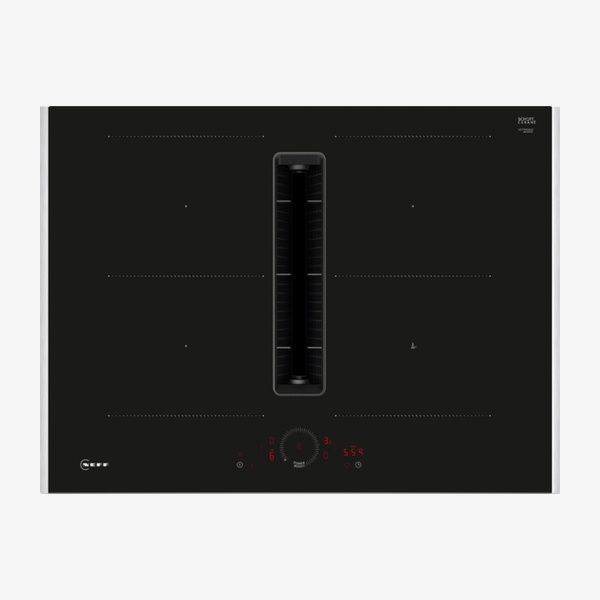

Neff N70 V57THQ4L0 Venting FlexInduction Hob

This 70 cm N 70 induction hob with integrated downdraft ventilation combines a four-zone induction cooktop and high-performance extractor in one built-in appliance. It is suitable for ducted or recirculated extraction and for installation into a 60 cm base cabinet. With Combi Induction, Twist Touch® control, powerful yet low-noise BLDC ventilation and easy-clean filters, it is designed for flexible cooking with a clear view and convenient cleaning.

SKU:V57THQ4L0

EAN:4242004277446

Category::Hobs

Quantity:

Key Features

Induction hob with integrated downdraft extractor – combines two appliances in one for a clear view while cooking.

70 cm width with 4 cooking zones – space for 4 pots or pans.

Combi Induction zones – combine two circular cooking zones into one large zone for bigger cookware.

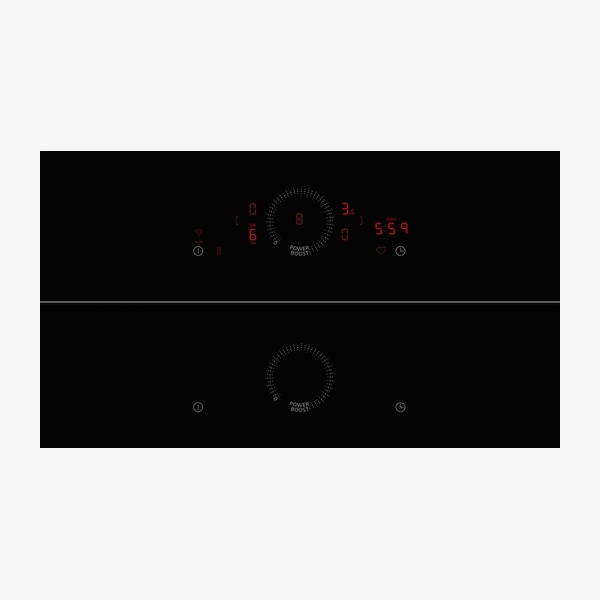

Twist Touch® / Multitouch+ control – directly control power levels with an imprinted touch ring and a twist of your finger.

High extraction rate – maximum 500 m³/h in normal ducted extraction and up to 622 m³/h in Boost setting.

Reduced noise ventilation – optimised BLDC motor with low-noise acoustic filters and pleasant noise frequencies.

Easy-clean filters and liquid collector – stainless-steel grease filters and collector parts are easy to detach, fully dishwasher-safe and heat resistant.

Power Boost for all zones – boil water faster with 50 % more energy than at the highest standard level.

17-stage power settings per zone – 9 main and 8 intermediate levels for precise heat control.

11 frying levels – automatic temperature regulation with an integrated sensor to help prevent overcooking.

Keep warm function – keep dishes warm at a preset low power level via the Home Connect app/MyButton.

Favourite Button – configurable button for direct access to favourite functions (with connected Home Connect account).

Home Connect – remote monitoring, dish assistant and updateable appliance functions when connected.

Automatic ventilation control – ventilation switches on with a cooking zone and has automatic delayed shut-off after cooking.

High grease filtration efficiency – integrated stainless-steel grease filters with 12 filtration layers and 94 % efficiency.

Clean Air Plus odour filters included – optimised odour reduction, anti-pollen functionality and 360-hour lifetime in recirculation mode.

Energy Efficiency Class B ventilation – fluid dynamic efficiency class A and grease filtration efficiency class B.

Safety features – 2-stage residual heat indicators, control panel lock, main switch, safety cut-out and pause function.

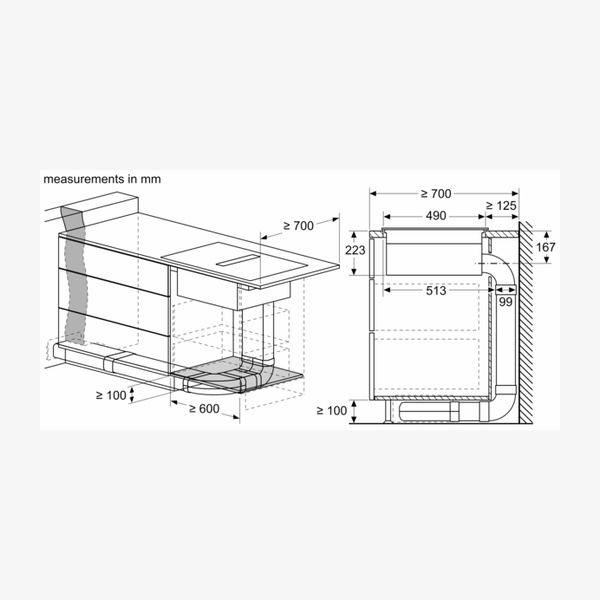

Flexible installation options – suitable for ducted or unducted recirculation, island or wall configurations, with dedicated accessory kits.

Suitable for 60 cm base cabinet – designed for installation in standard kitchen furniture with worktop thickness from 16 mm.

Technical Spec

Product name / familyCooking zone ceramic

Model designationV57THQ4L0

Built-in / Free-standingBuilt-in

Energy inputElectric

Number of cooking zones4

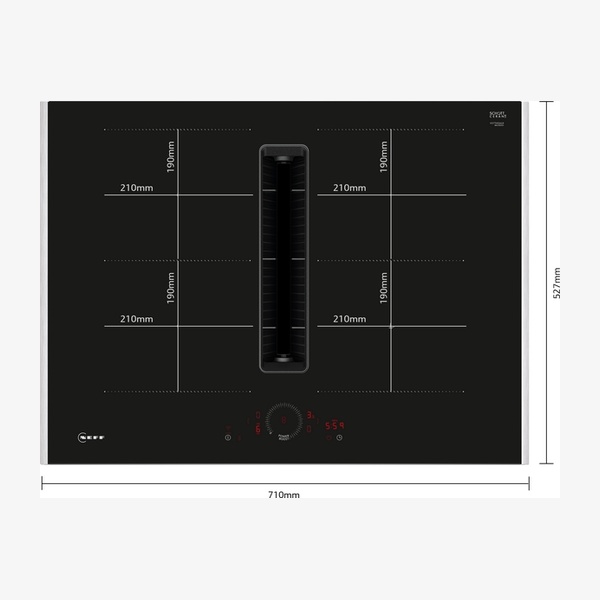

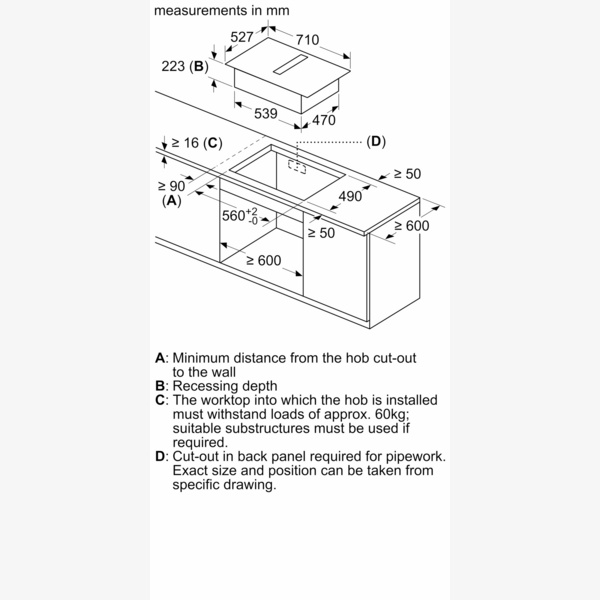

Hob dimensions (HxWxD)223 x 710 x 527 mm

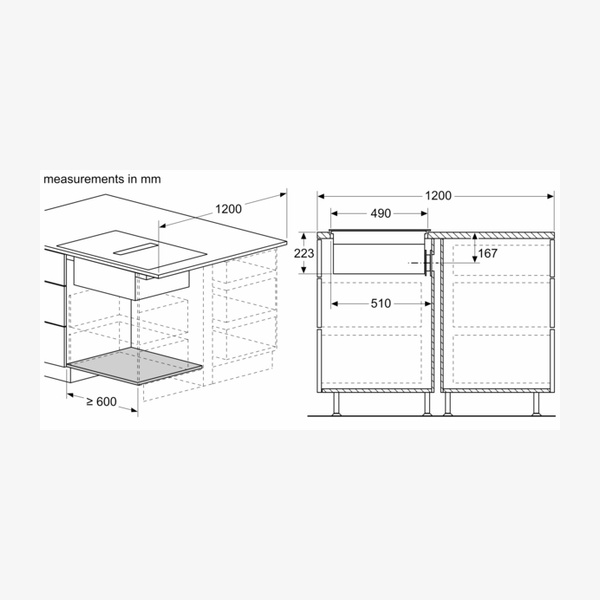

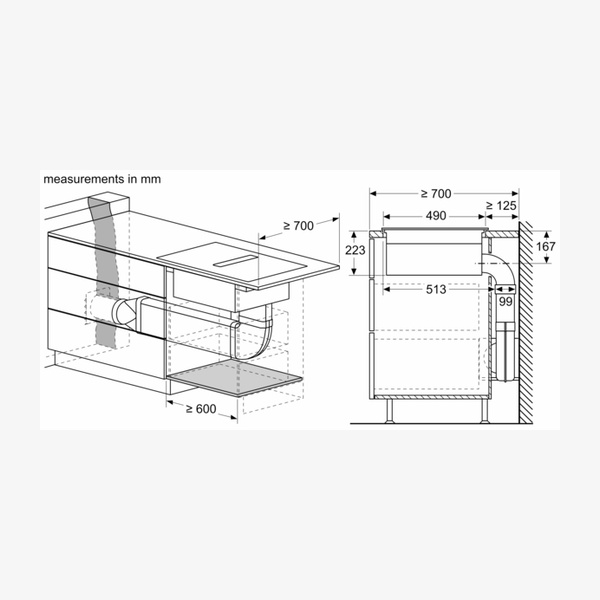

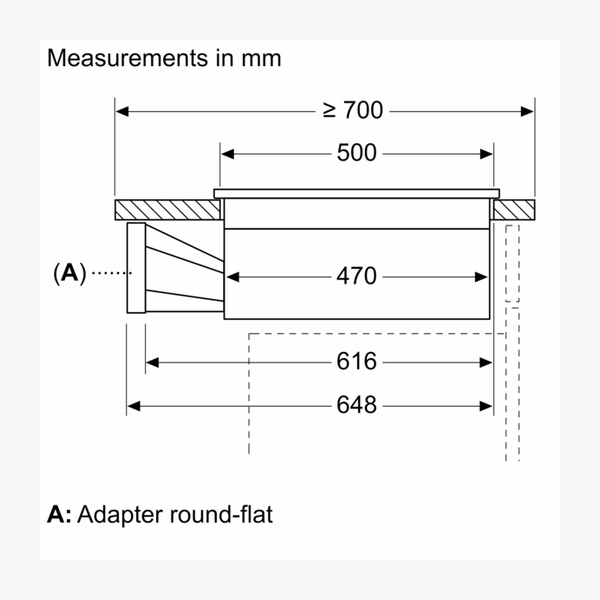

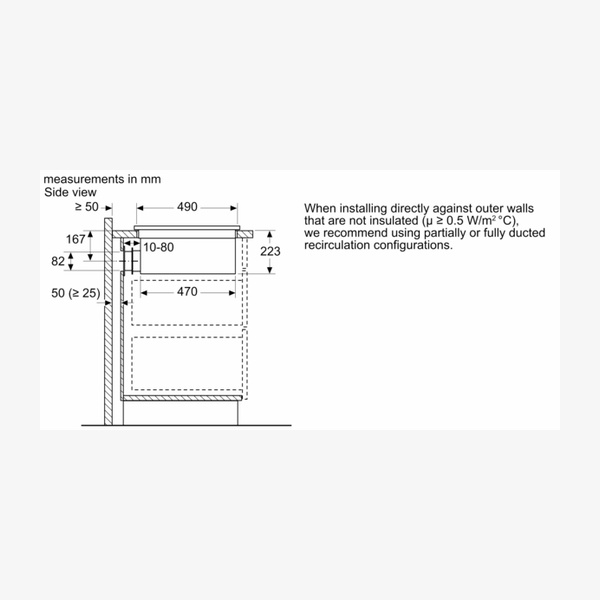

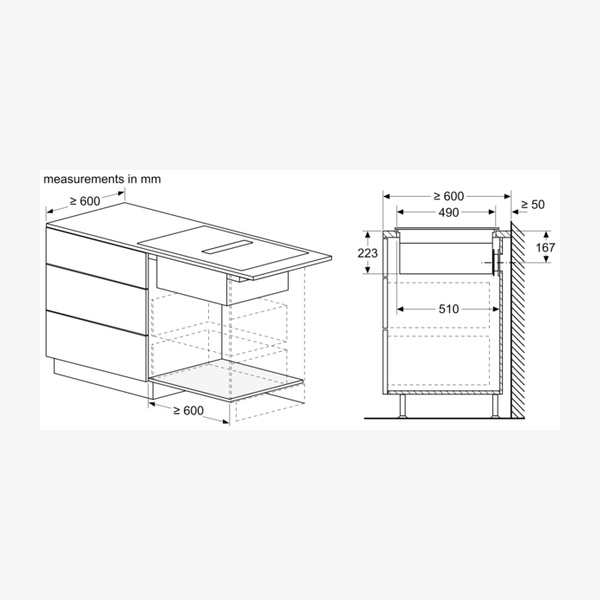

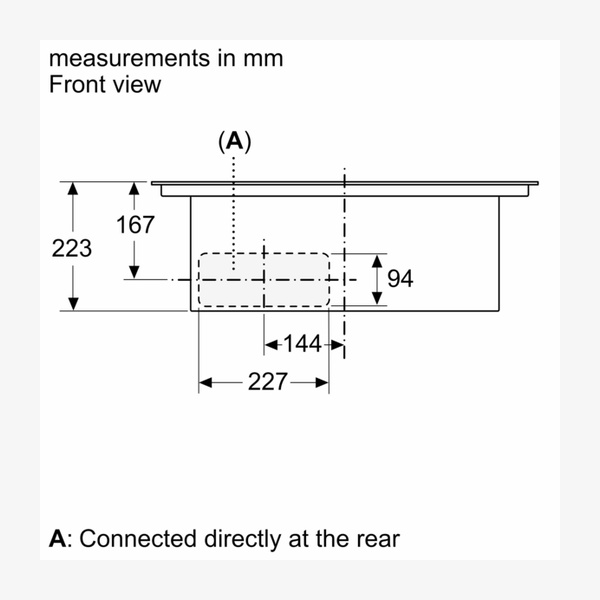

Required niche size (HxWxD)223 x 560–560 x 490–500 mm / 223 x 560 x (490–500) mm

Width of the appliance710 mm

Packed product dimensions (HxWxD)431 x 950 x 672 mm

Net weight25.9 kg

Gross weight30.6 kg

Basic surface materialCeramic

Surface colourBlack, Stainless steel

Frame colourStainless steel

Location of control panelFront

Residual heat indicatorSeparate, 2-stage indicators

Length of electrical supply cord110 cm (power cord 1.1 m, cable included)

Heating with boosterAll zones

Cooking zone dimensions & powerFront left: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW) Rear left: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW) Rear right: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW) Front right: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW)

Power settingsVariable 17-stage power settings per zone (9 main, 8 intermediate)

Number of speed settings (ventilation)9-stage + 2 intensive

Maximum output air extraction (ducted)500 m³/h (max. normal); 622 m³/h (Boost)

Maximum output recirculating air487 m³/h (max. normal); 595 m³/h (Boost)

Noise level (general)69 dB(A) re 1 pW (max. normal)

Noise level ducted extraction42 dB re 1 pW (min normal); 69 dB re 1 pW (max normal); 74 dB re 1 pW (Boost)

Noise level recirculated extraction41 dB re 1 pW (min normal); 68 dB re 1 pW (max normal); 72 dB re 1 pW (Boost)

Odour filter (standard)No (technical data field); Clean Air Plus odour filters included for recirculation configuration

Clean filter remindersYes

Voltage220–240 / 380–415 V

Frequency50–60 Hz

Connected load7.4 kW; 4.6 kW power output (20 A) with current management options for 16 A, 13 A or 10 A connection

Minimum worktop thickness16 mm

Maximum immersion depth below worktop223 mm

Overall appliance weight26 kg (planning note)

Ventilation energy efficiency classB (range A+++ to D)

Fluid Dynamic EfficiencyA

Average energy consumption (ventilation)57 (unit not stated in source)

Grease filtration efficiency classB; grease filtration efficiency 94 %

Clean Air Plus filter lifetime360 hours of cooking (non-regenerative)

Liquid collector capacityUpper collector 200 ml; lower safety collector 700 ml; total 900 ml

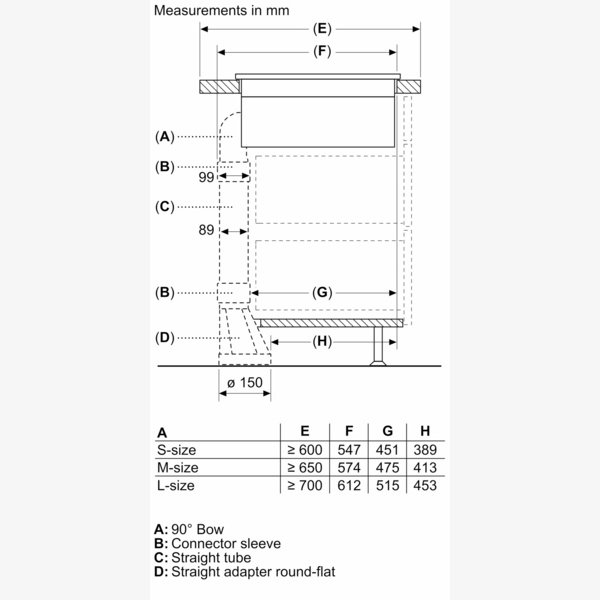

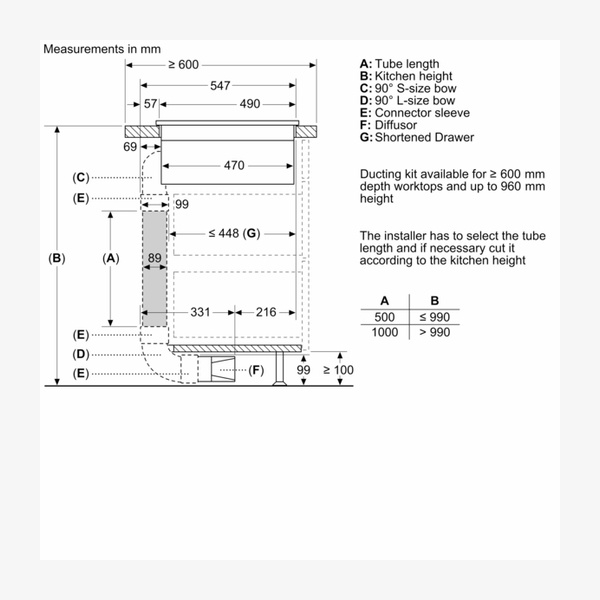

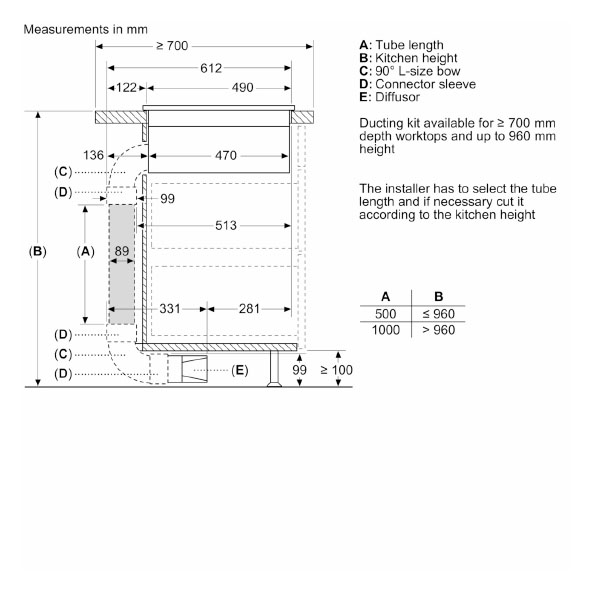

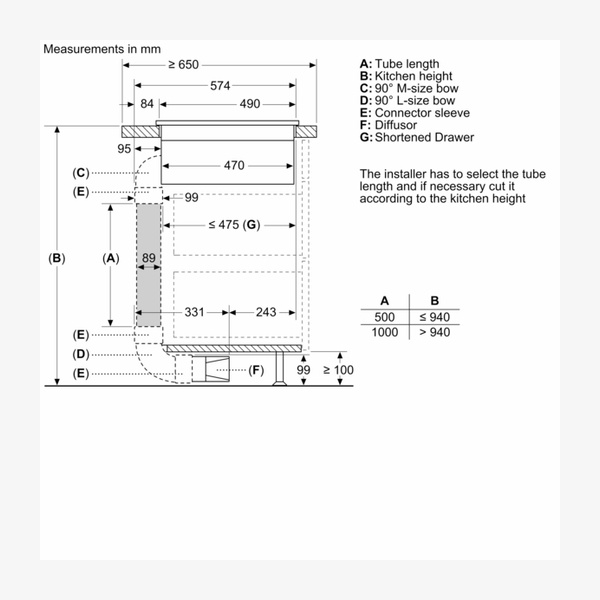

Blower technologyHigh-performance, low-noise BLDC-technology; pressuredrop resistant up to 8 m ducting with three 90° bows

Suitable base cabinet width60 cm

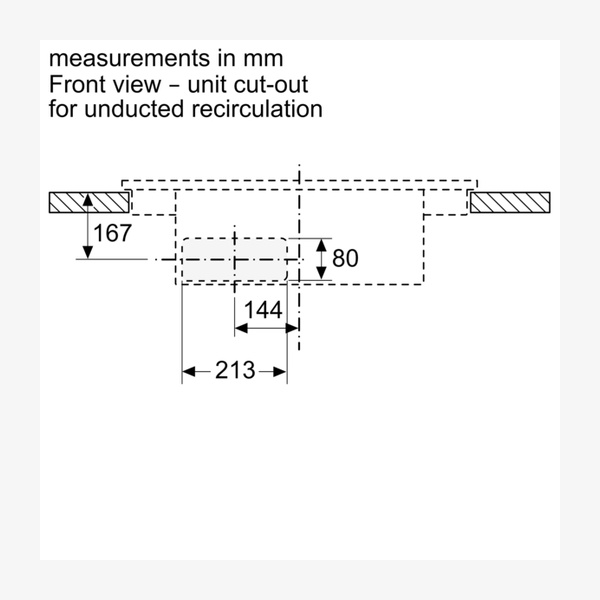

Included accessories1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter; installation accessories for unducted recirculation including four cleanAir odor filters and telescopic slider element

Downloads

Download product documentation, manuals, and specification sheets.

V57THQ4L0 Spec

PDF

Frequently Asked Questions

Can this hob be installed in a 60 cm base cabinet?

Yes. The appliance is stated as suitable for installation into a 60 cm base cabinet, provided the required niche size and planning notes are followed.

Is the ventilation system suitable for both ducted and recirculation setups?

Yes. The integrated downdraft system is suitable for ducted or recirculated extraction and supports unducted, partly and fully ducted recirculation as well as ducted extraction, with appropriate accessories.

How loud is the extractor during operation?

In ducted extraction, the sound power level ranges from 42 dB re 1 pW (min normal) to 69 dB re 1 pW (max normal) and 74 dB re 1 pW in Boost. In recirculation, it ranges from 41 dB re 1 pW (min normal) to 68 dB re 1 pW (max normal) and 72 dB re 1 pW in Boost.

Are the grease filters and collectors dishwasher-safe?

Yes. All parts of the grease filter and liquid collector unit are described as easy-to-clean, fully dishwasher safe and heat resistant, including the liquid safety collector.

What safety features does the hob provide?

The hob includes 2-stage residual heat indicators, a control panel lock, main switch, safety cut-out facility and pause function. The product and accessories comply with the Needle Flame Test and V2 flammability class according to the stated standards.

Does the hob support smart connectivity?

Yes. It features Home Connect with remote monitoring, dish assistant and updateable software, as well as MyButton and a configurable Favourite Button when linked to a Home Connect account.
