Neff N70 D86NAC1S0B Canopy Hood

This 86 cm black canopy cooker hood is designed for flush-fitted installation in wall cupboards or cabinets, creating a hidden, seamless look. Suitable for both ducted extraction and recirculation, it offers a high extraction rate, optimised quiet motor and intensive setting with automatic reset. Two cool white LED lights provide clear illumination of the hob, while dishwasher-safe metal grease filters and easy-to-clean smooth surfaces support convenient everyday use.

SKU:D86NAC1S0B

EAN:4242004287216

Category::Cooker Hoods

Quantity:

Key Features

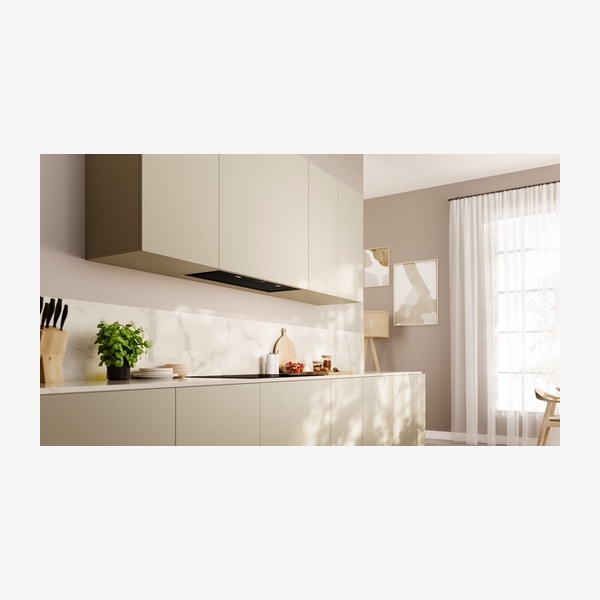

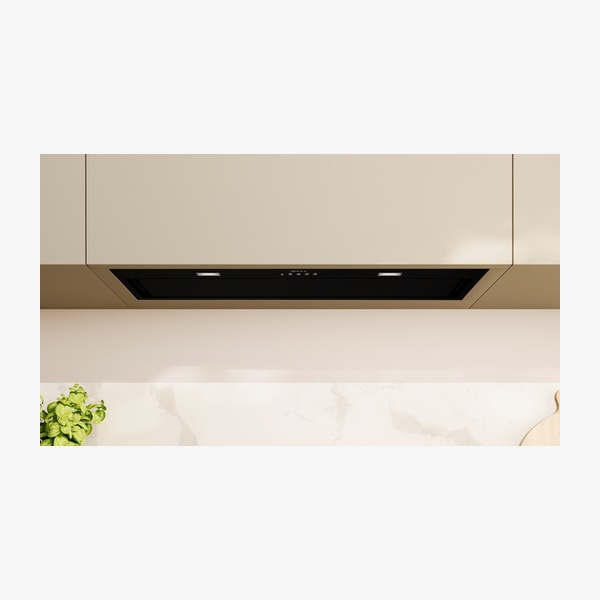

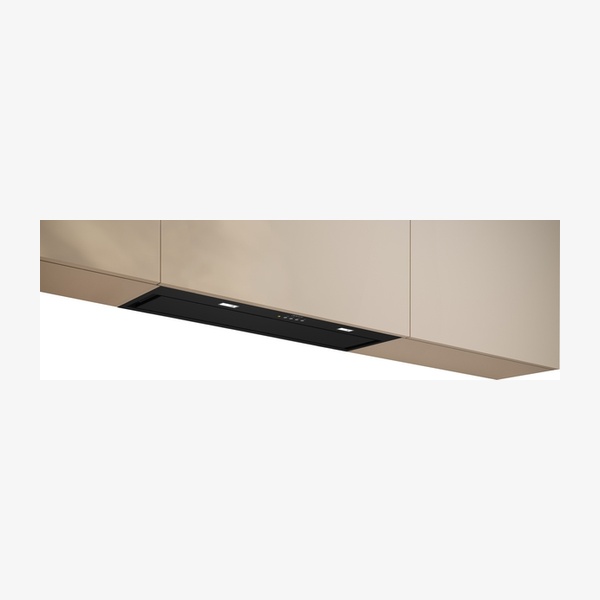

Canopy hood with hidden design – designed to fit neatly under an overhead unit or cabinet, with flush-fitted installation for seamless integration in wall cupboards.

High extraction performance – maximum air extraction up to 600 m³/h and boost position air extraction up to 745 m³/h.

Quiet, optimised motor – reduced noise with a noise level of 61 dB(A) re 1pW at maximum standard extraction.

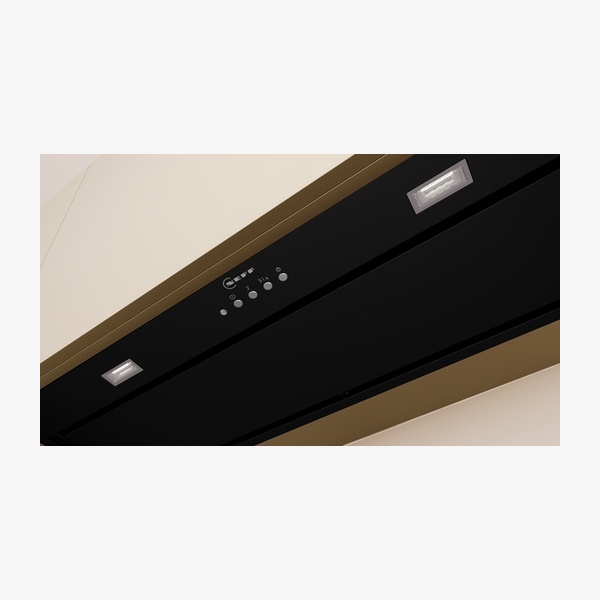

LED lighting – 2 × 1 W LED lights with 4000 K colour temperature and 400 lux light intensity for clear hob illumination.

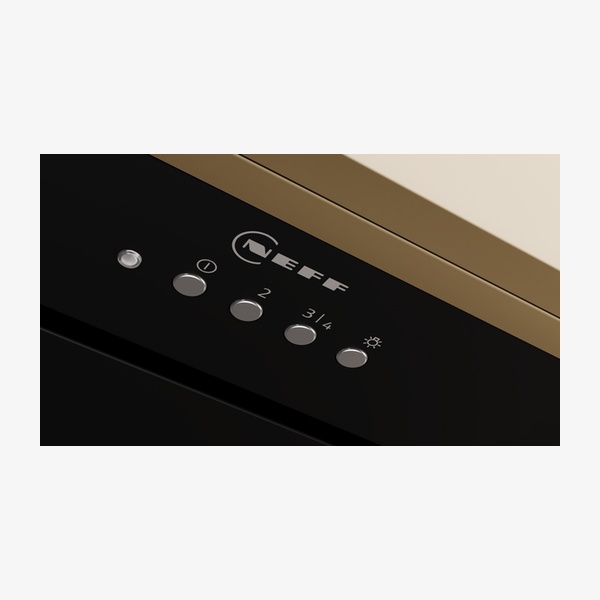

Soft touch electronic controls – soft touch control panel with LED display, offering 3 speeds plus intensive setting.

Intensive setting with automatic reset – powerful intensive mode to tackle intense steam, with automatic revert to normal setting after 6 minutes.

Flexible installation options – suitable for ducted extraction and recirculation, with various recirculation kits available as optional accessories.

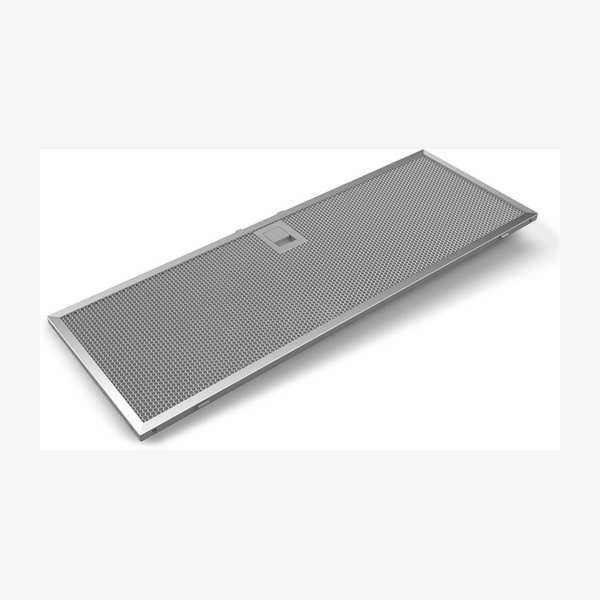

Dishwasher-safe metal grease filters – washable aluminium grease filters and metal grease filters that are dishwasher-safe for easier cleaning.

Energy efficient operation – Energy Efficiency Class A (A+++ to D scale) with average energy consumption of 50.1 kWh/year*.

Efficient blower and lighting – Blower Efficiency Class A* and Lighting Efficiency Class A*.

Regenerative Long Life odour filter option – available odour filter as regenerative Long Life filter with up to 10 years lifetime.

Environmentally friendly packaging – supplied in environmentally friendly packaging.

Technical Spec

ModelD86NAC1S0B

Product seriesN 70 canopy cooker hood, 86 cm, black

TypologyBuilt-in / Built-under; canopy hood

InstallationCabinet; flush-fitted in wall cupboards; suitable for ducted extraction and recirculation

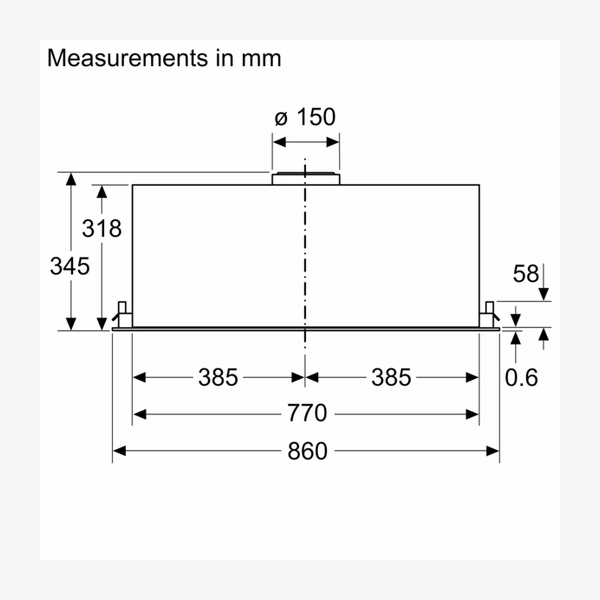

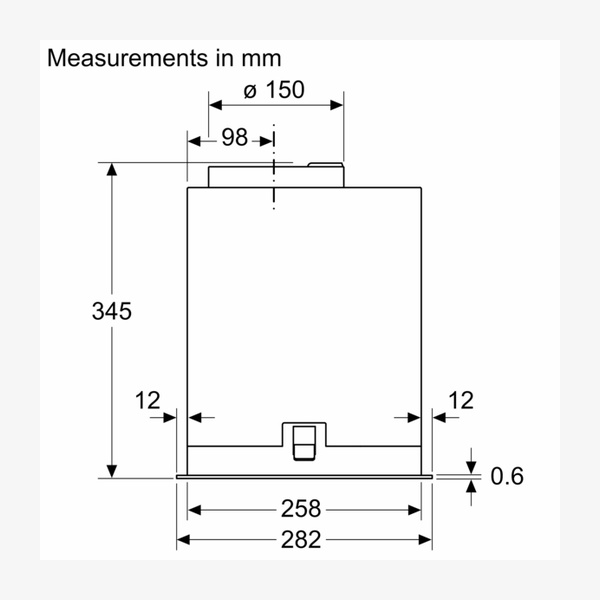

Dimensions (H × W × D)345 × 860 × 282 mm

Recirculating dimensions (H × W × D)345–345 × 860 × 282 mm

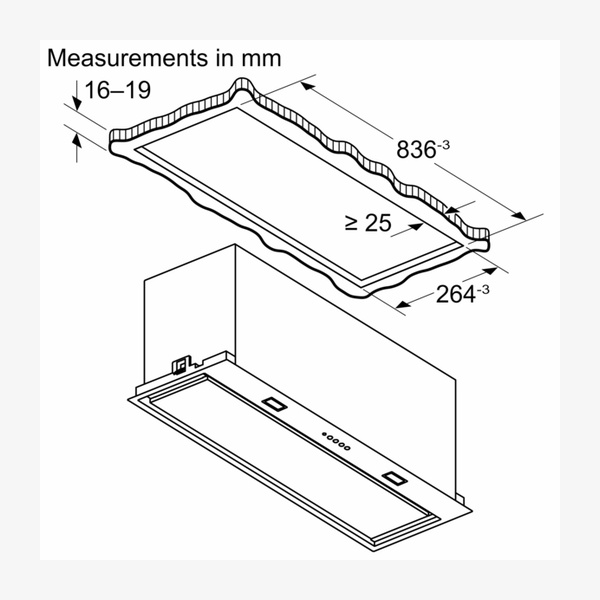

Built-in dimensions (H × W × D)345 × 676 × 264 mm

Required niche size (H × W × D)345 mm × 676.0 mm × 264 mm

Height of the appliance345 mm

Minimum distance above electric hob500 mm

Minimum distance above gas hob650 mm

Net weight10.0 kg

Type of controlElectronic soft touch with LED display

Speed settings3 stages + intensive setting

Maximum output air extraction600 m³/h

Boost position air extraction745 m³/h

Maximum output recirculating air580 m³/h

Boost position output recirculating700 m³/h

Maximum air flow600 m³/h

Noise level (max standard)61 dB(A) re 1pW

Number of lights2 × 1 W LED

Colour temperature4000 K

Light intensity400 lux

Grease filter materialWashable aluminium; 2 metal grease filters, dishwasher-safe

Air outlet diameter150 mm (120 mm enclosed)

Back-pressure flapYes

Motor typeCapacitor motor

Energy Efficiency ClassA (range A+++ to D)

Average energy consumption*50.1 kWh/year*

Blower Efficiency Class*A*

Lighting Efficiency Class*A*

Grease Filtering Efficiency Class*D*

Power rating252 W

Connection rating252 W

Voltage220–240 V nominal

Frequency50; 60 Hz

Fuse protection3 A

Plug typeGB plug

Electrical cable length1.5 m (150.0 cm)

EAN code4242004287216

Downloads

Download product documentation, manuals, and specification sheets.

D86NAC1S0B Spec

PDF

Frequently Asked Questions

Is this cooker hood suitable for both extraction and recirculation?

Yes. It is suitable for ducted extraction and recirculation. For recirculated extraction, various recirculation kits are available as optional accessories, including standard and Clean Air Plus options.

What is the maximum extraction rate of this canopy hood?

The maximum output air extraction in standard mode is 600 m³/h. In boost position, air extraction can reach up to 745 m³/h. In recirculation mode with the Clean Air Plus kit, intensive extraction can reach 700 m³/h.

How noisy is the hood during operation?

The noise level at maximum standard extraction is 61 dB(A) re 1pW. In exhaust mode, noise ranges from 45 dB(A) at Speed 1 to 65 dB(A) at intensive level. Recirculation noise levels depend on the chosen kit and speed, up to 74 dB(A).

Are the grease filters easy to clean?

Yes. The hood uses washable aluminium grease filters, and the metal grease filters are dishwasher-safe. The smooth surfaces and materials are also designed for easy cleaning.

What energy efficiency rating does this hood have?

The hood has an Energy Efficiency Class A on a scale from A+++ to D. The average energy consumption is 50.1 kWh/year*, with both blower and lighting efficiency classes rated A*.

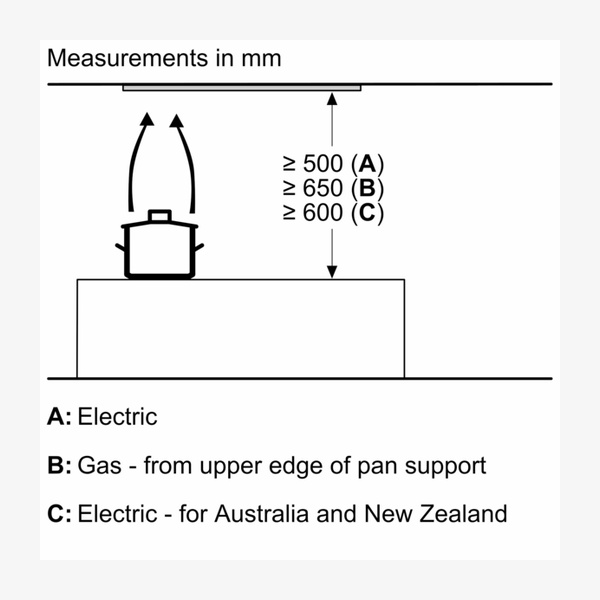

What are the minimum installation distances above the hob?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.
