Neff N90 I88WMM1S7B Downdraft

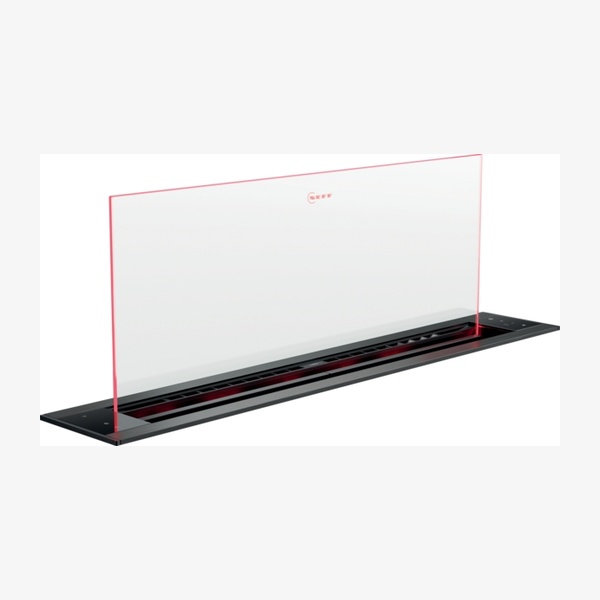

The N 90 I88WMM1S7B is an 80 cm built-in downdraft hood in clear glass and black, designed to integrate seamlessly behind the hob for a single-surface look. Guided Air Technology and a climateControl Sensor support effective steam extraction across the cooktop. With Hob-Hood control, Home Connect functions, and an illuminated glass panel offering 25 million colour options, it combines powerful extraction with flexible installation for island and semi-island kitchens.

SKU:I88WMM1S7B

EAN:4242004252290

Category::Cooker Hoods

Quantity:

Key Features

Guided Air Technology – Equally powerful steam extraction over the cooktop regardless of pans’ or pots’ location.

ClimateControl Sensor – Optimises hood power and noise levels automatically as you cook.

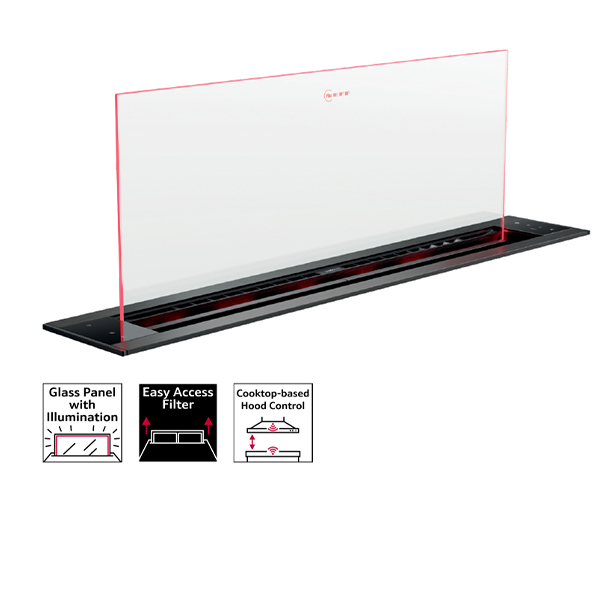

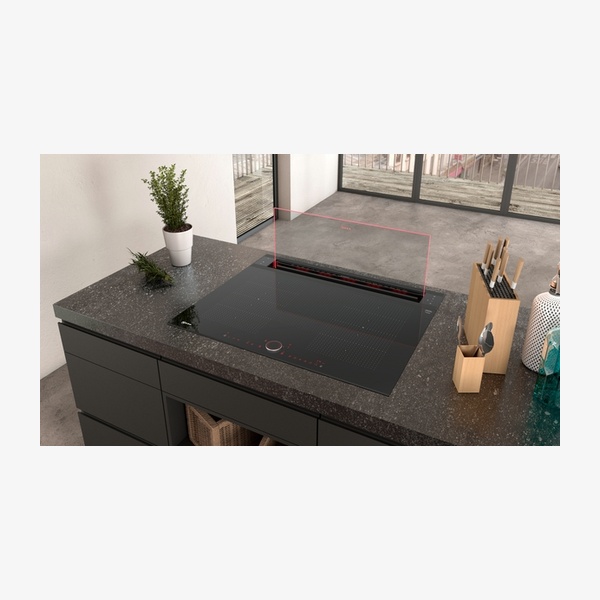

Glass Panel with Illumination – Extendable clear glass panel with edge lighting and 25 million colour options for ambient light RGB.

High Extraction Rate – Maximum exhaust air extraction rate of 501 m³/h, with intensive setting up to 775 m³/h.

Home Connect connectivity – Remote monitoring and control via compatible smartphone or tablet, with additional functions such as interval and silence modes.

Hob-Hood control – Cooktop-based hood control with Wi‑Fi enabled hob for extraction level and lighting adjustment.

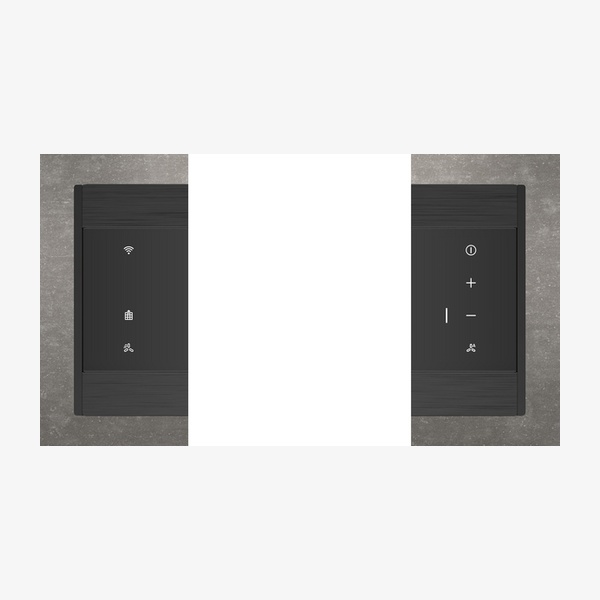

Touch control interface – Electronic touch control with standard functions located on the right-hand user interface.

3 power levels + 2 intensive – Flexible extraction with automatic intensive revert after 6 minutes.

Automatic after running – Automatic after running for 10 minutes for continued ventilation.

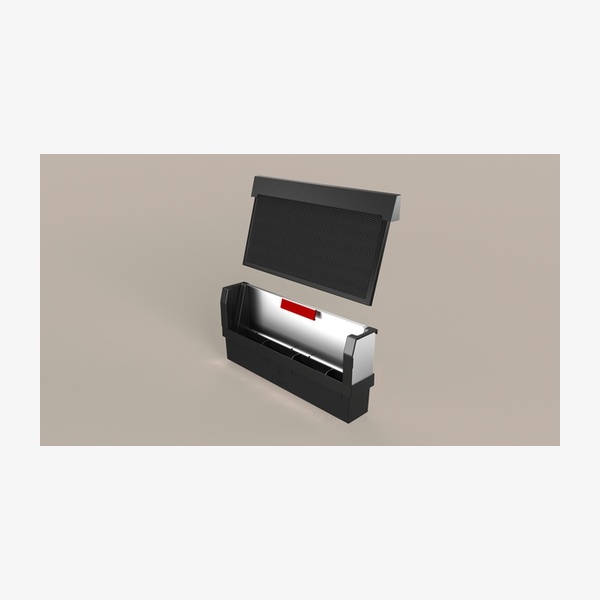

Washable stainless steel grease filters – Two metal grease filter cassettes with easy access and dishwasher-safe cleaning.

Easy Access Filter system – A push of a button removes the filter; filter service button lifts filters into service position.

Saturation indicators – Indicators for metal and charcoal filters to show when service is required.

Efficient BLDC motor technology – Supports high extraction with an average energy consumption of 36.9 kWh/year.

Energy Efficiency Class A – At a range of energy efficiency classes from A+++ to D, with Blower Efficiency Class A.

Ducted or recirculation operation – Suitable for ducted extraction and recirculation; Clean Air Plus recirculation kit available as accessory.

Noise performance – Noise level in exhaust air mode at max normal use 62 dB(A) re 1 pW; intensive 70 dB(A) re 1 pW.

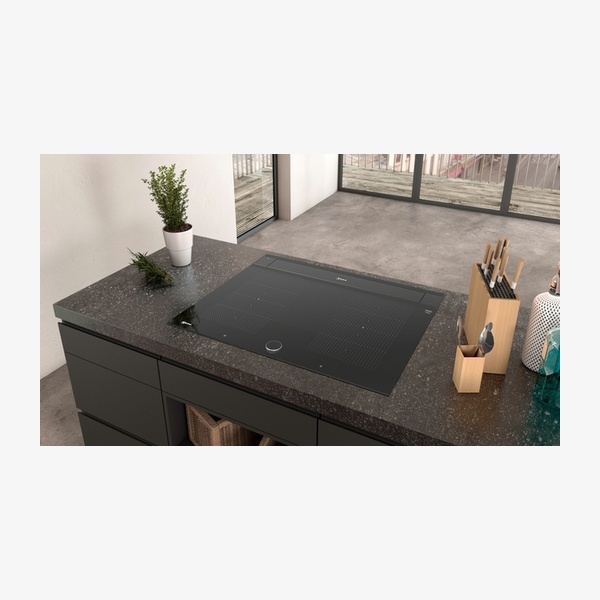

Installation versatility – Integrated design suitable for installation in island or semi-island kitchen solutions.

Voice control capable – Voice Control enabled via popular voice assistants in supported countries.

Technical Spec

Product nameN 90 Downdraft Hood, 80 cm, clear glass, black

Model codeI88WMM1S7B

TypologyDowndraft

Width80 cm wide

Energy Efficiency ClassA (at a range of energy efficiency classes from A+++ to D)

Average Energy Consumption36.9 kWh/year*

Blower Efficiency ClassA*

Lighting Efficiency Class-*

Grease Filtering Efficiency ClassB*

Type of controlElectronic touch control; standard functions on right-hand interface

Number of speed settings3-stage + 2 intensive

Maximum output air extraction (exhaust)501 m³/h (according to EN 61591, max. normal use)

Boost position air extraction (exhaust)775 m³/h (intensive)

Maximum output recirculating air416 m³/h

Boost position output recirculating525 m³/h

Maximum Air flow501 m³/h

Noise level (exhaust, max normal use)62 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)

Noise level (exhaust, intensive)70 dB(A) re 1 pW

Noise level (recirculation, max normal use)65 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Noise level (recirculation, intensive)70 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Grease filter materialWashable stainless steel; 2 metal grease filter cassettes

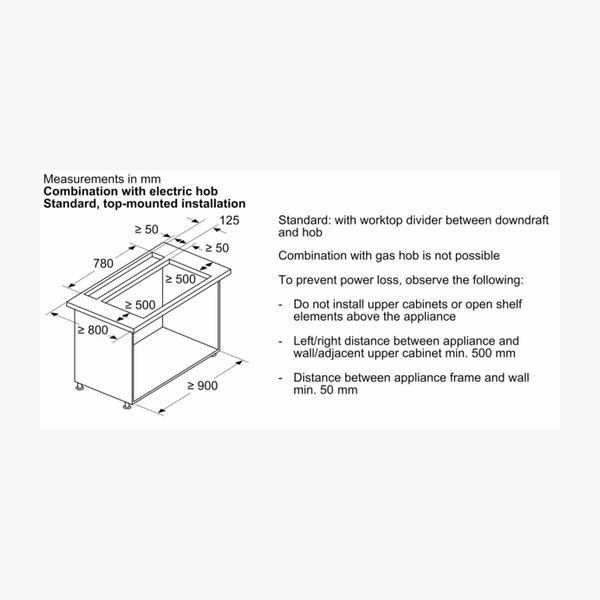

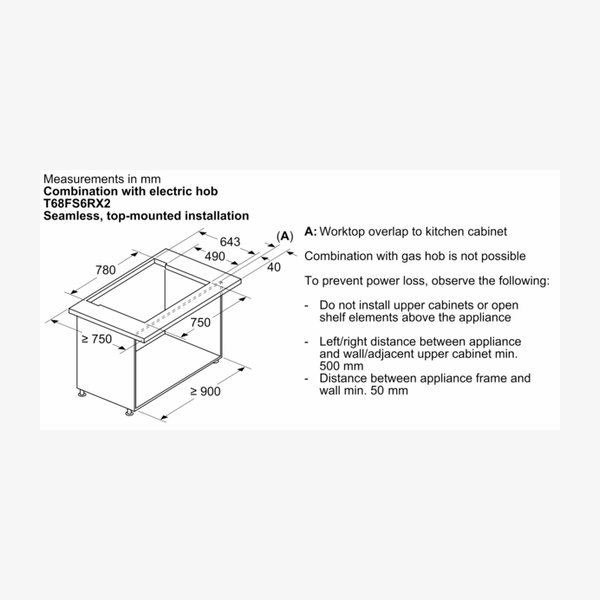

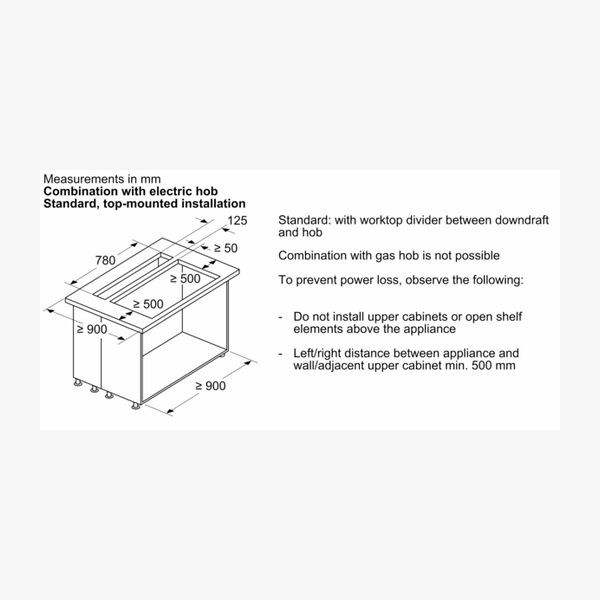

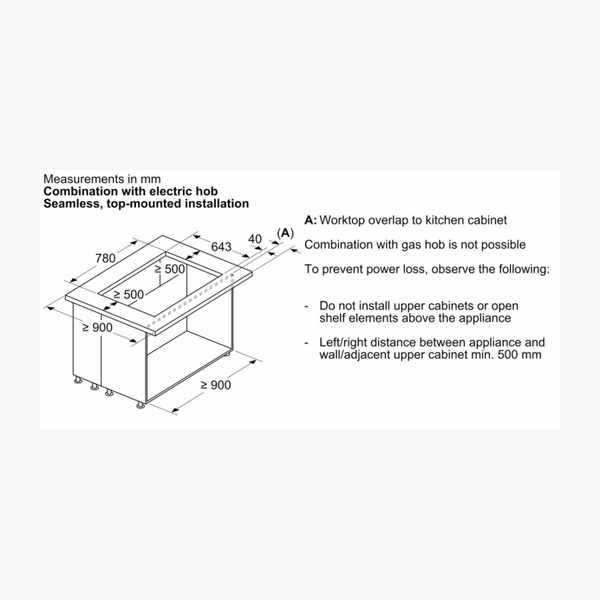

Installation typologyBuilt-in; integrated; suitable for island or semi-island solutions

Extension height250 mm

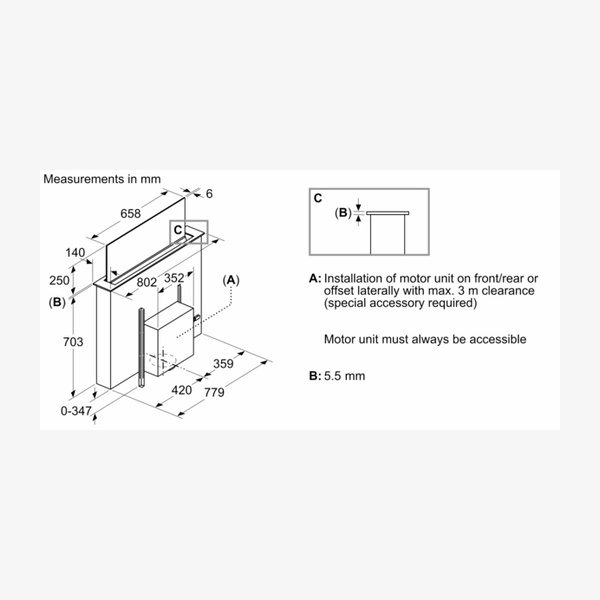

Appliance dimensions (HxWxD)709 x 802 x 140 mm

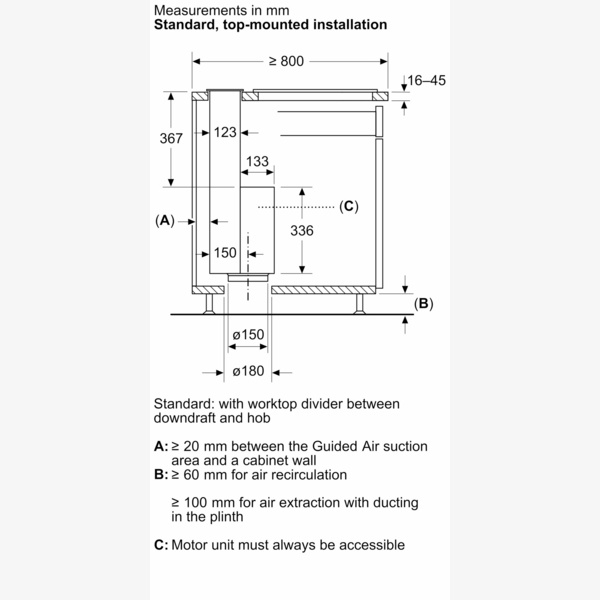

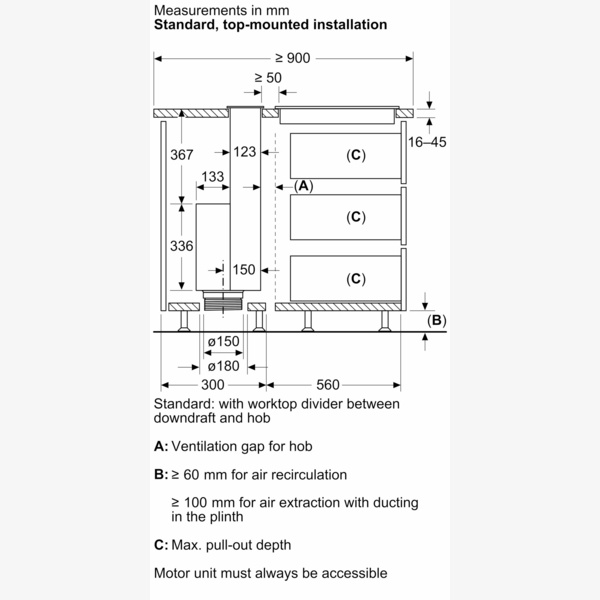

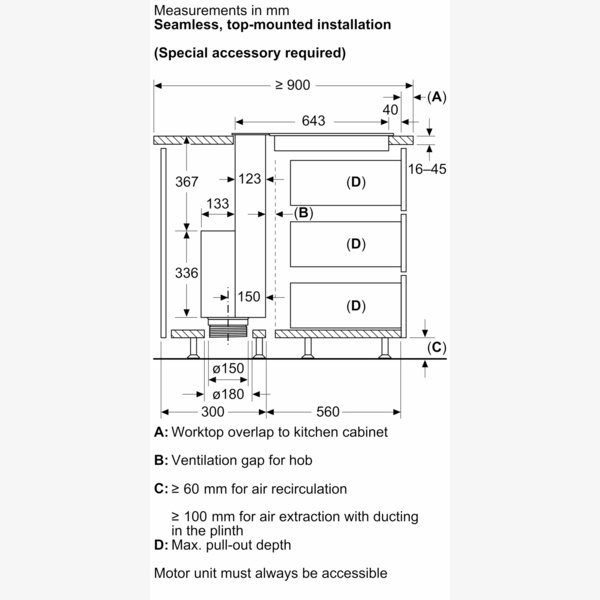

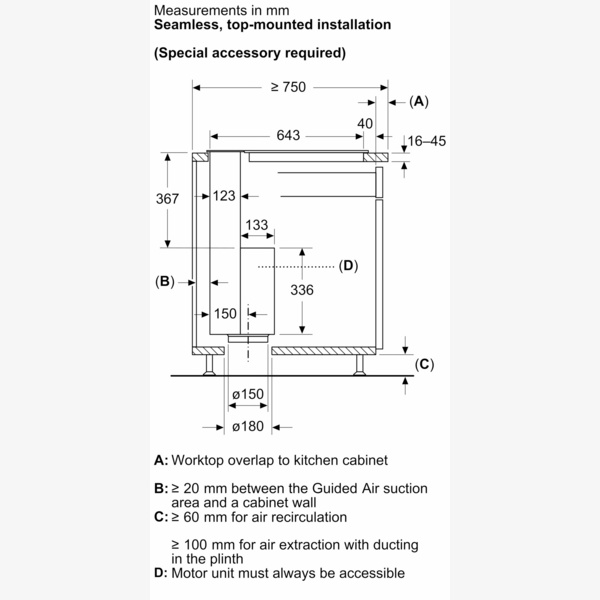

Built-in dimensions (HxWxD)703 x 781 x 123 mm

Required niche size (HxWxD)703 mm x 781.0 mm x 123 mm

Height of the appliance709 mm

Net weight38.9 kg

Diameter of air outlet150 mm (extractor hose 150 mm)

Length electrical supply cord130 cm / 1.3 m

Connection rating300 W

Fuse protection10 A

Voltage220–240 V

Frequency60; 50 Hz

Plug typeGB plug

EAN code4242004252306

Suitable for gas hobsNot suitable for combination with gas hobs

Operation modesSuitable for ducted extraction and recirculation

StandardsPerformance and energy data in accordance with EU‑Regulation No 65/2014*

Downloads

Download product documentation, manuals, and specification sheets.

I88WMM1S7B Spec

PDF

Frequently Asked Questions

Can this downdraft hood be used with gas hobs?

No. This downdraft hood is not suitable for combination with gas hobs.

Is the hood suitable for both ducted extraction and recirculation?

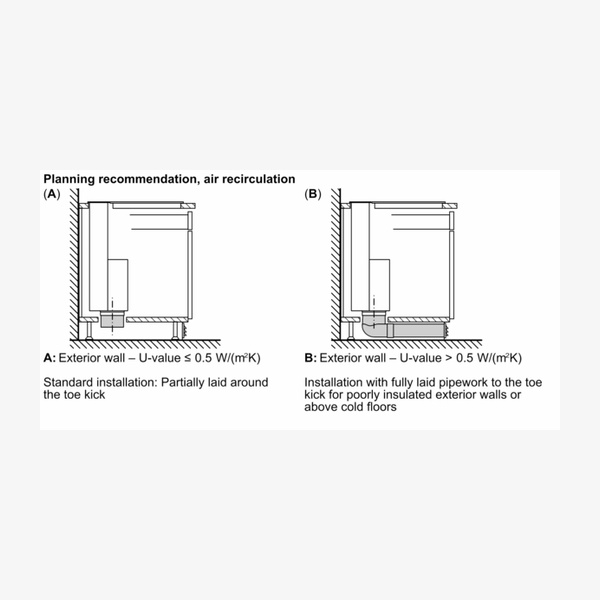

Yes. The appliance is suitable for ducted extraction and recirculation. For recirculated extraction, a Clean Air Plus recirculation kit is needed, available as an accessory.

How do I clean the grease filters?

The hood has two metal grease filter cassettes made from washable stainless steel. A simple push of a button is enough to remove the easy access filter for a wash in the dishwasher. The filter service button automatically lifts filters into service position for easy removal.

What are the maximum extraction rates and noise levels?

In exhaust air mode, the maximum extraction rate is 501 m³/h in normal use and 775 m³/h in intensive mode. The noise level at max normal use exhaust air is 62 dB(A) re 1 pW, and 70 dB(A) re 1 pW in intensive mode. With the Clean Air Plus recirculation kit, recirculation reaches up to 416 m³/h (max normal use) and 525 m³/h (intensive), with noise levels of 65 dB(A) and 70 dB(A) re 1 pW respectively.

Does the hood support smart control and voice control?

Yes. The hood offers Remote Monitoring and Control via compatible smartphone or tablet where Home Connect service is available. Voice Control is enabled via popular voice assistants in countries where this service is supported. Interval and silence functions are available via Home Connect.
