Neff N70 D75NAC1S0B Canopy Hood

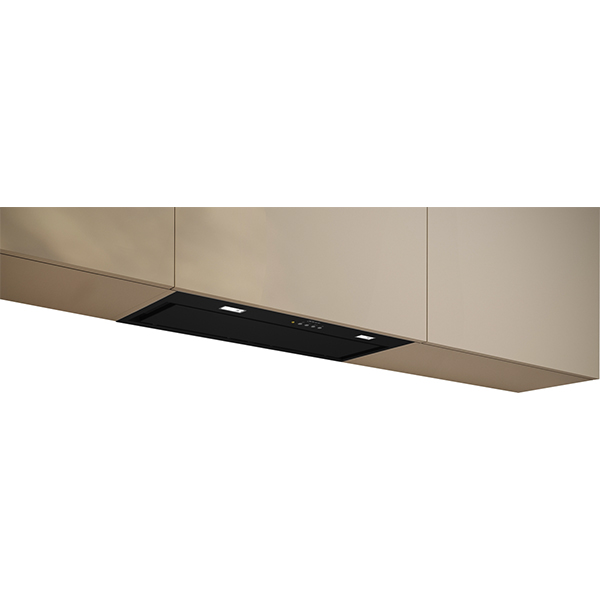

The N 70 70 cm black canopy cooker hood D75NAC1S0B is a built-in solution designed to fit neatly under an overhead unit or cabinet for a flush, seamless look. Suitable for ducted extraction and recirculation, it offers a high extraction rate with optimised, quieter motor performance. LED lighting provides clear illumination while you cook, while three speeds plus an intensive setting with automatic reset help tackle everyday and intensive cooking steam effectively.

SKU:D75NAC1S0B

EAN:4242004282655

Category::Cooker Hoods

Quantity:

Key Features

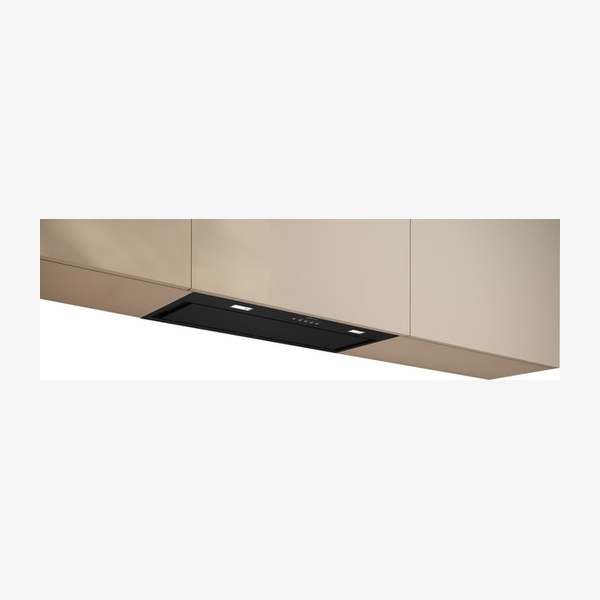

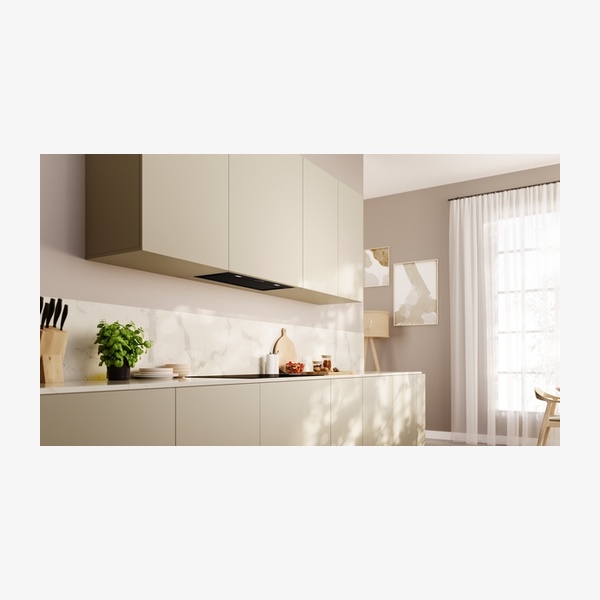

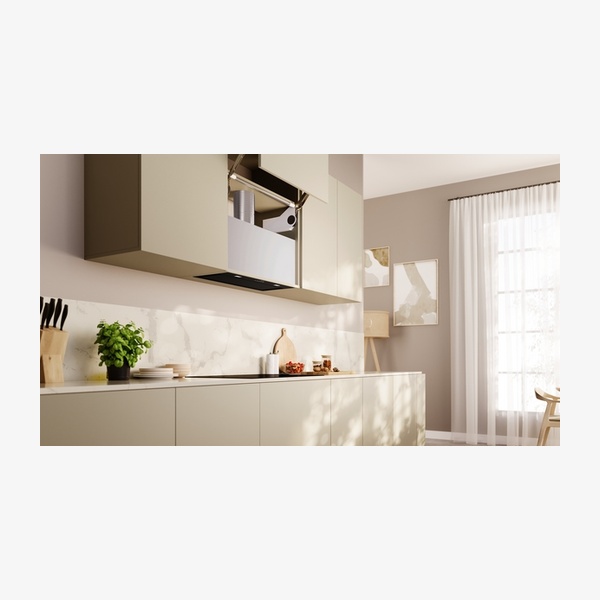

Canopy hood design – fits neatly under an overhead unit or cabinet, discreetly using valuable space.

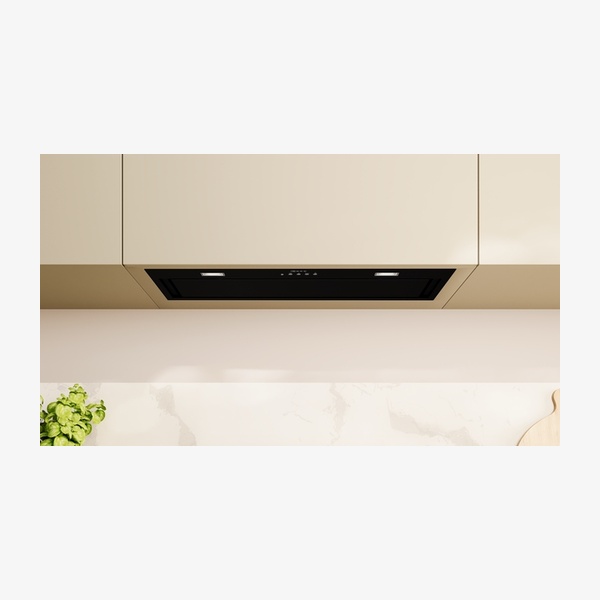

Flush-fitted installation – seamless integration in wall cupboards for a hidden design.

High extraction rate – helps maintain continuously clean air in the kitchen.

Reduced noise motor – optimised motor guarantees a quiet cooking experience.

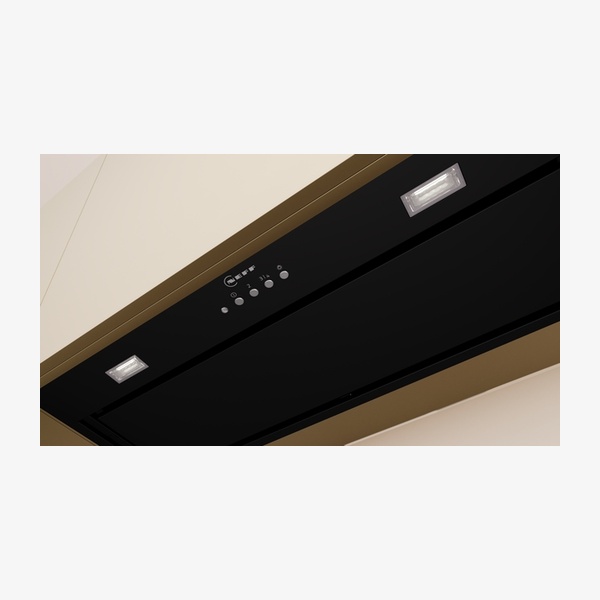

LED lighting – 2 x 1 W LEDs, 4000 K colour temperature and 400 lux for clear illumination while you cook.

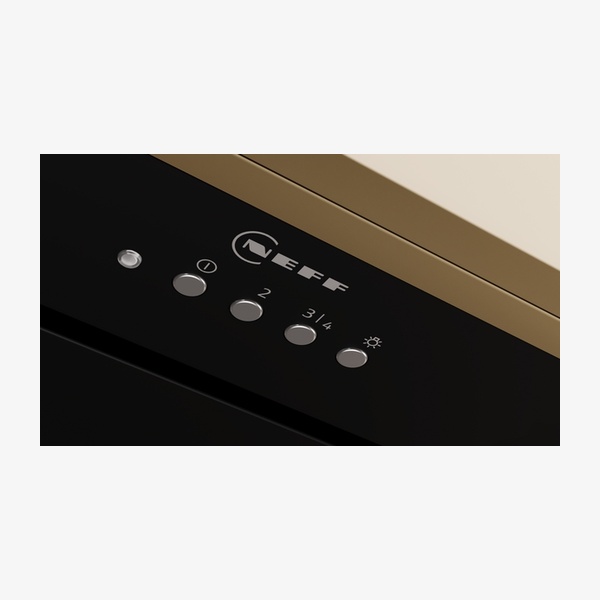

Electronic soft touch controls – LED display with 3 speeds plus intensive setting.

Intensive setting with automatic revert – powerful boost against intense steam, resets to normal after 6 minutes.

Suitable for ducted or recirculating operation – various recirculation kits available as optional accessories.

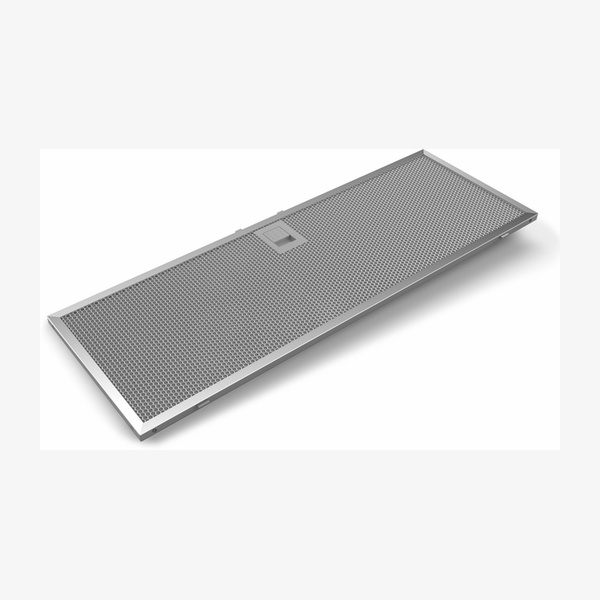

Dishwasher-safe metal grease filters – 2 metal filters with easy to clean smooth surfaces and materials.

Energy Efficiency Class A – with average energy consumption of 55.5 kWh/year*.

High airflow performance – maximum air extraction 595 m³/h, boost extraction up to 730 m³/h.

Recirculation performance options – standard or Clean Air Plus recirculation kits with different airflow and noise characteristics.

Environmentally friendly packaging – sustainability-focused packaging design.

Long Life odour filter option – regenerative Long Life filter with 10 years lifetime available as an accessory.

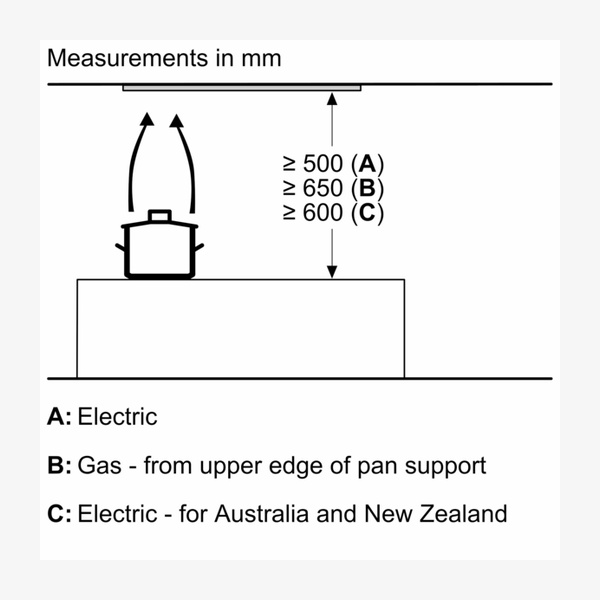

Built-in safety clearances – minimum distance 500 mm above electric hobs and 650 mm above gas hobs.

Technical Spec

Product nameN 70 Canopy Cooker Hood 70 cm Black

Model codeD75NAC1S0B

TypologyBuilt-in/Built-under canopy hood

InstallationCabinet; flush-fitted in wall cupboards; built-in installation typology

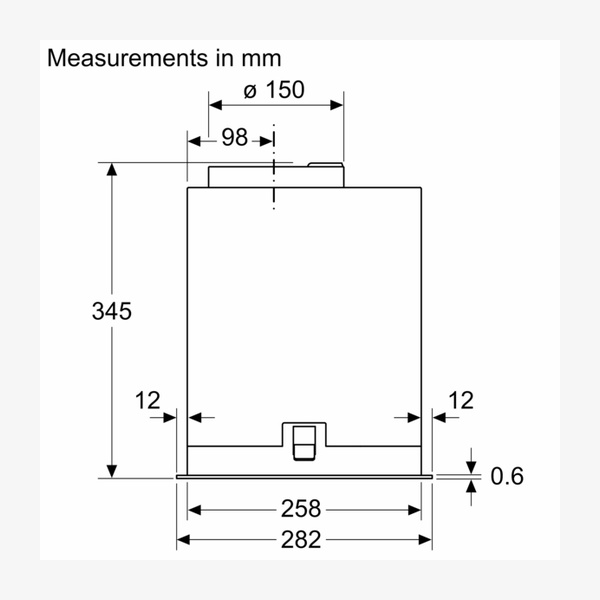

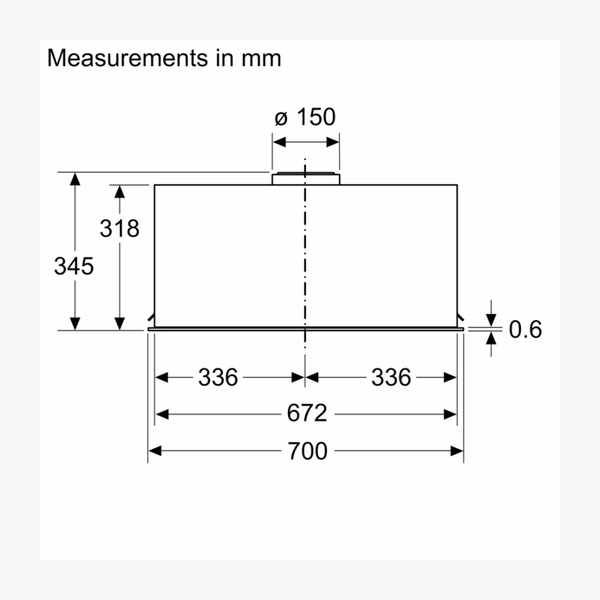

Dimensions (H x W x D)345 x 700 x 282 mm

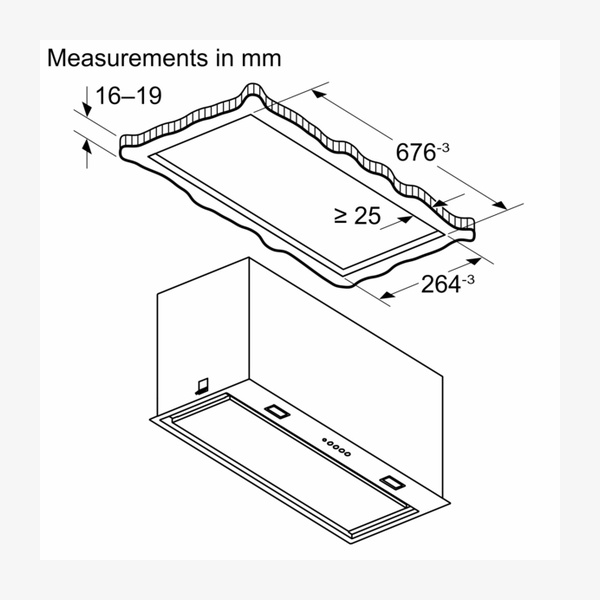

Built-in dimensions (H x W x D)345 x 676 x 264 mm

Required niche size (H x W x D)345 mm x 676.0 mm x 264 mm

Dimensions recirculating (H x W x D)345–345 x 700 x 282 mm

Height of the appliance345 mm

Minimum distance above electric hob500 mm

Minimum distance above gas hob650 mm

Net weight9.2 kg

Type of controlElectronic soft touch with LED display

Speed settings3 stages + intensive setting

Maximum output air extraction595 m³/h

Boost position air extraction730 m³/h

Maximum output recirculating air580 m³/h

Boost position output recirculating705 m³/h

Maximum air flow595 m³/h

Noise level (max)63 dB(A) re 1pW

Number of lights2 x 1 W LED

Light colour temperature4000 K

Light intensity400 lux

Grease filter materialWashable aluminium; 2 metal grease filters

Grease filter cleaningMetal grease filter dishwasher-safe

Diameter of air outlet150 mm (120 mm enclosed); pipe Ø 150 mm (Ø 120 mm enclosed)

Back-pressure flapYes

Energy Efficiency ClassA (range A+++ to D)

Average energy consumption55.5 kWh/year*

Blower Efficiency ClassA*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassD*

Connection rating252 W (power rating 252 W)

Voltage220–240 V nominal voltage

Frequency60; 50 Hz

Fuse protection3 A

Plug typeGB plug

Length of electrical supply cord150 cm (electrical cable length 1.5 m)

Typology of operationSuitable for ducted extraction and recirculation

EAN code4242004282655

Downloads

Download product documentation, manuals, and specification sheets.

D75NAC1S0B Spec

PDF

Frequently Asked Questions

Is this canopy hood suitable for both ducted and recirculation use?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculated extraction, various recirculation kits are available as optional accessories, including standard and Clean Air Plus options.

What are the minimum installation distances above the hob?

The minimum distance above an electric hob is 500 mm. The minimum distance above a gas hob is 650 mm.

How many speeds does the hood have and what is the intensive setting?

The hood offers 3 speed settings plus an intensive setting. The intensive function provides a powerful boost against intense steam and automatically resets to the normal setting after 6 minutes.

Are the grease filters removable and dishwasher-safe?

Yes. The hood includes 2 metal grease filters made from washable aluminium. These metal grease filters are dishwasher-safe and the surfaces and materials are designed to be easy to clean.

What kind of lighting does this cooker hood use?

It uses 2 x 1 W LED lights with a colour temperature of 4000 K and a light intensity of 400 lux, providing clear illumination while you cook.

What is the energy efficiency rating of the hood?

The cooker hood has an Energy Efficiency Class of A, with an average energy consumption of 55.5 kWh/year*. The blower and lighting efficiency classes are A*, while the grease filtering efficiency class is D*.
