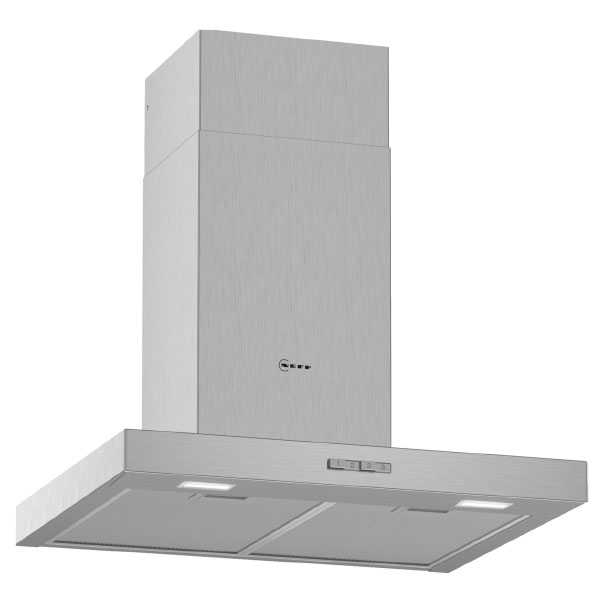

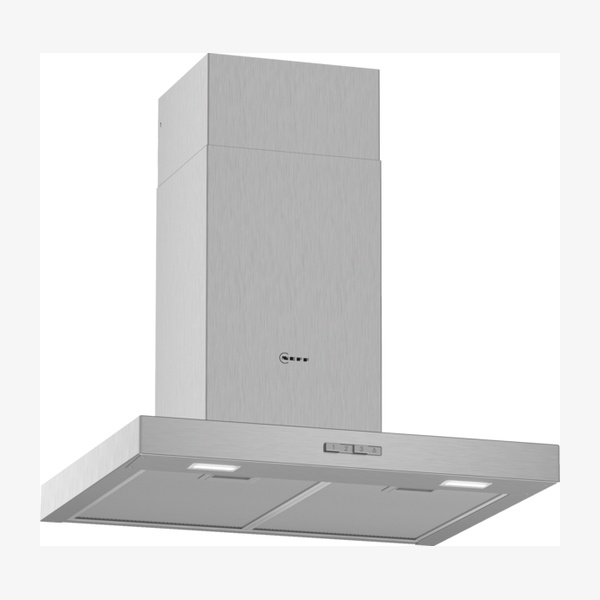

Neff N30 D62BBC0N0B Chimney Hood

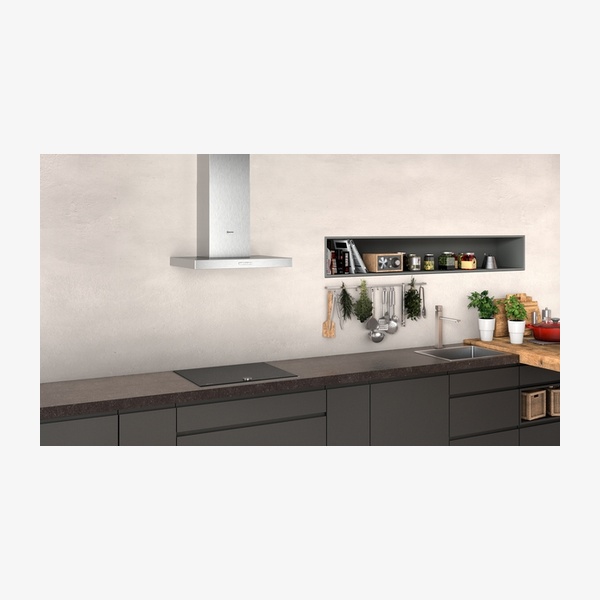

The N 30 D62BBC0N0B is a wall–mounted stainless steel box hood designed to coordinate stylishly with your kitchen while keeping up with your cooking. It offers ducted extraction or recirculation, with three power levels and a twin channel high performance fan motor. Clear LED lighting and washable aluminium grease filters support everyday use, while mechanical push button controls make operation straightforward for users seeking a modern, functional 60 cm chimney hood.

SKU:D62BBC0N0B

EAN:4242004223993

Category::Cooker Hoods

Quantity:

Key Features

Wall–mounted chimney design – typology and installation designed as a wall–mounted chimney hood.

Stainless steel finish – stainless steel chimney and back panel options for coordinated styling.

LED lighting – 2 × 1.5 W LED lights with 3500 K colour temperature and 99 lux light intensity for clear illumination while you cook.

Three power levels – push button mechanical control operation with 3 speed settings.

Twin channel fan motor – twin channel high performance fan motor for effective extraction.

Ducted or recirculation – suitable for ducted extraction and recirculation; various recirculating and CleanAir kits available as accessories.

Maximum extraction rate 365 m³/h – maximum output air extraction and maximum air flow of 365 m³/h.

Recirculation performance – with Clean Air Plus recirculation kit, extraction rate in recirculation mode up to 240 m³/h.

Noise level 63 dB(A) – noise level at maximum normal use in exhaust air mode 63 dB(A) re 1 pW; reduced noise through optimised motor.

Washable aluminium grease filters – 2 metal grease filter cassettes made from washable aluminium.

Energy Efficiency Class D – at a range of energy efficiency classes from A+++ to D, with average energy consumption 53.1 kWh/year*.

UK–ready power connection – GB plug, 220–240 V, 50/60 Hz, 10 A fuse protection and 100 W connection rating.

Flexible ducting connection – diameter pipe Ø 150 mm with Ø 120 mm enclosed; air outlet diameter 120/150 mm.

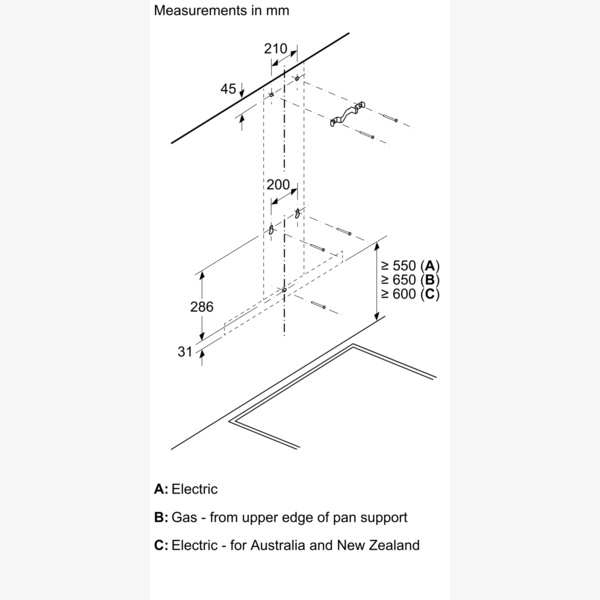

Safety clearance guidance – minimum distance above an electric hob 550 mm and above a gas hob 650 mm.

Optional accessories – range of recirculation kits, Clean Air Standard and Clean Air Plus filters, back panels and chimney extensions available.

Technical Spec

Product nameN 30, Wall–mounted cooker hood, 60 cm, Stainless Steel

Model codeD62BBC0N0B

TypologyWall–mounted

Colour – chimneyStainless steel

Installation typologyWall–mounted; chimney hood; installation: wall

Energy Efficiency ClassD (at a range of energy efficiency classes from A+++ to D)

Average Energy Consumption53.1 kWh/year*

Maximum output air extraction365 m³/h (Maximum Air flow 365 m³/h)

Maximum extraction rate exhaust air365 m³/h according to EN 61591

Maximum output recirculating air240 m³/h (with Clean Air Plus recirculation kit in recirculation mode)

Noise level (exhaust air)63 dB(A) re 1 pW at max. normal use according to EN 60704–3 and EN 60704–2–13

Noise level (recirculation mode)65 dB(A) re 1 pW at max. normal use with Clean Air Plus recirculation kit

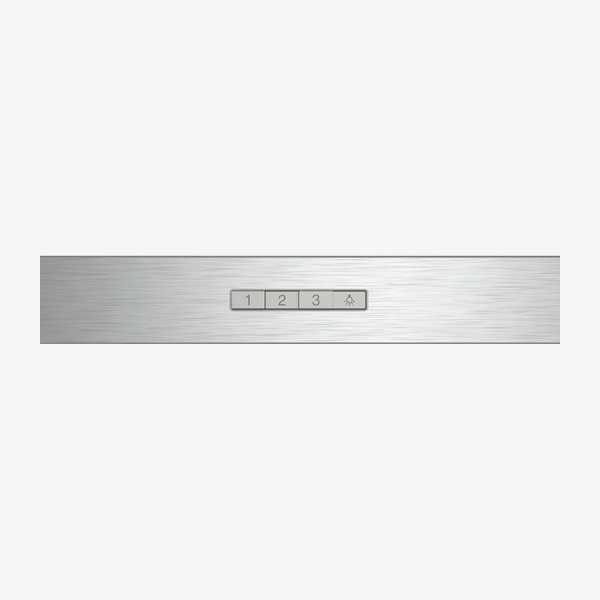

Type of controlMechanical; push button control operation

Number of speed settings3 power levels

Fan motorTwin channel high performance fan motor

Number of lights2 × 1.5 W LED Light

Colour temperature3500 K

Light intensity99 lux

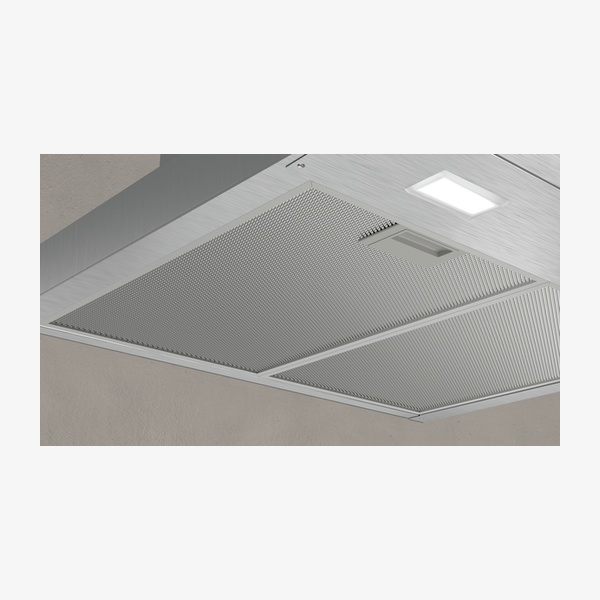

Grease filters2 metal grease filter cassettes; grease filter material: washable aluminium

Blower Efficiency ClassE*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassC*

Connection rating100 W (Power rating: 100 W)

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

Length of electrical supply cord130.0 cm (electrical cable length 1.3 m)

Height of the chimney583–912 / 583–1022 mm

Height of the appliance53 mm

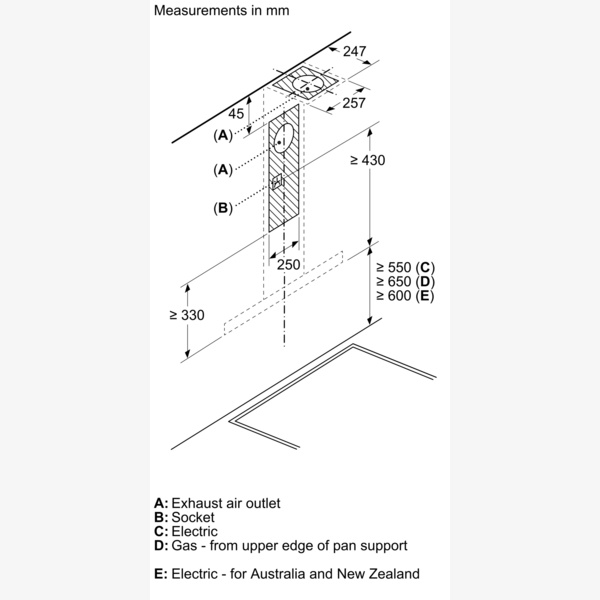

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Net weight11.6 kg

Diameter of air outlet120 / 150 mm

Diameter pipeØ 150 mm (Ø 120 mm enclosed)

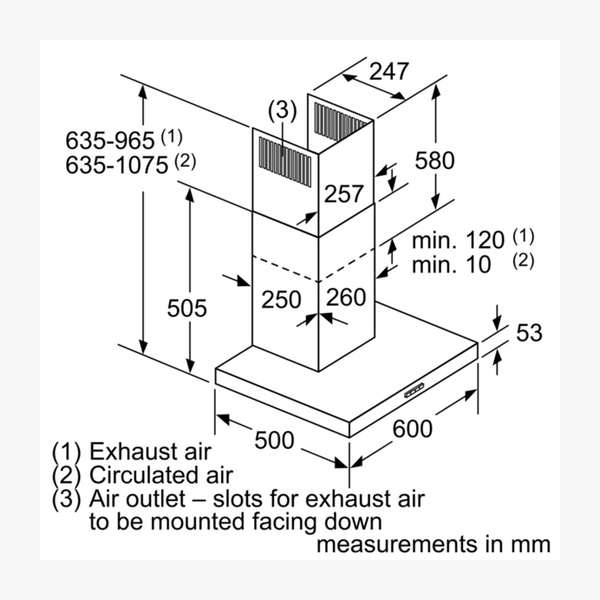

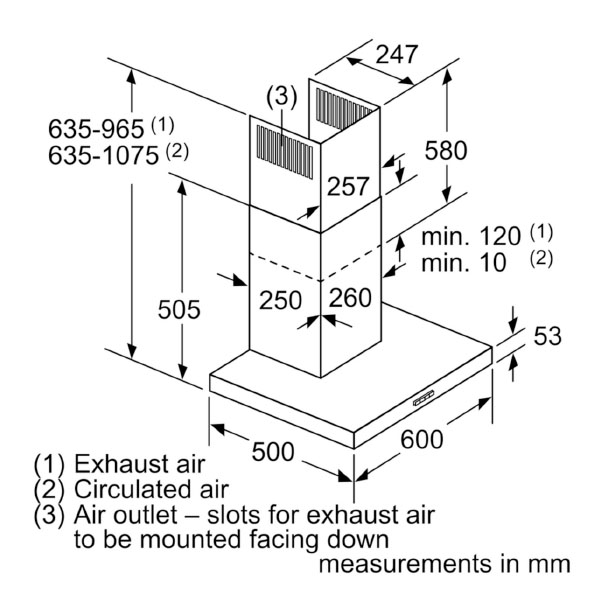

Dimensions exhaust air (H×W×D)635–965 × 600 × 500 mm

Dimensions recirculating (H×W×D)635–1075 × 600 × 500 mm

Dimensions recirculating with CleanAir module703 × 600 × 500 mm – mounting with outer chimney; 833–1163 × 600 × 500 mm – mounting with telescopic chimney

EAN code4242004223993

Key performance notes* In accordance with the EU–Regulation No 65/2014

Downloads

Download product documentation, manuals, and specification sheets.

D62BBC0N0B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in recirculation mode?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit is needed. With the Clean Air Plus recirculation kit, the extraction rate in recirculation mode is up to 240 m³/h.

What is the maximum extraction rate of this hood?

The maximum extraction rate for exhaust air is 365 m³/h according to EN 61591. The maximum output air extraction and maximum air flow are also specified as 365 m³/h.

How noisy is the hood during normal use?

In exhaust air mode at maximum normal use, the noise level is 63 dB(A) re 1 pW according to EN 60704–3 and EN 60704–2–13. In recirculation mode with the Clean Air Plus recirculation kit, the noise level at maximum normal use is 65 dB(A) re 1 pW. The optimised motor is described as providing reduced noise for a quiet cooking experience.

What type of filters does this cooker hood use?

The hood is fitted with two metal grease filter cassettes made from washable aluminium. A range of optional odour filters and recirculation kits, including Long Life and Clean Air Plus filters, are available as accessories.

What are the recommended installation distances above the hob?

The minimum distance above an electric hob is 550 mm, and the minimum distance above a gas hob is 650 mm.

What is the width of this cooker hood?

The product is specified as a 60 cm wall–mounted cooker hood. The stated dimensions for both exhaust air and recirculating configurations list the width as 600 mm.
