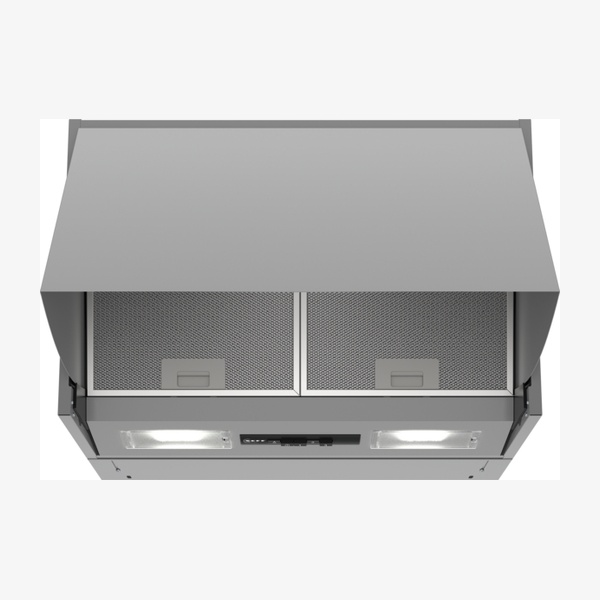

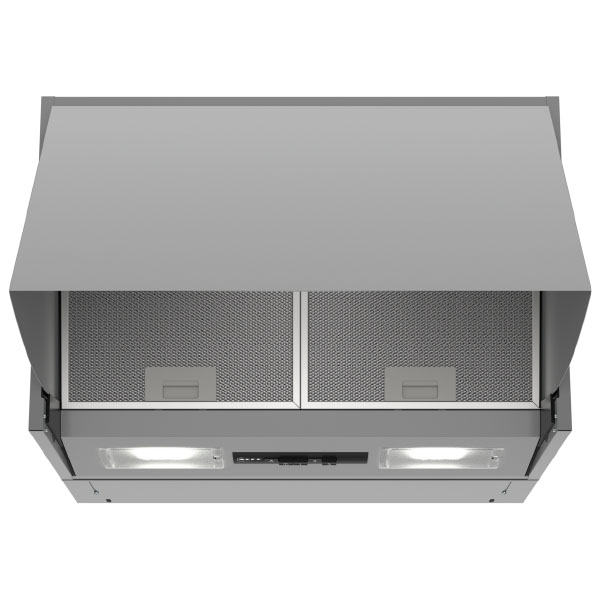

Neff N30 D64MAC1X0B Integrated Hood

The N 30 integrated 60 cm silver cooker hood D64MAC1X0B is a built–in, wall–mounted hood designed to be discreetly hidden within upper cupboards with a hinged, fold out unit. It offers up to 625 m³/h extraction with three power levels, mechanical push button controls and clear LED lighting. Suitable for both ducted extraction and recirculation with washable aluminium grease filters, it provides efficient odour and grease removal for everyday cooking.

SKU:D64MAC1X0B

EAN:4242004223375

Category::Cooker Hoods

Quantity:

Key Features

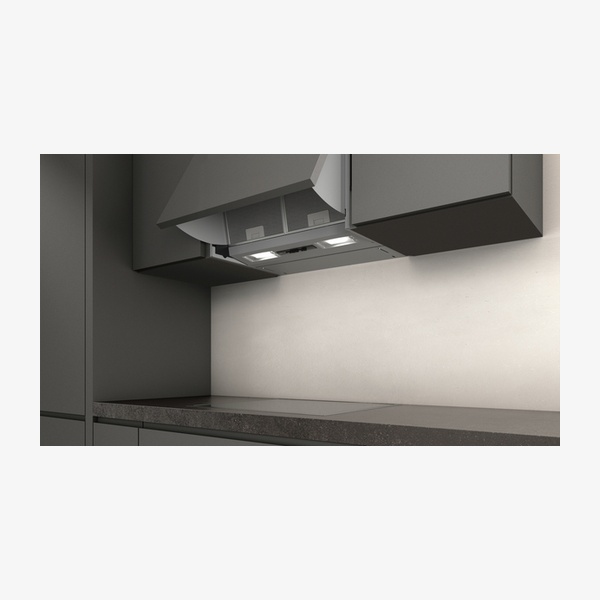

Integrated, fold out design – discreetly hidden within the upper cabinets and installed between cupboards with a hinged door.

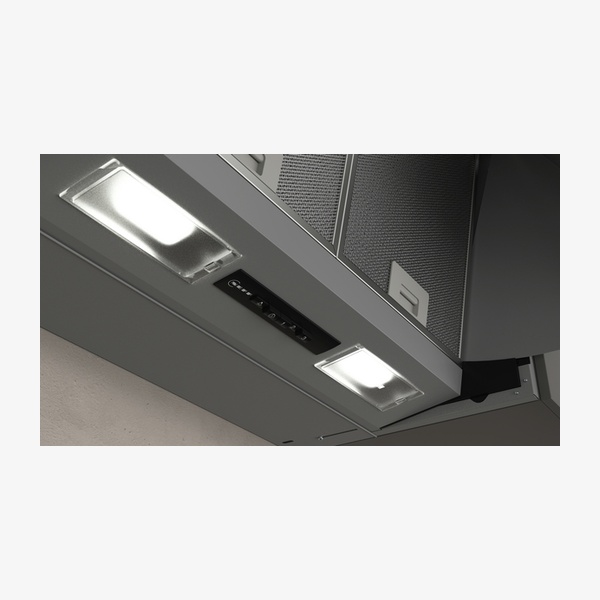

LED lighting – 2 × 3 W LED lights provide clear illumination while you cook, with 188 lux light intensity and 2700 K colour temperature.

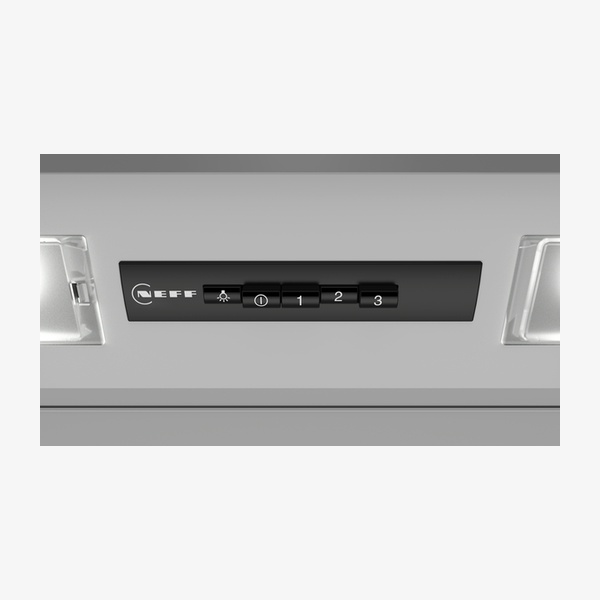

Three power levels – push button mechanical controls with 3 speed settings for flexible extraction.

High extraction performance – maximum output air extraction and maximum air flow up to 625 m³/h; maximum recirculating air up to 416 m³/h.

Efficient filtration – 2 metal grease filter cassettes made from washable aluminium for easy maintenance.

Ducted or recirculating operation – suitable for ducted extraction and recirculation; charcoal filter and recirculating kit available as accessories.

Energy and efficiency ratings – Energy Efficiency Class B, Blower Efficiency Class B*, Lighting Efficiency Class A* and Grease Filtering Efficiency Class C*.

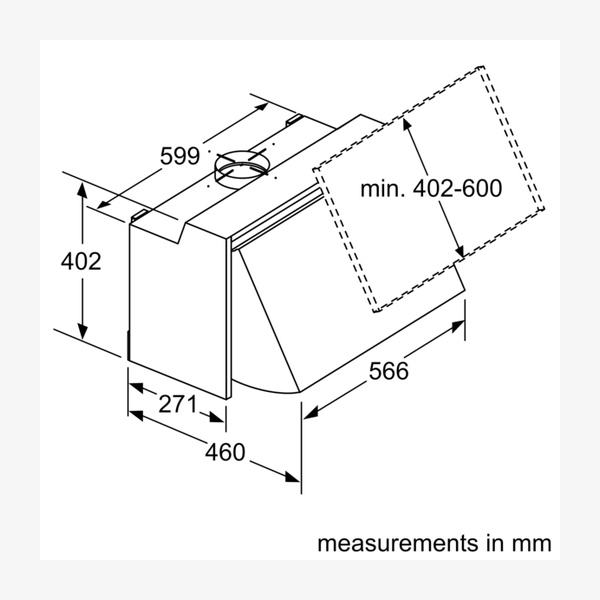

Compact dimensions – exhaust and recirculating dimensions of 402–402 × 599 × 271 mm (HxWxD) for a 60 cm installation.

Standard UK electrical set–up – 150 cm electrical supply cord with GB plug, 220–240 V, 50; 60 Hz and 10 A fuse protection.

Optional accessories – Z51IMA0X0 recirculating kit and Z51IMA0X0 standard odour filter (replacement).

Noise level – up to 70 dB(A) re 1 pW at maximum speed in normal use according to EN 60704–3 and EN 60704–2–13.

Average energy consumption – 68.4 kWh/year* with a connection rating of 256 W.

Technical Spec

Product nameN 30, Integrated cooker hood, 60 cm, Silver

ModelD64MAC1X0B

TypologyBuilt–in/Built–under

Installation typologyWall–mounted; installation between cupboards

DesignIntegrated hood with hinged door; silver finish (noted as Silver)

Energy Efficiency ClassB (at a range of energy efficiency classes from A+++ to D)

Average Energy Consumption68.4 kWh/year*

Blower Efficiency ClassB*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassC*

Maximum output air extraction625 m³/h (according to EN 61591)

Maximum Air flow625 m³/h

Maximum output recirculating air416 m³/h

Number of speed settings3 power levels

Type of controlMechanical; push button control operation

MotorSingle motor

Number of lights2 × 3 W LED

Light intensity188 lux

Colour temperature2700 K

Grease filter materialWashable aluminium; 2 metal grease filter cassettes

Noise level70 dB(A) re 1 pW; Noise, max. speed in normal use: 70 dB*

Height of the appliance402 mm

Dimensions exhaust air (HxWxD)402–402 × 599 × 271 mm

Dimensions recirculating (HxWxD)402–402 × 599 × 271 mm

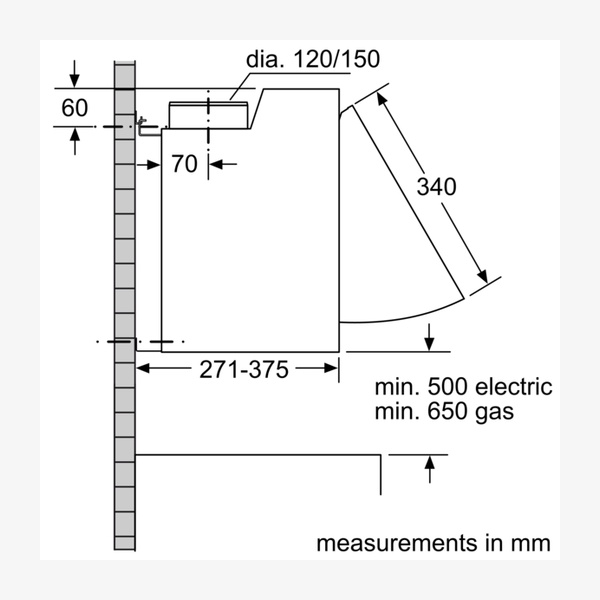

Minimum distance above an electric hob500 mm

Minimum distance above a gas hob650 mm

Diameter of air outlet / pipe150 / 120 mm; Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Length electrical supply cord150 cm; electrical cable length 1.5 m

Net weight10.8 kg

Connection rating / Power rating256 W

Voltage220–240 V

Frequency50; 60 Hz

Fuse protection10 A

Plug typeGB plug

Suitable for ducted extractionYes

Suitable for recirculationYes; charcoal filter (accessory) needed for recirculated extraction

Optional accessoriesRecirculating kit Z51IMA0X0; Standard odour filter (replacement) Z51IMA0X0

EAN code4242004223375

Downloads

Download product documentation, manuals, and specification sheets.

D64MAC1X0B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used with both ducted extraction and recirculation?

Yes. The hood is suitable for ducted extraction and recirculation. For recirculated extraction, a charcoal filter accessory is needed. An optional recirculating kit Z51IMA0X0 and a standard odour filter (replacement) Z51IMA0X0 are available.

What are the minimum installation heights above electric and gas hobs?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.

How loud is the hood during normal use?

The noise level at maximum speed in normal use is 70 dB(A) re 1 pW, measured according to EN 60704–3 and EN 60704–2–13.

How many speed settings and what type of controls does it have?

The hood offers 3 power levels and uses mechanical push button control operation.

Are the grease filters washable?

Yes. The hood includes 2 metal grease filter cassettes made from washable aluminium.

What is the energy efficiency rating of this cooker hood?

The cooker hood has an Energy Efficiency Class B, with an average energy consumption of 68.4 kWh/year in accordance with EU–Regulation No 65/2014.
