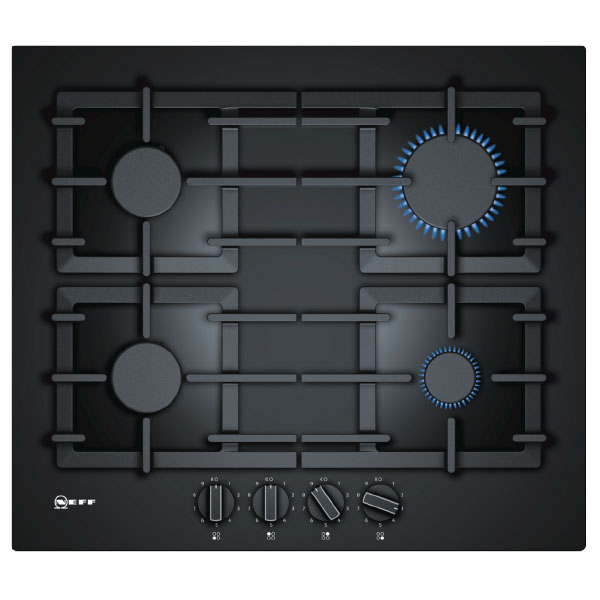

Neff N70 T26CS49S0 Gas Hob

The N 70 60 cm gas hob T26CS49S0 is a built-in hob with a black tempered glass surface and front sword knob controls. It offers four burners, including a high speed and an economy burner, with FlameSelect providing nine defined flame levels. Cast iron pan supports with rubber feet ensure stable cookware placement. The hob is factory set for mains gas and supports a range of natural gas and liquid gas types, with an LPG nozzle set included.

SKU:T26CS49S0

EAN:4242004203322

Category::Hobs

Quantity:

Key Features

Tempered glass surface, black – provides a sleek cooking surface with a black finish.

Two built-in options – flush installation or surface mounted installation, either flush or slightly raised on the worktop.

FlameSelect with 9 steps – allows precise control and adjustment of the flame in nine defined levels.

Design co-ordinated control dials – front-mounted sword knobs with strong grip for effortless turning.

Ignition via control dials – push and turn the dials to ignite the flame.

4 burner hob – with standard, high speed and economy burners to suit different cooking needs.

High speed burner up to 3 KW – right rear burner offers high power, depending on gas type.

Economy burner up to 1 KW – right front burner for lower power cooking, depending on gas type.

Cast iron pan supports with rubber feet – provide strong, stable support for cookware.

Flame failure safety device – prevents unwanted gas flow when the flame goes out.

Factory set for mains gas – nozzle set for LPG jets (28–30/37 mbar) included; other nozzles available via customer service.

Optional accessories – Z2402X0 small pot support and Z2480X0 simmer plate.

Technical Spec

Product name/familygas hob w integrated controls

ModelT26CS49S0

Product rangeN 70, Gas hob, 60 cm, Tempered Glass, black

Built-in / Free-standingBuilt-in

Energy inputGas

Number of cooking zones4

Type of control setting devicessword knobs

Location of control panelFront

Basic surface materialTempered glass

Colour of surfaceBlack

Colour of frameBlack

Dimensions (HxWxD)45 x 590 x 520 mm / 58 x 590 x 520 mm stated

Width of the appliance590 mm

Required niche size (HxWxD)45 x 560–562 x 480–492 mm / 45 x 560 x (480–492) mm stated

Min. worktop thickness30 mm

Dimensions of packed product (HxWxD)141 x 651 x 578 mm

Net weight15.1 kg

Gross weight16.0 kg

Residual heat indicatorWithout

Length of electrical supply cord100 cm / Power cord: 1 m

Gas connection rating7500 W

Connected load7.5 KW

Fuse protection3 A

Voltage220–240 V

Frequency60; 50 Hz

EAN code4242004203322

Optional accessoriesZ2402X0 Small pot support; Z2480X0 Simmer plate

Burners, Installation and Safety

Burners and power

4 burner hob.
Left front: Standard burner up to 1.75 KW (depending on gas type).
Left rear: Standard burner up to 1.75 KW (depending on gas type).
Right rear: High speed burner up to 3 KW (depending on gas type).
Right front: Economy burner up to 1 KW (depending on gas type).

Safety

Flame failure safety device: prevents unwanted gas flow when the flame goes out.

Gas types and connection

Usable for: Nat gas L/LL G25/20 mbar (DE).
NG H/E 20 mbar, E+ 20/25 mbar.
Natural gas H 25 mbar (HU).
Natural gas L 25 mbar (NL).
Liquid gas G30,31 28–30/37 mbar.
Liquid gas G30 37 mbar (PL).
Liquid gas 50 mbar.
Factory set for connection to mains gas.
Nozzle set for LPG jets (28–30/37 mbar) included.
Nozzles for all other gas types can be ordered via the customer service; nozzle change should be carried out by customer service.

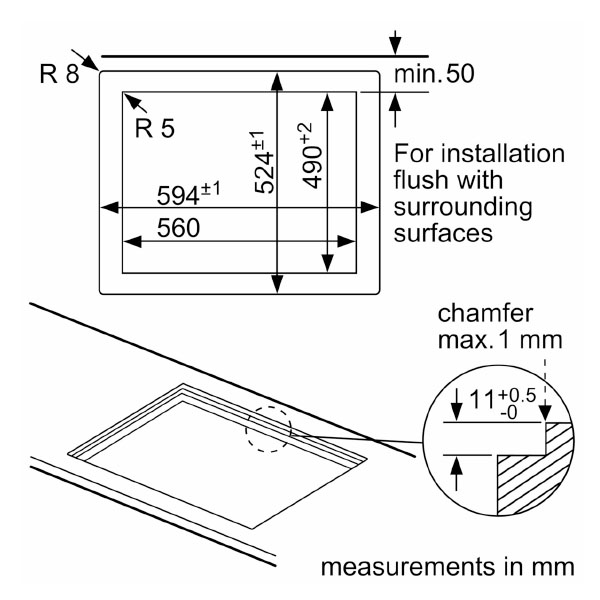

Installation measurements

Dimensions of the product are stated as 58 x 590 x 520 mm, with a required niche size of 45 x 560 x (480–492) mm and a minimum worktop thickness of 30 mm. For installation, the hob can be fitted either flush or surface mounted on the worktop.

Downloads

Download product documentation, manuals, and specification sheets.

T26CS49S0 - bulletin.pdf

PDF

T26CS49S0 Spec

PDF

Frequently Asked Questions

How many burners does the N 70 T26CS49S0 gas hob have?

The hob has 4 burners: two standard burners, one high speed burner and one economy burner.

What is FlameSelect and how many levels are available?

FlameSelect allows you to precisely control and adjust the flame in nine defined levels, providing consistent flame settings across cooking sessions.

Can this gas hob be installed flush with the worktop?

Yes. The hob offers two built-in options: flush installation or surface mounted installation, which allows it to be installed either flush or slightly raised on the worktop.

Which gas types can the hob be used with?

It is usable with various natural gas and liquid gas types, including Nat gas L/LL G25/20 mbar (DE), NG H/E 20 mbar, E+ 20/25 mbar, natural gas H 25 mbar (HU), natural gas L 25 mbar (NL), liquid gas G30,31 28–30/37 mbar, liquid gas G30 37 mbar (PL) and liquid gas 50 mbar.

Does the hob include a safety feature if the flame goes out?

Yes. A flame failure safety device prevents unwanted gas flow when the flame goes out.

Are any accessories available for this hob?

Optional accessories listed are the Z2402X0 small pot support and the Z2480X0 simmer plate.
