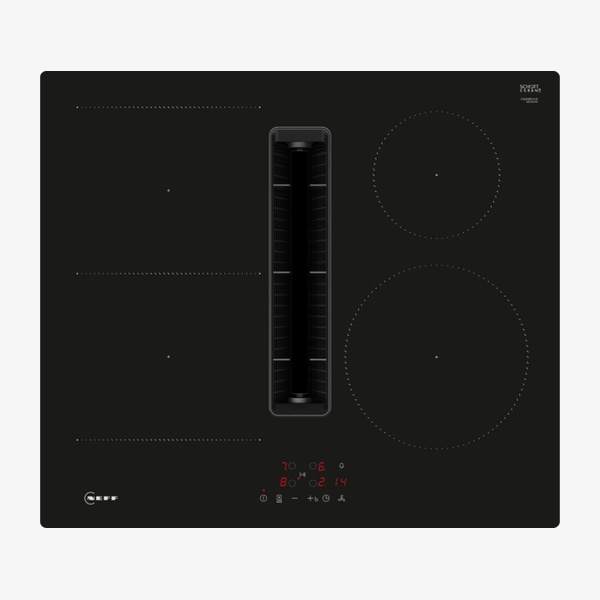

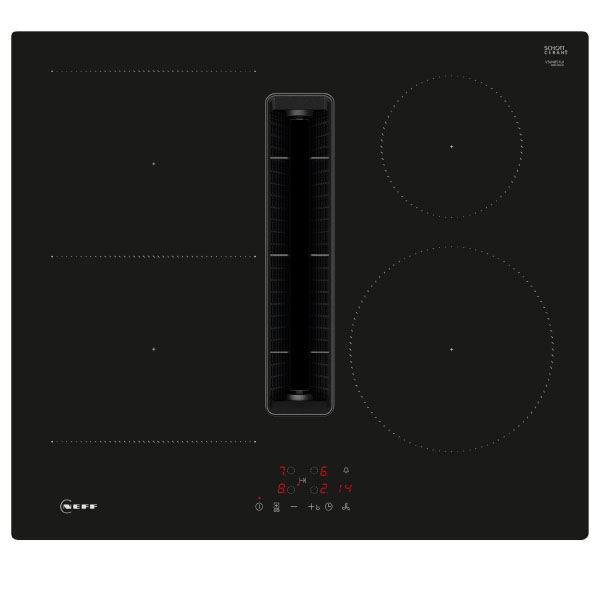

Neff N50 V56NBS1L0 Venting Induction Hob

The N 50 V56NBS1L0 is a 60 cm frameless induction hob with a fully integrated high-performance downdraft ventilation system, combining two appliances in one for a clear view while cooking. It offers four induction cooking zones, including a combi zone for larger cookware, touch control with 17-stage power settings, and powerful extraction with reduced noise. Easy-clean, dishwasher-safe filters and flexible ducted or recirculated installation options support convenient everyday use.

SKU:V56NBS1L0

EAN:4242004277439

Category::Hobs

Quantity:

Key Features

Induction hob with integrated ventilation – combines two appliances in one for a clear view while cooking.

60 cm width – space for 4 pots or pans with front and rear left zones, and front and rear right zones.

Combi Induction / combi zone – use bigger cookware by connecting two classic cooking zones into one large zone.

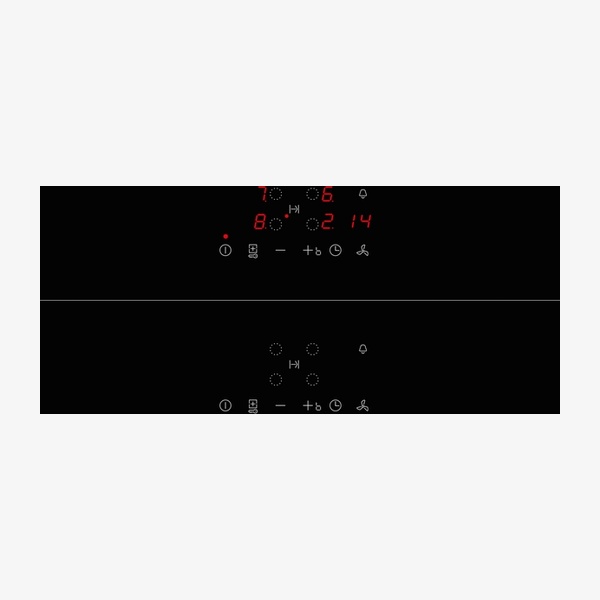

Touch control – imprinted +/- touch buttons with 17-stage power settings for each zone.

Power Boost function for all zones – boil water faster with 50 % more energy than at the highest standard level.

QuickStart and ReStart functions – automatic zone selection with cookware and restoration of previous settings after unintentional switch-off.

Quick-Off feature – quickly switch off a cooking zone with one longer touch.

High extraction rate – maximum output air extraction 500 m³/h, boost up to 622 m³/h (ducted extraction according to EN 61591).

Reduced noise – high-performance, low-noise blower with energy-efficient BLDC technology and optimised psycho-acoustics.

Integrated downdraft extractor – 3 electronically controlled fan power levels plus 1 Boost/Intensive level with automatic revert.

Automatic ventilation control – automatic switch-on with a cooking zone in use and delayed shut-off to remove residual odours.

Easy-clean filters – easy-to-detach, fully dishwasher-safe stainless-steel grease filters and liquid collector units.

Large liquid capturing capacity – overall capturing capacity of 900 ml (200 ml upper collector + 700 ml liquid safety collector).

Energy Efficiency Class B – ventilation system with Fluid Dynamic Efficiency class A and grease filtration efficiency class B.

Clean Air Plus odour filters – optimised odour reduction including complex odour molecules, anti-pollen functionality and 360-hour lifetime (recirculation).

Safety features – 2-stage residual heat indicators, control panel lock, main switch, and safety cut-out facility.

Frameless design – black ceramic surface for surface mount without frame.

Flexible installation options – suitable for ducted or recirculated extraction in multiple configurations, including unducted recirculation.

Included accessories – 1 x Slider for unducted recirculation and 1 x Clean Air Plus odour filter.

Optional accessories available – including recirculation and exhaust kits, ducting components, wireless food thermometer and cookware.

Technical Spec

Product name/familyCooking zone ceramic

ModelV56NBS1L0 (N 50 induction hob with integrated ventilation system, 60 cm, surface mount without frame)

Built-in / Free-standingBuilt-in

Energy inputElectric

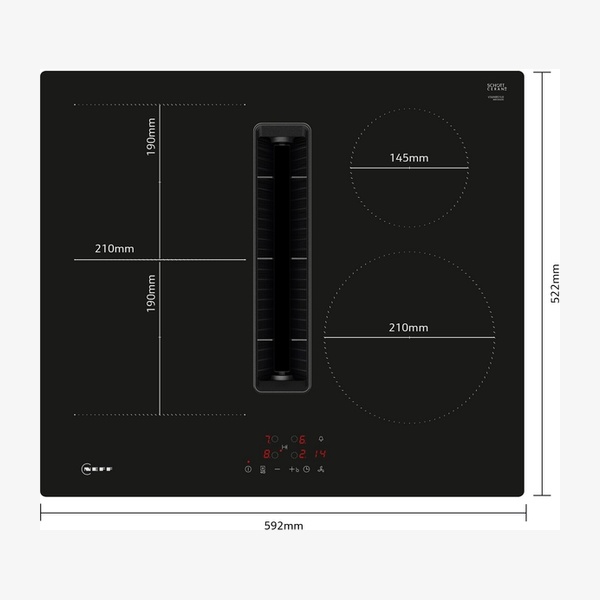

Number of cooking zones4

Cooking zone front left190 mm, 210 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone rear left190 mm, 210 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone rear right145 mm, 1.4 kW (max. power 2.2 kW)

Cooking zone front right210 mm, 2.2 kW (max. power 3.7 kW)

Heating with boosterAll

Power of 2nd heating element3600.0 W

Power of 5th heating element1400.0 W

Control typeTouch control with imprinted +/- buttons

Power levelsVariable 17-stage power settings for each zone (9 main levels and 8 intermediate levels)

Switch-off timerYes – switches off cooking zone at end of set time

Count-down timerYes – alarm at end of set time

Dimensions (H × W × D)223 x 592 x 522 mm

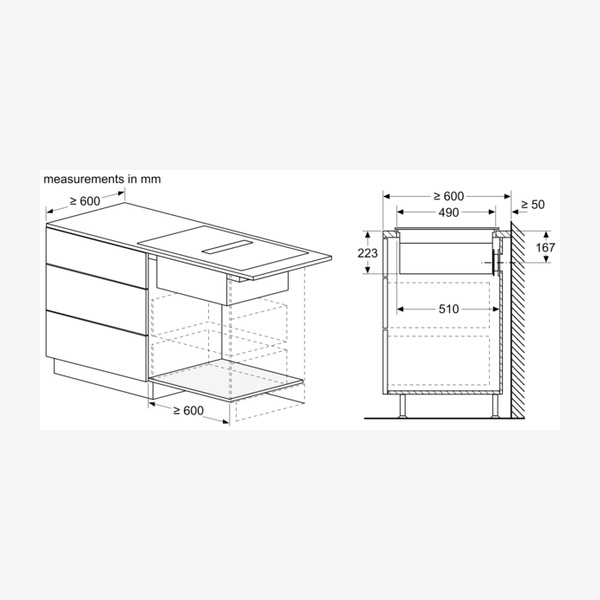

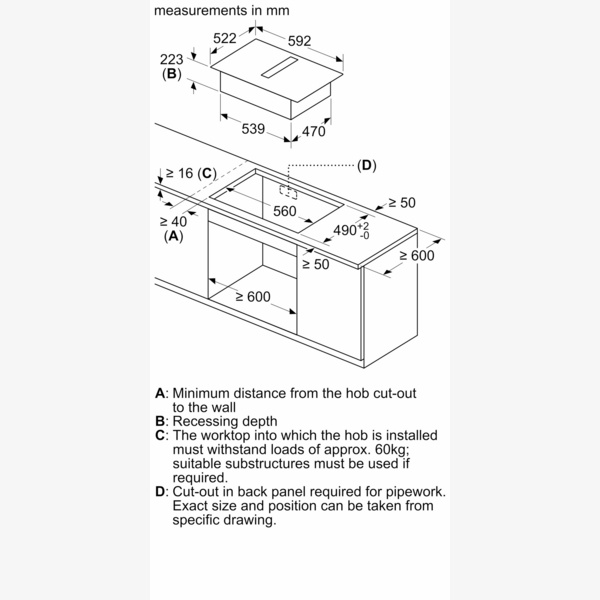

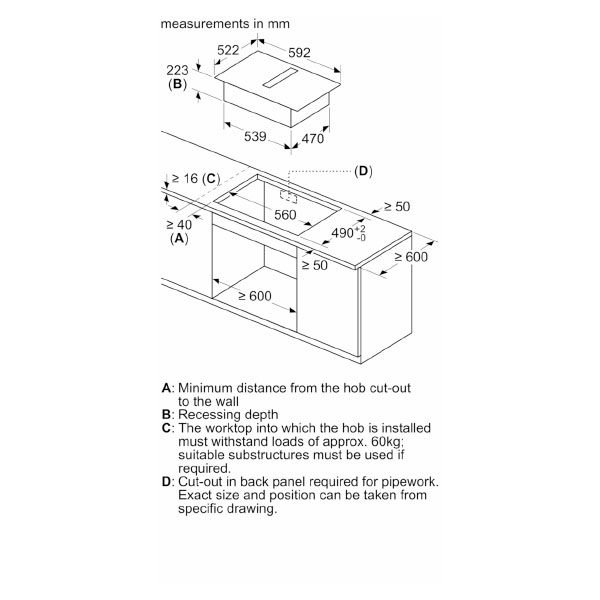

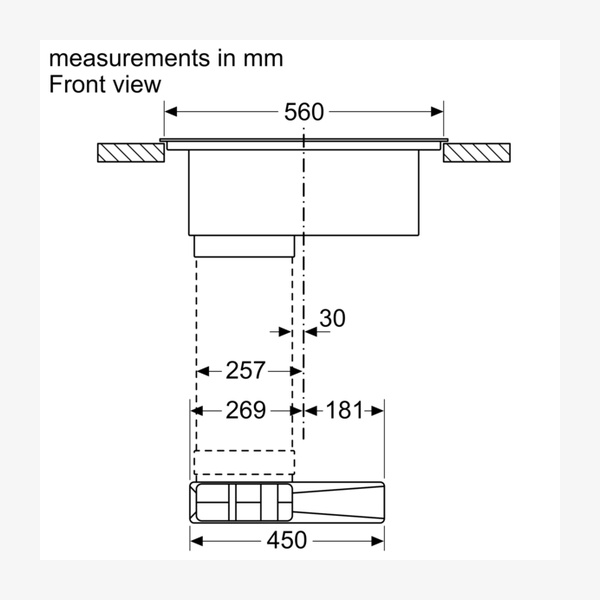

Required niche size (H × W × D)223 x 560–560 x 490–490 mm

Minimum worktop thickness16 mm

Width of appliance592 mm

Dimensions of packed product (H × W × D)430 x 690 x 660 mm

Net weight / Gross weight23.0 kg / 27.1 kg

Overall appliance weight26 kg

Location of control panelFront

Basic surface materialCeramic

Surface colourBlack

FramelessYes – surface mount without frame

Residual heat indicatorSeparate, 2-stage residual heat indicators

Control panel lockYes

Main switchYes – switch off all cooking zones at the touch of a button

Safety cut-out facilityYes – heating stops after preset time if not used

Length of electrical supply cord110 cm

Connected load7.4 kW

Power output and current management4.6 kW power output (20 A); current management options for 16 A, 13 A or 10 A connection

Voltage220–240/380–415 V

Frequency50–60 Hz

Sealed burnersNo

Number of fan speed settings3 stages + intensive setting

Maximum output air extraction500 m³/h

Boost position air extraction622 m³/h

Maximum output recirculating air441 m³/h

Boost position output recirculating595.0 m³/h

Noise level (general)69 dB(A) re 1 pW

Noise levels – ducted extraction (EN 60704-3)Min. normal 61 dB re 1 pW, max. normal 69 dB re 1 pW, Boost/Intensive 74 dB re 1 pW

Noise levels – recirculated extraction (EN 60704-3)Min. normal 55 dB re 1 pW, max. normal 66 dB re 1 pW, Boost/Intensive 72 dB re 1 pW

Odour filter (general field)No (however Clean Air Plus odour filter is included as an accessory)

Clean filter remindersYes

Grease filter efficiency94 % (according to EN 61591)

Energy Efficiency Class (ventilation)B (at a range of energy efficiency classes from A+++ to D)

Fluid Dynamic Efficiency classA

Average energy consumption57

Grease filtration efficiency classB

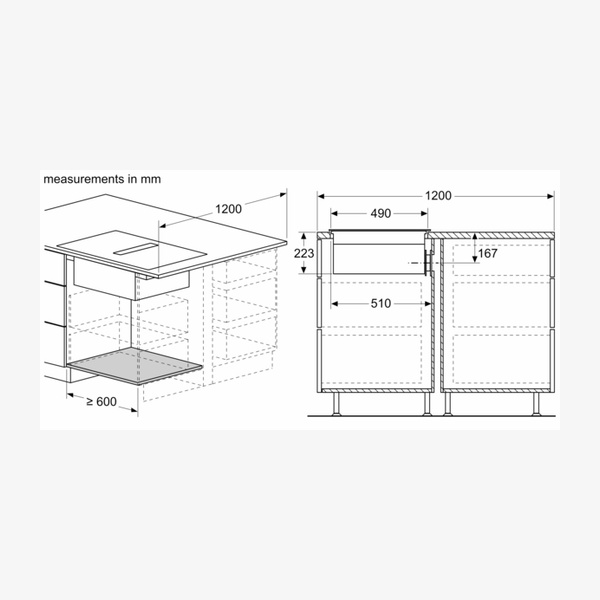

Suitable cabinet sizeSuitable for installation into a 60 cm base cabinet

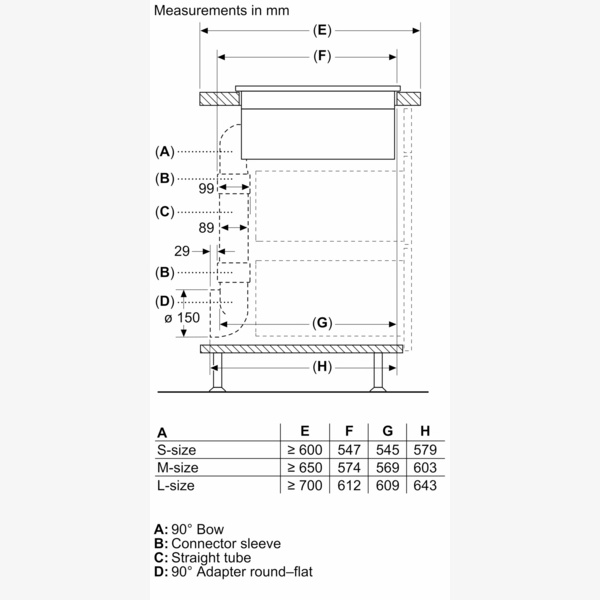

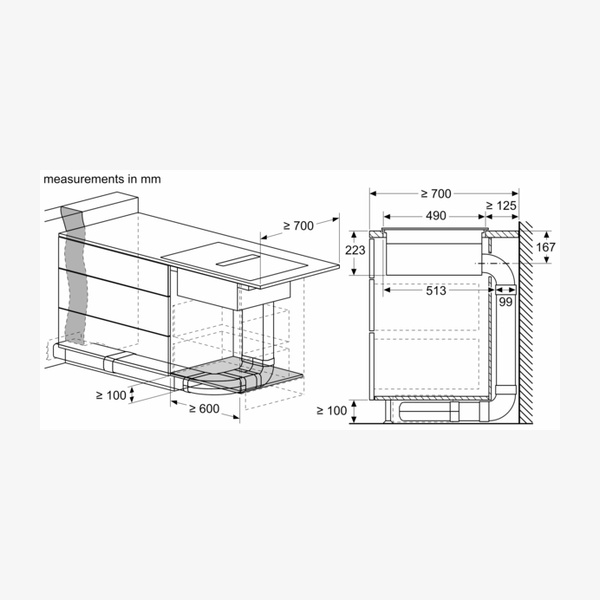

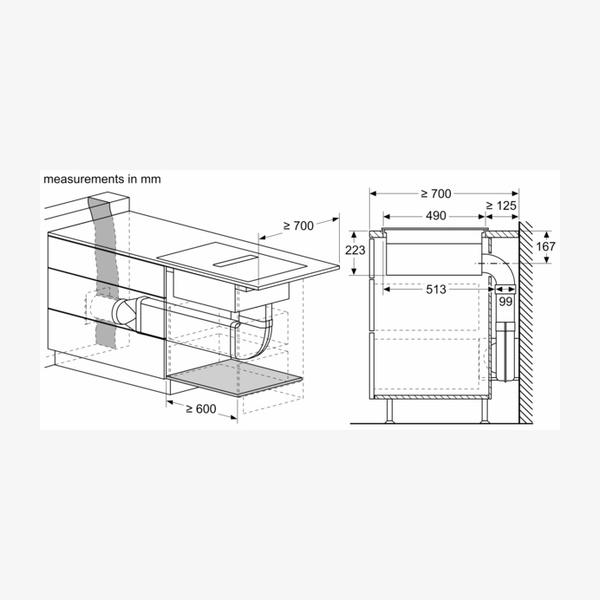

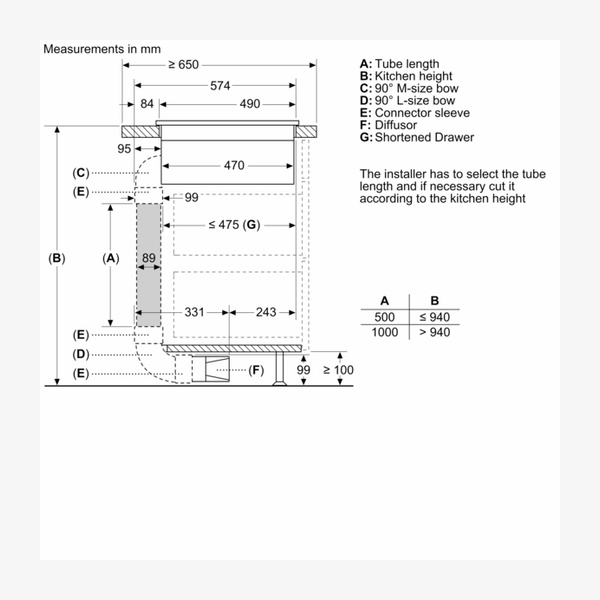

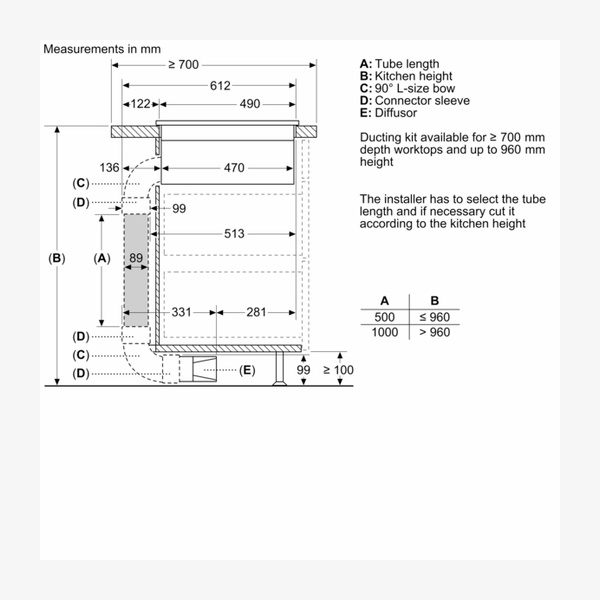

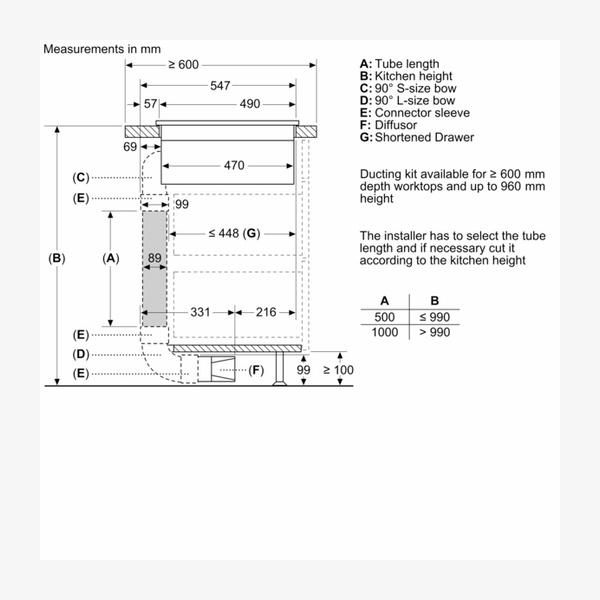

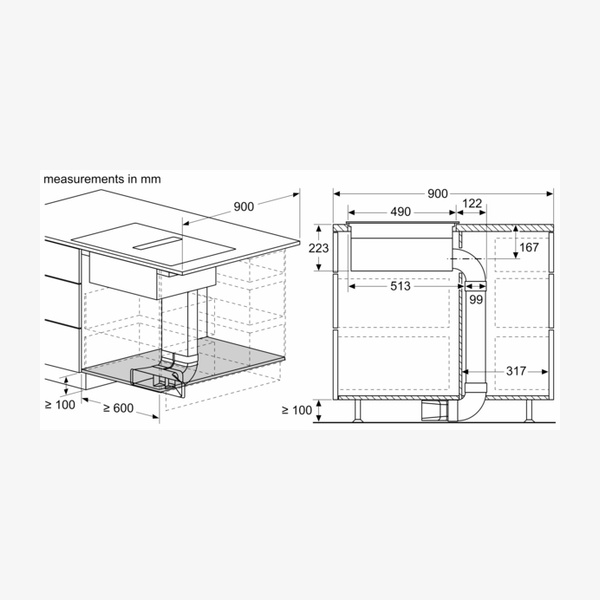

Installation optionsSuitable for ducted or recirculated extraction installations in 4 options (unducted, partly and fully ducted recirculation or ducted extraction)

Max. immersion depth223 mm below worktop surface

Return-flow aperture requirementFor partly ducted and unducted recirculation: return-flow aperture of ≥400 cm² in plinth area

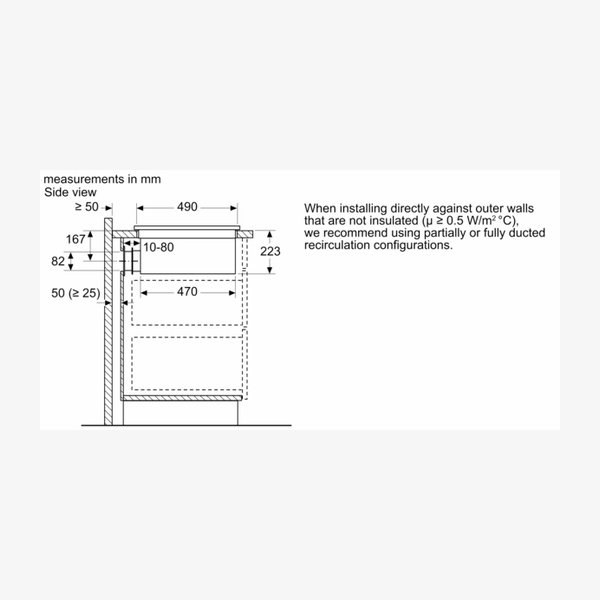

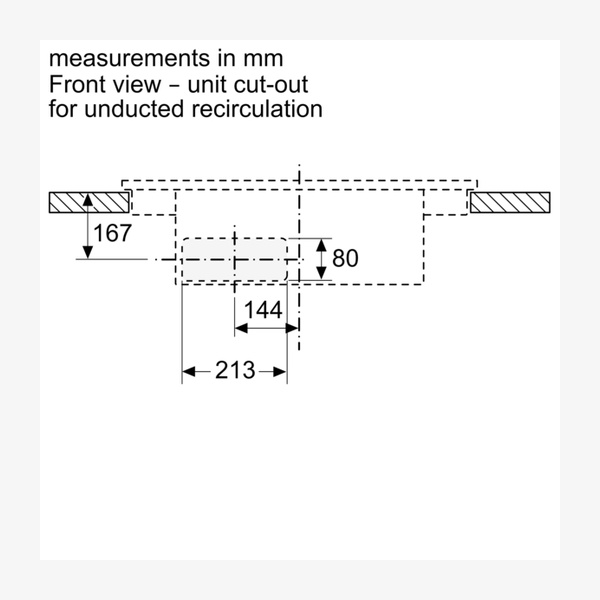

Unducted recirculation apertureVertical aperture of min. 25 mm behind back panel (50 mm suggested for ideal performance)

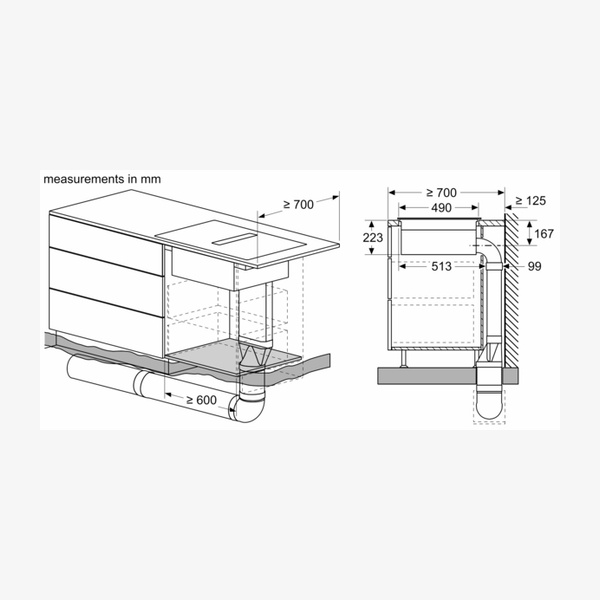

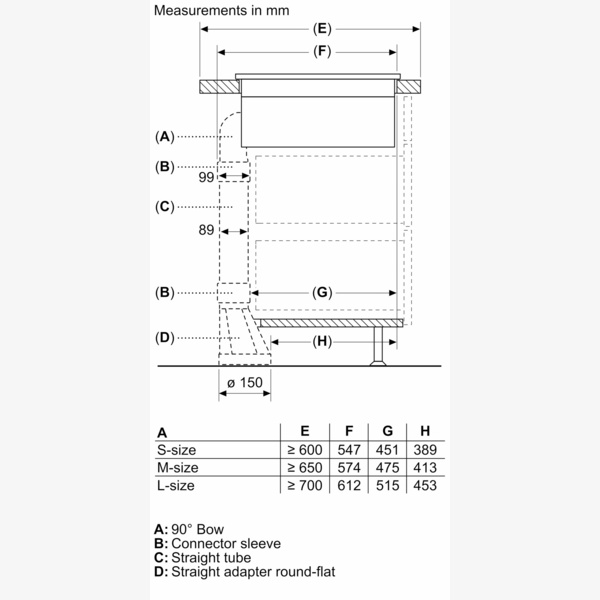

Maximum duct lengthUp to 8 m with three 90° bows (with pressuredrop resistant blower)

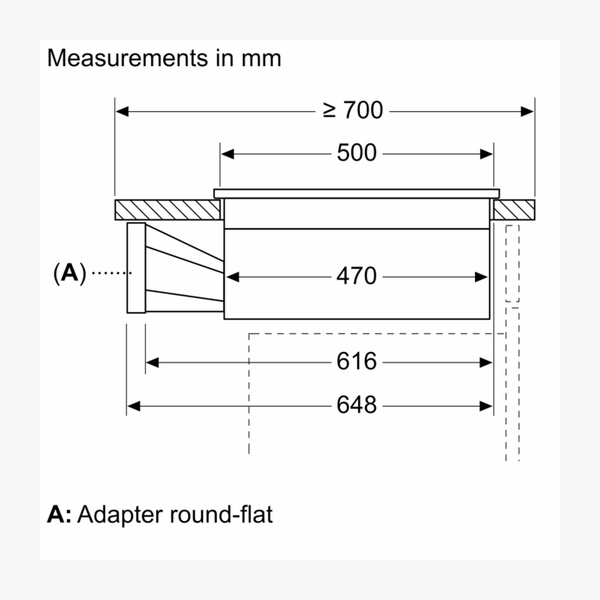

Air outlet connectionAir outlet on backside can be accessed with a male flat duct element (DN 150)

Flammability complianceProduct and accessories comply with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94)

Grease filtersIntegrated large-scale high-performance stainless-steel grease filters with 12 filtration layers and black top layer

Liquid collector capacity (upper)200 ml

Liquid safety collector capacity700 ml, overall capturing capacity 900 ml

Blower systemWatertight blower system with enclosed, non-visible blower

Clean Air Plus filter lifetime360 hours of cooking (non-regenerative)

Clean Air filter featuresHigh odour reduction, anti-pollen functionality, low-noise, easy to access and remove from above

Acoustic filters (ducted extraction)2 x 2 sets of directly integrated low-noise acoustic filters

Included accessories1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter

Optional accessoriesZ1365WX0 Wireless food thermometer; Z811DU0 Acoustics Filter; Z821PD1 Plinth Diffusor; Z821VR1 Clean Air Plus odor filter (replacement); Z861KE1 Exhaust kit; Z861KR0 Recirculation kit 2 L-bow (70 cm); Z861KR1 Recirculation kit S and L-bow (60 cm); Z861KR2 Recirculation kit 1 x L-bow; Z861SB1 90° flat duct bend horizontal; Z861SB2 90° flat duct L vertical; Z861SB3 90° flat duct M vertical; Z861SB4 90° flat duct S vertical; Z861SI0 Adapter round-flat; Z861SI1 90° Adapter round-flat; Z861SM1 Straight tube 500 mm; Z861SM2 Straight tube 1000 mm; Z861SS1 Connector sleeve (female); Z861SS2 Flex sleeve (female); Z9404SE0 4 pieces Set; Z9406SE0 6 pieces Set; Z9410ES0 Espresso maker 4 cups; Z9428FE0 Iron pan Ø 18 / 28 cm; Z943SE0 Set of 2 pots and 1 pan

Downloads

Download product documentation, manuals, and specification sheets.

V56NBS1L0 Spec

PDF

Frequently Asked Questions

How many cooking zones does this hob have and can I use large pans?

The hob has 4 induction cooking zones. It features a combi zone function, allowing you to connect two classic cooking zones into one large zone so you can use bigger cookware such as large pans.

Is the ventilation system suitable for both ducted and recirculation installation?

Yes. The integrated downdraft ventilation system is suitable for ducted or recirculated extraction installations and supports four options: unducted, partly and fully ducted recirculation, or ducted extraction. Installation accessories for unducted recirculation are included, and additional kits are available for other configurations.

How loud is the integrated extractor during operation?

In ducted extraction, the noise level ranges from 61 dB re 1 pW at minimum normal setting to 69 dB re 1 pW at maximum normal setting, and 74 dB re 1 pW at Boost/Intensive. In recirculated extraction, it ranges from 55 dB re 1 pW (min) to 66 dB re 1 pW (max normal) and 72 dB re 1 pW (Boost/Intensive).

Are the filters and liquid collectors easy to clean?

Yes. The grease filter and liquid collector unit can be removed conveniently with one hand using the floating glass ceramics handle. All parts of the unit, including the liquid safety collector, are fully dishwasher safe and heat resistant, which simplifies cleaning.

What accessories are included and what optional extras are available?

Included accessories are 1 x Slider for unducted recirculation and 1 x Clean Air Plus odor filter. Optional accessories include recirculation and exhaust kits, various ducting components, a wireless food thermometer, acoustic filters, a plinth diffusor, replacement Clean Air Plus filters, cookware sets and individual pans and an espresso maker.

What energy efficiency rating does the ventilation system have?

The ventilation system has an Energy Efficiency Class B (within a range from A+++ to D), with Fluid Dynamic Efficiency class A and grease filtration efficiency class B, and an average energy consumption of 57.
