Neff N50 D46ED22N1B Telescopic Hood

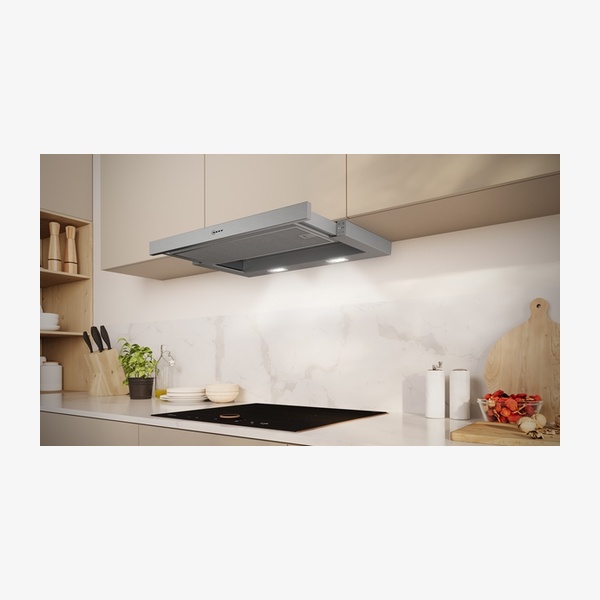

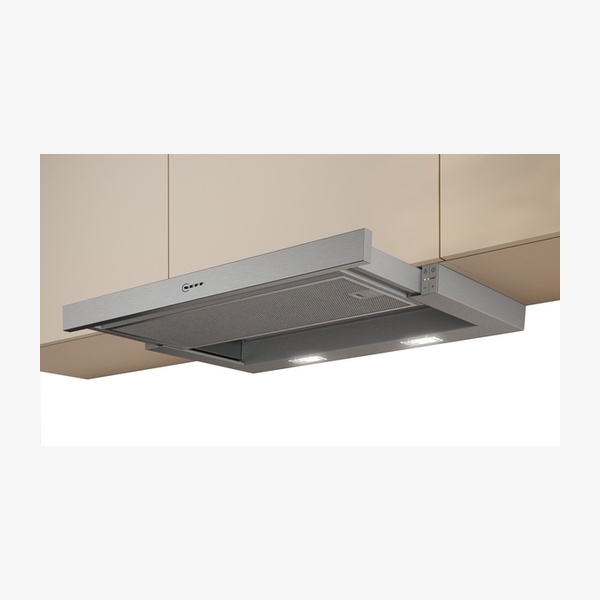

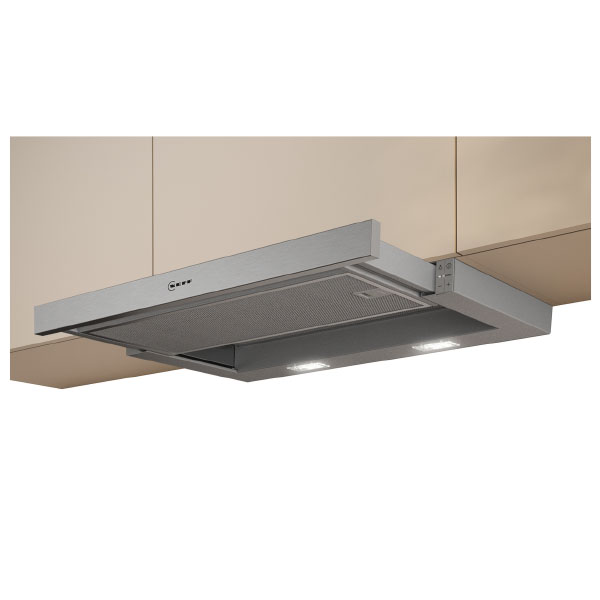

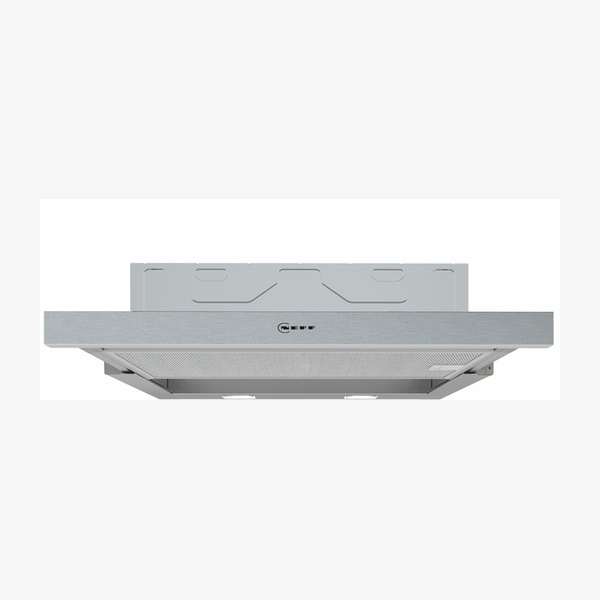

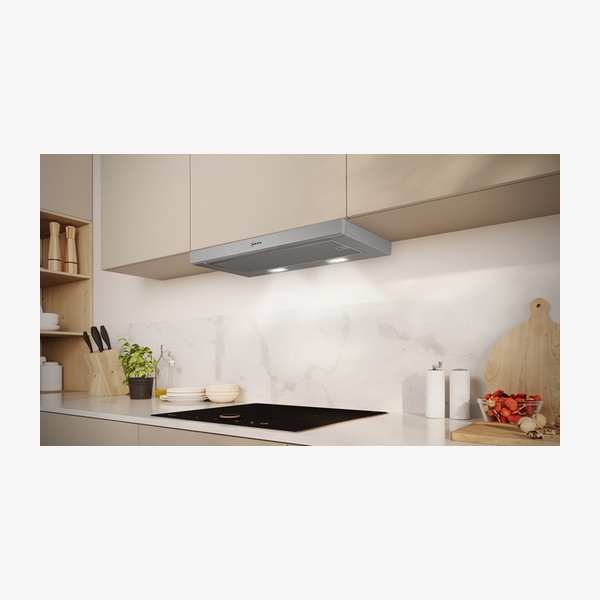

The N 50 D46ED22N1B is a 60 cm silver metallic telescopic cooker hood designed to pull out from beneath a cabinet, giving powerful extraction without impacting kitchen design. It offers an Efficient Drive Motor, three speeds plus an intensive setting, and clear LED lighting. Suitable for both ducted extraction and recirculation, it features electronic soft touch controls, automatic after–running and washable aluminium grease filters for convenient everyday use.

SKU:D46ED22N1B

EAN:4242004250807

Category::Cooker Hoods

Quantity:

Key Features

Telescopic pull–out design – hood pulls out from underneath a cabinet for a streamlined kitchen.

Efficient Drive Motor – quiet and energy–efficient hood motor for a calmer kitchen.

3 speeds plus intensive setting – intensive speed increases the extraction rate when steam gets intense.

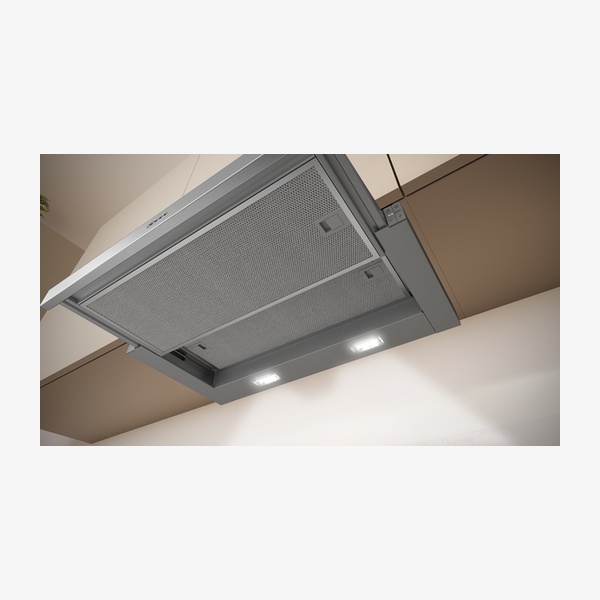

LED lighting – 2 × 1.5 W LEDs provide clear illumination while you cook.

Automatic after–running – ventilation continues for 10 minutes after the hood is turned off.

Automatic intensive revert – intensive mode automatically reverts after 6 minutes.

Energy Efficiency Class A – average energy consumption of 21 kWh/year (A+++ to D scale).

Suitable for ducted extraction and recirculation – recirculation requires an accessory recirculating kit.

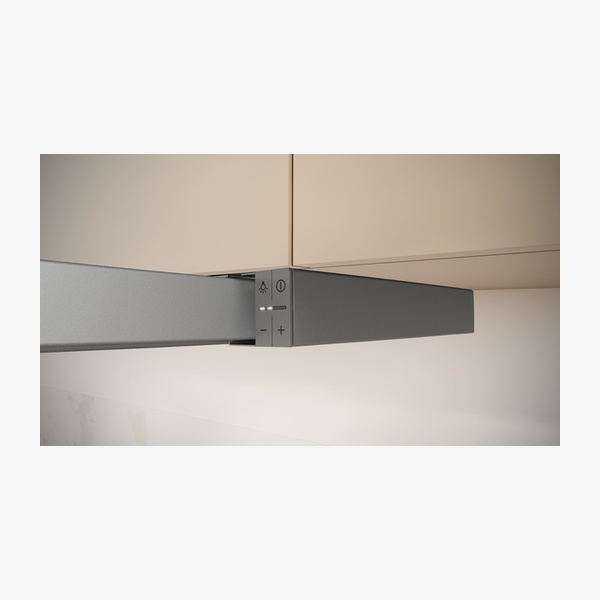

Soft touch electronic controls – easy electronic operation of all functions.

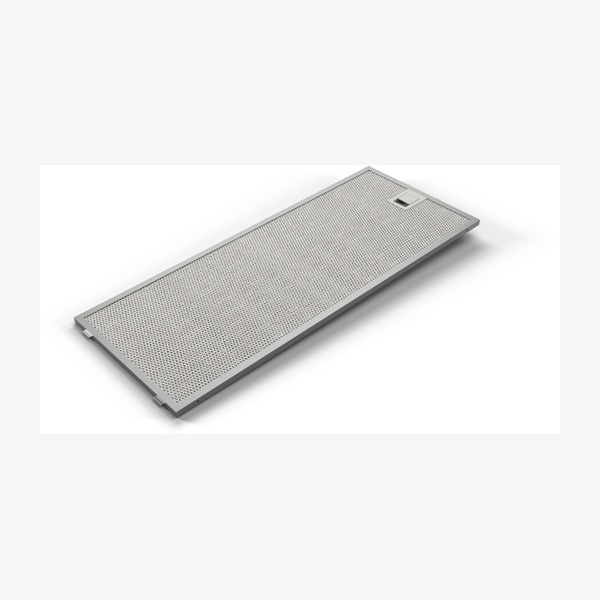

Washable aluminium grease filters – 2 metal grease filter cassettes, dishwasher–safe filter cover.

Good extraction performance – max. normal use extraction 268 m³/h, intensive 400 m³/h.

Balanced noise levels – 62 dB(A) re 1 pW at max. normal exhaust, 69 dB(A) re 1 pW at intensive.

Silver metallic grey finish – stainless steel handle strip with logo and perforated stainless steel filter cover.

Efficient BLDC technology – modern motor technology for performance and efficiency.

Optional Clean Air accessories – compatible with Clean Air Standard odour filter and recirculation kit.

Technical Spec

Product nameN 50 Telescopic cooker hood, 60 cm, silver metallic

Model designationD46ED22N1B

TypologyPull–out, built–in telescopic hood

InstallationCupboard 60 cm; built–in

Colour / finishSilver metallic grey; stainless steel handle strip with logo; stainless steel filter cover, perforated and dishwasher safe

Width60 cm (appliance width 598 mm)

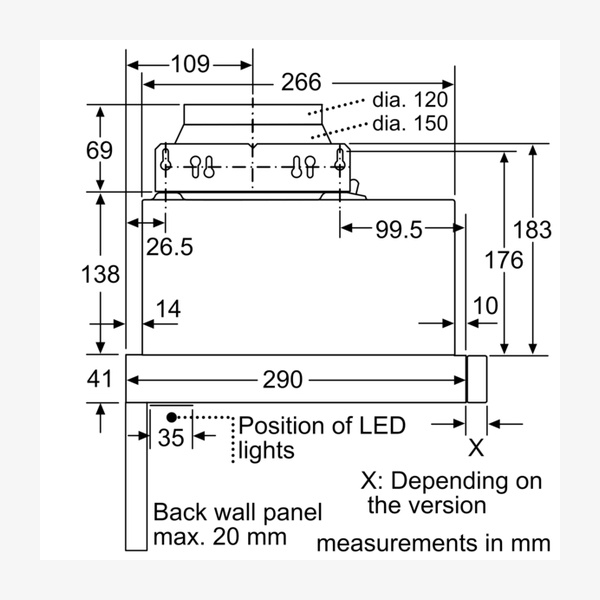

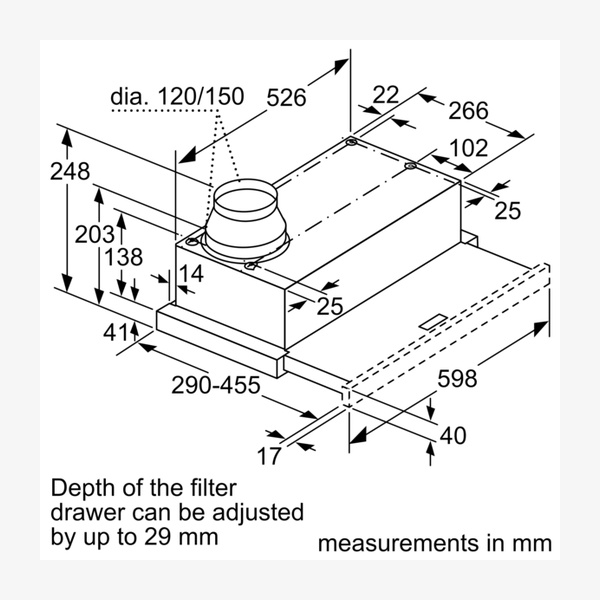

Appliance dimensions (H×W×D)203 × 598 × 290 mm

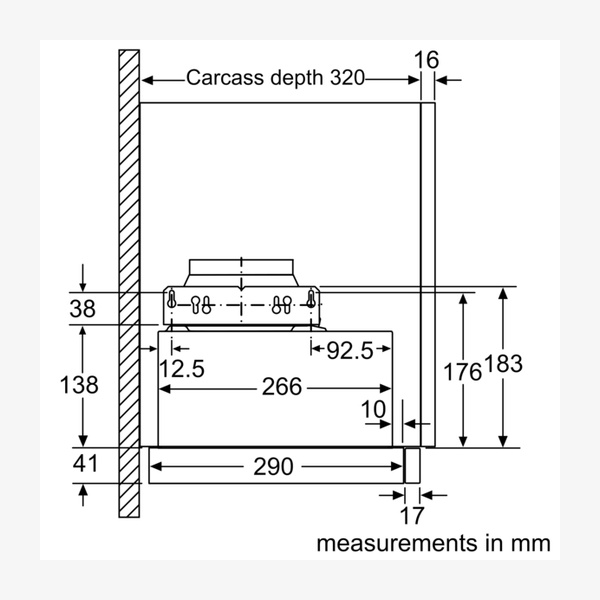

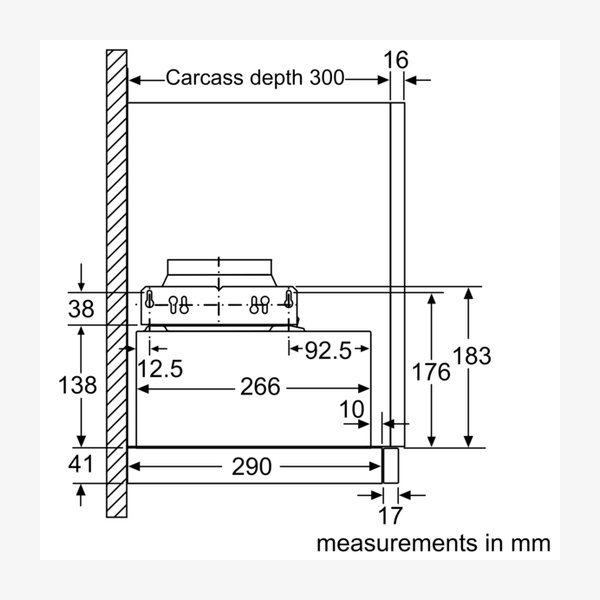

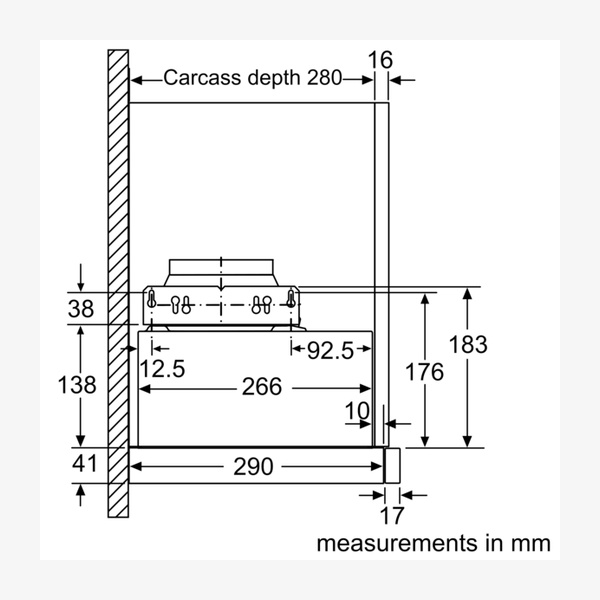

Built–in dimensions (H×W×D)162 × 526 × 290 mm

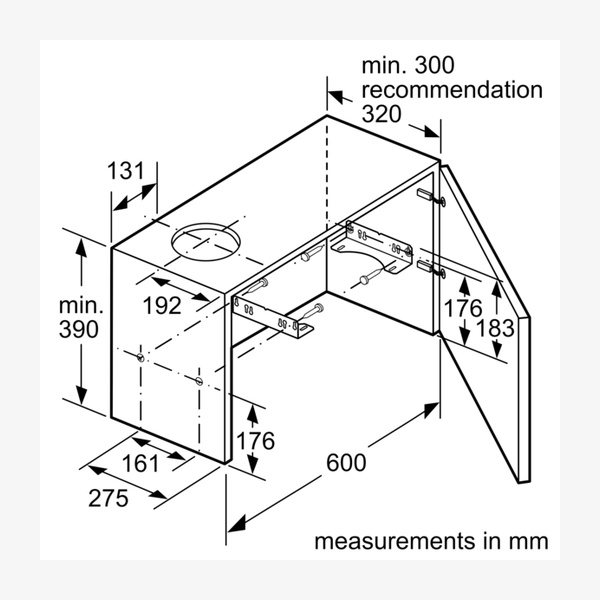

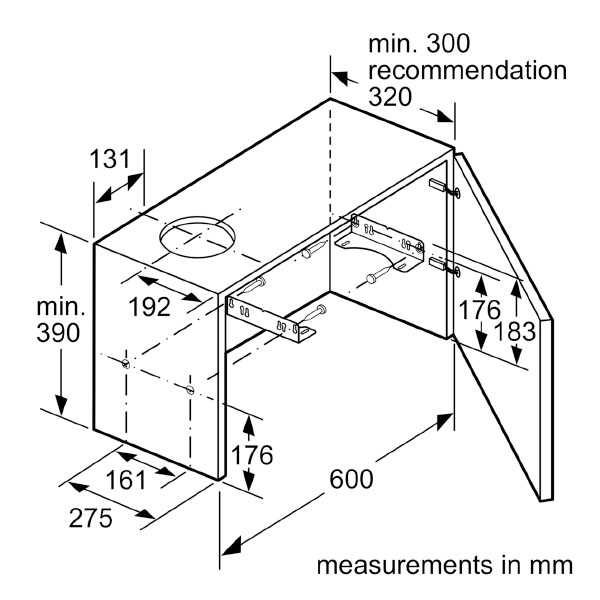

Required niche size (H×W×D)162 mm × 526.0 mm × 290 mm

Minimum distance above electric hob430 mm

Minimum distance above gas hob650 mm

Net weight7.9 kg

Type of controlElectronic soft touch control

Speed settings3 stages + intensive setting

Maximum output air extraction268 m³/h

Boost position air extraction400 m³/h

Maximum output recirculating air263 m³/h

Boost position output recirculating353 m³/h

Maximum air flow268 m³/h

Noise level – max. normal use (exhaust)62 dB(A) re 1 pW

Noise level – intensive (exhaust)69 dB(A) re 1 pW

Number of lights2 × 1.5 W LED

Colour temperature3500 K

Light intensity294 lux

Grease filter materialWashable aluminium; 2 metal grease filter cassettes

Energy Efficiency ClassA (range A+++ to D)

Average energy consumption21 kWh/year (in accordance with EU Regulation No 65/2014)

Blower Efficiency ClassB*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassC*

Connection rating74 W (power rating 74 W)

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

Length of electrical supply cord1.75 m (175 cm)

Diameter of air outlet150 mm (120 mm enclosed)

Suitable operation modesDucted extraction and recirculation (recirculating kit accessory needed)

Motor technologyEfficient BLDC technology

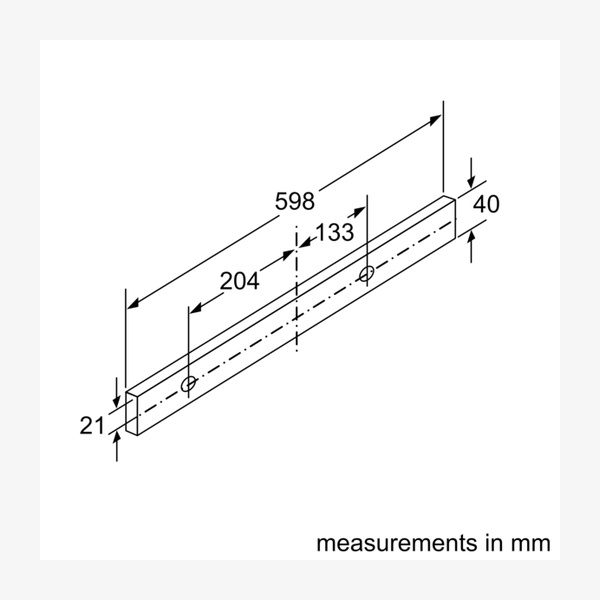

Optional accessoriesZ51ITB1X4 Clean Air Standard odour filter (replacement) Z51ITI1X4 Clean Air Standard recirculation kit Z54TH60D1 Design handle strip

EAN code4242004250807

Standards / measurement methodsExtraction rate according to EN 61591; noise levels according to EN 60704-3 and EN 60704-2-13; energy data in accordance with EU Regulation No 65/2014

Downloads

Download product documentation, manuals, and specification sheets.

D46ED22N1B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in recirculation mode?

Yes. The hood is suitable for both ducted extraction and recirculation. For recirculated extraction, a recirculating kit (accessory Z51ITI1X4 Clean Air Standard recirculation kit) is needed.

What is the maximum extraction rate of this hood?

The extraction rate according to EN 61591 with a 15 cm duct is up to 268 m³/h in normal use and 400 m³/h on the intensive setting.

How noisy is the hood during operation?

According to EN 60704-3 and EN 60704-2-13, the noise level at maximum normal exhaust operation is 62 dB(A) re 1 pW, and 69 dB(A) re 1 pW on intensive.

Are the grease filters washable?

Yes. The hood uses two metal grease filter cassettes made of washable aluminium. The stainless steel filter cover is perforated and dishwasher safe.

What is the energy rating and annual energy consumption?

The hood has an Energy Efficiency Class A (on a scale from A+++ to D) with an average energy consumption of 21 kWh/year, in accordance with EU Regulation No 65/2014.

What optional accessories are available?

Optional accessories include the Z51ITB1X4 Clean Air Standard odour filter (replacement), Z51ITI1X4 Clean Air Standard recirculation kit, and Z54TH60D1 Design handle strip.
