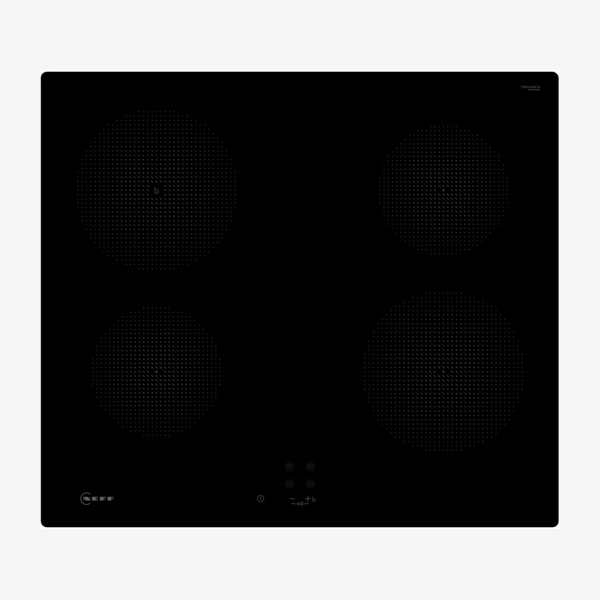

The N 30 induction hob T36CA50X1U is a 60 cm black built-in ceramic cooking zone appliance with space for 4 pots or pans. It features Touch Control Basic with variable 9-stage power settings for each zone and a PowerBoost function in the front left zone. Plug&Play with a UK 3 pin plug means no electrician is needed for installation, while multiple safety functions help support convenient and precise induction cooking.

Key Features

Induction cooktop – heat is generated directly in the cookware for precise cooking that stops instantly when off.
60 cm width – space for 4 pots or pans across four cooking zones.
Plug&Play installation – power cord 1.1 m UK 3 pin plug; no electrician required for installation.

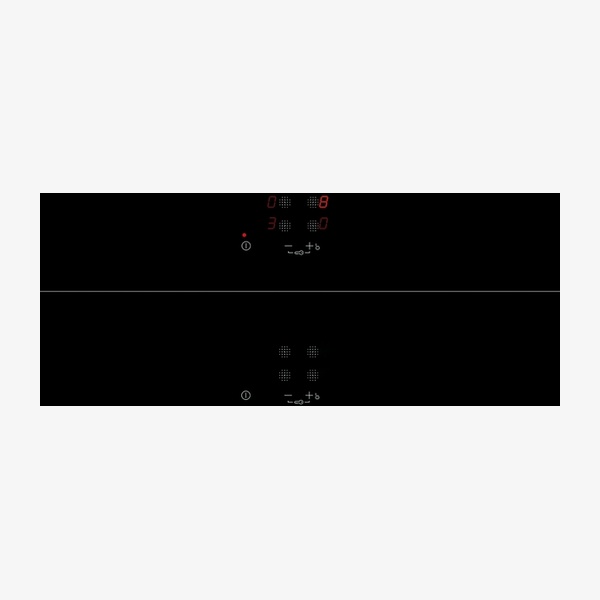

Touch Control Basic – control the power with imprinted +/- touch buttons on the front control panel.
Variable 9-stage power settings – precisely adapt the heat with 9 power levels for each zone.
PowerBoost function (front left zone) – boil water faster thanks to 50% more energy than at the highest standard level.
Quick-Off function – quickly switch off a cooking zone with one longer touch.

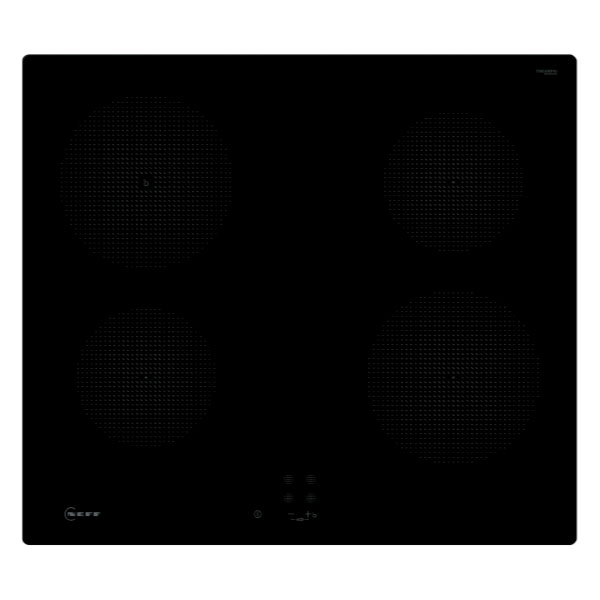

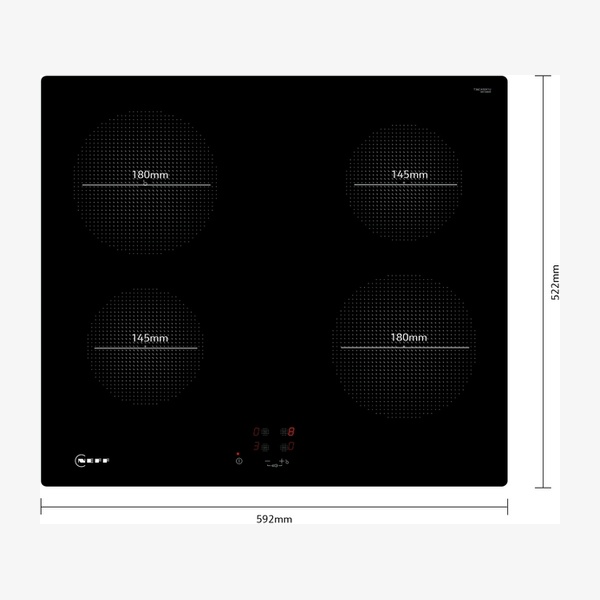

Four induction zones – front left 145 mm 1.4 kW; rear left 180 mm 1.8 kW (max. power 3.1 kW); rear right 145 mm 1.4 kW; front right 180 mm 1.8 kW.
Frameless design – black ceramic surface for a clean built-in look.
Residual heat indicator (separate) – shows remaining heat on the hob.
Control panel lock – helps prevent unintended activation of the hob.
Main switch – switch off all cooking zones at the touch of a button.
Safety cut out facility – heating stops after a preset time if not used.
Built-in installation – designed for integration into the worktop with specified niche dimensions.
Optional accessories available – wireless food thermometer, cookware sets, espresso maker, and pots and pan sets (codes Z1365WX0, Z9404SE0, Z9406SE0, Z9410ES0, Z943SE0).
Connected load limited by plug – UK 3 pin plug limits maximum power output to 3.7 kW.

Technical Specifications

Product name/family	Cooking zone ceramic
Model designation	T36CA50X1U
Product series	N 30 Induction hob
Installation type	Built-in
Energy input	Electric
Number of cooking zones	4
Cooking zone front left	145 mm, 1.4 kW
Cooking zone rear left	180 mm, 1.8 kW (max. power 3.1 kW)
Cooking zone rear right	145 mm, 1.4 kW
Cooking zone front right	180 mm, 1.8 kW

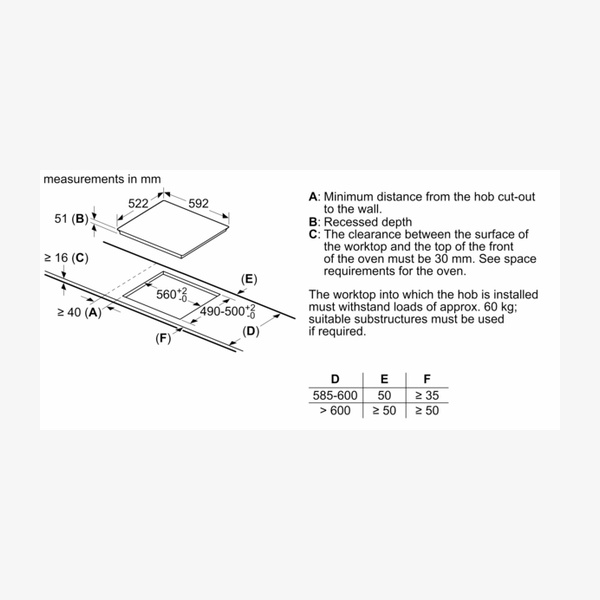

Required niche size for installation (H x W x D)	51 x 560-560 x 490-500 mm
Width of the appliance	592 mm
Dimensions of the product (H x W x D)	51 x 592 x 522 mm
Dimensions of the packed product (H x W x D)	126 x 753 x 603 mm
Net weight	10.1 kg
Gross weight	11.2 kg
Residual heat indicator	Separate
Location of control panel	Front
Basic surface material	Ceramic
Colour of surface	Black
Length electrical supply cord	110 cm (power cord 1.1 m UK 3 pin plug)
EAN code	4242004258711
Voltage	220-240 V
Frequency	50; 60 Hz
Connected load	3.7 kW
Min. worktop thickness	16 mm

Additional Details and Usage

Cooking and control

The hob uses induction technology, where heat is generated directly in the cookware for precise cooking that stops instantly when off. Touch Control Basic with imprinted +/- touch buttons allows you to set variable 9-stage power settings on each of the four zones. The front left zone includes a PowerBoost function for faster boiling with 50% more energy than at the highest standard level, and Quick-Off lets you switch off a cooking zone with one longer touch.

Safety functions

Control panel lock to help prevent unintended activation of the hob.
Main switch to switch off all cooking zones at the touch of a button.
Safety cut out facility – heating stops after a preset time if not used.
Separate residual heat indicator to show remaining heat.

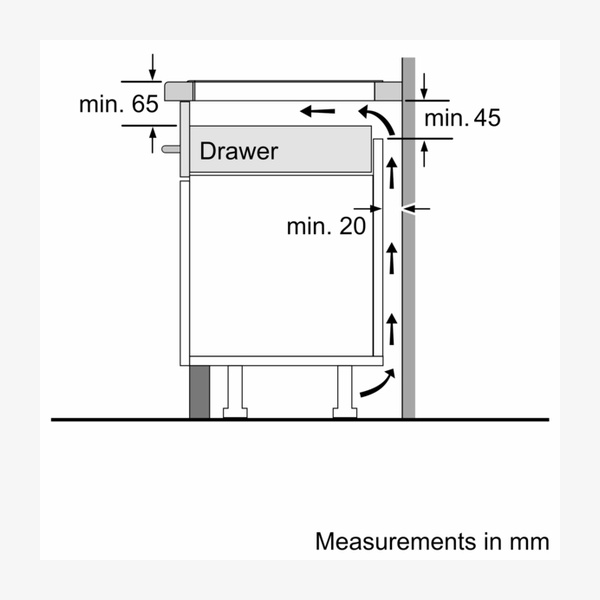

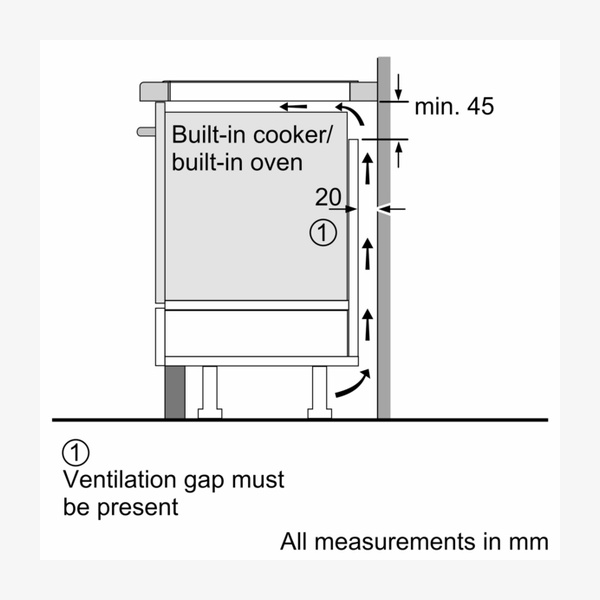

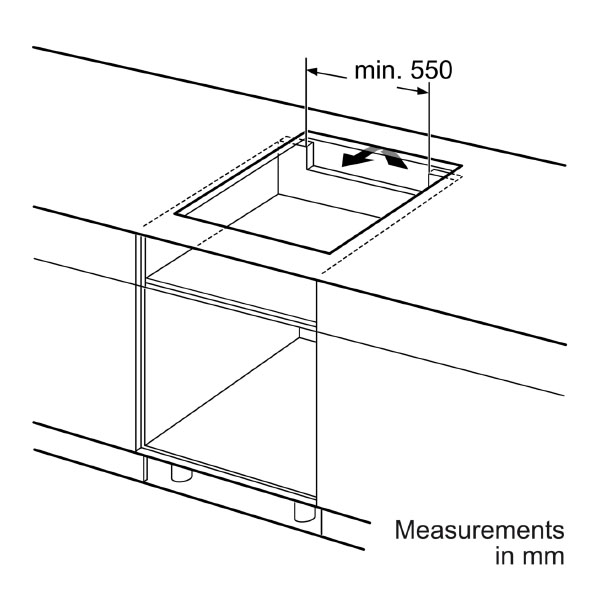

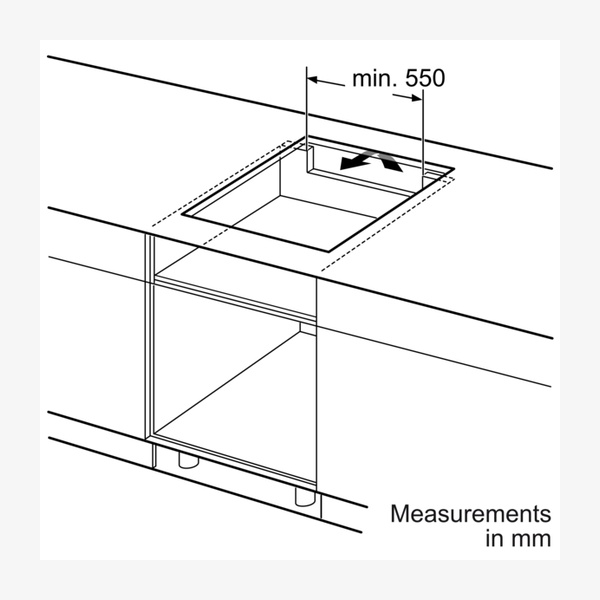

Installation and planning

The hob is designed as a built-in appliance with a product size of 51 x 592 x 522 mm and a required niche of 51 x 560 x (490-500) mm. A minimum worktop thickness of 16 mm is specified. It comes with a 1.1 m power cord and a UK 3 pin plug for Plug&Play installation, so no electrician is required. The plug limits the maximum power output to 3.7 kW; for higher power output, a hob without plug should be selected and installation carried out by a qualified electrician.

Optional accessories

Z1365WX0 Wireless food thermometer
Z9404SE0 4 pieces Set
Z9406SE0 6 pieces Set
Z9410ES0 Espresso maker 4 cups
Z943SE0 Set of 2 pots and 1 pan

Frequently Asked Questions

How wide is the N 30 induction hob T36CA50X1U?

The hob has a product width of 592 mm and is described as a 60 cm appliance with space for 4 pots or pans.

Do I need an electrician to install this induction hob?

No. It has Plug&Play installation with a power cord 1.1 m UK 3 pin plug, so no electrician is required. However, the plug limits maximum power output to 3.7 kW; for higher power output, a hob without plug should be selected and installed by a qualified electrician.

What safety features does this hob include?

Safety features include a control panel lock to prevent unintended activation, a main switch to turn off all cooking zones at once, a safety cut out facility where heating stops after a preset time if not used, and a separate residual heat indicator.

What are the power ratings of the cooking zones?

The front left zone is 145 mm, 1.4 kW; the rear left zone is 180 mm, 1.8 kW (max. power 3.1 kW); the rear right zone is 145 mm, 1.4 kW; and the front right zone is 180 mm, 1.8 kW.

What niche size is required for installation?

The required niche size for installation is 51 x 560-560 x 490-500 mm with a minimum worktop thickness of 16 mm.
