The N 50 T16NBE1L is a 60 cm built–in electric ceramic hob designed for surface mounting without a frame. It offers four cooking zones with TouchControl Basic operation and variable 17–stage power settings for each zone. Users benefit from practical functions such as switch–off and count–down timers, ReStart and Quick–Off, plus multiple safety features including 2 stage residual heat indicators, control panel lock and safety cut out facility.

Key Features

60 cm hob width – space for 4 pots or pans across four ceramic cooking zones.
Touch Control Basic – control the power with imprinted +/- touch buttons.
17–stage power settings – precisely adapt the heat with 9 main levels and 8 intermediate levels for each zone.
Four cooking zones – front left 145 mm / 1.2 kW, rear left 180 mm / 2 kW, rear right 145 mm / 1.2 kW, front right 210 mm / 2.2 kW.
Switch–off timer – automatically switches off a cooking zone at the end of the set time.
Count–down timer – an alarm sounds at the end of the time set.
ReStart function – restores all previous settings if the hob is unintentionally switched off and switched on again within 4 seconds.
Quick–Off function – quickly switch off a cooking zone with one longer touch.

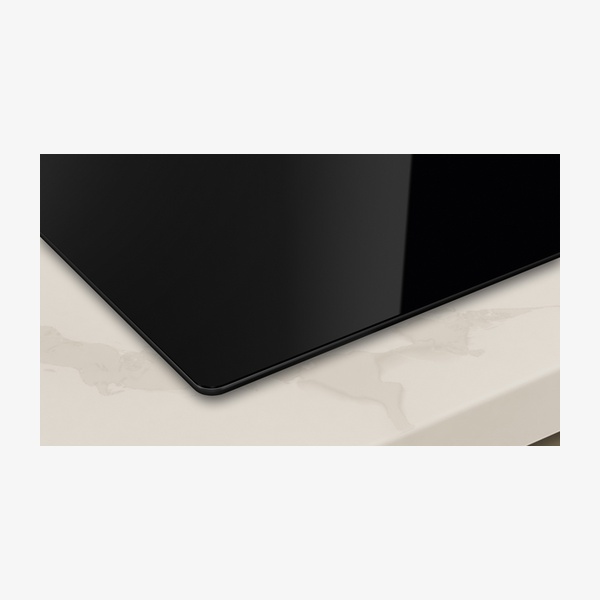

Frameless design – black ceramic surface without frame for surface mounting.
2 stage residual heat indicators – indicates which cooking zones are still hot or warm.
Control panel lock – helps prevent unintended activation of the hob.
Main switch – switch off all cooking zones at the touch of a button.
Power on indicator light – shows when the hob is heating.
Safety cut out facility – for safety reasons, heating stops after a preset time if not used.
Built–in installation – designed for a required niche size of 45 x 560 x 490–500 mm.
Optional accessories – compatible with iron pan Ø 18 / 28 cm, set of 2 pots and 1 pan, wireless food thermometer and intermediate bottom.

Technical Specifications

Product name/family	Cooking zone ceramic
Model	T16NBE1L
Range	N 50
Installation type	Built–in, surface mount without frame
Energy input	Electric
Number of cooking zones	4
Hob width	60 cm
Product dimensions (HxWxD)	45 x 592 x 522 mm
Required niche size (HxWxD)	45 x 560 x 490–500 mm
Min. worktop thickness	16 mm
Width of appliance	592 mm
Dimensions of packed product (HxWxD)	100 x 750 x 590 mm
Net weight	7.3 kg
Gross weight	8.0 kg
Basic surface material	Ceramic
Surface colour	Black
Location of control panel	Front
Control type	TouchControl Basic with imprinted +/- touch buttons
Residual heat indicator	Separate, 2 stage indicators
Connected load	6.6 kW
Voltage	220–240 V
Frequency	50; 60 Hz
EAN code	4242004271833
Cooking zone front left	145 mm, 1.2 kW
Cooking zone rear left	180 mm, 2 kW
Cooking zone rear right	145 mm, 1.2 kW
Cooking zone front right	210 mm, 2.2 kW

Additional Details and Usage

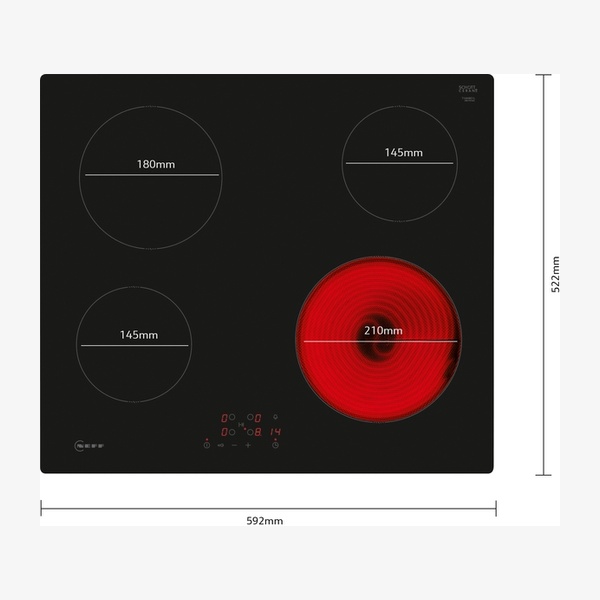

Cooking zone flexibility

The hob provides four ceramic cooking zones: front left 145 mm (1.2 kW), rear left 180 mm (2 kW), rear right 145 mm (1.2 kW) and front right 210 mm (2.2 kW), offering space for 4 pots or pans.

Usage convenience

TouchControl Basic lets you control the power using imprinted +/- touch buttons.
Variable 17–stage power settings for each zone allow precise heat adjustment.
The switch–off timer turns off the selected cooking zone at the end of the time set.
The count–down timer sounds an alarm when the programmed time has elapsed.

Time saving and efficiency functions

ReStart function restores all previous settings if the hob is unintentionally switched off and then switched on again within 4 seconds.
Quick–Off enables rapid deactivation of a cooking zone with one longer touch.

Safety features

2 stage residual heat indicators show which cooking zones are still hot or warm.
Control panel lock helps prevent unintended activation of the hob.
The main switch allows you to switch off all cooking zones at the touch of a button.
A power on indicator light shows when the hob is heating.
The safety cut out facility stops heating after a preset time if the hob is not used.

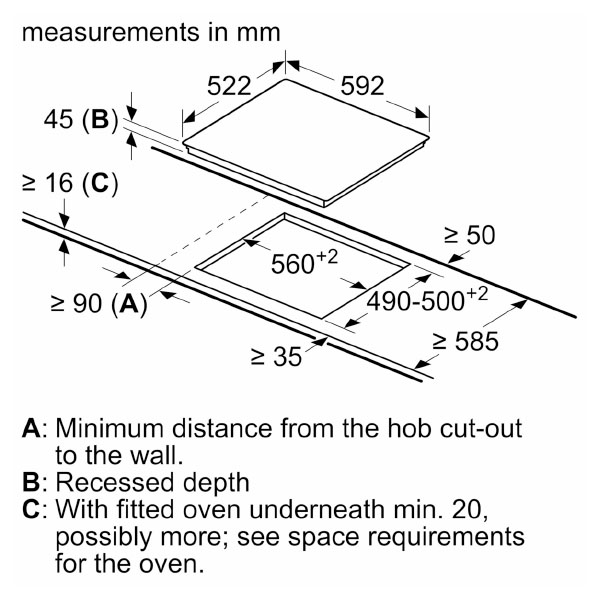

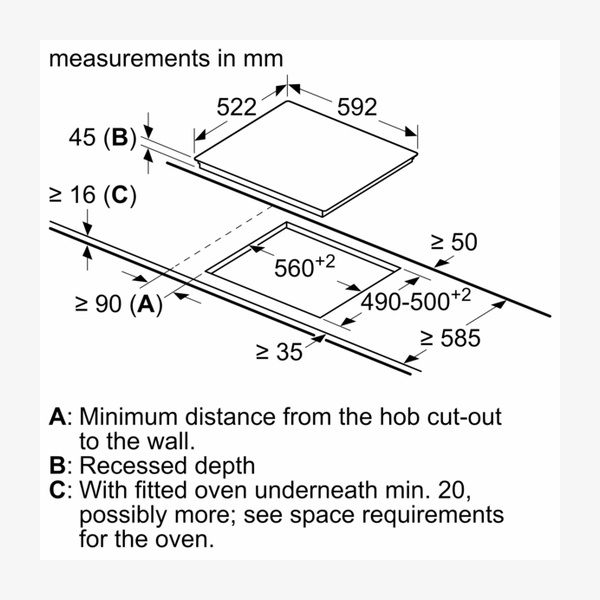

Installation information

The hob is designed for built–in installation as a surface mount without frame. The product dimensions are 45 x 592 x 522 mm, with a required niche size of 45 x 560 x 490–500 mm and a minimum worktop thickness of 16 mm. Connected load is 6.6 kW.

Optional accessories

Z9428FE0 iron pan Ø 18 / 28 cm
Z943SE0 set of 2 pots and 1 pan
Z1365WX0 wireless food thermometer
Z9367X0 intermediate bottom

Frequently Asked Questions

How many cooking zones does the T16NBE1L hob have?

The hob has 4 electric ceramic cooking zones: front left 145 mm (1.2 kW), rear left 180 mm (2 kW), rear right 145 mm (1.2 kW) and front right 210 mm (2.2 kW).

What type of controls does this hob use?

It uses TouchControl Basic, allowing you to control the power with imprinted +/- touch buttons located on the front of the hob.

Does the hob have a timer function?

Yes, it features a switch–off timer that turns off a cooking zone at the end of the set time and a count–down timer that sounds an alarm when the time is up.

What safety features are included?

Safety features include 2 stage residual heat indicators, control panel lock, main switch, power on indicator light and a safety cut out facility that stops heating after a preset time if not used.

What are the installation dimensions?

The product dimensions are 45 x 592 x 522 mm. The required niche size for installation is 45 x 560 x 490–500 mm, with a minimum worktop thickness of 16 mm.

Are there any compatible accessories?

Optional accessories include the Z9428FE0 iron pan Ø 18 / 28 cm, Z943SE0 set of 2 pots and 1 pan, Z1365WX0 wireless food thermometer and Z9367X0 intermediate bottom.
