Neff N70 KU9202HF0G Winecellar

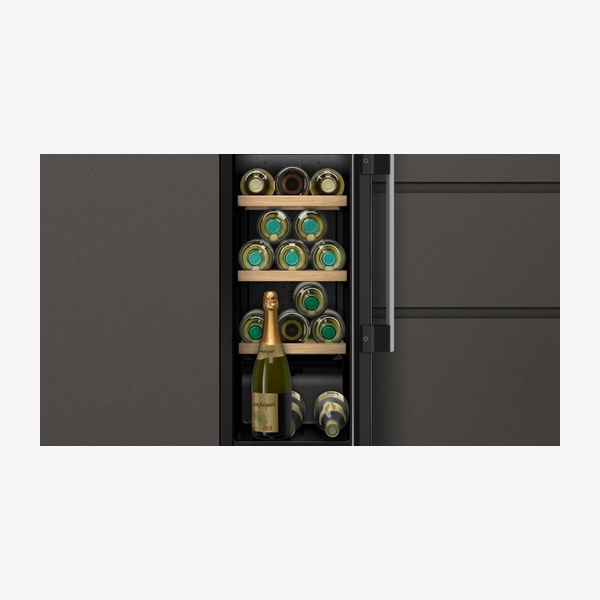

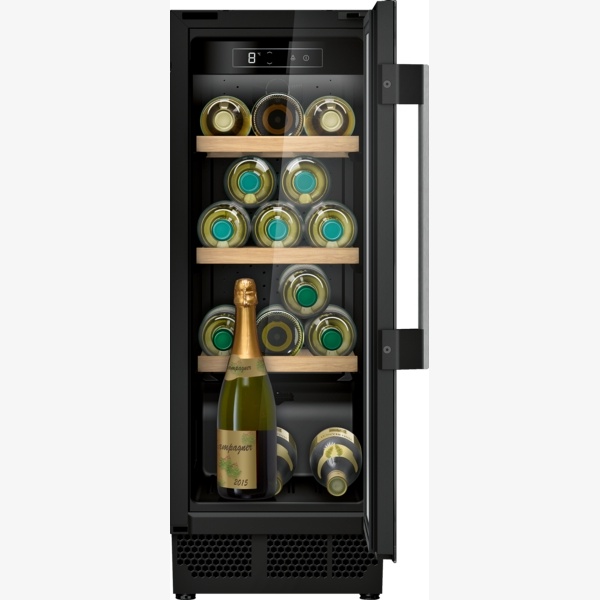

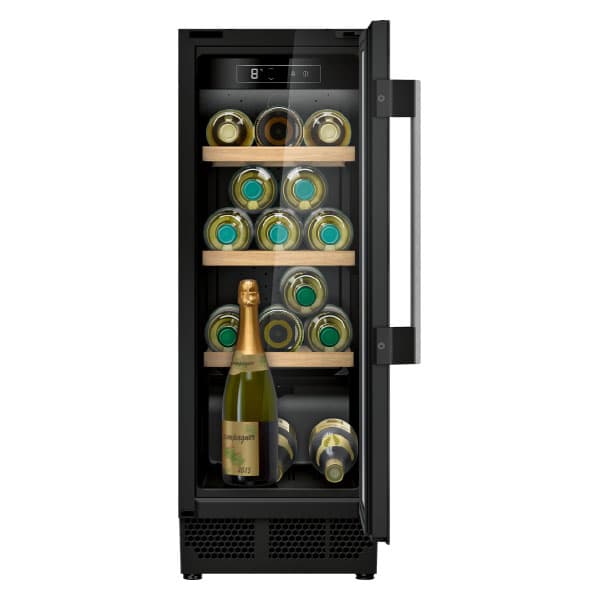

The Neff N 70 KU9202HF0G is a built-under wine storage cabinet designed exclusively for storing wine. With space for up to 21 standard 0.75 l bottles and one temperature zone ranging from 5°C to 20°C, it accommodates both white and red wines. Bamboo shelves, LED lighting with soft start and a triple glazed glass door with UV filter help present and protect your collection, while the compact 81.8 cm x 29.8 cm size suits a 30 cm wide kitchen niche.

SKU:KU9202HF0G

EAN:4242004255499

Category::Wine Cellars

Quantity:

Key Features

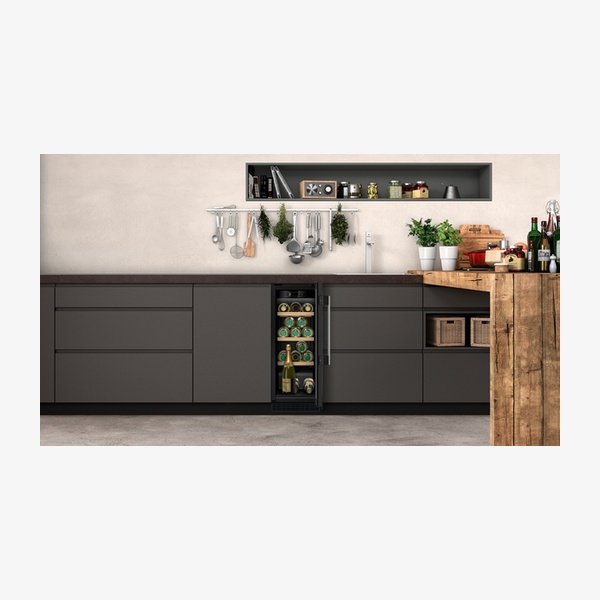

Built-under wine storage cabinet – Designed as a built-in appliance for a 30 cm wide kitchen niche.

Single temperature zone (5°C–20°C) – Adjusts from 5°C for whites to 20°C for reds to suit different bottles.

Capacity for 21 x 0.75 l bottles – Total volume of 58 l with 4 bottle shelves and 3 wooden grills.

Bamboo shelves and wooden grills – Standard shelf design with 4 bottle shelves and 3 wooden grills in the fridge section.

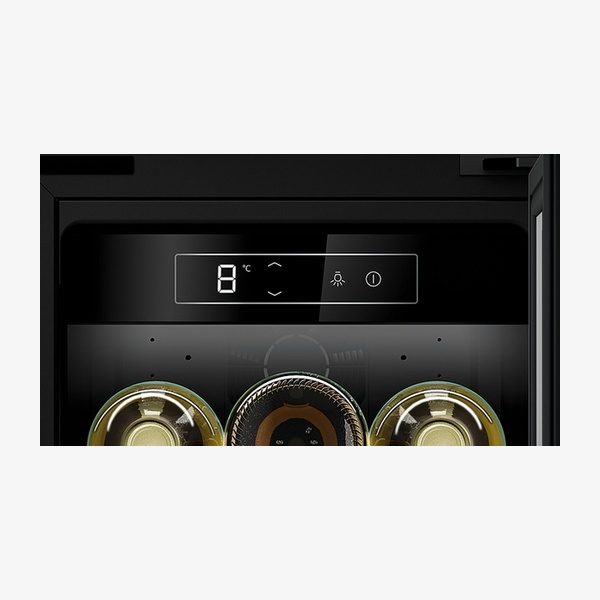

LED interior light with Soft Start – Illumination with on/off function and presenter lighting to highlight stored wine.

Triple glazed glass door with UV filter – Glass door construction with UV-filter to protect wine from light.

Reversible right-hinged door – Right hinged as standard, with reversible door hinge for flexible installation.

Ventilation in plinth – Ventilation in the plinth with variable plinth adaption and a door aperture angle of 115°.

Interior ventilator – Interior ventilator included, with one compressor and one independent cooling system.

Child lock and optical/acoustical alerts – Child lock and optical and acoustical functions are provided.

Energy efficiency class F – Annual energy consumption of 100 kWh/a with climate class SN-ST.

Quiet operation – Airborne acoustical noise emissions of 38 dB(A) re 1pW, noise emission class C.

GB plug and UK-ready power – 220–240 V, 50–60 Hz supply with GB plug and 230 cm electrical cord.

Exclusively for wine storage – Intended to be used exclusively for the storage of wine.

Non-lockable appliance – Lockable appliance: No.

Technical Spec

BrandNeff

Product name / CodeKU9202HF0G

Product categoryWinestorage / Wine storage cabinet, built-under appliance

Energy efficiency classF (Scale of Energy Efficiency Classes from A to G)

Annual energy consumption100 kWh/a (Average annual energy consumption in kilowatt hour per year)

Total volume58 l

Capacity of 75 cl bottles21

Number of temperature zones1

Temperature range5–20 °C

Noise level38 dB(A) re 1pW, Noise emission class C

Airborne acoustical noise emissions38 dB(A) re 1pW

Built-in / Free-standingBuilt-in (built-under appliance)

Door panel optionsNot possible

Door typeGlass door, triple glazed door, UV-filter, right hinged door, reversible

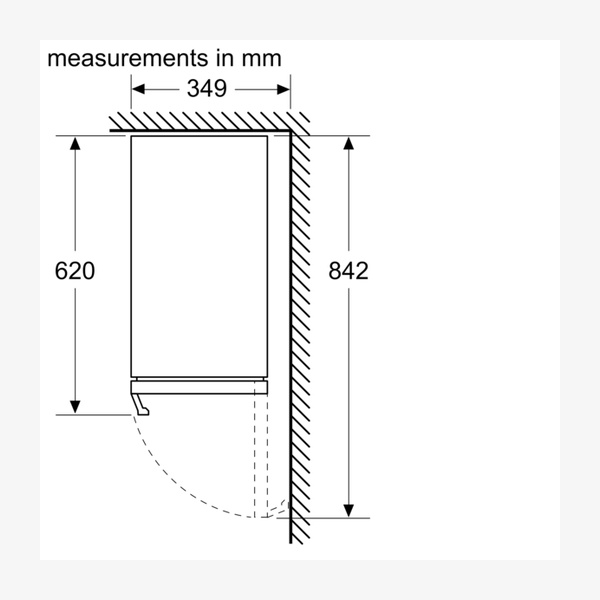

Door aperture angle115°

Lockable applianceNo

Interior lightLED with Soft Start, illumination on/off, presenter lighting

Interior light switchNo (separate interior light switch)

Interior ventilatorYes

Number of compressors1

Independent cooling systems1

Climate classSN-ST

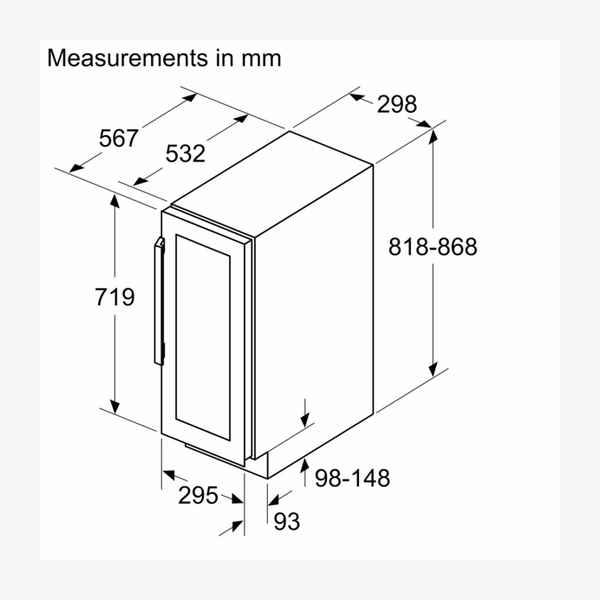

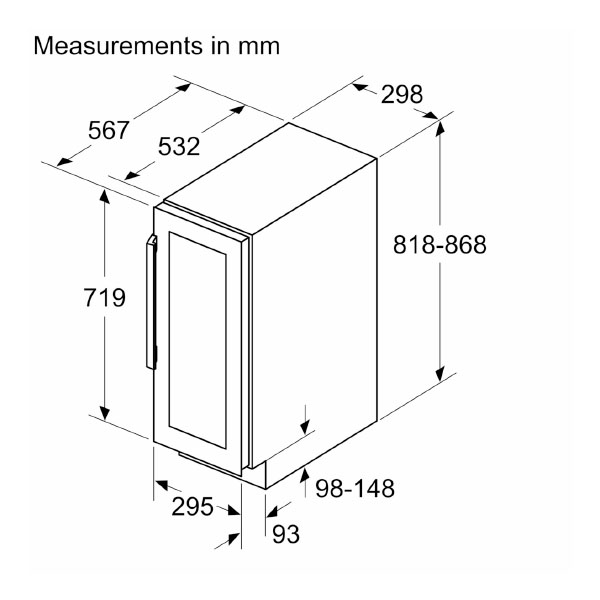

Height818 mm (81.8 cm)

Width298 mm (29.8 cm)

Depth567 mm (56.7 cm)

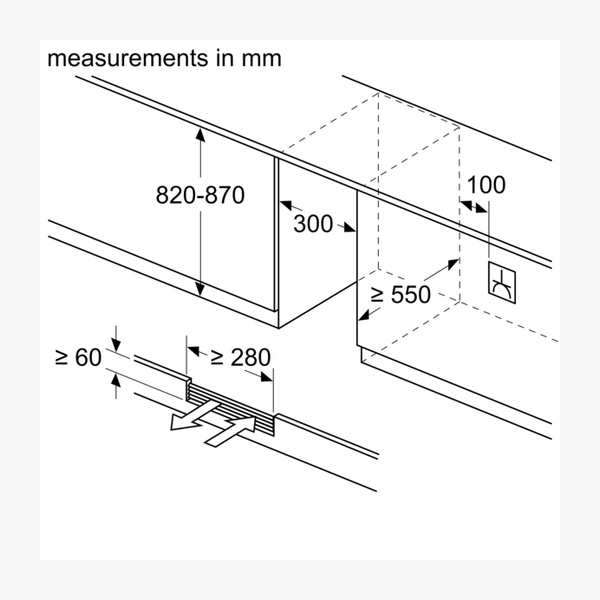

Niche dimensions (H x W x D)82 cm x 30 cm x 55 cm (820 x 300 x 550 mm)

Required niche size for installation (HxWxD)820 x 300 x 550 mm

Net weight26.6 kg

Connection rating70 W

Fuse protection6 A

Voltage220–240 V

Frequency50–60 Hz

Electrical supply cord length230.0 cm

Plug typeGB plug

Number of bottle shelves4 PC bottle shelves for 0.75 l

Number of wooden grills3 PC

Design of shelvesStandard shelf

VentilationVentilation in plinth, plinth size can be varied, variable plinth adaption

Child lockYes

Optical and acoustical functionsOptical and acoustical

EU19_EEK_DF

EU19_Noise emission class_DC

EU19_Fast freezer facility_DNot stated in source

EAN code4242004255499

Usage noteThis appliance is intendend to be used exclusively for the storage of wine.

Downloads

Download product documentation, manuals, and specification sheets.

KU9202HF0G Spec

PDF

Frequently Asked Questions

What is the bottle capacity of the Neff KU9202HF0G wine cooler?

The wine cooler has a capacity of 21 standard 75 cl (0.75 l) bottles, with a total volume of 58 l and 4 bottle shelves.

What temperature range does the wine cooler offer?

It provides one temperature zone with a temperature range from 5°C to 20°C, allowing settings from 5°C for whites to 20°C for reds.

Is the Neff KU9202HF0G suitable for built-in installation?

Yes, it is a built-under wine storage cabinet designed as a built-in appliance. The required niche size for installation is 820 x 300 x 550 mm (H x W x D).

Does the wine cooler have interior lighting?

Yes, it features LED illumination with Soft Start, illumination on/off control and presenter lighting to highlight the interior.

What safety features does this wine cooler include?

The appliance includes a child lock as well as optical and acoustical functions. The door is triple glazed with a UV filter and can be reversed.

What is the energy efficiency class and noise level?

The energy efficiency class is F, with an annual energy consumption of 100 kWh/a. The airborne acoustical noise emissions are 38 dB(A) re 1pW, with noise emission class C.
