Neff N90/70 N34HA11N1B Warming Drawer

The Neff N 70 N34HA11N1B is a built–in warming drawer in stainless steel, designed for preheating plates and cups, keeping dishes warm and low temperature cooking. With a 60 x 29 cm size, it offers multifunctional heating functions, user–friendly touch controls and a toughened glass heating plate. It can accommodate up to 40 plates or 192 espresso cups, making it suitable for households wanting flexible warming and slow cooking options.

SKU:N34HA11N1B

EAN:4242004266952

Category::Warming Drawers

Quantity:

Key Features

Multifunctional warming drawer with heating functions for low temperature cooking, keeping food warm, plate warming and cup warming.

Slow Cook Programme for delicious and tender meat, poultry and vegetables packed with vitamins.

Plate Warmer to keep food at the perfect temperature from kitchen to table.

Cup Warmer to prepare cups for coffee and tea.

Generous capacity accommodating up to 40 plates or 192 espresso cups.

Temperature control in 4 levels with glass surface temperatures of approximately 30°C – 80°C.

Push–Pull opening mechanism for opening and closing the drawer with a gentle tap on a seamless surface.

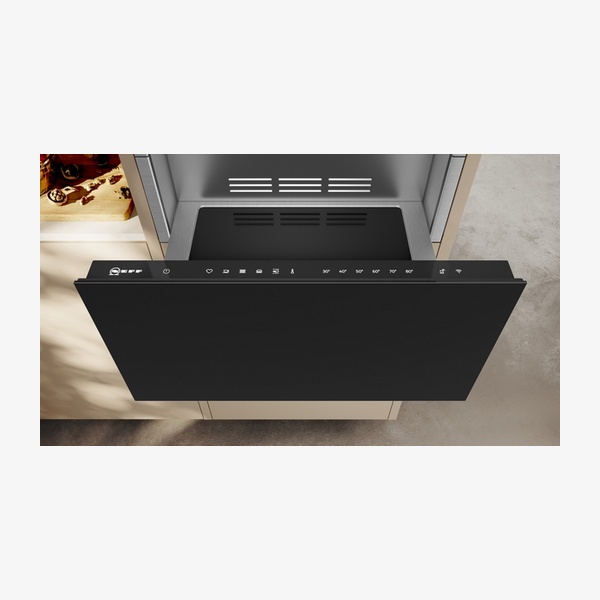

Touch key operation and Touch Control illuminated with steel trim for easy and comfortable use.

Easy to clean toughened glass heating plate for straightforward maintenance.

Loading up to 25 kg with a cavity volume of 54 l for flexible use.

Graphite–Grey Edition design with stainless steel finish.

Home Connect favourites button for managing favourites via the Home Connect app.

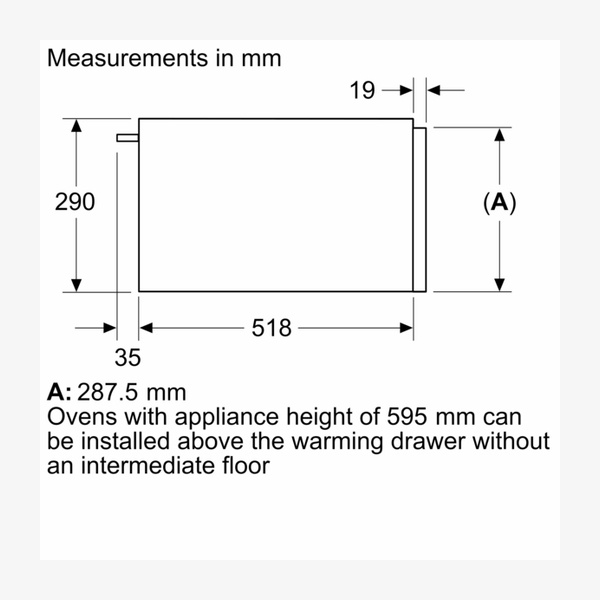

Built–in installation with appliance dimensions of 290 mm x 594 mm x 518 mm.

Optional accessories include SeamlessCombination 60 + 29 cm (Z11SZ80X1) and wireless food thermometer (Z1365WX0).

Technical Spec

Product typeBuilt–in warming drawer

ModelN 70 N34HA11N1B

Finish / colourStainless Steel, Graphite–Grey Edition

Built–in / Free–standingBuilt–in

Maximum number of espresso cups192

Maximum number of plates40 plates

Dimensions (H x W x D)290 x 594 x 518 mm / 290 mm x 594 mm x 518 mm

Packed product dimensions (H x W x D)400 x 650 x 690 mm

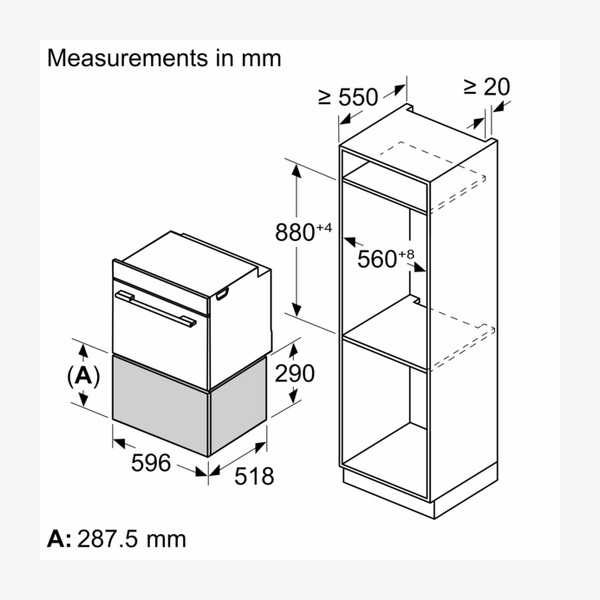

Required niche size (H x W x D)290 x 560 x 550 mm / 290 mm x 560 mm – 568 mm x 550 mm

Cavity volume54 l

Maximum loadingUp to 25 kg

Temperature range (glass surface)Approx. 30°C – 80°C (4 levels)

Nominal voltage220 – 240 V / 220–240 V

Total connected load (electric)0.82 KW

Frequency50 Hz

Fuse protection10 A

Plug typeGardy plug w/ earthing

EAN code4242004266952

Size60 x 29 cm

Programmes, Functions and Installation

This multifunctional warming drawer offers low temperature cooking, keep warm, plate warming and cup warming functions. Temperature control is available in four levels, with glass surface temperatures of approximately 30°C to 80°C. It is designed for preheating plates and cups so that dishes stay hot longer and for keeping cooked dishes warm.

User–friendly electronics ensure extremely easy and comfortable operation. Touch key operation with illuminated Touch Control and steel trim provides convenient control, while the Push–Pull opening mechanism allows the drawer to be opened and closed with a gentle tap on a seamless surface. The toughened glass heating plate is easy to clean.

A favourites button can be managed via the Home Connect app. For installation under the worktop, installation accessory spare part no. 9001698838 is needed. For details on installation and ventilation requirements, the installation manual should be referred to prior to fitting.

Downloads

Download product documentation, manuals, and specification sheets.

N34HA11N1B Spec

PDF

Frequently Asked Questions

What heating functions does the Neff N 70 N34HA11N1B warming drawer offer?

The warming drawer provides low temperature cooking, keep warm, plate warming and cup warming functions. It is designed to preheat plates and cups and to keep cooked dishes warm.

How many plates and cups can the warming drawer hold?

It can accommodate up to 40 plates and up to 192 espresso cups, with a cavity volume of 54 l and a loading capacity of up to 25 kg.

What is the temperature range of the warming drawer?

The temperature can be controlled in four levels, with a glass surface temperature of approximately 30°C to 80°C.

What are the installation requirements for this warming drawer?

The appliance dimensions are 290 mm x 594 mm x 518 mm. The niche dimension is 290 mm x 560 mm – 568 mm x 550 mm. In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed. Installation and ventilation requirements should be checked in the installation manual prior to fitting.

What optional accessories are available?

Optional accessories listed are the SeamlessCombination 60 + 29 cm (Z11SZ80X1) and the wireless food thermometer (Z1365WX0).

How is the drawer operated and cleaned?

The drawer features touch key operation with illuminated Touch Control and a Push–Pull opening mechanism. It has an easy to clean toughened glass heating plate.
