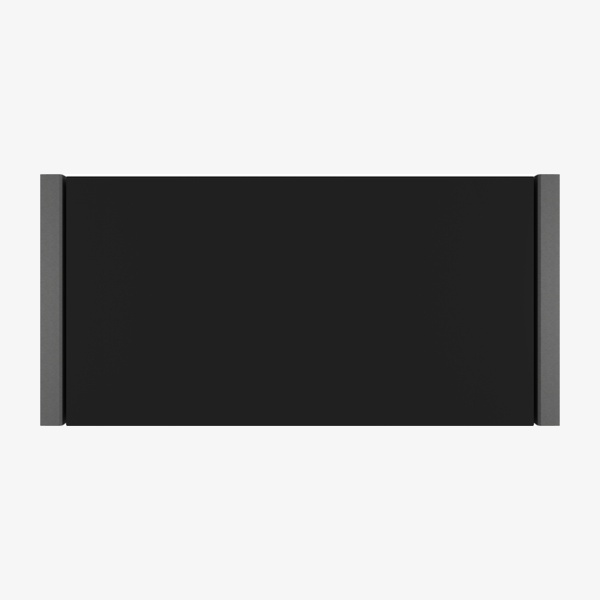

Neff N90/70 N34HA11G1B Warming Drawer

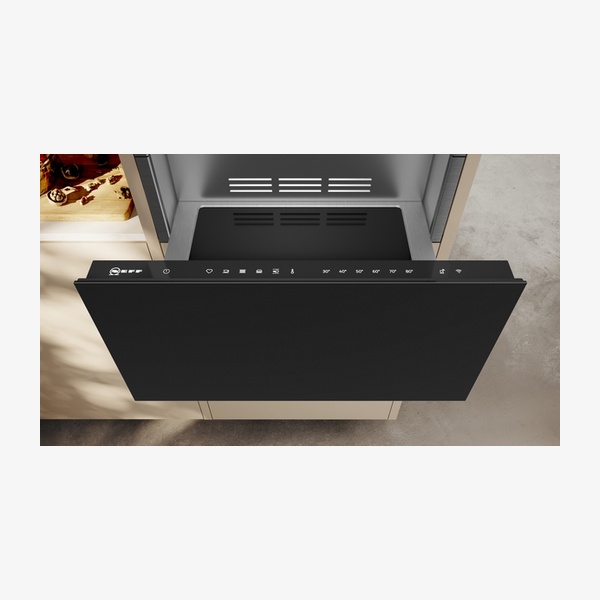

The NEFF N 70 N34HA11G1B is a graphite–grey, built–in warming drawer measuring 60 x 29 cm. It offers multifunctional heating with programmes for low temperature cooking, keeping food warm, and warming plates and cups. With a 54 litre cavity volume, loading capacity up to 25 kg and space for up to 40 plates or 192 espresso cups, it is designed for convenient, touch–control operation and smooth push–pull opening in a modern kitchen setting.

SKU:N34HA11G1B

EAN:4242004265733

Category::Warming Drawers

Quantity:

Key Features

Multifunctional warming drawer with heating functions for low temperature cooking, keeping food warm, plate warming and cup warming.

Slow Cook Programme for delicious and tender meat, poultry and vegetables.

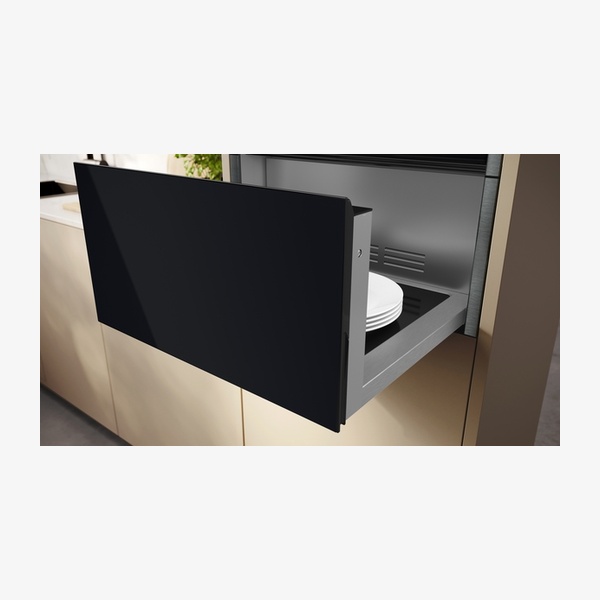

Plate Warmer to keep food at the perfect temperature from kitchen to table.

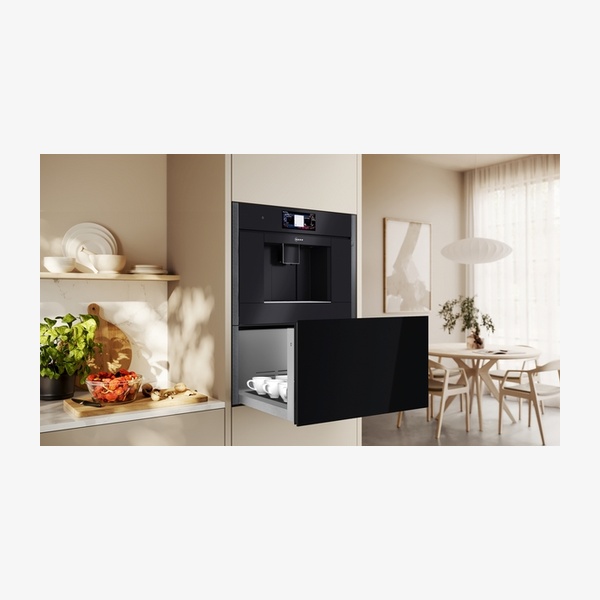

Cup Warmer to preheat cups for coffee and tea.

Large capacity accommodating up to 40 plates or 192 espresso cups.

Temperature control in 4 levels from approx. 30°C to 80°C (glass surface temperature).

Graphite–Grey Edition design with touch key operation and illuminated Touch Control with steel trim.

Push–Pull opening mechanism for opening and closing the drawer with a gentle tap on a seamless surface.

Easy to clean toughened glass heating plate for convenient maintenance.

User–friendly electronics for extremely easy and comfortable operation.

Favourites button – can be managed via Home Connect app.

High loading capacity with cavity volume of 54 l and loading up to 25 kg.

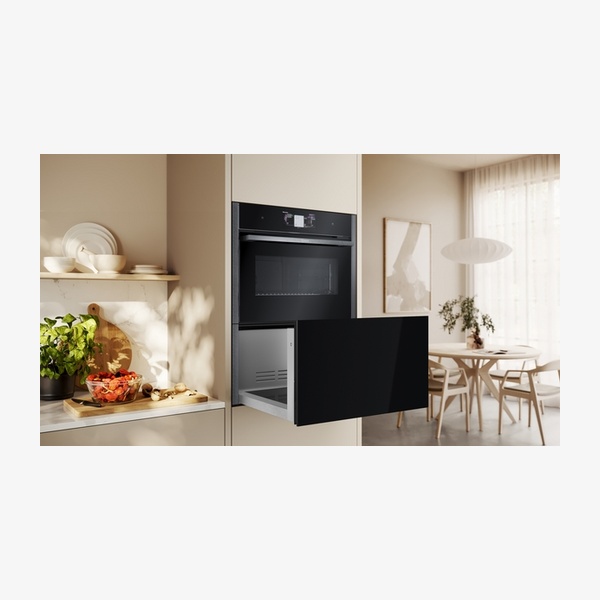

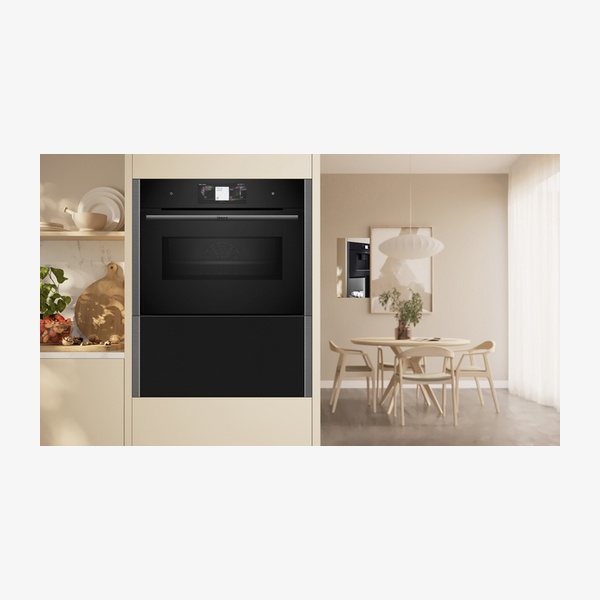

Built–in installation with compact 290 mm height for integration under ovens or in tall units.

Optional accessories include SeamlessCombination 60 + 29 cm (Z11SZ80G0) and Wireless food thermometer (Z1365WX0).

Technical Spec

Product nameN 70, Built–in warming drawer, 60 x 29 cm, graphite–grey

Model codeN34HA11G1B

Installation typeBuilt–in

Maximum number of espresso cups192

Maximum number of plates40 plates

Cavity volume54 l

Loading capacityLoading up to 25 kg

Appliance dimensions (H x W x D)290 mm x 596 mm x 518 mm

Niche dimensions (H x W x D)290 mm x 560 mm – 568 mm x 550 mm

Dimensions of packed product (H x W x D)400 x 650 x 660 mm

Temperature range (glass surface)Approx. 30°C – 80°C in 4 levels

Nominal voltage220 – 240 V

Frequency50 Hz

Total connected load (electric)0.82 kW

Fuse protection10 A

Plug typeGardy plug w/ earthing

EAN code4242004265733

ColourGraphite–grey

Programmes, Functions and Installation

Heating functions and use

Low temperature cooking for meat, poultry and vegetables.
Keep warm function for cooked dishes.
Plate warming function.
Cup warming function.
Temperature control in 4 levels from approx. 30°C to 80°C (glass surface).

Controls and operation

Touch key operation.
Illuminated Touch Control with steel trim.
User–friendly electronics for easy and comfortable operation.
Favourites button – can be managed via Home Connect app.
Push–Pull opening mechanism for seamless opening and closing.

Cleaning and maintenance

The drawer features an easy to clean toughened glass heating plate.

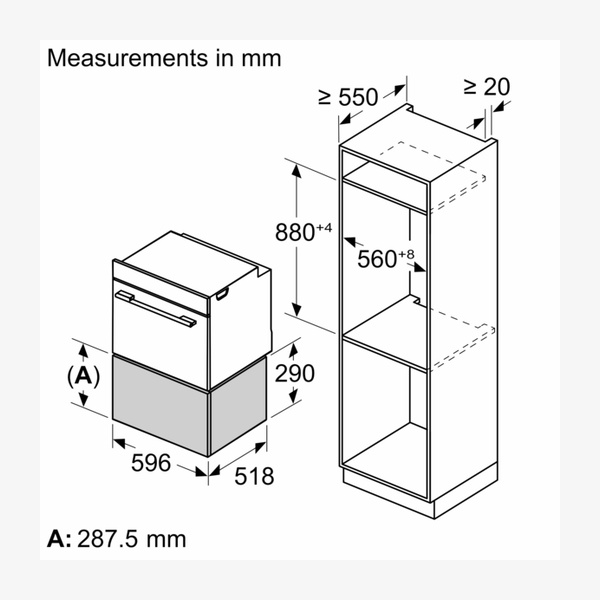

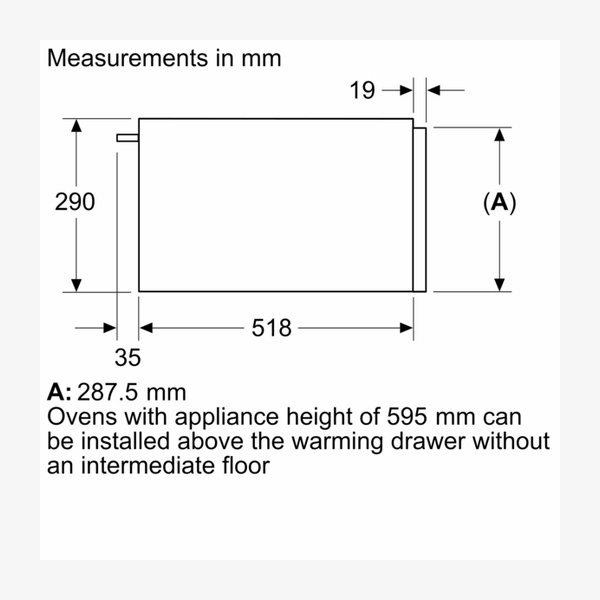

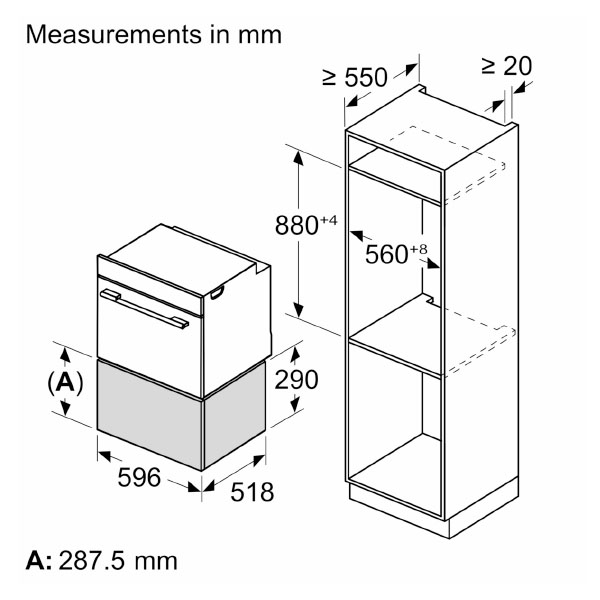

Installation notes

Designed for built–in installation.
Niche dimensions: 290 mm x 560 mm – 568 mm x 550 mm.
In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.
For details on installation and ventilation requirements – please refer to the installation manual prior to fitting.

Downloads

Download product documentation, manuals, and specification sheets.

N34HA11G1B Spec

PDF

Frequently Asked Questions

What functions does this warming drawer offer?

It provides low temperature cooking, keep warm, plate warming and cup warming functions, with temperature control in four levels from approx. 30°C to 80°C (glass surface temperature).

How many items can the drawer hold?

The drawer can accommodate up to 40 plates or 192 espresso cups, with a cavity volume of 54 l and loading up to 25 kg.

What are the dimensions for installation?

The appliance dimensions are 290 mm x 596 mm x 518 mm. The required niche dimensions are 290 mm x 560 mm – 568 mm x 550 mm.

Is there a special accessory for installation under a worktop?

In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.

How is the warming drawer operated?

It is operated via touch key controls with illuminated Touch Control and steel trim, and it features a Push–Pull opening mechanism and a Favourites button that can be managed via the Home Connect app.
