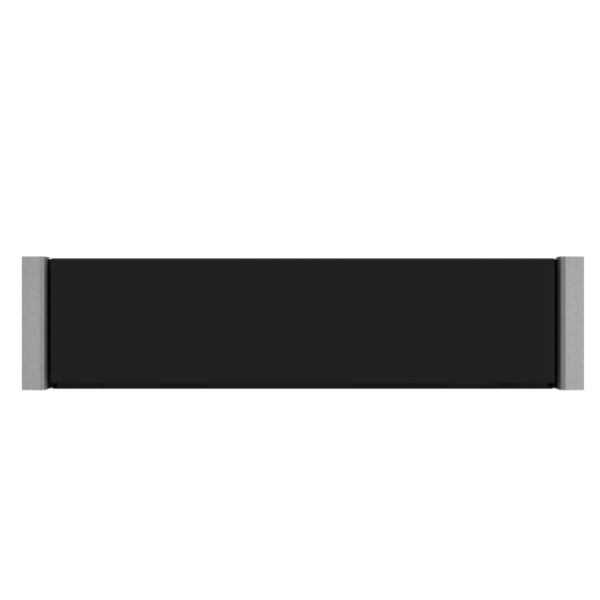

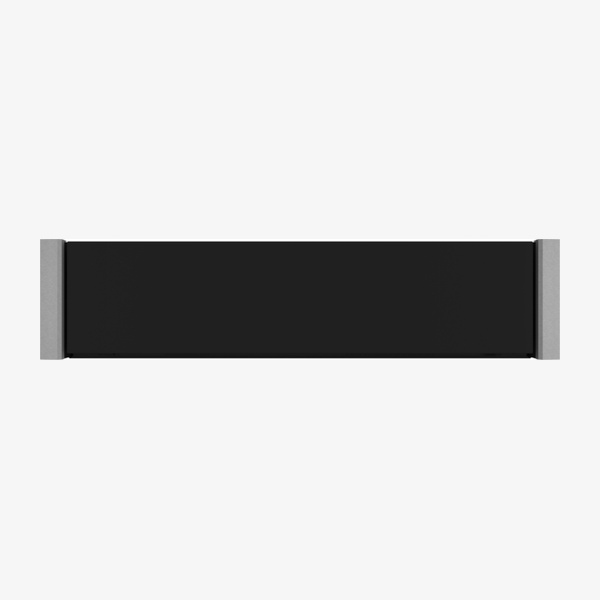

Neff N90/70 N24HA11N1B Warming Drawer

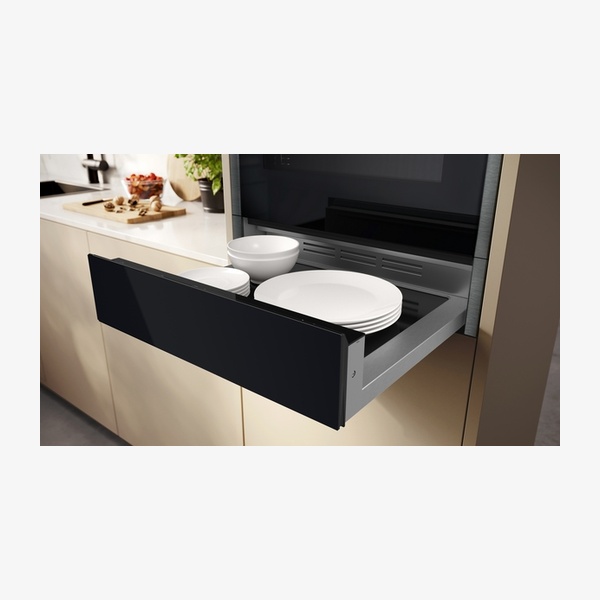

The N 70 N24HA11N1B is a built–in warming drawer in stainless steel, sized 60 x 14 cm, designed for integration with kitchen furniture and compact appliances. It offers multifunctional heating for low temperature cooking, keeping cooked dishes warm, plate warming and cup warming. With touch control, four temperature levels from about 30°C to 80°C and a 20 l cavity volume, it can accommodate up to 12 plates or 64 espresso cups and supports loading up to 25 kg.

SKU:N24HA11N1B

EAN:4242004266921

Category::Warming Drawers

Quantity:

Key Features

Multifunctional warming drawer with heating functions for low temperature cooking, keeping food warm, plate warming and cup warming.

Slow Cook Programme for delicious and tender meat, poultry and vegetables packed with vitamins.

Plate Warmer to keep food at the perfect temperature from kitchen to table.

Cup Warmer to prepare cups for coffee and tea.

High capacity accommodating up to 12 plates or 64 espresso cups.

Temperature control in 4 levels with glass surface temperature of approximately 30°C–80°C.

Push–Pull opening mechanism allowing the drawer to open and close with a gentle tap on a seamless surface.

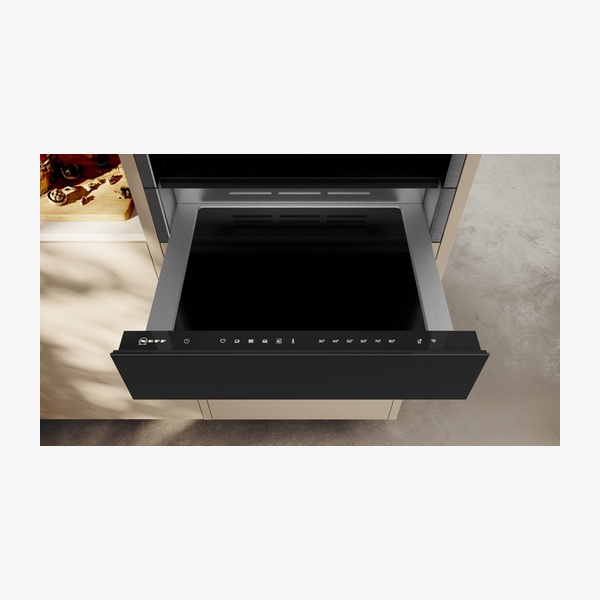

Graphite–Grey Edition design with touch key operation and illuminated Touch Control with steel trim.

Easy to clean heating plate thanks to the toughened glass surface.

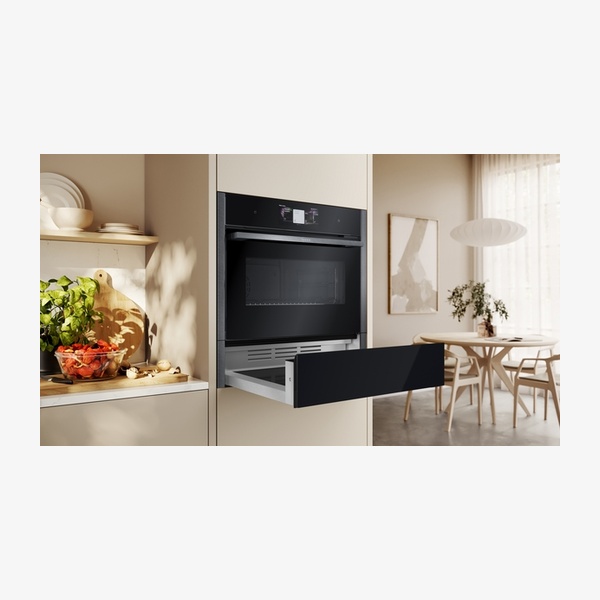

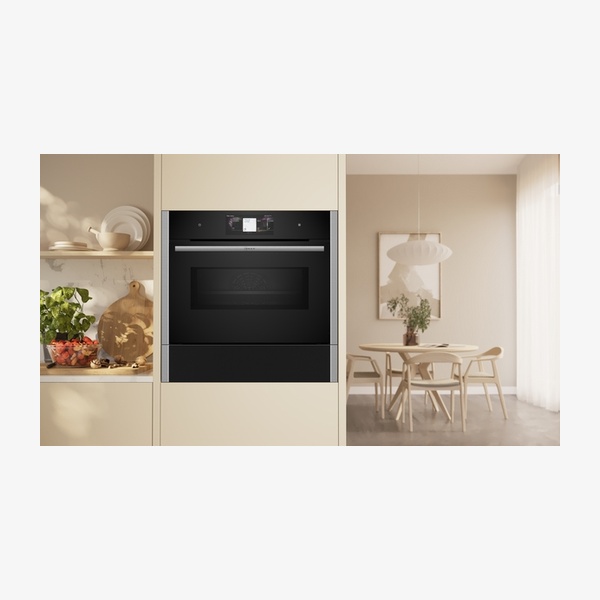

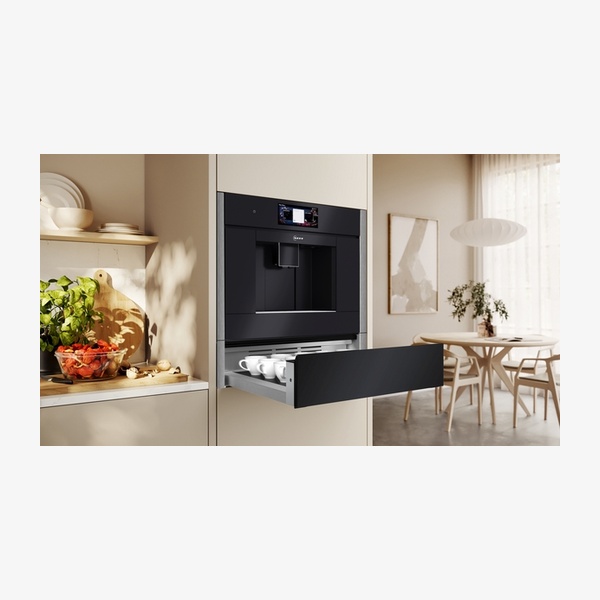

Installation with compact appliance enabling combination with any 45 cm appliance.

Home Connect favourites button allowing favourites to be managed via the Home Connect app.

Robust loading capacity with a cavity volume of 20 l and loading up to 25 kg.

Technical Spec

Product typeBuilt–in warming drawer

ModelN24HA11N1B

SeriesN 70

Front material / finishStainless Steel / Graphite–Grey Edition with steel trim

InstallationBuilt–in

FunctionsLow temperature cooking, keep warm, plate warming, cup warming

Maximum number of espresso cups64

Maximum number of plates12

Cavity volume20 l

Loading capacityUp to 25 kg

Temperature levels4 levels, approx. 30°C–80°C (glass surface temperature)

Control typeTouch key operation, illuminated Touch Control

Opening mechanismPush–Pull opening mechanism

Heating plateEasy to clean toughened glass heating plate

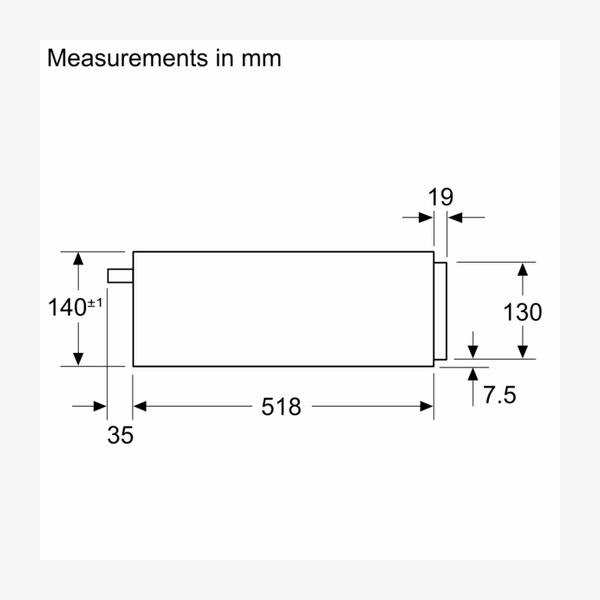

Appliance dimensions (H x W x D)140 mm x 596 mm x 518 mm

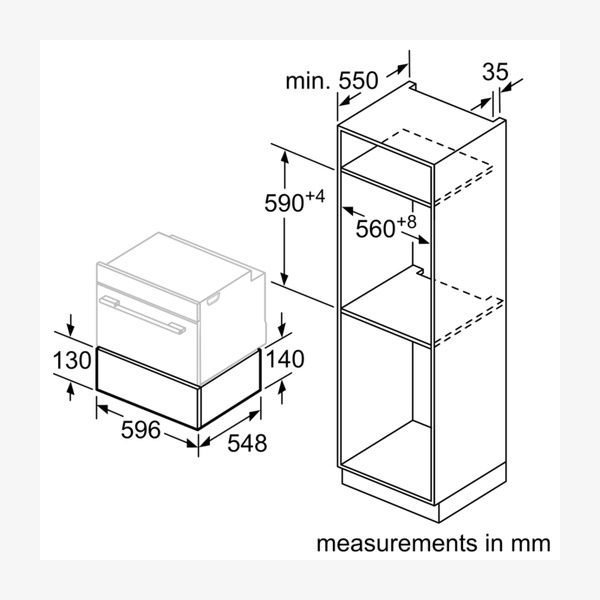

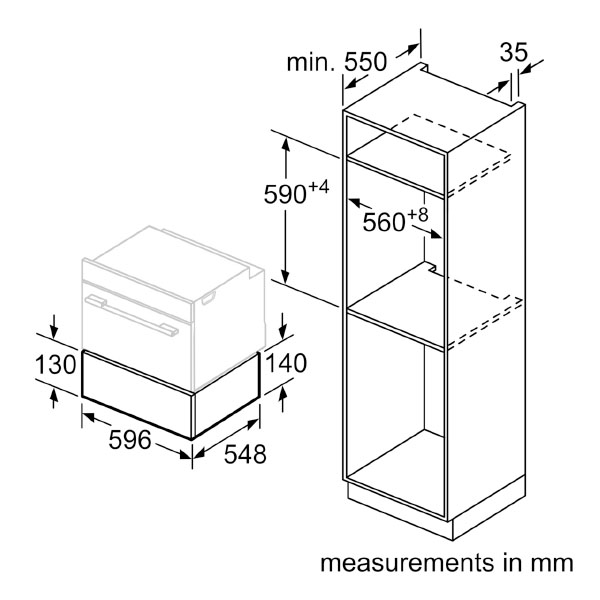

Niche dimensions (H x W x D)140 mm x 560 mm – 568 mm x 550 mm

Dimensions of packed product (H x W x D)250 x 660 x 700 mm

Nominal voltage220–240 V

Frequency50–60 Hz

Total connected load (electric)0.82 kW

Fuse protection10 A

Plug typeGB plug

EAN code4242004266921

Optional accessory – seamless combinationZ11SZ60G0 SeamlessCombination 45 + 14 cm

Optional accessory – thermometerZ1365WX0 Wireless food thermometer

Downloads

Download product documentation, manuals, and specification sheets.

N24HA11N1B Spec

PDF

Frequently Asked Questions

What functions does the N24HA11N1B warming drawer offer?

It offers low temperature cooking, keep warm, plate warming and cup warming, as well as specific Slow Cook, Plate Warmer and Cup Warmer uses.

How many items can the drawer hold?

The drawer can accommodate up to 12 plates or 64 espresso cups, with a cavity volume of 20 l and loading capacity up to 25 kg.

What temperature range is available?

The temperature can be controlled in four levels, with a glass surface temperature of approximately 30°C to 80°C.

Is the warming drawer easy to operate and clean?

Yes. It features touch key operation with illuminated Touch Control and user–friendly electronics for extremely easy and comfortable operation. The toughened glass heating plate is easy to clean.

Can it be combined with other kitchen appliances?

The drawer can be installed with compact appliances and is designed to combine with any 45 cm appliance. For under–worktop installation, accessory spare part no. 9001698838 is needed.
