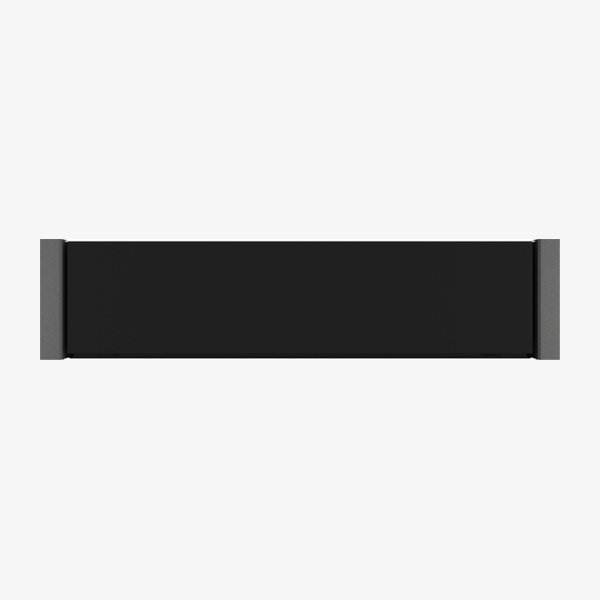

Neff N90/70 N24HA11G1B Warming Drawer

The N 70 N24HA11G1B is a graphite–grey, built–in warming drawer (60 x 14 cm) designed for preheating plates and cups, keeping dishes warm and low temperature cooking. It offers a multifunctional warming solution with touch control operation, four temperature levels and a Push–Pull opening mechanism. With a 20 l cavity volume, loading up to 25 kg and capacity for up to 12 plates or 64 espresso cups, it suits kitchens combining compact appliances with a 45 cm appliance.

SKU:N24HA11G1B

EAN:4242004265719

Category::Warming Drawers

Quantity:

Key Features

Multifunctional warming drawer with heating functions for low temperature cooking, keeping warm, plate warming and cup warming.

Slow Cook Programme for delicious and tender meat, poultry and vegetables packed with vitamins.

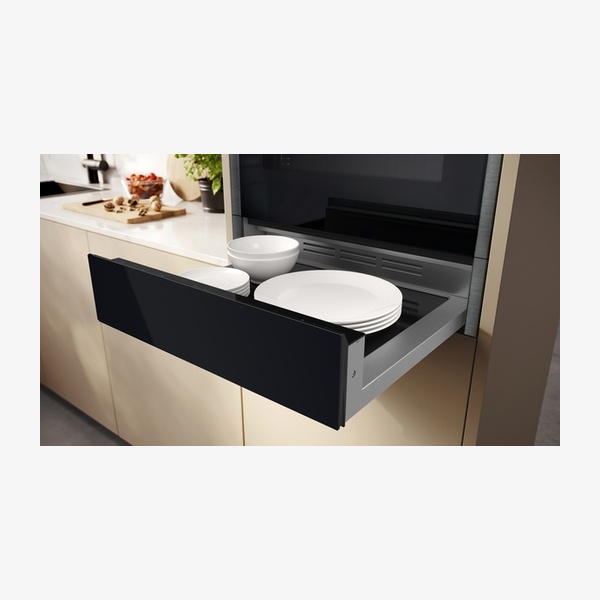

Plate Warmer to keep food at the perfect temperature from kitchen to table.

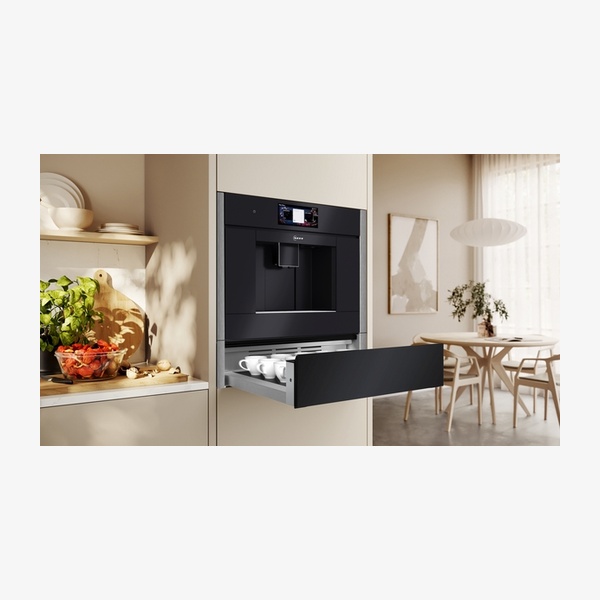

Cup Warmer to prepare cups for coffee and tea.

Generous capacity – can accommodate up to 12 plates or 64 espresso cups.

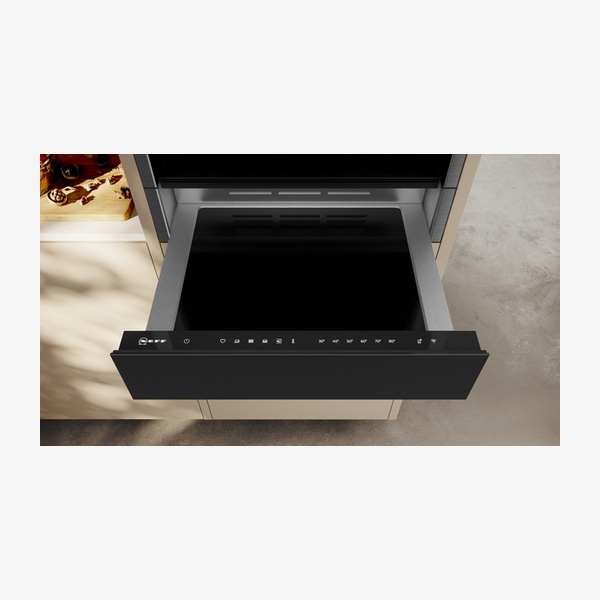

Graphite–Grey Edition design with touch control illuminated with steel trim.

Touch key operation and user–friendly electronics for extremely easy and comfortable operation.

Push–Pull opening mechanism to open and close the drawer with a gentle tap on a seamless surface.

Temperature control in 4 levels of approximately 30°C – 80°C (glass surface temperature).

Easy to clean toughened glass heating plate.

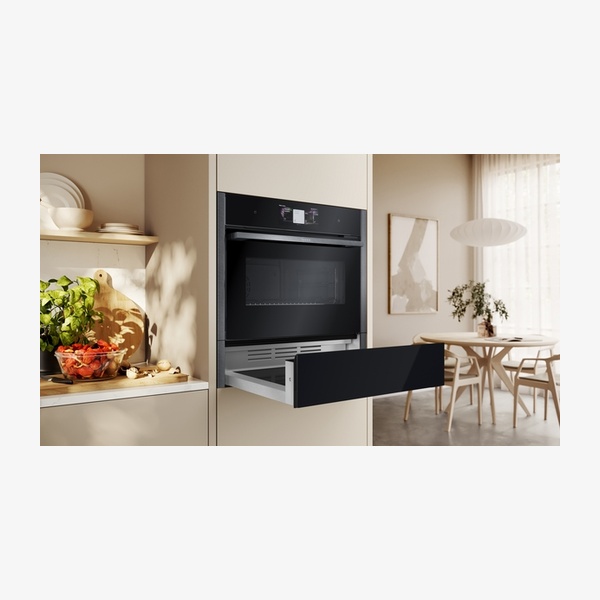

Installation with compact appliance – combine the drawer with any 45 cm appliance.

Favourites button that can be managed via Home Connect app.

High load capacity with loading up to 25 kg and 20 l cavity volume.

Optional accessories include SeamlessCombination 45 + 14 cm (Z11SZ60G0) and Wireless food thermometer (Z1365WX0).

Built–in design with GB plug and nominal voltage 220 – 240 V.

Technical Spec

Product typeBuilt–in warming drawer

ModelN 70 N24HA11G1B

Colour / finishGraphite–Grey Edition with steel trim

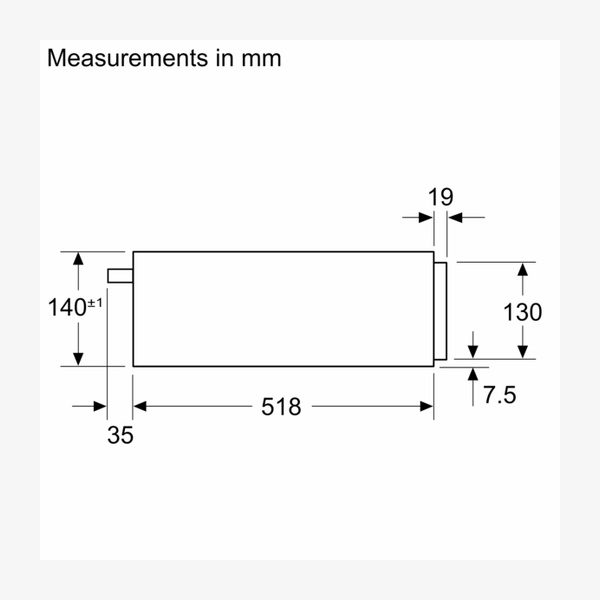

Dimensions (H x W x D)140 x 596 x 518 mm

Dimensions of packed product (H x W x D)250 x 660 x 700 mm

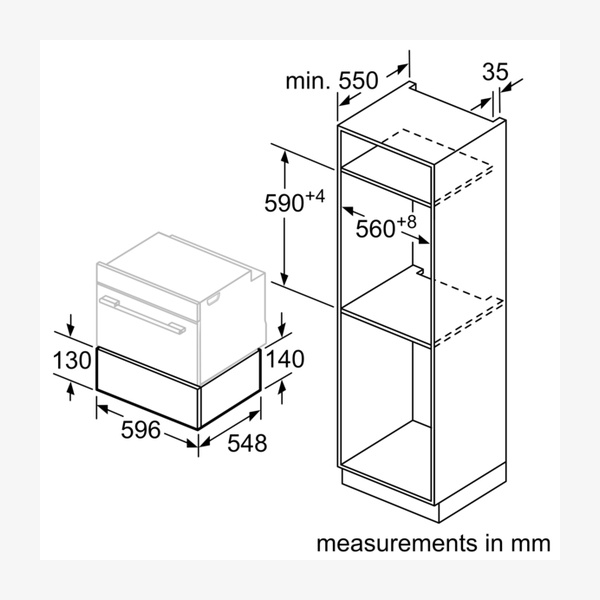

Required niche size (H x W x D)140 x 560 x 550 mm

Niche dimension (H x W x D)140 mm x 560 mm – 568 mm x 550 mm

Maximum number of espresso cups64

Plate capacityUp to 12 plates

Cavity volume20 l

Loading capacityUp to 25 kg

Temperature range4 levels, ca. 30°C – 80°C (glass surface temperature)

Nominal voltage220 – 240 V

Frequency50 – 60 Hz

Total connected load (electric)0.82 kW

Fuse protection10 A

Plug typeGB plug

EAN code4242004265719

Installation typeBuilt–in

Programmes, Functions and Installation

Heating functions and usage

Low temperature cooking for meat, poultry and vegetables.
Keep warm function for keeping cooked dishes warm.
Plate warming for preheating plates so that dishes stay hot longer.
Cup warming to prepare cups for coffee and tea.

Controls and convenience

Touch Control illuminated with steel trim.
Touch key operation.
User–friendly electronics for extremely easy and comfortable operation.
Favourites button, manageable via Home Connect app.
Push–Pull opening mechanism for seamless opening and closing.
Easy to clean toughened glass heating plate.

Installation notes

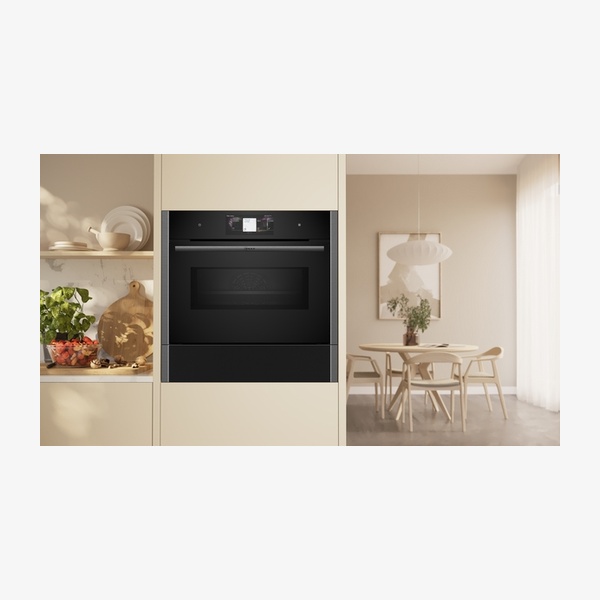

Designed for installation with a compact appliance and can be combined with any 45 cm appliance.
In case of installation under the worktop, installation accessory spare part no. 9001698838 is needed.
For details on installation and ventilation requirements – please refer to the installation manual prior to fitting.

Downloads

Download product documentation, manuals, and specification sheets.

N24HA11G1B Spec

PDF

Frequently Asked Questions

What can I use the N 70 N24HA11G1B warming drawer for?

It can be used for low temperature cooking, keeping cooked dishes warm, preheating plates so dishes stay hot longer, and warming cups for coffee and tea.

How many items can the warming drawer hold?

The drawer can accommodate up to 12 plates or up to 64 espresso cups, with a cavity volume of 20 l and loading capacity up to 25 kg.

What temperature range does the drawer offer?

The warming drawer has temperature control in 4 levels, with a glass surface temperature of approximately 30°C to 80°C.

Is the warming drawer easy to operate and clean?

Yes, it has user–friendly electronics with touch key operation and touch control illumination, plus a Push–Pull mechanism. The toughened glass heating plate is easy to clean.

Can this warming drawer be combined with other appliances?

It is designed for installation with a compact appliance and can be combined with any 45 cm appliance. For installation under the worktop, accessory spare part no. 9001698838 is required.
