Neff N50 N1AHA01G0B Warming Drawer

The N 50 built-in warming drawer N1AHA01G0B is a 14 cm high graphite-grey drawer designed to fit a 60 cm oven niche and link with a 45 cm compact appliance. It offers stepless temperature control from 40°–80°C, a 23 l cavity and loading up to 15 kg. With space for up to 14 plates or 64 espresso cups, it is suitable for warming food, drinks and tableware, proving yeast dough and thawing delicate foods.

SKU:N1AHA01G0B

EAN:4242004262688

Category::Warming Drawers

Quantity:

Key Features

Stepless temperature control 40°–80°C – choose any temperature within the range for warming food, drinks or tableware.

14 cm high built-in drawer – fits a standard 60 cm oven niche and is designed to link with a 45 cm compact oven or appliance.

Generous loading up to 15 kg – suitable for multiple dishes, plates or cups within the drawer cavity.

Spacious 23 l cavity volume – can accommodate up to 14 plates or 64 espresso cups.

Multiple functions – keeping drinks and food warm, pre-warming tableware, proving yeast dough and thawing delicate foods.

User-friendly electronics – designed for extremely easy and comfortable operation.

Elongated dials with steel trim – control design with elongated dials featuring a steel trim.

Push-pull opening mechanism – convenient drawer opening system.

Stainless steel cavity inner surface – interior surface made of stainless steel.

Anti-slip mat included – supplied with 1 anti-slip mat for secure placement of items.

Built-in appliance with GB plug – designed for built-in installation and supplied with a GB plug.

Technical Spec

Product nameN 50, Built-in warming drawer, 60 x 14 cm, graphite-grey

Model codeN1AHA01G0B

Appliance typeBuilt-in

Temperature range40°–80°C (stepless control)

Cavity volume23 l

Maximum loadLoading up to 15 kg

Capacity – platesUp to 14 plates

Capacity – espresso cupsUp to 64 espresso cups (maximum number of espresso cups: 64)

Appliance dimensions (H x W x D)140 mm x 594 mm x 540 mm / 140 x 594 x 540 mm

Packed product dimensions (H x W x D)210 x 660 x 660 mm

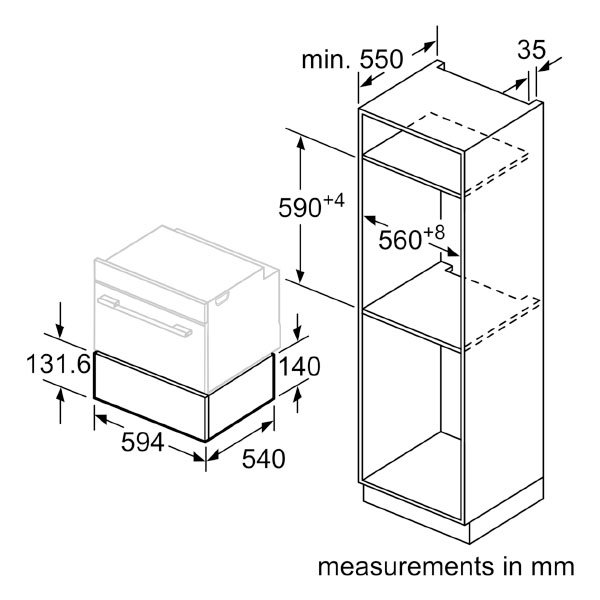

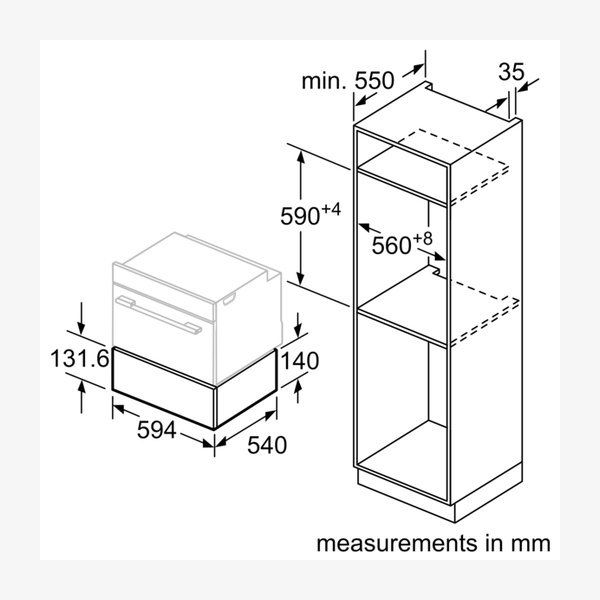

Required niche size (H x W x D)140 x 560 x 550 mm / 140 mm x 560 mm – 568 mm x 550 mm

ColourGraphite-grey

Inner surfaceStainless steel cavity inner surface

Control designElongated designed dials with steel trim; user-friendly electronics

Opening mechanismPush-pull opening mechanism

Total connected load (electric)0.4 KW

Voltage220–240 V / Nominal voltage: 220 – 240 V

Frequency50–60 Hz

Fuse protection6 A

Power cord length150 cm Cable length / Power cord length 150 cm Cable length

Plug typeGB plug

EAN code4242004262688

Included accessories1 x anti-slip mat

Combination with compact applianceInstallation with compact appliance – combine with any 45 cm appliance

Downloads

Download product documentation, manuals, and specification sheets.

N1AHA01G0B Spec

PDF

Frequently Asked Questions

What is the temperature range of the warming drawer?

The warming drawer has stepless temperature control from 40°–80°C, allowing you to select any temperature within this range.

How many plates and cups can the drawer hold?

The cavity volume is 23 l and can accommodate up to 14 plates or up to 64 espresso cups. The maximum number of espresso cups is stated as 64.

Can this warming drawer be combined with other appliances?

Yes. It can link with a 45 cm compact oven and is designed for installation with any 45 cm appliance to fit into a 60 cm oven niche.

What functions does the warming drawer offer?

The drawer provides four functions: keeping drinks and food warm, pre-warming of tableware, yeast dough proving and thawing of delicate foods.

What is the maximum load the drawer can take?

The drawer is designed for loading up to 15 kg within the cavity.

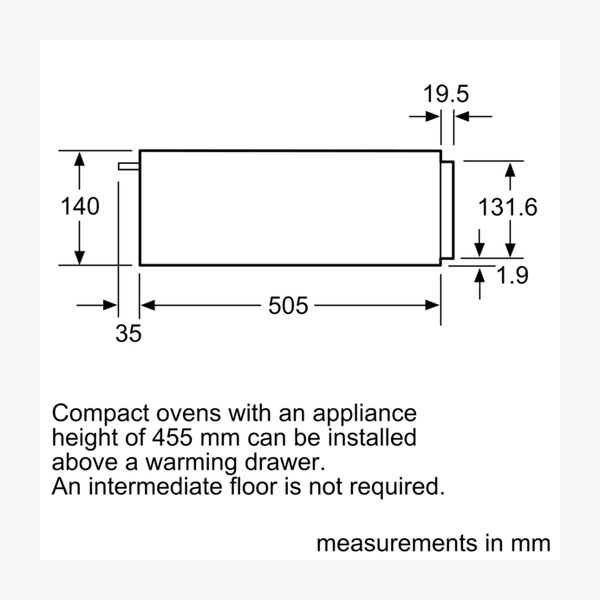

Does the warming drawer require an intermediate floor when installed with a compact oven?

No. Compact ovens with an appliance height of 455 mm can be installed above the warming drawer, and an intermediate floor is not required.
