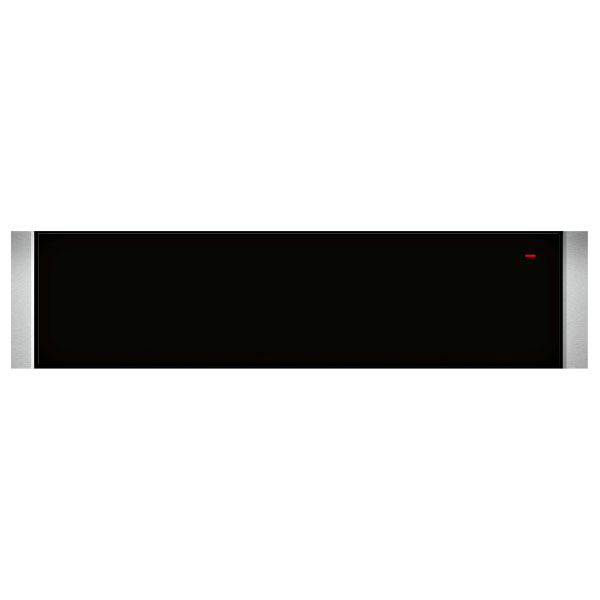

The N 90 N17HH10N0B is a 14 cm high built-in warming drawer in stainless steel designed to combine with a 45 cm compact oven for a perfect fit in a 60 cm oven niche. It accommodates up to 12 plates or 64 espresso cups and offers temperature control in four levels from about 30 °C to 80 °C. With push-pull opening, toughened glass heating plate and five versatile functions, it supports warming, proving and gentle cooking tasks.

Key Features

14 cm high built-in design – links with a 45 cm compact oven to fit perfectly into a 60 cm oven niche.
Push & Pull opening – one gentle touch opens and closes the drawer.
Generous crockery capacity – can accommodate up to 12 plates or 64 espresso cups.
Four-level temperature control – approximate glass surface temperature range from 30 °C to 80 °C.
Easy-to-clean toughened glass heating plate – designed for straightforward cleaning.
Five warming and cooking functions – dough proving, thawing of delicate foods, keeping drinks and food warm, pre-warming of crockery, and gentle cooking.
Built-in installation – suitable for integration with 45 cm appliances.
20 l cavity volume – provides space for a range of crockery and dishes.
Loading up to 25 kg – supports a substantial load of plates, cups or cookware.
Stainless steel styling with elongated dials – elongated designed dials for control.
GB plug and 150 cm power cord – plug type is GB with power cord length of 150 cm.

Technical Specifications

Product name	N 90 Built-in warming drawer, 60 × 14 cm, Stainless Steel
Model code	N17HH10N0B
Design / installation	Built-in
Primary colour / finish	Stainless Steel
Maximum number of plates	12
Maximum number of espresso cups	64
Cavity volume	20 l
Loading capacity	Up to 25 kg
Temperature control	4 levels, approx. 30 °C – 80 °C (glass surface temperature)
Functions	Dough proving; thawing of delicate foods; keeping drinks and food warm; pre-warming of crockery; gentle cooking
Opening mechanism	Push-Pull opening mechanism
Heating surface	Easy to clean toughened glass heating plate
Control design	Elongated designed dials
Appliance dimensions (H × W × D)	140 mm × 596 mm × 548 mm
Dimensions (stated elsewhere)	140 × 596 × 548 mm

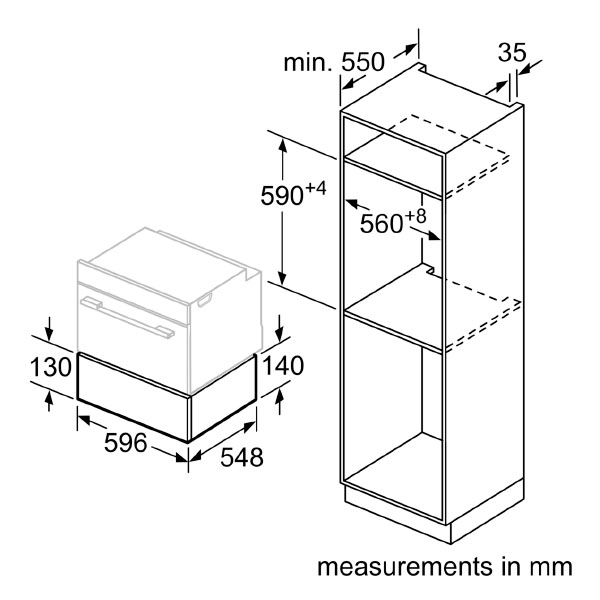

Niche dimensions (H × W × D)	140 mm × 560 mm – 568 mm × 550 mm
Minimum required niche size (H × W × D)	140 mm × 560 mm × 550 mm
Packed product dimensions (H × W × D)	210 mm × 660 mm × 660 mm
Total connected load (electric)	0.81 kW
Voltage	220–240 V
Frequency	60; 50 Hz
Fuse protection	10 A
Plug type	GB plug
Power cord length	150 cm
EAN code	4242004184584

Programmes, Functions and Installation

This warming drawer can be installed with any 45 cm appliance, allowing it to link with a 45 cm compact oven to create a combined 60 cm oven niche solution.

Dough proving function.
Thawing of delicate foods.
Keeping drinks and food warm.
Pre-warming of crockery.
Gentle cooking.

Please refer to the dimensions provided in the installation manual for detailed installation guidance.

Frequently Asked Questions

How many plates and cups can the warming drawer hold?

The drawer can accommodate up to 12 plates and up to 64 espresso cups.

What temperature range does the warming drawer offer?

It has four levels of temperature control, with an approximate glass surface temperature range from 30 °C to 80 °C.

Which functions are available on this warming drawer?

The drawer offers five functions: dough proving, thawing of delicate foods, keeping drinks and food warm, pre-warming of crockery and gentle cooking.

Can this warming drawer be combined with a compact oven?

Yes. It is a 14 cm high warming drawer that can link with a 45 cm compact oven to fit perfectly into a 60 cm oven niche and can be installed with any 45 cm appliance.

What is the loading capacity of the drawer?

The drawer can be loaded up to 25 kg.
