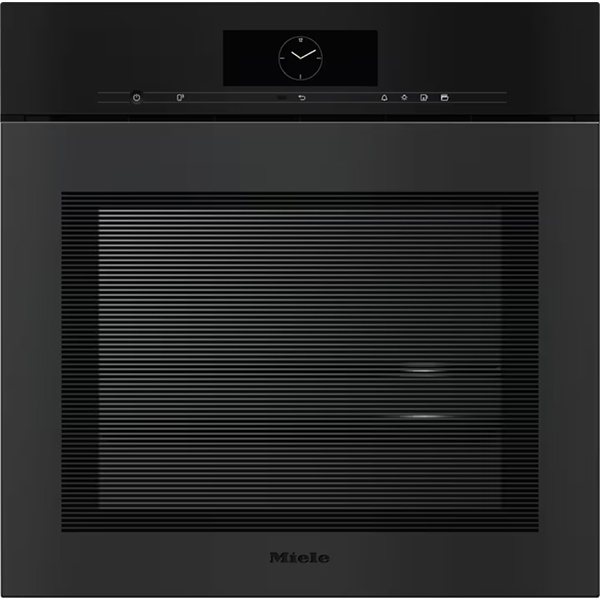

Miele ArtLine DGC7865HCX Pro Steam Combi

The Miele DGC 7865 HCX Pro is a handleless steam combination oven in obsidian black matt, designed for steam cooking, baking and roasting. It features DualSteam technology, a wireless food probe and HydroClean for easy cleaning. With M Touch display, MotionReact proximity sensor and Miele@home networking, it offers a wide range of operating modes, automatic programmes and A+ energy efficiency for versatile, convenient cooking on up to four levels.

SKU:DGC7865HCXOBSWMATT

EAN:4002516713562

Category::Ovens

Quantity:

Key Features

Handleless ArtLine design in obsidian black matt for a seamless built-in look.

Steam combination oven for steam cooking, baking and roasting in one appliance.

Large M Touch display with MotionReact proximity sensor for intuitive, touch-based control.

DualSteam technology with external steam generation and oxygen sensor for steam cooking.

Combination cooking modes including Fan plus, Conventional heat and grill options.

Wireless food probe without cable and buzzer when the desired temperature is reached.

HydroClean system with maintenance, soak, rinse and oven compartment drying programmes.

Miele@home networking for a network-enabled WiFi appliance with Mix & Match functionality.

Menu cooking without transfer of taste and automatic menu cooking functions.

Steam cooking on up to 4 levels at the same time with quantity-independent cooking.

Extensive operating modes such as Sous-vide, Intensive bake, Eco fan heat and Eco steam cooking.

Stainless-steel oven compartment with linen structure and CleanGlass door for easier cleaning.

A+ energy efficiency class with low power consumption in off, standby and networked standby modes.

Motorised lift-up control panel with SoftClose , SoftOpen and Touch2Open convenience.

Comprehensive safety features including appliance cooling, touch-cool front, safety switch-off and system lock.

MultiLingua display with a wide range of available display languages.

67 l oven compartment volume with four numbered shelf levels and BrilliantLight illumination.

DirectWater plus connection with mains water and drain connection and drain filter.

Accessories included such as PerfectClean trays, FlexiClip runners, cooking containers and descaling tablets.

Technical Spec

Model identifierDGC 7865 HCX Pro

Manufacturer material number12310280

EAN number4002516713562

ColourObsidian black matt

Construction typeSteam combination oven, handleless ArtLine design

Energy efficiency class (A+++ – D)A+

Oven compartment volume67 l

Number of shelf levels4, numbered shelf levels

Appliance dimensions (W × H × D)595 × 596 × 567 mm

Niche dimensions (W × H × D)560–568 × 590–595 × 550 mm

Niche width min./max.560 mm / 568 mm

Niche height min./max.590 mm / 595 mm

Niche depth550 mm

Appliance width595 mm

Appliance height596 mm

Appliance depth567 mm

Weight46.4 kg

Door hingeBottom

Oven lightBrilliantLight

Oven temperature range30–230 °C

Steam oven temperature range40–100 °C (electronic regulation)

Steam generator power3.30 kW

Total rated load3.40 kW

Voltage / Frequency230 V / 50 Hz

Fuse rating16 A

Number of phases1, neutral conductor: Yes

Mains cableMains cable with plug, length 2 m

Water inlet hose length2.0 m (metal)

Water drain hose length3.0 m (plastic)

Drain hose installation noteDistance between top of drain hose and odour trap must not exceed 500 mm.

Ventilation cut-outMinimum 180 cm²

Worktop overhangWorktop overhang ≤ 29 mm

Power rating in off mode0.3 W

Power rating in standby mode0.8 W

Power rating in networked standby2.0 W

Time to standby / offAutomatic switch to standby, networked standby and off mode after 20 min

Steam technology / water supplyDualSteam, external steam generator, DirectWater plus, drain filter, DirectWater: No

Replacing lampsService

Downloads

Download product documentation, manuals, and specification sheets.

DGC7865HCXOBSWMATT Spec

PDF

Frequently Asked Questions

What type of appliance is the DGC 7865 HCX Pro?

It is a handleless steam combination oven in ArtLine design, suitable for steam cooking, baking and roasting, with mains water and drain connection.

What is the oven capacity and temperature range?

The oven compartment volume is 67 l with four shelf levels. The oven temperature range is 30–230 °C, and the steam oven temperature range is 40–100 °C with electronic regulation.

Does the oven offer networking and smart functions?

Yes. It is a network-enabled WiFi appliance with networking via Miele@home and Mix & Match, as well as features such as MyMiele and MultiLingua.

What cleaning functions are available?

Cleaning functions include HydroClean, maintenance programmes, soak, rinse and oven compartment drying programmes, automatic descaling, a stainless-steel oven compartment with linen structure, quick-release and removable side racks, and a CleanGlass door.

Which safety features does this oven have?

Safety features comprise an appliance cooling system, touch-cool front, safety switch-off, system lock, vapour cooling system and sensor lock.

What connections and installation requirements are specified?

The appliance requires mains connection (230 V, 50 Hz, 16 A) with a supplied 2 m cable and plug, a water inlet hose (2.0 m) and drain hose (3.0 m). The distance between the top of the drain hose and the odour trap must not exceed 500 mm, a ventilation cut-out of at least 180 cm² is needed, and worktop overhang should be ≤ 29 mm.
