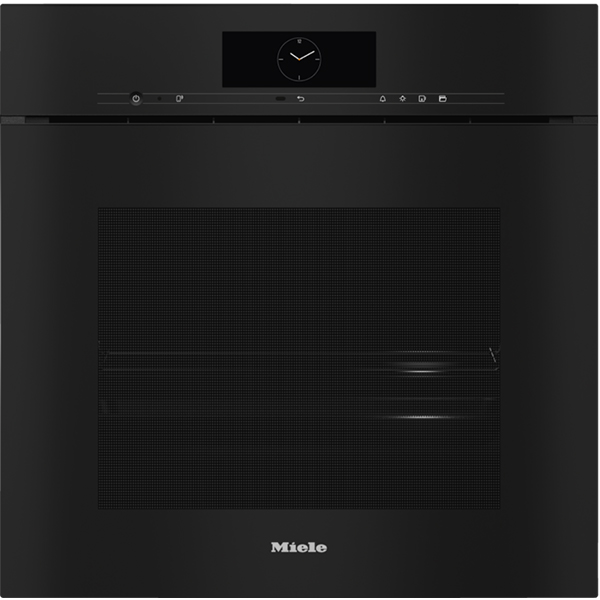

Miele Artline DGC7860HCX Pro Steam Combi

The DGC 7860 HCX Pro is a handleless steam combination oven designed for steam cooking, baking and roasting. Finished in obsidian black ArtLine design, it features a large M Touch display with MotionReact proximity sensor, DualSteam technology and combination cooking options. Users benefit from a wireless food probe, HydroClean, stainless-steel oven compartment and a wide range of automatic programmes. Networking with Miele@home and Mix & Match supports convenient, flexible cooking.

SKU:DGC7860HCXPROOBSW

EAN:4002516626299

Category::Ovens

Quantity:

Key Features

Handleless ArtLine design in obsidian black with Touch2Open and SoftOpen functionality.

Large M Touch display with MotionReact proximity sensor for intuitive operation.

Steam combination oven for steam cooking, baking and roasting with combination cooking modes.

DualSteam technology with external steam generation and oxygen sensor.

Wireless food probe without cable for precise cooking control.

HydroClean cleaning system with dedicated cleaning, rinse and soak programmes.

Stainless-steel oven compartment with linen structure and CleanGlass door for easy cleaning.

Miele@home network-enabled WiFi appliance for connected use with Mix & Match.

Wide range of operating modes including Fan plus, Conventional heat, Grill, Sous-vide, Eco functions and more.

Quantity-independent steam cooking on up to 4 levels at the same time.

Automatic programmes with country-specific options and ability to make individual adjustments.

Energy efficiency class A+ with low standby and off-mode power ratings.

Motorised lift-up control panel with SoftClose concealing fresh water and condensate containers.

Comprehensive timer and display functions including time, date, programmable cooking durations and temperature displays.

Safety features such as appliance cooling system, touch-cool front, safety switch-off, system lock, vapour cooling and sensor lock.

BrilliantLight oven lighting and numbered shelf levels for clear visibility.

MultiLingua interface offering a wide choice of display languages.

Extensive accessories included such as trays, racks, cooking containers, wireless food probe and cleaning agents.

Technical Spec

Model identifierDGC 7860 HCX Pro

Manufacturer material number12101690

EAN number4002516626299

Old material number23786069GB

Construction typeSteam combination oven, handleless ArtLine design

ColourObsidian black

DisplayM Touch with MotionReact proximity sensor

Oven compartment volume67 l

Number of shelf levels4 (numbered shelf levels)

Door hingeBottom

Oven lightingBrilliantLight

Oven temperature range30–230 °C (oven temperature regulation 30–230 °C)

Steam oven temperature range40–100 °C (electronic steam oven temperature regulation 40–100 °C)

Steam technologyDualSteam with external steam generator and oxygen sensor

Steam generator power3.30 kW

Fresh water container volume1.4 l (behind motorised control panel)

Condensate containerBehind motorised lift-up control panel with SoftClose

DirectWater connectionNo

Energy efficiency classA+ (scale A+++ – D)

Power rating in off mode0.3 W

Power rating in standby mode0.8 W

Power rating in networked standby2.0 W

Time until automatic switch to standby20 min

Time until automatic switch to networked standby20 min

Time until automatic switch to off mode20 min

Appliance dimensions (W × H × D)595 × 596 × 567 mm

Appliance width595 mm

Appliance height596 mm

Appliance depth567 mm

Niche dimensions (W × H × D)560–568 × 590–595 × 550 mm

Niche width min.560 mm

Niche width max.568 mm

Niche height min.590 mm

Niche height max.595 mm

Niche depth550 mm

Weight46.4 kg

Total rated load3.45 kW

Voltage230 V

Frequency50 Hz

Fuse rating16 A

Number of phases1

Neutral conductorYes

Mains cable with plugYes

Length of supply lead2 m

NetworkingNetworking with Miele@home (network-enabled WiFi appliance)

Downloads

Download product documentation, manuals, and specification sheets.

DGC7860HCXPROOBSW Spec

PDF

Frequently Asked Questions

What type of appliance is the DGC 7860 HCX Pro?

It is a handleless steam combination oven designed for steam cooking, baking and roasting. It offers multiple operating modes including steam cooking, combination cooking, Fan plus and Conventional heat.

Does this oven have WiFi connectivity?

Yes. The appliance is network-enabled with Miele@home and is described as a network-enabled WiFi appliance. It also supports Mix & Match for preparing plated meals.

How easy is it to clean the oven compartment?

The oven features a stainless-steel compartment with linen structure, HydroClean, maintenance, soak, rinse and drying programmes, an external steam generator, automatic descaling, a hinged grill element, quick-release and removable side racks, and a CleanGlass door to support easy cleaning.

What is the oven and steam temperature range?

The oven temperature regulation ranges from 30–230 °C. The electronic steam oven temperature regulation ranges from 40–100 °C.

Which accessories are supplied with the appliance?

Supplied accessories include a Universal tray with PerfectClean HUBB 71, Baking and roasting rack with PerfectClean HBBR 71, PerfectClean FlexiClip runners HFC 71 (pair), wireless food probe, removable side runners (pair), two perforated stainless-steel cooking containers, one solid stainless steel cooking container, HydroClean cleaning agent and two descaling tablets.

What are the niche dimensions required for installation?

The required niche dimensions are width 560–568 mm, height 590–595 mm and depth 550 mm. A ventilation cut of minimum 180 cm² and ventilation/deaeration are referenced in the installation drawings, and the worktop overhang should be ≤ 29 mm.
