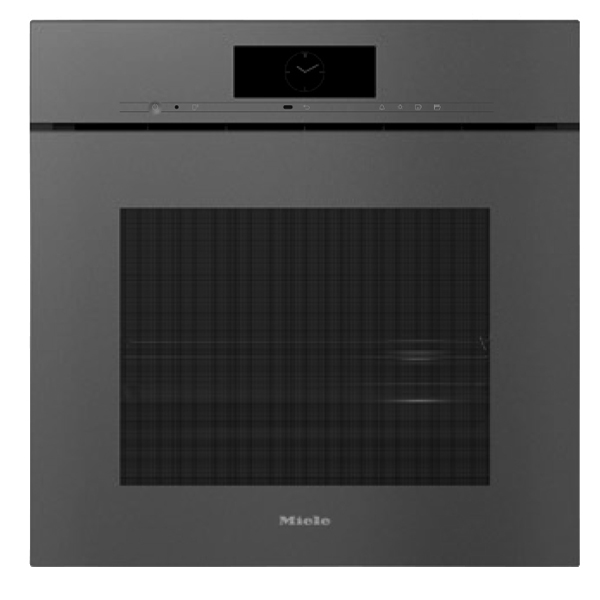

Miele Artline DGC7860HCX Pro Steam Combi

The DGC 7860 HCX Pro is a handleless steam combination oven for steam cooking, baking and roasting, featuring a wireless food probe and HydroClean. It offers a large M Touch display with MotionReact proximity sensor, DualSteam technology and a stainless-steel oven compartment. With extensive operating modes, automatic programmes and Miele@home networking, it is designed for users who want precise cooking results, flexible functions and convenient cleaning.

SKU:DGC7860HCXPROGRGR
EAN:4002516626305
Category::Ovens
2 Year Warranty

Key Features

Handleless ArtLine design in graphite grey for a seamless, modern kitchen look.
Steam combination oven for steam cooking, baking and roasting with combination cooking options.
M Touch display with MotionReact large touch display and proximity sensor for intuitive control.
DualSteam technology for steam cooking and Eco steam cooking with external steam generation.
Wireless food probe (food probe without cable) for precise temperature-controlled cooking.
HydroClean system with dedicated cleaning agent included, plus maintenance, soak and rinse programmes.
Stainless-steel oven compartment with linen structure and BrilliantLight oven lighting.
Wide range of operating modes including steam, Fan plus, Conventional heat, grill functions, sous-vide and more.
Miele@home networking network-enabled WiFi appliance with Mix & Match for plated meals.
Individual humidity settings in combination cooking and menu cooking without transfer of taste.
Rapid heat-up and pre-heating functions to reach cooking temperature quickly.
Keeping warm and reheat functions plus plate warming for added convenience.
Energy efficiency class A+ with low standby and off-mode power ratings.
Safety features including appliance cooling system, touch-cool front, safety switch-off, system lock and sensor lock.
Steam cooking on up to 4 levels at the same time, with quantity-independent cooking.
Motorised lift-up control panel with SoftClose, housing fresh water and condensate containers.
CleanGlass door and hinged grill element to simplify cleaning access.
Quick-release and removable side racks in stainless steel for flexible use of shelf levels.
User programmes and individual settings plus MultiLingua display with numerous languages.
Comprehensive accessory set included with trays, racks, containers, FlexiClip runners and cleaning products.

Technical Spec

Model identifierDGC 7860 HCX Pro
Manufacturer material number12101700
EAN number4002516626305
Old material number23786079GB
Construction typeSteam combination oven, handleless, ArtLine design
ColourGraphite grey
Energy efficiency class (A+++ – D)A+
Power rating in off mode0.3 W
Power rating in standby mode0.8 W
Power rating in networked standby2.0 W
Time until automatic switch to standby20 min
Time until automatic switch to networked standby20 min
Time until automatic switch to off mode20 min
Oven compartment volume67 l
Number of shelf levels4 (numbered shelf levels)
Appliance dimensions (W x H x D)595 x 596 x 567 mm
Niche dimensions (W x H x D)560–568 x 590–595 x 550 mm
Niche width (min – max)560 – 568 mm
Niche height (min – max)590 – 595 mm
Niche depth550 mm
Appliance width595 mm
Appliance height596 mm
Appliance depth567 mm
Weight46.4 kg
Door hingeBottom
Oven lightBrilliantLight
Oven temperature regulation (min – max)30–230 °C
Steam oven temperature regulation (min – max)40–100 °C
Steam technologyDualSteam, external steam generation
Steam generator power3.30 kW
Fresh water container volume1.4 l
Water supplyFresh water container behind motorised control panel; condensate container behind motorised lift-up control panel with SoftClose; DirectWater: No; drain filter
Total rated load3.45 kW
Voltage230 V
Frequency50 Hz
Fuse rating16 A
Number of phases1
Neutral conductorYes
Mains cable with plugYes
Length of supply lead2 m
Replacing lampsService
Worktop overhang (installation note)Worktop overhang ≤ 29 mm

Downloads

Download product documentation, manuals, and specification sheets.

DGC7860HCXPROGRGR Spec

PDF

Frequently Asked Questions

What type of oven is the DGC 7860 HCX Pro?

It is a steam combination oven designed for steam cooking, baking and roasting. It is handleless, part of the ArtLine design range, and features a wireless food probe and HydroClean.

Which cooking modes are available?

The appliance offers steam cooking, Eco steam cooking, Fan plus, Conventional heat, combination cooking (including with Fan plus, Conventional heat and grill), sous-vide, intensive bake, Fan grill, grill, economy grill, top heat, bottom heat, Cake plus, Eco fan heat, defrost, roast with moisture, reheat, plate warming, automatic programmes and country-specific automatic programmes.

Does this oven have WiFi and app connectivity?

Yes. The DGC 7860 HCX Pro is a network-enabled WiFi appliance with networking via Miele@home and includes Mix & Match functionality for preparing plated meals.

How is the oven cleaned?

Cleaning is supported by the HydroClean system, stainless-steel oven compartment with linen structure, CleanGlass door, hinged grill element, maintenance, soak and rinse programmes, an oven compartment drying programme, automatic descaling and quick-release, removable side racks. A HydroClean cleaning agent and descaling tablets are supplied.

What are the installation dimensions?

Appliance dimensions are 595 x 596 x 567 mm (W x H x D). The required niche dimensions are 560–568 x 590–595 x 550 mm (W x H x D). A worktop overhang of ≤ 29 mm is indicated in the installation drawings.

Which languages are available on the display?

Via MultiLingua, available display languages include: ةيبرعلا, 中文, 繁體中文, deutsch, dansk, english, suomi, français, ελληνικά, italiano, 日本語, 한국어, hrvatski, bahasa malaysia, nederlands, norsk, polski, português, română, pусский, svenska, srpski, slovenčina, slovenščina, español, čeština, türkçe, yкраїнська and magyar.
