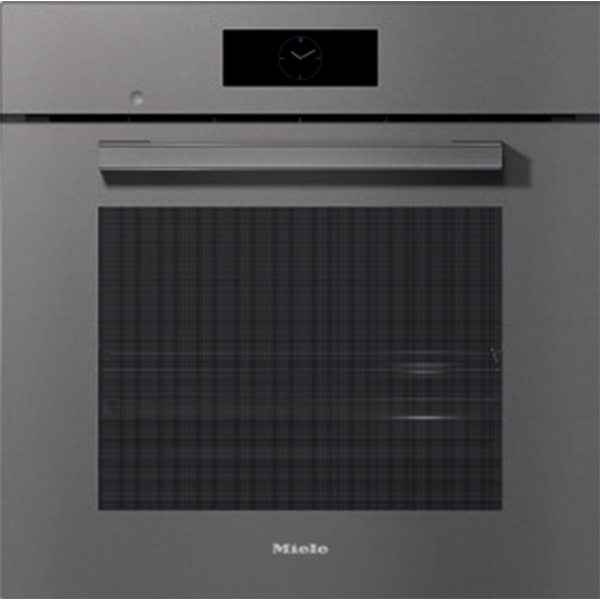

Miele VitroLine DGC7860HC Pro Steam Combi

The DGC 7860 HC Pro is a graphite grey VitroLine steam combination oven designed for steam cooking, baking and roasting. It features M Touch display with MotionReact, DualSteam technology and wireless food probe. With combination cooking options, Miele@home networking, Mix & Match and HydroClean, it supports versatile meal preparation and convenient cleaning in a stainless-steel oven compartment with linen structure.

SKU:DGC7860HCPROGRGR

EAN:4002516626275

Category::Ovens

Quantity:

Key Features

Steam combination oven for steam cooking, baking and roasting with wireless food probe and HydroClean.

M Touch display with MotionReact large touch display and proximity sensor for intuitive operation.

DualSteam technology for steam cooking and combination cooking functions.

Combination cooking options including Fan plus, Conventional heat and grill combinations for crispy outside, succulent inside results.

Miele@home networking network-enabled WiFi appliance with Mix & Match for preparing plated meals.

HydroClean system with dedicated cleaning agent and programmes for easy oven compartment care.

Stainless-steel oven compartment with linen structure and BrilliantLight oven lighting.

Rapid heat-up and pre-heating functions to reach cooking temperatures quickly.

Wide range of operating modes including steam cooking, sous-vide, Intensive bake, fan grill, grill and Eco programmes.

Quantity-independent steam cooking on up to 4 levels at the same time.

Wireless food probe without cable for monitoring food temperatures.

SoftOpen and SoftClose door and motorised lift-up control panel with SoftClose.

Automatic programmes including country-specific options and special applications.

Energy efficiency class A+ with automatic switch to standby, networked standby and off modes.

CleanGlass door and hinged grill element for easier cleaning access.

Fresh water container and condensate container positioned behind the motorised lift-up control panel.

Comprehensive safety features including appliance cooling system, touch-cool front, safety switch-off, system lock and sensor lock.

MultiLingua display support offering a wide range of available display languages.

Accessories included such as trays, containers, FlexiClip runners, HydroClean agent and descaling tablets.

Technical Spec

Model identifierDGC 7860 HC Pro

Manufacturer material number12101670

EAN number4002516626275

ColourGraphite grey

VitroLine•

Construction typeSteam combination oven

DisplayM Touch

Proximity sensorMotionReact proximity sensor

Oven compartment volume67 l

Number of shelf levels4

Numbered shelf levels•

Door hingeBottom

Oven lightBrilliantLight

Oven temperature range30°C–230°C (oven temperatures in °C 30–230)

Steam oven temperature range40°C–100°C (steam oven temperatures in °C 40–100)

Steam generator power3.30 kW

Steam technologyDualSteam

Fresh water container volume1.4 l

DirectWaterNo

Energy efficiency class (A+++ – D)A+

Power rating in off mode0.3 W

Power rating in standby mode0.8 W

Power rating in networked standby2.0 W

Time until automatic switch to standby20 min

Time until automatic switch to networked standby20 min

Time until automatic switch to off mode20 min

Appliance dimensions (W x H x D)595 x 596 x 567 mm

Niche dimensions (W x H x D)560–568 x 590–595 x 550 mm

Niche width min.560 mm

Niche width max.568 mm

Niche height min.590 mm

Niche height max.595 mm

Niche depth550 mm

Appliance width595 mm

Appliance height596 mm

Appliance depth567 mm

Weight46.4 kg

Total rated load3.45 kW

Voltage230 V

Frequency50 Hz

Fuse rating16 A

Number of phases1

Neutral conductorYes

Mains cable with plug•

Length of supply lead2 m

Steam generationExternal steam generation

Drain filter•

Replacing lampsService

Downloads

Download product documentation, manuals, and specification sheets.

DGC7860HCPROGRGR Spec

PDF

Frequently Asked Questions

What types of cooking does the DGC 7860 HC Pro support?

It supports steam cooking, baking and roasting. Operating modes include Fan plus, Conventional heat, Steam cooking, several combination cooking modes, sous-vide, Intensive bake, fan grill, grill, Economy grill, Eco fan heat, Eco steam cooking, Defrost, Roast with moisture, Reheat, Plate warming, Automatic programmes, country-specific automatic programmes and special applications.

Does this oven have built-in cleaning functions?

Yes. It features HydroClean, maintenance programmes, a soak programme, a rinse programme and an oven compartment drying programme. It also includes a stainless-steel oven compartment with linen structure, quick-release and removable side racks, a hinged grill element, automatic descaling and a CleanGlass door.

Is the DGC 7860 HC Pro network-enabled?

Yes. The appliance supports networking with Miele@home and is described as a network-enabled WiFi appliance with Mix & Match functionality for preparing plated meals.

What safety features are included?

Safety features include an appliance cooling system and touch-cool front, safety switch-off, system lock, sensor lock and a vapour cooling system.

What are the required niche dimensions for installation?

The required niche dimensions (W x H x D) are 560–568 x 590–595 x 550 mm, with minimum niche width 560 mm, maximum niche width 568 mm, minimum niche height 590 mm, maximum niche height 595 mm and niche depth 550 mm.
