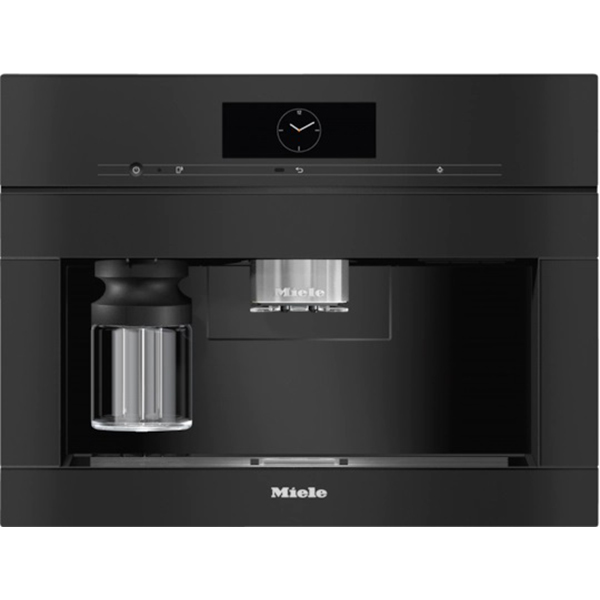

Miele CVA7845OBBL Coffee Machine

The Miele CVA 7845 is a built–in bean–to–cup coffee machine with DirectWater, designed for users with high demands on coffee quality and convenience. It offers CoffeeSelect with three bean containers, M Touch controls with MotionReact and extensive programmable settings. With AutoDescale, AutoClean and a patented CupSensor, this appliance combines easy care with precise drink preparation for a wide variety of coffee and tea specialities.

SKU:CVA7845OBBL

EAN:4002516140078

Category::Coffee Machines

Quantity:

Key Features

M Touch display with MotionReact – large touch display with light and display activation when movement is detected.

CoffeeSelect with three bean containers – individual coffee enjoyment with three bean types and a total bean capacity of 600 g.

DirectWater connection – plumbed–in design for convenient water supply.

AutoDescale and AutoClean – fully automatic care with integrated descaling cartridge and convenient cleaning programmes.

Patented CupSensor – perfectly positioned cups with a height–adjustable serving spout from 4.0 to 16.5 cm.

OneTouch and OneTouch for Two – prepare one or two coffees at the touch of a button.

AromaticSystemFresh with conical grinder – preserves taste with selectable grinder setting and programmable coffee quantity.

Wide range of coffee and tea specialities – from ristretto and flat white to black, herbal, fruit and green teas, plus coffee pot and teapot functions.

Comprehensive programmability – 10 user profiles and programmable amounts of coffee, water, milk, milk froth, water temperature and pre–brewing.

Built–in VitroLine / ArtLine design – obsidian black finish with ComfortDoor and concealed handle for seamless integration.

BrilliantLight and brew unit lighting – optimally illuminates the preparation area.

Miele@home networking – connectivity features with networked standby mode.

Eco–mode and low standby consumption – energy–saving eco–mode selectable, with standby power rating ≤0.3 W.

Generous containers – 2.7 l water container, 0.7 l milk container, 1.6 l drip tray and waste container for 17 capsules.

Easy cleaning components – removable milk pipework, removable brew unit and ComfortClean design.

MultiLingua display – wide range of available display languages including english (GB).

Technical Spec

Product nameCVA 7845 built–in bean–to–cup coffee machine with DirectWater

Construction typeBuilt–in bean–to–cup coffee machine

Design linesVitroLine, ArtLine

ColourObsidian black

EAN number4002516140078

Material number11164670

Old Material Number29784520GB

Min niche width in mm560

Max niche width in mm568

Min niche height in mm450

Max niche height in mm452

Niche depth in mm550

Appliance width in mm595

Appliance height in mm455

Appliance depth in mm475

Depth with door open in cm108.0

Serving spout height range in cm4.0–16.5

Total rated load in kW1.45

Voltage in V220–240

Fuse rating in A13

Number of phases1

Length of water inlet hose in m1.5

Length of supply lead in m2.0

Number of bean types3

Bean container capacity A in g150

Bean container capacity B in g300

Bean container capacity C in g150

Bean container capacity total in g600

Water container capacity in l2.7

Milk container capacity in l0.7

Drip tray capacity in l1.6

Waste container capacity in capsules17

Energy–saving eco–modeSelectable

Power rating in standby mode in W≤0.3

Power rating in networked standby in W≤2.0

Time until automatic switch to off mode in min20

Time until automatic switch to standby in min20

Time until automatic switch to networked standby in min20

Selectable beverage portion size in ml20–300

Programmable user profiles10

Front thickness (glass / Cleansteel) in mm22 mm – Glass, 23.3 mm – Cleansteel

Downloads

Download product documentation, manuals, and specification sheets.

CVA7845OBBL Spec

PDF

Frequently Asked Questions

What type of coffee machine is the Miele CVA 7845?

It is a built–in bean–to–cup coffee machine with DirectWater. It grinds coffee beans fresh using a conical grinder with AromaticSystemFresh and offers CoffeeSelect with three separate bean containers.

How many bean containers and how much coffee can it hold?

The appliance has three bean containers: container A with 150 g, container B with 300 g and container C with 150 g, providing a total bean capacity of 600 g. The bean container is removable.

Which drinks can the machine prepare?

It can prepare a wide variety of coffee drinks, including ristretto, espresso, coffee, long coffee, cappuccino, cappuccino italiano, flat white, café au lait, caffè latte, caffè americano, long black, latte macchiato, espresso macchiato, hot milk, milk froth, and coffee pot portions. It also prepares hot and warm water and has dedicated programmes for multiple tea types and teapot portions.

How does the CupSensor work?

The patented CupSensor ensures cups are perfectly positioned under the height–adjustable serving spout, which can move between 4.0 cm and 16.5 cm. This helps optimise preparation for different cup sizes.

What automatic cleaning functions are available?

The machine offers AutoDescale, AutoClean, automatic rinsing of the milk pipework with water from the water container, an automatic rinsing function and convenient cleaning programmes. Manual descaling is also possible, and both the milk pipework and brew unit are removable for cleaning.

Can I save individual settings for different users?

Yes. The machine provides 10 programmable user profiles. Within these profiles, you can set the amount of coffee, water, milk, milk froth, water temperature and pre–brewing according to individual preferences.
