Liebherr SUFd3603 Pure Freezer

The SUFd 3603 is a fully integrated under–counter freezer with SmartFrost technology, designed for under–worktop installation in fitted kitchens. It offers a total volume of 87 l and four–star freezing performance, with three drawers on integrated guides and VarioSpace for flexible storage. TouchControl electronic controls, digital temperature display and visual and acoustic alarms support convenient operation. Low noise output of 34 dB(A) makes it suitable for quiet kitchen environments.

SKU:SUFD3603
EAN:9005382259955
Category::Freezers
2 Year Warranty

Key Features

Fully integrated under–counter design – Under–worktop appliance for integrated use with fixed door.
SmartFrost freezer – Fully integrated freezer with SmartFrost for frozen food storage.
87 l total volume – Compact storage capacity indicated in accordance with Regulation EU 2019/2016.
Low noise output – Operates at 34 dB(A) for a quiet kitchen environment.
TouchControl electronic controls – Touch electronic system with digital temperature display.
Visual and acoustic door alarm – Alerts you if the door is left open.
Acoustic malfunction alarm – Provides an audible warning in case of malfunction.
Three freezer drawers – 3 drawers on integrated drawer guides, including VarioSpace.
VarioSpace flexibility – Yes, for adaptable storage layout.
Freezing capacity 6.8 kg/24 h – Capable of freezing 6.8 kg in 24 hours.
Temperature rise time 17.5 h – Holds temperature for 17.5 hours in case of power interruption.
Four–star freezing performance – **** star coding in the freezer compartment.
Side–by–Side concept – Side–panel heating on both sides, suitable for combination with other fridges, freezers and/or wine appliances.
Reversible door hinging – Right–hinged door, reversible for installation flexibility.
Replaceable door seal – Door seal can be replaced to help maintain performance.
Climate rating SN–T – Suitable for ambient temperatures from +10 °C to +43 °C.
Ice cube tray included – Supplied with 1 ice cube tray.
Energy consumption – 140 kWh per 365 days / 0.383 kWh per 24 hours.
EAN number – 9005382259955.

Technical Spec

Product nameSUFd 3603
Product typeFully integrated under counter freezer with SmartFrost, Pure, fixed door / under–worktop appliance for integrated use
Energy efficiency classNot stated in source
Energy consumption (365 days)140 kWh
Energy consumption (24 h)0.383 kWh
Total volume87 l Âą
Noise output34 dB(A)
Climate ratingSN–T (+10 °C to +43 °C)

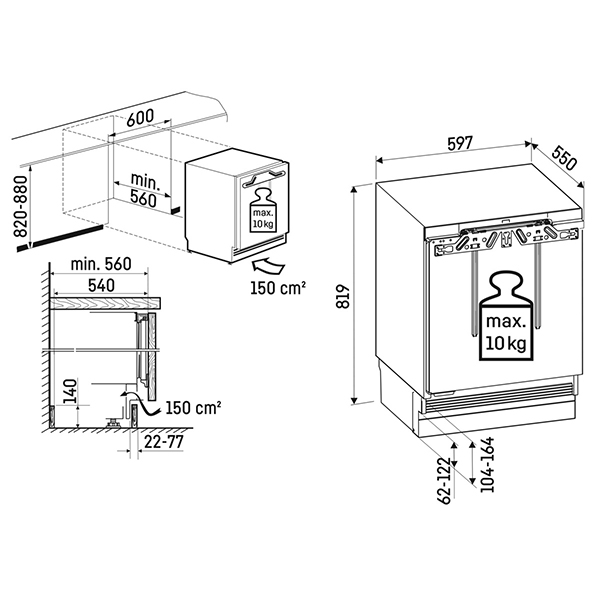

Aperture dimensions (h / w / d)82–88 / 60 / min. 56 cm
Controls – typeTouchControl, touch electronic
Digital temperature displayYes
Door alarmVisual and acoustic
Malfunction alarmAcoustic
Freezer star coding****
Number of drawers3 drawers on integrated drawer guide, VarioSpace
Freezing capacity in 24 hours6.8 kg
Temperature rise time17.5 h
VarioSpaceYes
Ice cube tray1
Side–by–Side conceptSide–panel heating on both sides, suitable for combination with other fridges, freezers and/or wine appliances
Door hingesReversible door hinging, right
Replaceable door sealYes
EAN number9005382259955
Regulatory noteÂą Total volume indicated to the nearest integer (rounded off) and the volume of the frozen compartments and refrigeration compartments to one place after the decimal point in accordance with Regulation EU 2019/2016.
Timestamp11.02.2025

Downloads

Download product documentation, manuals, and specification sheets.

SUFD3603 Spec

PDF

Frequently Asked Questions

What type of appliance is the SUFd 3603?

It is a fully integrated under counter freezer with SmartFrost, designed as a fixed door, under–worktop appliance for integrated use.

How much storage volume does this freezer provide?

The total volume is 87 l, indicated in accordance with Regulation EU 2019/2016.

How many freezer drawers are there?

The freezer compartment has 3 drawers on integrated drawer guides and features VarioSpace.

What are the required aperture dimensions for installation?

The aperture dimensions are 82–88 cm in height, 60 cm in width and a minimum of 56 cm in depth.

Can the door hinging be changed?

Yes. The appliance is supplied with right–hand door hinging and the door hinging is reversible.

What is the noise level of the SUFd 3603?

The noise output is 34 dB(A).
