Liebherr XRF5220 Plus Fridge Freezer

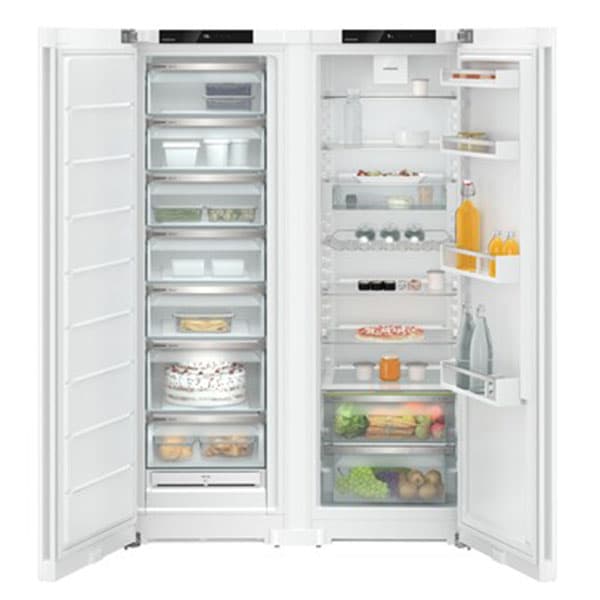

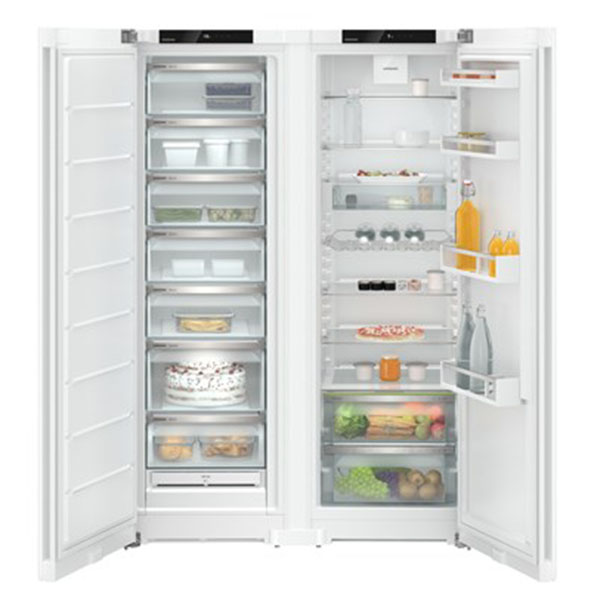

This freestanding side-by-side combination pairs the SFNd 5227 NoFrost Plus freezer with the SRd 5220 refrigerator with EasyFresh Plus. Both appliances are 185.5 cm high and 59.7 cm wide, finished in white with reversible doors and replaceable door seals. Together they offer generous frozen and fresh storage with PowerCooling, FreshAir filtration and flexible drawer and shelf solutions, suitable for use in climates from +10 °C to +43 °C.

SKU:XRF5220

EAN:4016803090175

Category::Fridge Freezers

Quantity:

Key Features

Freestanding NoFrost Plus freezer (SFNd 5227) with **** star coding, 7 drawers and VarioSpace for flexible frozen storage.

Refrigerator with EasyFresh Plus (SRd 5220) featuring one EasyFresh safe on running rails for fruit and vegetables.

Side-by-Side concept with side wall heating (freezer right, refrigerator left), suitable for combination with other refrigerators, freezers and/or wine appliances.

Touch electronic controls with LC monochrome displays behind the door and digital temperature displays in both appliances.

Visual and acoustic door alarms on both units, plus visual and acoustic malfunction alarm on the freezer.

PowerCooling system in the refrigerator with FreshAir activated charcoal filter for forced air circulation.

LED ceiling lighting in the refrigerator for clear illumination of the interior.

SmartDeviceBox interface available as an optional accessory on both models.

Low noise operation with 36 dB(A) / noise class C for the freezer and 35 dB(A) / noise class B, SuperSilent, for the refrigerator.

White exterior design with white doors and side walls, harmonised heights and depths for a coordinated look.

Reversible door hinges (freezer left, refrigerator right as supplied) for flexible planning.

Replaceable door seals on both appliances for maintainable door performance.

Flexible refrigerator storage including plastic door shelves with bottle holder, egg tray, FlexCube, VarioSafe and bottle shelf.

Freezer performance with 18 kg freezing capacity in 24 hours and 16 hours temperature rise time.

Ice cube tray included with the SFNd 5227 freezer.

Energy consumption noted as 199 kWh/year (0.545 kWh/24 h) for the freezer and 98 kWh/year (0.268 kWh/24 h) for the refrigerator when installed as specified.

Technical Spec

Product typeFreestanding freezer with NoFrost Plus

Energy efficiency classNot stated in source

Energy consumption (365 days / 24 h)199 kWh / 0.545 kWh ¹

Total volume277 l ²

Noise output / noise class36 dB(A) / C

Climate ratingSN-T (+10 °C to +43 °C)

Frequency / voltage50-60 Hz / 220-240 V~

Connection rating1.3 A 264.6 W

Door / side wallsWhite / white

Exterior dimensions (h / w / d)185.5 / 59.7 / 67.5 cm ¹

Type of controlLC monochrome display behind-the-door, touch electronic

Digital temperature displayYes

InterfaceSmartDeviceBox: optional accessory

Door alarmVisual and acoustic

Alarm in case of malfunctionVisual and acoustic

Star coding****

Number of drawers7 drawers on integrated drawer guide, VarioSpace

Top drawerTop drawer with convenient tilting function

Freezing capacity in 24 hours18 kg

Temperature rise time16 h

VarioSpaceYes

Ice cube tray1

Side-by-Side conceptSide wall heating right, suitable for combination with other refrigerators, freezers and/or wine appliances

Door hingesReversible door hinge, left

Replaceable door sealYes

EAN number4016803131878

Product typeRefrigerator with EasyFresh Plus

Energy efficiency classNot stated in source

Energy consumption (365 days / 24 h)98 kWh / 0.268 kWh ¹

Total volume399 l ²

Noise output / noise class35 dB(A) / B, SuperSilent

Climate ratingSN-T (+10 °C to +43 °C)

Frequency / voltage50-60 Hz / 220-240 V~

Connection rating1.2 A

Door / side wallsWhite / white

Exterior dimensions (h / w / d)185.5 / 59.7 / 67.5 cm ¹

Type of controlLC monochrome display behind-the-door, touch electronic

Digital temperature displayYes

InterfaceSmartDeviceBox: optional accessory

Door alarmVisual and acoustic

Forced air systemPowerCooling with FreshAir activated charcoal filter

Door interiorPlastic door shelves with bottle holder, egg tray, FlexCube

VarioSafeYes

Bottle shelfBottle shelf

Interior lightLED ceiling lighting

Fruit and vegetable bins1 EasyFresh safe on running rails

Side-by-Side conceptSide wall heating left, suitable for combination with other refrigerators, freezers and/or wine appliances

Door hingesReversible door hinging right

Replaceable door sealYes

EAN number4016803129998

Energy consumption note ¹To achieve the indicated energy consumption level, the wall spacers provided with the appliance must be used. These increase the appliance depth by approximately 1.5 cm. If the wall spacers are not used, the appliance will remain fully functional, but will have a slightly higher energy consumption level.

Volume indication note ²In accordance with Regulation EU 2019/2016 the total volume is indicated to the nearest integer (rounded off) and the volume of the frozen compartments and refrigeration compartments to one place after the decimal point.

Downloads

Download product documentation, manuals, and specification sheets.

XRF5220 Spec

PDF

Frequently Asked Questions

What are the external dimensions of each appliance?

Both the SFNd 5227 freezer and the SRd 5220 refrigerator have exterior dimensions of 185.5 / 59.7 / 67.5 cm (height / width / depth). Using the wall spacers increases the depth by approximately 1.5 cm.

Can these models be installed side by side?

Yes. Both appliances are described with a Side-by-Side concept and side wall heating (right for the freezer, left for the refrigerator), making them suitable for combination with other refrigerators, freezers and/or wine appliances.

What is the total storage volume of each unit?

The SFNd 5227 freezer has a total volume of 277 l, and the SRd 5220 refrigerator has a total volume of 399 l, indicated in accordance with Regulation EU 2019/2016.

How loud are the appliances during operation?

The SFNd 5227 freezer has a noise output of 36 dB(A) with noise class C. The SRd 5220 refrigerator has a noise output of 35 dB(A) with noise class B and is described as SuperSilent.

Do the appliances include alarms and digital controls?

Yes. Both units use LC monochrome displays behind the door with touch electronic controls and digital temperature display. Each has a visual and acoustic door alarm, and the freezer also has a visual and acoustic alarm in case of malfunction.

What is required to achieve the stated energy consumption?

To reach the indicated energy consumption levels, the wall spacers provided with the appliances must be used, increasing the depth by approximately 1.5 cm. Without them, the appliances remain fully functional but with slightly higher energy consumption.
