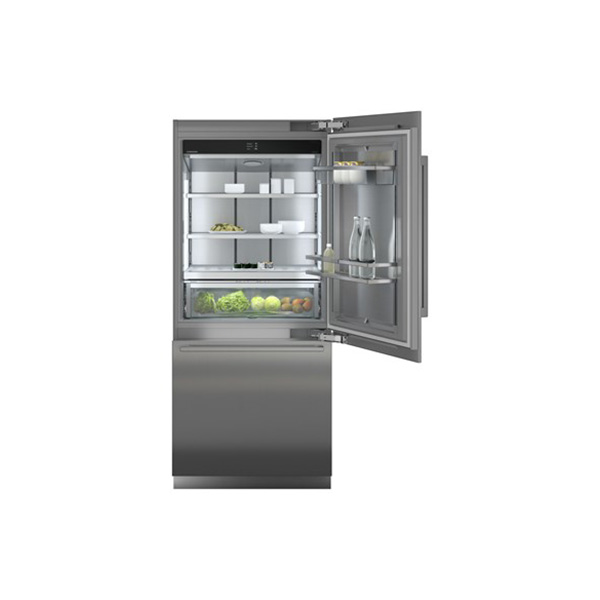

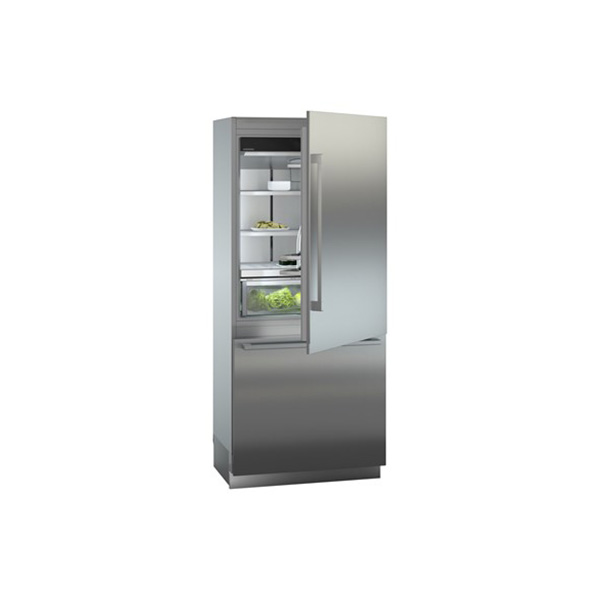

Liebherr Monolith ECBN9671 Fridge Freezer

The Liebherr ECBN 9671 is a built‑in LargeDoor fridge‑freezer from the Monolith range, designed for flush integration in kitchen cabinetry. It offers a total volume of 514 litres with separate refrigerator, BioFresh and freezer compartments. Features such as DuoCooling, BioFresh‑Plus, InfinitySwipe touch control, InfinityLight, InfinitySpring water dispenser and an automatic IceMaker make it suitable for households wanting precise temperature control, long‑lasting freshness and convenient, integrated water and ice functions.

SKU:ECBN9671-617

EAN:

Category::Fridge Freezers

Quantity:

Key Features

DuoCooling: Two independently controlled cooling circuits for separate and precise temperature control in refrigerator and freezer compartments, preventing odour transfer and drying out of food.

BioFresh‑Plus: Variable temperature zones, including just over 0 °C for meat and dairy or −2 °C for fish and seafood, to keep food fresh considerably longer than in the normal refrigerator compartment.

InfinitySwipe control: Bright 3.5 inch electronic touch display with intuitive “touch & swipe” technology for easy control of settings and functions.

InfinitySpring water dispenser: Flush‑mounted, virtually invisible integrated water dispenser for filling standard‑sized containers with cold, filtered water.

InfinityLight LED lighting: Full‑surface integrated LED lighting on the side wall for elegant, even illumination with reduced heat emission to protect food quality.

Automatic IceMaker: Produces 1.6 kg of ice cubes from filtered water in 24 hours, with storage capacity of 3.0 kg; production can be increased using SuperFrost.

InfinitySpring & IceMaker water connection: Fixed 3/4' water connection with integrated water filter in the front section of the appliance plinth.

Automatic SuperCool & SuperFrost: Dedicated functions for rapid chilling and freezing when needed.

InfinitySwipe electronic control: Enables settings and functions such as water filter replacement alerts for InfinitySpring/IceMaker.

SmartDevice capability: Supplied with SmartDeviceBox for connection to a smartphone or tablet, enabling remote activation of settings and push messages, for example for open doors (SmartDevice functions not available in all countries).

Flexible installation: Designed for flush installation in units with 635 mm depth, with options for inset or overlay door panels and Side‑by‑Side combinations.

Energy performance: Energy efficiency class with annual consumption of 266 kWh (0.728 kWh / 24 h) and noise output of 38 dB(A), noise class C.

Spacious storage: Total volume 514 litres, including 242.6 litres refrigerator, 87.1 litres BioFresh and 184.3 litres freezer compartment.

Interior layout: Three storage shelves, two door racks and one FrostSafe drawer in the NoFrost freezer compartment.

Diverse temperature ranges: Refrigerator compartment adjustable from +2 °C to +7 °C; freezer compartment from −14 °C to −27 °C.

Automatic defrosting: Automatic defrosting with NoFrost freezer compartment and FrostSafe system in the upper drawer.

Right‑hand reversible door: Right door hinge ex‑works, reversible by authorised Liebherr Monolith customer service; also available as variant with left door hinges (‑617).

Monolith ventilation concept: Appliance is ventilated entirely via the plinth panel, with spacers to separate warm outgoing air from fresh incoming air.

Technical Spec

ModelECBN 9671 LargeDoor fridge‑freezer

Energy efficiency classNot stated in source

Energy consumption266 kWh per year / 0.728 kWh per 24 h

Noise output / class38 dB(A) / noise class C

Total volume*514 litres

Refrigerator compartment volume242.6 litres

BioFresh compartment volume87.1 litres

Freezer compartment volume184.3 litres

Number of storage shelves3

Number of door racks2

Number of FrostSafe drawers1

Electronic controlInfinitySwipe

Automatic SuperCoolyes

Automatic SuperFrostyes

Temperature range (refrigerator)+2 °C to +7 °C

Temperature range (freezer)−14 °C to −27 °C

Defrosting methodautomatic

Interior lightingInfinityLight LED side‑wall lighting

Integrated water dispenserInfinitySpring

Water connectionFixed water connection 3/4'

Water filteryes (located in the front section of the appliance plinth)

IceMakeryes

Ice cube production1.6 kg per 24 h

Ice cube storage capacity3.0 kg

Door hingeright, reversible** (also available as variant −617 with left door hinges)

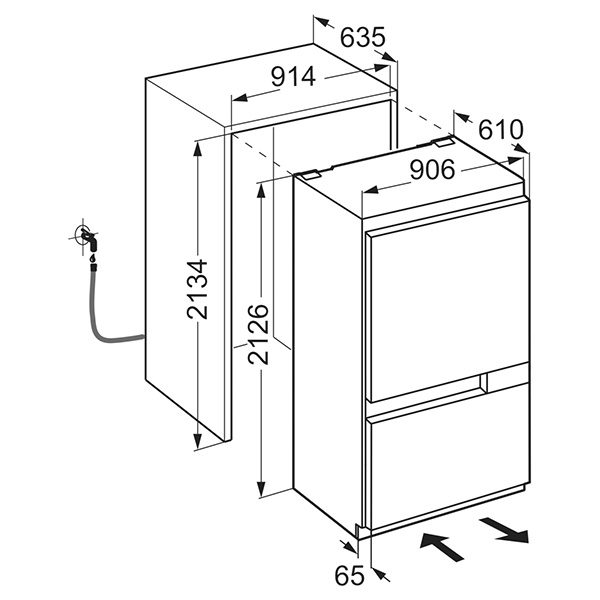

Appliance dimensions (H/W/D)212.6 cm / 90.6 cm / 61 cm

Recess dimensions (H/W/D)213.4 cm / 91.4 cm / 63.5 cm

Net weight190.0 kg

Voltage / connected load220–240 V~ / 3.0 A

Climate classSN–T (10 °C to 43 °C ambient)

Refrigerant circuit tightnessRefrigerant circuits have been checked for tightness

SafetyMeets applicable safety regulations

Panel thickness (custom panels)Minimum 16 mm, maximum 30 mm

Max. panel weight refrigerator door40 kg

Max. panel weight freezer door30 kg

Unit depth with overlay door panel635 mm

Unit depth with inset door panel635 mm + thickness of the custom panel

Plinth panel minimum height102 mm (achieved by raising adjustable feet by 6–8 mm)

Adjustable feetFully retracted for minimum height; can be raised by up to 19 mm after positioning

Mains cable exit point19 mm from the left, 127 mm from the floor; free length 2.5 m

Recess for cable & waterDepth 25 mm, height 140 mm across entire appliance width

Anti‑tipping deviceMust be secured to floor or wall at base of appliance

Door panel dimensions (inset installation)H1 = 1255 mm, H2 = 768 mm, HS = 6 mm, W = 908 mm

Door panel dimensions (overlay installation)H1 = 1258 mm (plus overlapping at top), H2 = 768 mm, HS = 6 mm, W = 914 mm (plus overlapping both sides)

Installations behind applianceNot possible

Ambient temperature range10 °C to 43 °C (SN–T)

Intended useRefrigerating, freezing and storing food and making ice in normal household quantities

Water pressure for InfinitySpring/IceMakerBetween 2.8 and 6.2 bar

Supply hoseOnly the supply hose delivered with the appliance may be used

Monolith depth610 mm appliance depth

Cut‑out depth635 mm (or 635 mm + panel thickness for inset)

Installation, Usage & Safety Details

Installation space and recess requirements

The floor must be capable of bearing the weight of the appliance plus approximately 218 kg to 544 kg of food, depending on model net capacity.
The floor should be level; the appliance must be supported or levelled at floor level so that ventilation openings are clear.
Recess dimensions must be correctly measured and the power socket positioned correctly and easily accessible (not behind the appliance).
Recess top and carcass walls should line up flush with the appliance at a depth of at least 102 mm from the outside edge, with material thickness of at least 16 mm.
Because the unit recess is partially visible when the door is opened, the inside should match the unit surface and have a minimum depth of 76 mm.
Monolith appliances are designed for flush installation in units with 635 mm depth using stainless steel or customer‑specific panels.
The depth of Monolith appliances is 610 mm, suitable for standard European 610 mm units and deeper 635 mm cut‑outs.
For flush installation, door panel dimensions for inset door panels must be used; for other installation options, door spacing requirements must be observed.

Plinth panel & ventilation

The appliance is ventilated entirely via the plinth panel; the grill must not be obstructed.
Door panels must close at least 102 mm above the floor.
Spacers supplied with the appliance must be fitted to separate warm outgoing air from fresh incoming air.
Liebherr offers optional stainless steel plinth panels 102 mm high in widths matching Monolith models and Side‑by‑Side combinations.
The plinth panel depth position can be varied and is assembled via a pre‑assembled adhesive joint.

Door spacing & opening angle

Appliances must be installed so doors and handles do not collide with adjoining cupboards, work surfaces, walls or other elements.
Door opening angle is set to 115 ° ex‑works and can be limited to 90 ° by inserting the supplied door opening limiter peg into the hinge.
A minimum spacing of 76 mm is required to avoid collisions when doors open up to 90 °.
For back‑to‑back door positioning with 90 ° limiters and centre opening, a minimum dividing wall width of 154 mm is required.
The minimum permitted gap between door panels is 3 mm.
Possible solutions if collisions occur include reducing panel thickness (if more than 19 mm), repositioning adjoining elements or using a stopper.

Side‑by‑Side installation options

Monolith appliances can be installed individually, Side‑by‑Side in a single fitted unit, or Side‑by‑Side in separate units.
A Side‑by‑Side set is required if the distance between installed appliances is less than 102 mm.
The Side‑by‑Side set includes a sidewall heater to prevent condensation, metal brackets, screws and decorative trim to cover the gap (approx. 6–8 mm).
Use of a Side‑by‑Side set increases energy consumption by 0.4 kWh / 24 h for two units and 0.8 kWh / 24 h for three units.
If a dividing wall between separate units is less than 102 mm thick, a Side‑by‑Side set and sidewall heater are required.
When more than two units are combined, various configurations are possible; some configurations may lead to door collisions.

Electrical safety

Appliance must be operated using alternating current within the permitted voltage and frequency for the country.
Power sockets must be earthed, electrically protected, not located behind the appliance and easily accessible for disconnecting.
A separate circuit is recommended to avoid food spoilage caused by failures from other appliances.
The appliance must not be connected to unearthed power sockets.
Do not use extension cables, multi‑sockets or inverters; this may cause overheating, fire or damage to control electronics.

Water connection, InfinitySpring & IceMaker

Water connection work must not be carried out while the appliance is connected to an electrical socket.
A shut‑off valve must be installed between the hose line and mains water supply and must not be positioned behind the appliance.
Connection to the water supply must be undertaken only by a trained and licensed plumber.
Water quality must comply with local drinking water regulations.
IceMaker is intended solely for producing ice cubes in normal household quantities using appropriate water.
All repairs and work on InfinitySpring/IceMaker must be carried out by customer service or other trained individuals.
Only the supply hose delivered with the appliance may be used; additional devices or pipes between solenoid valve and water supply are at the user’s risk.
If water hardness is high, a water softener is recommended; a filter is also required where solids such as sand are present.
All devices and systems feeding water to the appliance must meet applicable regional provisions.
The water filter for InfinitySpring/IceMaker is located in the front section of the appliance base and must be replaced regularly; InfinitySwipe alerts when replacement is due.

Secure mounting & handling

An anti‑tipping device at the base must be fitted and secured to the floor or wall to prevent the appliance from tipping.
After positioning in the recess, adjustable feet must be raised from the front until the appliance contacts the anti‑tipping device.
To achieve a plinth panel height of 102 mm, adjustable feet must be raised by 6–8 mm; for higher plinths, they can be raised by up to 19 mm.
The appliance should stand for one hour at the installation location before switching on, so fluids in the coolant and lubrication system distribute evenly.
The appliance should only be installed next to Liebherr refrigerators, freezers or wine cabinets designed for Side‑by‑Side installation; installing next to other brands may cause condensation or damage.

Optional accessories

A range of optional accessories is available for this model and Monolith combinations:

Flat brushed aluminium handles (810 mm and 658 mm) with 770 mm screw spacing (618 mm for specified freezer panel).
Square brushed aluminium handles and round stainless steel handles in matching lengths for refrigerator and freezer compartments.
Stainless steel panel sets sized for ECBN 9671, with centrally drilled handle holes allowing 180 ° rotation if the door hinge is changed.
Stainless steel plinth panels 102 mm high in widths from 45.7 cm to 182.8 cm, including 91.4 cm for ECBN 9671 and Side‑by‑Side combinations.
Side‑by‑Side sets with sidewall heater, brackets, screws and decorative trim.
Sidewall heater for separate unit carcasses with distances under 102 mm.
Door hinge exchange set for exchanging hinges assembled ex‑works (reversals by authorised Liebherr engineer).
FreshAir activated charcoal filters, combined FreshAir and water filter sets, and water filters suitable for ECBN 9671.
Ice accessories such as ice cube scoop and ice cube tongs for ECBN 9671.
Cleaning and care products including stainless steel care product and stainless steel cleaner for all Monolith models.

Downloads

Download product documentation, manuals, and specification sheets.

ECBN9671-617 Spec

PDF

Frequently Asked Questions

What is the total storage capacity of the Liebherr ECBN 9671?

The ECBN 9671 has a total volume of 514 litres. This includes 242.6 litres in the refrigerator compartment, 87.1 litres in the BioFresh compartment and 184.3 litres in the freezer compartment, measured in accordance with Regulation (EU) 2019/2016.

What are the installation dimensions for this Monolith fridge‑freezer?

The appliance itself measures 212.6 cm (H) x 90.6 cm (W) x 61 cm (D). The required recess dimensions are 213.4 cm (H) x 91.4 cm (W) x 63.5 cm (D). It is designed for flush installation in units with a 635 mm depth, using either inset or overlay door panels.

Does the ECBN 9671 need a plinth for ventilation?

Yes. The ECBN 9671 is ventilated entirely via the plinth panel. The door panels must close at least 102 mm above the floor and the grill in the plinth panel must not be obstructed. Optional 102 mm high stainless steel plinth panels are available in widths matching this model and Side‑by‑Side combinations.

What water supply is required for InfinitySpring and IceMaker?

The appliance must be connected to a fixed 3/4' water connection with water pressure between 2.8 and 6.2 bar. Only the supply hose delivered with the appliance may be used. Water quality must meet local drinking water regulations, and a water softener or additional filter may be needed if hardness or solids such as sand are present.

Can the door hinge be reversed on the ECBN 9671?

The ECBN 9671 is supplied with a right‑hand door hinge, which is reversible. Reversal must be performed by authorised Liebherr Monolith customer service. The appliance is also available as variant −617, which has left door hinges.

What ambient temperature range is suitable for this appliance?

The ECBN 9671 has climate class SN–T and is designed for operation in ambient temperatures from 10 °C to 43 °C. It should not be operated outside this temperature range to ensure optimal cooling performance.
