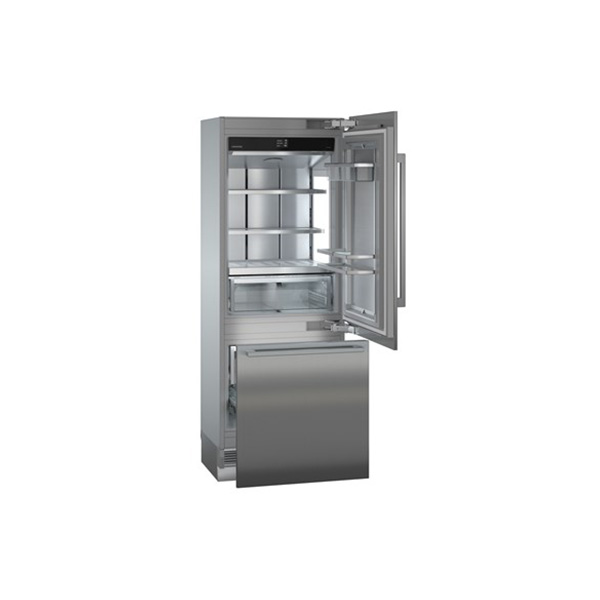

Liebherr Monolith ECBN9471 Fridge Freezer

The Liebherr Monolith ECBN 9471 is a built‑in LargeDoor fridge‑freezer offering a total volume of 400 litres, with separate refrigerator, BioFresh and freezer compartments. It features precise DuoCooling, BioFresh‑Plus for longer freshness, and convenient InfinitySwipe touch control. Integrated InfinityLight, InfinitySpring water dispenser and an automatic IceMaker enhance everyday use. The appliance is designed for flush installation in kitchen units and includes options for Side‑by‑Side combinations and custom panels.

SKU:ECBN9471-001

EAN:

Category::Fridge Freezers

Quantity:

Key Features

DuoCooling – two independently controlled cooling circuits accurately regulate refrigerator and freezer temperatures with no air exchange, helping prevent odour transfer and food drying out.

BioFresh‑Plus – variably divisible safe with different temperature zones, from just over 0 °C for meat and dairy to −2 °C for fish and seafood, and suitable for fruit and vegetables at just over 0 °C.

InfinitySwipe control – bright 3.5 inch electronic touch display with intuitive “touch & swipe” technology.

InfinitySpring water dispenser – flush‑mounted, virtually invisible dispenser for filling standard‑sized containers with cold water, supported by an easily accessible replaceable water filter in the appliance plinth.

InfinityLight LED lighting – full‑surface integrated LED side‑wall lighting creates elegant, even illumination with soft light on door opening and reduced heat emission to help protect food quality.

Automatic IceMaker – produces 1.6 kg of ice in 24 h from filtered water, with 3.0 kg storage capacity; production can be increased by activating the SuperFrost function.

InfinitySpring / IceMaker water connection – fixed water connection 3/4' with integrated water filter and InfinitySwipe reminder for filter replacement.

Temperature ranges – refrigerator compartment adjustable from +2 °C to +7 °C, freezer compartment from −14 °C to −27 °C, with automatic defrosting.

Automatic SuperCool and SuperFrost – dedicated functions for rapid chilling and freezing, selectable via the electronic control.

SmartDevice connectivity – supplied with a SmartDeviceBox to connect the appliance with a smartphone or tablet, enabling remote activation of settings and push notifications about events such as open doors (functions not available in all countries).

Quiet operation – noise output of 38 dB(A) with noise class C.

Energy performance – energy efficiency class 38 / C with annual energy consumption of 296 kWh (0.812 kWh / 24 h).

Flexible installation – designed for flush installation in 635 mm‑deep units with either stainless steel or customer‑specific panels, and suitable for Side‑by‑Side combinations using an optional set.

Ventilation via plinth – appliance ventilated entirely through the plinth panel; a 102 mm‑high stainless steel plinth panel is available as an accessory in the relevant width.

Door hinge options – supplied with right door hinge, reversible by Liebherr authorised customer service using a door hinge exchange set.

Safety‑checked design – refrigerant circuits checked for tightness, appliances meet applicable safety regulations and are intended for refrigerating, freezing, storing food and making ice.

Ambient suitability – climate class SN‑T, designed for operation between 10 °C and 43 °C ambient temperature.

FreshAir activated charcoal filter – compatible with FreshAir activated charcoal filter and FreshAir plus water filter sets listed for this model.

Optional stainless steel panels and handles – range of LargeDoor stainless steel panel sets and flat, square or round handles in matching sizes for ECBN 9471.

Secure mounting – anti‑tipping device at the base must be secured to floor or wall to prevent the appliance tipping after installation.

Technical Spec

ModelECBN 9471 – LargeDoor fridge‑freezer

Energy efficiency class38 / C

Energy consumption296 kWh / year / 0.812 kWh / 24 h

Noise output38 dB(A) – noise class C

Total volume*400 litres

Refrigerator compartment volume190.0 litres

BioFresh compartment volume69.0 litres

Freezer compartment volume141.0 litres

Number of storage shelves3

Number of door racks2

Number of FrostSafe drawers1

Electronic controlInfinitySwipe

Automatic SuperCoolyes

Automatic SuperFrostyes

Refrigerator temperature range+2 °C to +7 °C

Freezer temperature range−14 °C to −27 °C

Defrosting methodautomatic

Interior lightingInfinityLight

Integrated water dispenserInfinitySpring – fixed water connection 3/4'

Water filteryes – located in the front section of the appliance plinth

IceMakeryes – automatic, uses filtered water

Ice cube production1.6 kg / 24 h

Ice cube storage capacity3.0 kg

Door hingeright, reversible**

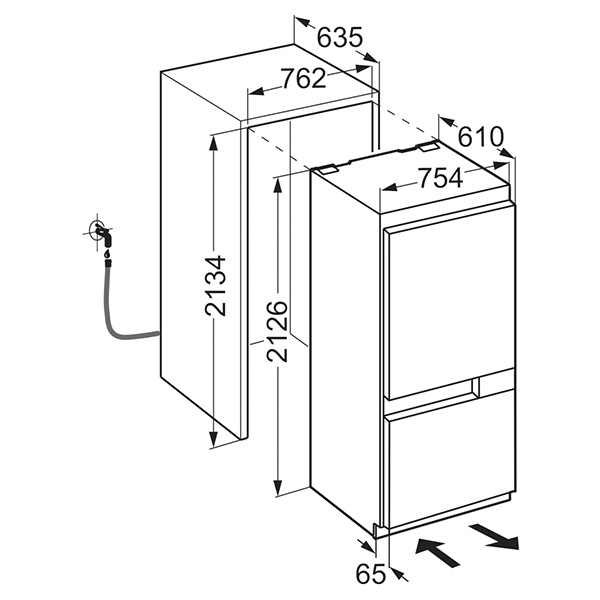

Appliance dimensions (H / W / D)212.6 / 75.4 / 61 cm

Recess dimensions (H / W / D)213.4 / 76.2 / 63.5 cm

Net weight184.0 kg

Voltage / connected load220–240 V~ / 3.0 A

Unit depth with overlay panel635 mm

Unit depth with inset panel635 mm + thickness of the custom panel

Door panel dimensions (inset)H1 = 1255 mm; H2 = 768 mm; HS = 6 mm; W = 756 mm

Door panel dimensions (overlay)H1 = 1258 mm (plus overlap at top); H2 = 768 mm; HS = 6 mm; W = 762 mm (plus side overlaps)

Panel thicknessminimum 16 mm* / maximum 30 mm

Max. panel weight – refrigerator door35 kg

Max. panel weight – freezer door25 kg

Plinth panel minimum height102 mm (achieved by raising adjustable feet by 6–8 mm)

Adjustable feet travelmaximum raising of 19 mm above fully retracted position

Mains cable exit point19 mm from the left and 127 mm from the floor; free cable length 2.5 m

Cable and water recessdepth 25 mm, height 140 mm across entire appliance width

Appliance depth610 mm

Maximum transport height (Monolith group incl. ECBN 9471)up to 2414 mm door height with packaging and tilt (group value)

Climate classSN‑T (10 °C to 43 °C)

Water pressure requirement2.8 to 6.2 bar

Side‑by‑Side set impact on energy use+0.4 kWh / 24 h for two units; +0.8 kWh / 24 h for three units (for combinations using the set)

Installation, Operation and Safety Information

Installation space and recess requirements

The floor must be level and capable of bearing the weight of the appliance plus approximately 218 kg to 544 kg of food, depending on model. The recess dimensions at the installation location must be correctly measured and the power socket placed in the specified position. Installations behind the appliance are not possible.

The top and carcass walls should line up flush with the appliance at a depth of at least 102 mm from the outside edge and be made of material at least 16 mm thick. Because parts of the recess are visible when the door is open, matching finishes and a minimum internal depth of 76 mm are recommended.

Monolith appliances are designed for flush installation in 635 mm‑deep units with stainless steel or customer‑specific panels. The appliance depth is 610 mm, allowing installation in standard 610 mm deep units or deeper 635 mm cut‑outs.

Door panels and spacing

For flush installation, inset door panel dimensions must be used. For other installation types, door spacing requirements must be respected to determine door panel dimensions. The minimum gap between panels is 3 mm. A minimum spacing of 76 mm must be allowed between appliance doors (including handles) and adjacent walls or kitchen elements for a door opening limited to 90°.

Door opening angle is set to 115° at the factory and can be limited to 90° using the supplied door opening limiter. Solutions for avoiding collisions include reducing panel thickness (if over 19 mm), repositioning neighbouring elements or using a stopper.

Ventilation via plinth panel

Ventilation is provided entirely via the plinth panel. Door panels must end at least 102 mm above the floor, and the grille in the plinth must remain unobstructed. Spacers supplied with the appliance must be fitted to separate warm outgoing air from fresh incoming air. A 102 mm‑high stainless steel plinth panel in the relevant width is available as an accessory.

Side‑by‑Side installation options

Monolith appliances may be installed individually, Side‑by‑Side within a shared fitted unit or Side‑by‑Side in separate units. If the distance between appliances is less than 102 mm, a Side‑by‑Side set with sidewall heater, brackets, screws and decorative trim is required. For three‑unit combinations, two Side‑by‑Side sets may be used in different configurations; in some layouts, door collisions can occur and minimum distances (e.g. 102 mm or 154 mm) are specified to prevent handle interference.

Water connection, InfinitySpring and IceMaker

Appliances with InfinitySpring or IceMaker must be connected to a water supply with pressure between 2.8 and 6.2 bar, using only the supplied hose. A shut‑off valve must be fitted between the hose and mains supply and must not be located behind the appliance. The water quality must comply with local drinking water regulations. The IceMaker is intended solely for producing ice cubes in normal household quantities using suitable water.

All devices and systems used to supply water to the appliance must meet relevant regional provisions. If water hardness is high, a water softener is recommended; a filter is also recommended where solids such as sand are present. Appliances with InfinitySpring or IceMaker include a water filter in the front section of the appliance base; this must be replaced regularly, and InfinitySwipe provides an alarm when replacement is due.

Electrical and operational safety

The appliance must be operated on alternating current, within the permitted voltage and frequency for the country of use. Power sockets must be earthed, electrically protected and easily accessible; they must not be located behind the appliance. A separate circuit is recommended to avoid food spoilage due to other appliances causing power failure.

The appliance must not be connected to unearthed sockets, extension cables, multi‑sockets or inverters, due to risks of electric shock, overheating or fire. Water connection work must not be performed while the appliance is connected to an electrical socket. All work on InfinitySpring and IceMaker must be carried out only by customer service personnel or other trained individuals.

Ambient temperature and commissioning

The ECBN 9471 is intended for refrigerating, freezing and storing food and making ice within the specified climate class SN‑T, corresponding to ambient temperatures from 10 °C to 43 °C. The appliance should not be operated outside these limits. Before switching on, the appliance should stand for one hour in the installation location so that fluids in the coolant and lubrication system can distribute evenly.

Secure mounting

To prevent tipping after installation, the anti‑tipping device located at the base must be securely fixed to the floor or wall. Detailed mounting instructions are provided with the appliance.

Optional accessories for ECBN 9471

Flat brushed aluminium handle 810 mm and 658 mm (freezer compartment) for ECBN 9471.
Square brushed aluminium handle 810 mm and 658 mm (freezer compartment) for ECBN 9471.
Round stainless steel handle 810 mm and 658 mm (freezer compartment) for ECBN 9471.
LargeDoor stainless steel panel set 76.2 cm (refrigerator panel 756 mm × 1255 mm × 19 mm, 17.8 kg; freezer panel 756 mm × 768 mm × 19 mm, 11 kg) for ECBN 9471.
Stainless steel plinth panel 76.2 cm (102 mm high) for ECBN 9471.
Side‑by‑Side set and sidewall heater for Monolith model combinations including ECBN 9471.
Door hinge exchange set for Monolith model combinations (except for ECBN 9673).
FreshAir activated charcoal filter and FreshAir plus water filter sets compatible with ECBN 9471.
Ice cube scoop and ice cube tongs for models including ECBN 9471.
Stainless steel care product and stainless steel cleaner for all Monolith models.

Downloads

Download product documentation, manuals, and specification sheets.

ECBN9471-001 Spec

PDF

Frequently Asked Questions

What is the total capacity of the ECBN 9471 fridge‑freezer?

The ECBN 9471 has a total volume of 400 litres, comprising 190.0 litres in the refrigerator compartment, 69.0 litres in the BioFresh compartment and 141.0 litres in the freezer compartment.

What temperature ranges can I set for the fridge and freezer?

The refrigerator compartment can be set between +2 °C and +7 °C. The freezer compartment offers a range from −14 °C to −27 °C. Both are controlled via the InfinitySwipe electronic touch display.

How does BioFresh‑Plus help keep food fresh?

BioFresh‑Plus creates a tailored climate and can be divided into different temperature zones. At just over 0 °C it is ideal for meat and dairy products; at −2 °C it suits fish and seafood. Fruit and vegetables can also be stored at just over 0 °C, significantly longer than in the normal refrigerator compartment.

Do I need a special water connection for InfinitySpring and the IceMaker?

The appliance requires a fixed 3/4' water connection with pressure between 2.8 and 6.2 bar. Only the supplied hose may be used. A shut‑off valve must be installed between the hose and mains water supply and must not be located behind the appliance. The water must meet local drinking water regulations.

Can the door hinges on the ECBN 9471 be reversed?

The ECBN 9471 is supplied with a right‑hand door hinge. The door hinge is reversible, but the reversal must be carried out by authorised Liebherr Monolith customer service using a door hinge exchange set.

What ambient temperature range is suitable for this appliance?

With climate class SN‑T, the ECBN 9471 is designed for operation in ambient temperatures from 10 °C to 43 °C. It should not be operated outside this range in order to maintain optimal cooling performance.
