The WSbsi 5252 Vinidor is a freestanding multi–temperature wine fridge designed for storing wine in controlled conditions. With two independent temperature zones and space for up to 155 Bordeaux bottles, it is suitable for wine enthusiasts wanting flexible storage. Features such as convection cooling with FreshAir activated charcoal filter, LED zone lighting and a slimline handle with integrated opening mechanism offer convenient use and carefully managed wine storage.

Key Features

Multi–temperature Vinidor design with 2 separate temperature zones for flexible wine storage.
Capacity for up to 155 Bordeaux bottles (0.75 l) based on DIN norm Bordeaux bottle dimensions.
Total volume 349 l for dedicated wine storage use.
Energy consumption 100 kWh/year (0.274 kWh/24 h) when used with the supplied wall spacers.
Low noise output 37 dB(A) for quiet operation.
Climate rating SN–T for ambient temperatures from +10 °C to +43 °C.
Temperature range +5 °C to +20 °C across the two zones.
Convection cooling with FreshAir activated charcoal filter for forced air circulation and fresh air supply.
2.4' TFT colour touch & swipe display in the door with digital temperature display for both wine zones.
Visual and acoustic alarms for malfunctions and door status, plus a child proof function.
LED zone lighting for clear visibility inside the cabinet.
Adjustable beech wood shelves with 8 storage shelves for organised bottle arrangement.
Full door BlackSteel design with matching BlackSteel side walls for a unified exterior look.
Slimline handle with integrated opening mechanism for easy door operation.
Reversible right–hand door hinges to support flexible positioning.
SmartDeviceBox included providing an integrated interface option.

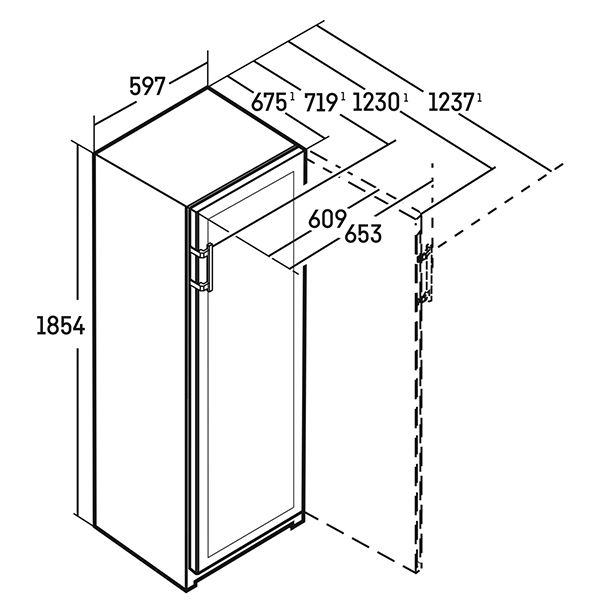

Exterior dimensions 185.4 × 59.7 × 67.5 cm (h/w/d) for planning installation space.

Technical Specifications

Model	WSbsi 5252
Product type	Multi–temperature wine fridge, Vinidor
Energy efficiency class	Not stated in source
Energy consumption (365 days / 24 h)	100 / 0.274 kWh ¹
Maximum number of Bordeaux bottles (0.75 l)	155 ²
Total volume	349 l ³
Noise output	37 dB(A)
Climate rating	SN–T (+10 °C to +43 °C)
Door	Full door, BlackSteel
Side walls	BlackSteel
Exterior dimensions (h / w / d)	185.4 / 59.7 / 67.5 cm ¹
Temperature zones	2
Temperature range	+5 °C to +20 °C
Adjustable cooling circuits	2
Cooling system	Convection cooling, fresh air supply via FreshAir activated charcoal filter
Interior light	LED zone lighting
Controls	2.4' TFT–colour display in–the–door, touch– & swipe; digital temperature display for both wine zones
Alarm in case of malfunction	Visual and acoustic
Door alarm	Visual and acoustic
Child proof function	Yes
Shelf material	Adjustable beech wood shelves
Number of storage shelves	8
Handle	Slimline handle with integrated opening mechanism
Door hinges	Reversible door hinging, right
Interface	SmartDeviceBox included
EAN	4016803088097

¹ To achieve the indicated energy consumption level, the wall spacers provided with the appliance must be used; these increase the appliance depth by approximately 3.5 cm. If the wall spacers are not used, the appliance will remain fully functional, but will have a slightly higher energy consumption level.

² Models are only bound for storing wine. Maximum DIN norm Bordeaux bottles capacity (0.75 l) as per norm NF H 35–124 (H: 300.5 mm, Ø 76.1 mm).

³ In accordance with Regulation EU 2019/2016, the total volume is indicated to the nearest integer (rounded off) and the volume of the frozen and refrigeration compartments to one place after the decimal point.

Additional Details and Usage

The appliance offers two independently adjustable temperature zones and two adjustable cooling circuits, allowing different wine types to be stored at temperatures between +5 °C and +20 °C. Convection cooling with a FreshAir activated charcoal filter supports a fresh air supply within the cabinet.

A 2.4' TFT colour display is integrated in the door and operated by touch and swipe, providing a digital temperature display for both wine zones. Visual and acoustic alarms for malfunctions and door status, together with a child proof function, contribute to secure operation.

LED zone lighting illuminates the interior, while adjustable beech wood shelves and eight storage levels help organise bottles. The reversible right–hand door hinging and slimline handle with integrated opening mechanism support flexible placement and easy access.

To reach the specified energy consumption, the supplied wall spacers should be used, which increase the appliance depth by about 3.5 cm; without them, the appliance remains fully functional with slightly higher energy use.

Frequently Asked Questions

How many wine bottles can the WSbsi 5252 hold?

The appliance can hold up to 155 Bordeaux bottles of 0.75 l, based on the DIN norm Bordeaux bottle size of H: 300.5 mm and diameter 76.1 mm as per norm NF H 35–124.

What temperature range does this wine fridge offer?

The WSbsi 5252 provides a temperature range from +5 °C to +20 °C across its two temperature zones, supported by two adjustable cooling circuits.

Is it suitable for use in warm or cool rooms?

The climate rating is SN–T, meaning the appliance is designed for ambient temperatures from +10 °C to +43 °C.

How loud is the WSbsi 5252 during operation?

The specified noise output is 37 dB(A).

Does the appliance include safety and alarm functions?

Yes. There is a visual and acoustic alarm in case of malfunction, a visual and acoustic door alarm, and a child proof function.

What is needed to achieve the stated energy consumption?

To achieve the indicated energy consumption of 100 kWh/year, the supplied wall spacers must be used, increasing the depth by approximately 3.5 cm. Without these spacers, the appliance remains fully functional but with slightly higher energy consumption.
