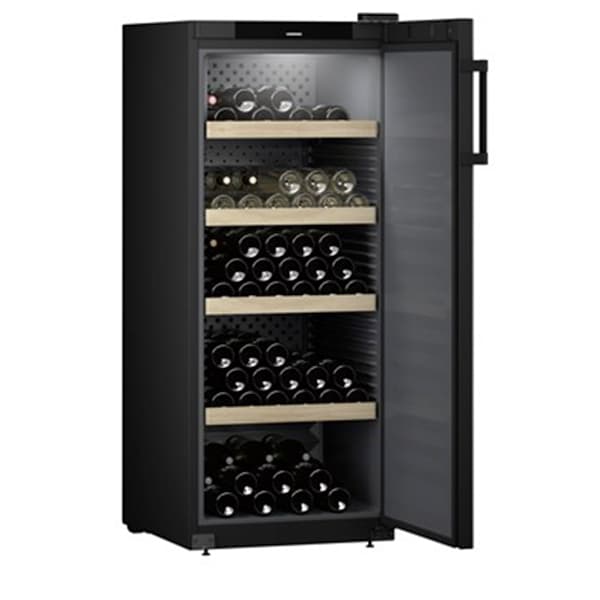

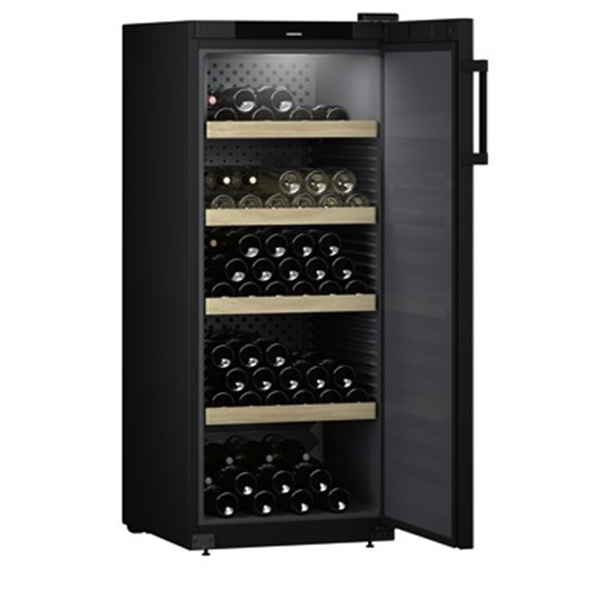

The WSbl 4601 GrandCru is a wine storage fridge designed specifically for storing wine, with a capacity of up to 166 Bordeaux bottles (0.75 L). It offers a single temperature zone with a range from +5 °C to +20 °C, convection cooling with fresh air supply via a FreshAir activated charcoal filter, and LED ceiling lighting. The appliance features a full black door, adjustable beech wood shelves and touch electronic controls with LC monochrome display in the door.

Key Features

Dedicated wine storage – models are only bound for storing wine with capacity for up to 166 DIN norm Bordeaux bottles (0.75 L).
Single temperature zone – 1 temperature zone with an adjustable range from +5 °C to +20 °C.
Convection cooling – forced air system with fresh air supply via a FreshAir activated charcoal filter.
LED ceiling lighting – interior light provided by LED ceiling lighting.
Touch electronic controls – LC monochrome display in the door with digital temperature display.
Visual and acoustic alarms – alarm in case of malfunction and door alarm, both visual and acoustic.
Child proof function – integrated child proof function.
Adjustable beech wood shelves – 5 storage shelves made from adjustable beech wood.
Flexible door hinging – reversible door hinging right with a slimline black handle.
Optional connectivity – interface for SmartDeviceBox as an optional accessory.
Low noise level – noise output of 38 dB(A), noise class C.
Black exterior design – full black door and black side walls.
Climate rating SN–T – suitable for ambient temperatures from +10 °C to +43 °C.
Mechanically retrofittable lock – lock can be added mechanically.
Energy consumption – 84 kWh per 365 days / 0.230 kWh per 24 h (with supplied wall spacers used).

Technical Specifications

Product name	WSbl 4601 GrandCru wine storage fridge
Appliance type	Wine storage fridge (models only bound for storing wine)
Energy efficiency class	Not stated in source
Energy consumption (365 days / 24 h)	84 kWh / 0.230 kWh ¹
Maximum number of Bordeaux bottles (0.75 L)	166 ²
Total volume	322 l ³
Noise output / noise class	38 dB(A) / C
Climate rating	SN–T (+10 °C to +43 °C)
Frequency / voltage	50/60 Hz / 220–240 V~
Connection rating	1.5 A
Exterior dimensions (h / w / d)	148.4 / 59.7 / 76.3 cm ¹
Door	Full door, black
Side walls	Black
Controls	LC monochrome display in the door, touch electronic
Digital temperature display	Yes (digital)
Alarm in case of malfunction	Visual and acoustic
Door alarm	Visual and acoustic
Child proof function	Yes
Temperature zones	1
Temperature range	+5 °C to +20 °C
Adjustable cooling circuits	1
Forced air system	Convection cooling, fresh air supply via FreshAir activated charcoal filter
Interior light	LED ceiling lighting
Handle	Slimline handle, black
Interface	SmartDeviceBox: optional accessory
Shelf material	Adjustable beech wood shelves
Storage shelves	5
Door hinges	Reversible door hinging right
Lock	Mechanically retrofittable
EAN number	9005382244258
Subject to modification	Timestamp: 17.01.2024

¹ To achieve the indicated energy consumption level, the wall spacers provided with the appliance must be used, increasing the appliance depth by approximately 3.5 cm. If the wall spacers are not used, the appliance will remain fully functional, but will have a slightly higher energy consumption level.

² Maximum DIN norm Bordeaux bottles capacity (0.75 l) as per norm NF H 35-124 (H: 300.5 mm, Ø 76.1 mm).

³ In accordance with Regulation EU 2019/2016 the total volume is indicated to the nearest integer (rounded off) and the volume of the frozen compartments and refrigeration compartments to one place after the decimal point.

Additional Details and Usage

The appliance offers one adjustable cooling circuit and a single temperature zone, making it suitable for maintaining a consistent storage temperature between +5 °C and +20 °C. Convection cooling with a FreshAir activated charcoal filter ensures a supply of fresh air.

Visual and acoustic alarms provide alerts in case of malfunction and if the door is open, while the child proof function adds an extra layer of safety. The reversible right-hand door hinging and slimline black handle support flexible placement.

To reach the stated energy consumption, the supplied wall spacers must be used, increasing the appliance depth by approximately 3.5 cm. Without the wall spacers, the appliance remains fully functional, but energy consumption is slightly higher.

Frequently Asked Questions

How many wine bottles can the WSbl 4601 hold?

The fridge can hold up to 166 maximum DIN norm Bordeaux bottles (0.75 L) as per norm NF H 35-124 (H: 300.5 mm, Ø 76.1 mm).

What is the temperature range of the appliance?

The WSbl 4601 has one temperature zone with a temperature range from +5 °C to +20 °C.

Is this fridge suitable for use in different room temperatures?

Yes. It has a climate rating of SN–T and is suitable for ambient temperatures from +10 °C to +43 °C.

Does the appliance have alarms for malfunctions or open doors?

Yes. It features visual and acoustic alarms in case of malfunction and a visual and acoustic door alarm.

Can I retrofit a lock to the WSbl 4601?

Yes. The lock is mechanically retrofittable.

Does the WSbl 4601 support smart connectivity?

The appliance has an interface for a SmartDeviceBox, which is available as an optional accessory.
