The WPgbi 7473 Vinidor Selection is a multi-temperature wine fridge designed for storing up to 182 standard Bordeaux bottles in three independently controlled wine zones. With a total volume of 561 l, convection cooling, a black insulated glass door and LED light panels on both sides, it supports flexible temperature settings between +5 °C and +20 °C. Its SmartDeviceBox, child proof function and reversible door hinging add convenience and enhanced control.

Key Features

Multi-temperature wine fridge with three wine zones for dedicated storage of wine only.
Capacity up to 182 Bordeaux bottles (0.75 l, DIN norm bordeaux bottles as per norm NF H 35-124).
Large total volume of 561 l for extensive wine collections.
Three temperature zones with a temperature range from +5 °C to +20 °C.
Energy consumption of 144 kWh per 365 days / 0.394 kWh per 24 h ¹.
Quiet operation with a noise output of 35 dB(A).
Climate rating SN–ST for ambient temperatures from +10 °C to +38 °C.
Black insulated glass door with BlackSteel side walls for a coordinated exterior.
2.4' TFT colour display in-the-door with touch & swipe control for easy operation.
Digital temperature display for all three wine zones.
Convection cooling system with fresh air supply via a FreshAir activated charcoal filter.
LED light panels on both sides, permanently on and dimmable for enhanced presentation.
SmartDeviceBox included providing an interface for connectivity.
Beech wood fittings with 12 storage shelves, including 9 pull-out shelves on telescopic rails.
Vertical recessed handle for a clean front design.
Reversible door hinging (right as supplied) for flexible installation.
Visual and acoustic alarm in case of malfunction and when the door is open.
Child proof function to help prevent unauthorised adjustments.
Electronic lock without remote control for secure storage.

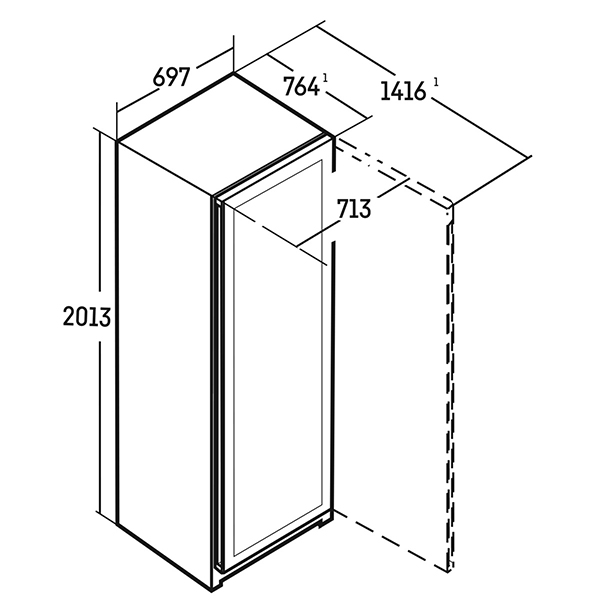

Exterior dimensions of 201.3 cm (h) / 69.7 cm (w) / 76.4 cm (d) ¹.

Technical Specifications

Model	WPgbi 7473
Product type	Multi-temperature wine fridge – Vinidor Selection
Energy efficiency class	Not stated in source
Energy consumption (365 days)	144 kWh ¹
Energy consumption (24 h)	0.394 kWh ¹
Maximum number of Bordeaux bottles	182 (0.75 L, DIN norm bordeaux bottles as per norm NF H 35-124) ²
Total volume	561 l ³
Noise output	35 dB(A)
Climate rating	SN–ST (+10 °C to +38 °C)
Door	Black insulated glass door
Side walls	BlackSteel
Exterior dimensions (h / w / d)	201.3 / 69.7 / 76.4 cm ¹
Control type	2.4' TFT-colour display in-the-door, touch- & swipe
Temperature display	Digital temperature display for 3 wine zones
Alarm in case of malfunction	Visual and acoustic
Door alarm	Visual and acoustic
Child proof function	Yes
Temperature zones	3
Temperature range	+5 °C to +20 °C
Adjustable cooling circuits	3
Cooling system	Convection cooling, fresh air supply via FreshAir activated charcoal filter
Interior light	LED light panel, both sides permanently on, dimmable
Handle	Vertical recessed handle
Interface	SmartDeviceBox included
Shelf material	Beech wood fittings
Storage shelves	12
Pull-out shelves on telescopic rails	9
Door hinges	Reversible door hinging, right
Lock	Electronic, without remote control
EAN number	4016803106319
Notes on energy consumption	To achieve the indicated energy consumption level, the wall spacers provided with the appliance must be used. These increase the appliance depth by approximately 3.5 cm. If the wall spacers are not used, the appliance will remain fully functional, but will have a slightly higher energy consumption level. ¹
Bottle capacity note	These models are only bound for storing wine. Maximum DIN norm bordeaux bottles capacity (0.75 l) as per norm NF H 35-124 (H: 300.5 mm, Ø 76.1 mm). ²
Volume indication note	In accordance with Regulation EU 2019/2016 the total volume is indicated to the nearest integer (rounded off) and the volume of the frozen compartments and refrigeration compartments to one place after the decimal point. ³

Additional Details and Usage

The appliance is designed exclusively for storing wine, with a maximum capacity based on standardised Bordeaux bottles. Three independently adjustable cooling circuits and temperature zones from +5 °C to +20 °C allow different wines to be stored under suitable conditions within the same cabinet.

Convection cooling with a FreshAir activated charcoal filter provides fresh air supply. For optimal energy consumption, the supplied wall spacers should be used, which increase the appliance depth by approximately 3.5 cm. Without these spacers, the appliance remains fully functional but operates with slightly higher energy consumption.

An electronic control system with a 2.4' TFT colour display in the door enables touch & swipe adjustments, while visual and acoustic alarms signal malfunctions or an open door. The child proof function and electronic lock help to secure settings and contents.

Frequently Asked Questions

How many wine bottles can the WPgbi 7473 store?

The unit can store up to 182 standard DIN norm Bordeaux bottles (0.75 l) as per norm NF H 35-124, with a bottle height of 300.5 mm and diameter of 76.1 mm.

What is the temperature range of the wine fridge?

The temperature range is from +5 °C to +20 °C across three separate temperature zones, each supported by its own adjustable cooling circuit.

Is the WPgbi 7473 suitable for use in different room temperatures?

Yes. The climate rating SN–ST means the appliance is designed to operate in ambient temperatures from +10 °C to +38 °C.

How does the alarm system work?

The wine fridge provides a visual and acoustic alarm in case of malfunction and a visual and acoustic door alarm if the door is left open.

What should I do to achieve the stated energy consumption?

To reach the indicated energy consumption values, the wall spacers supplied with the appliance must be used. They increase the depth by approximately 3.5 cm. Without them, the appliance remains fully functional but with slightly higher energy consumption.

Is this appliance intended for anything other than wine storage?

No. These models are only bound for storing wine, with capacity based on standardised Bordeaux wine bottles.
