The WPbsi 5052 Vinidor is a multi–temperature wine fridge designed for storing wine in two independently controlled temperature zones. With capacity for up to 131 Bordeaux bottles and a total volume of 319 l, it supports flexible wine storage. Features such as convection cooling, FreshAir activated charcoal filter, LED zone lighting and adjustable beech wood shelves help provide suitable conditions for wine enthusiasts and dedicated wine storage spaces.

Key Features

Multi–temperature wine cabinet with two wine zones for flexible storage.
Capacity up to 131 Bordeaux bottles (0.75 L DIN norm Bordeaux bottles as per norm NF H 35–124).
Total volume 319 l for storing wine only.
Energy consumption 123 kWh per year (0.337 kWh / 24 h) ¹.
Two temperature zones with a range from +5 °C to +20 °C.
2.4' TFT colour display in–the–door with touch– and swipe controls.
Digital temperature display for both wine zones.
Convection cooling with fresh air supply via FreshAir activated charcoal filter.
LED zone lighting that is permanently on and dimmable.
Adjustable beech wood shelves with 7 storage shelves for organised bottle storage.
Insulating glass door with frame in BlackSteel and BlackSteel side walls.
Slimline handle with integrated opening mechanism.
Reversible door hinging (right–hand hinged as standard).
Visual and acoustic alarms for malfunctions and open door.
Child proof function for added control.
Noise output 37 dB(A) for quiet operation.
Climate rating SN–ST for ambient temperatures from +10 °C to +38 °C.
SmartDeviceBox included as an interface feature.
Adjustable cooling circuits with 2 separate circuits.

Technical Specifications

Model	WPbsi 5052 Vinidor
Product type	Multi–temperature wine fridge
Energy efficiency class	Not stated in source
Energy consumption (365 days / 24 h)	123 / 0.337 kWh ¹
Maximum number of Bordeaux bottles (0.75 L)	131 ²
Total volume	319 l ³
Noise output	37 dB(A)
Climate rating	SN–ST (+10 °C to +38 °C)
Door	Insulating glass door with frame in BlackSteel
Side walls	BlackSteel

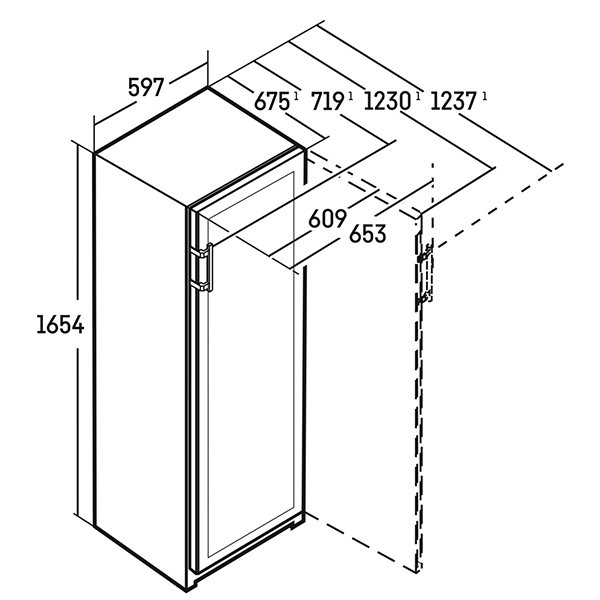

Exterior dimensions (H / W / D)	165.4 / 59.7 / 67.5 cm ¹
Controls	2.4' TFT–colour display in–the–door, touch– & swipe
Temperature display	Digital temperature display for both wine zones
Malfunction alarm	Visual and acoustic
Door alarm	Visual and acoustic
Child proof function	Yes
Temperature zones	2
Temperature range	+5 °C to +20 °C
Adjustable cooling circuits	2
Cooling system	Convection cooling, fresh air supply via FreshAir activated charcoal filter
Interior light	LED zone lighting permanently on, dimmable
Handle	Slimline handle with integrated opening mechanism
Interface	SmartDeviceBox included
Shelf material	Adjustable beech wood shelves
Storage shelves	7
Door hinges	Reversible door hinging, right
EAN number	4016803088059

¹ To achieve the indicated energy consumption level, the wall spacers provided with the appliance must be used. These increase the appliance depth by approximately 3.5 cm. If the wall spacers are not used, the appliance will remain fully functional, but will have a slightly higher energy consumption level.

² These models are only bound for storing wine. Maximum DIN norm Bordeaux bottles capacity (0.75 l) as per norm NF H 35–124 (H: 300.5 mm, Ø 76.1 mm).

³ In accordance with Regulation EU 2019/2016 the total volume is indicated to the nearest integer (rounded off) and the volume of the frozen compartments and refrigeration compartments to one place after the decimal point.

Subject to modification. Timestamp: 08.10.2024

Additional Details and Usage

The cabinet offers two separate temperature zones with two adjustable cooling circuits, allowing wine to be stored at different temperatures between +5 °C and +20 °C. Convection cooling and a FreshAir activated charcoal filter provide a fresh air supply within the cabinet.

LED zone lighting can be set permanently on and dimmed, helping visibility of bottles on the adjustable beech wood shelves. Visual and acoustic alarms signal malfunctions and open doors, while a child proof function adds operational security.

The appliance is designed only for storing wine and is suitable for ambient climates in the SN–ST range (+10 °C to +38 °C). Using the supplied wall spacers helps achieve the stated energy consumption, increasing the appliance depth by approximately 3.5 cm.

Frequently Asked Questions

How many wine bottles can the WPbsi 5052 hold?

The cabinet can hold up to 131 DIN norm Bordeaux bottles (0.75 l) as per norm NF H 35–124, with bottle dimensions H: 300.5 mm and Ø 76.1 mm.

What temperature range does each zone offer?

Each of the two temperature zones can be set within a range from +5 °C to +20 °C, allowing different storage conditions for different wines.

Is this appliance suitable for storing food or only wine?

These models are only bound for storing wine. The capacity specification is based on maximum DIN norm Bordeaux wine bottles.

What is the energy consumption of the wine fridge?

The stated energy consumption is 123 kWh per year, equivalent to 0.337 kWh per 24 h, when the provided wall spacers are used.

Does the door hinge direction can be changed?

The appliance is supplied with right–hand door hinging and features reversible door hinging, allowing the door opening direction to be changed.
