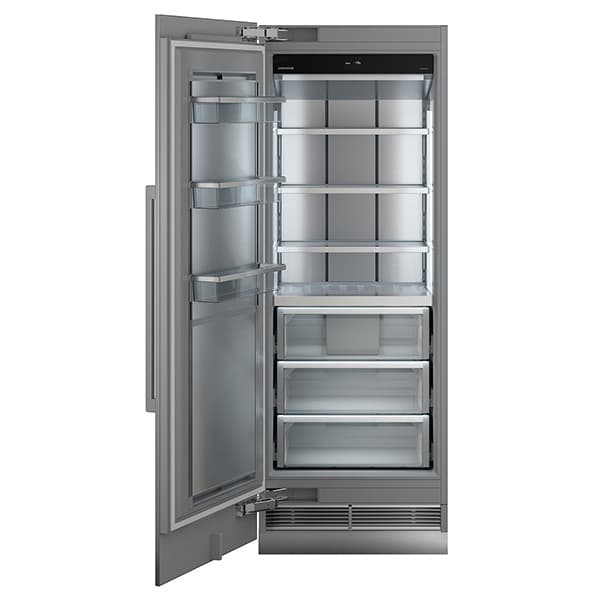

Liebherr Monolith EGN9471 Freezer

The Liebherr Monolith EGN 9471 is a tall built–in freezer designed for flush integration in kitchen cabinetry with a depth of 610–635 mm. It offers NoFrost freezing with electronic control, automatic SuperFrost and an automatic IceMaker with fixed 3/4' water connection. Features such as InfinityLight, SoftSystem door closing and flexible door racks support convenient, clearly lit storage of frozen food in drawers and door, with planning data for Side–by–Side combinations.

SKU:EGN9471

EAN:

Category::Freezers

Quantity:

Key Features

NoFrost freezer system: frozen food is cooled with re–circulated air, humidity is removed, the freezer compartment remains ice–free and manual defrosting is no longer necessary.

FrostSafe drawers with SoftTelescopic: enclosed, transparent drawers on telescopic rails with self–closing, cushioned closure help retain cold air and make everyday use practical and safe.

Integrated IceMaker with water filter: automatic IceMaker with fixed 3/4' water connection, filtered water and replaceable water filter located in the appliance plinth.

High ice production and storage: creates 1.6 kg of filtered ice in 24 h, with storage volume of 1.8–3.5 kg depending on model; SuperFrost can increase ice production capacity.

InfinityLight interior lighting: full–surface integrated LED lighting on the side wall produces elegant, even, soft light with reduced heat emission to help protect food quality.

SoftSystem door closing: closing damping allows doors to close gently and quietly even when fully loaded; Monolith door hinges can hold up to 40 kg depending on size.

Flexible door racks: transparent, height–adjustable racks in the freezer door provide extra storage for smaller items and support constant cold air circulation.

SuperFrost function: quickly lowers the temperature to preserve vitamins when freezing and automatically returns to normal operation after a maximum of 65 hours.

InfinitySwipe control compatibility: electronic functions, including SuperFrost and water filter reminder, can be controlled, and alarms displayed, via InfinitySwipe and SmartDevice services (availability not in all countries).

Flush built–in design: appliance depth of 610 mm for installation in standard European 610 mm units or 635 mm cut–outs, with options for inset or overlay custom panels.

Side–by–Side ready: can be combined with other Liebherr Monolith refrigerators, freezers or wine cabinets using a dedicated Side–by–Side set and optional stainless steel plinth and panel accessories.

SoftSystem and NoFrost safety: enclosed drawers and soft closing help limit unwanted air exchange and reduce cold loss when the door is opened.

InfinityBeam drawer lighting: drawers are fitted with InfinityBeam LED lighting to provide a clear overview of contents.

Anti–tipping device: base–mounted anti–tipping device must be secured to wall or floor for safe, secure installation.

Door hinge flexibility: factory–fitted left door hinge, reversible via an authorised Liebherr Monolith customer service engineer using a hinge exchange set.

Technical Spec

Product typeFreezer

ModelEGN 9471

Energy efficiency class407/1.115

Energy consumption38/C (in kWh year/24 h)

Noise output / Noise class457 / 4/3 in dB(A)

Total volume*3 in litres (rounded off in accordance with Regulation EU 2019/2016)

Number of storage shelves / height–adjustable3 / 3

Number of door racksInfinitySwipe (see electronic control system)

Number of FrostSafe drawersyes

Electronic control systemInfinitySwipe

Automatic SuperFrost functionyes (automatic, switches back after max. 65 hours)

Temperature range of freezer−14 °C to −27 °C

Defrosting methodautomatic (NoFrost)

Interior lightingInfinityLight and InfinityBeam LED lighting

IceMakerautomatic IceMaker with fixed water connection 3/4'

Water filteryes; replaceable filter located in front section of appliance plinth

Ice cube production in 24 h1.1 kg / 3.0 kg (depending on designation in data line)

Ice cube storage capacity18 kg / 22 kg (depending on designation in data line)

Storage time in event of a faultNot stated in source

Freezing capacity in 24 hNot stated in source

Door hingeleft, reversible** (reversal by authorised Liebherr Monolith customer service)

Appliance dimensions (H/W/D)212.6 / 75.4 / 61 cm

Recess dimensions (H/W/D)213.4 / 76.2 / 63.5 cm

Net weight161.0 kg

Voltage / Connected load220–240 V~ / 2.0 A

Climate classSN–T (10 °C to 43 °C ambient)

Intended userefrigerating, freezing and storing food and making ice (if equipped accordingly)

Installation, Planning and Usage Details

Appliance and recess dimensions

For inset installation the height is 2029 mm with width 756 mm. For overlay installation the height is 2032 mm and width 762 mm, plus the overlap of the panel on the top and sides. Appliance depth is 610 mm, suitable for standard 610 mm units and deeper 635 mm cut–outs. Unit depth for overlay door panel installation is 635 mm; for inset door panel installation 635 mm plus the thickness of the custom panel.

Door panels and plinth

Thickness of the panel: minimum 16 mm* / maximum 30 mm; maximum panel weight 35 kg for this model.
Installations behind the appliance are not possible.
Door panels must end at least 102 mm above the floor to ensure plinth ventilation is not obstructed.
Adjustable feet are fully retracted at the minimum height. Raising the feet by 6–8 mm achieves a plinth height of 102 mm; maximum adjustment is 19 mm if a higher plinth is required.
Liebherr stainless steel plinth panels (102 mm high) are available as optional accessories in widths including 76.2 cm for model EGN 9471.
A decorative trim supplied with the appliance covers the gap between appliance and unit side walls.
If a five–piece shaker style panel thinner than 16 mm is used, shorter screws than those supplied must be used.

* Minimum panel thickness applies to standard one–piece panels.

Ventilation requirements

Monolith appliances are ventilated entirely via the plinth panel. The grille in the plinth must not be obstructed. Spacers included in the scope of supply must be fitted to the appliance and door to separate warm outgoing air from incoming fresh air.

Installation space requirements

The floor must support the weight of the appliance plus approximately 218–544 kg of food, depending on net capacity.
The floor should be level; the appliance must be levelled so ventilation openings remain clear.
Recess dimensions must be measured correctly and the power socket located in the specified position.
The installation space between unit rear wall and kitchen wall allows routing of electricity, water and anti–tipping device; it can be reduced if required (for example, cut–out depth 610 mm).
The top and carcass walls must line up flush with the appliance at a depth of at least 102 mm from the outside edge and be at least 16 mm thick.
Because the recess is partially visible when the door is open, the inside finish should match the outside of the unit and have a minimum depth of 76 mm.

Door spacing and opening angles

Factory door opening angle is 115° and can be limited to 90° using a door opening limiter supplied with the appliance.
To prevent doors and handles from colliding with adjacent units or walls, a minimum spacing of 76 mm must be allowed for a 90° opening.
For Side–by–Side installations in separate units with back–to–back door positioning and 90° limiters, a dividing wall of at least 154 mm is required to prevent handle collisions.
The minimum permitted gap between adjacent panels is 3 mm.

Side–by–Side installation

Monolith appliances are designed to be installed Side–by–Side with other Liebherr refrigerators, freezers and wine cabinets. If the spacing between units is less than 102 mm, a Side–by–Side set is required. For combinations of more than two units, different options are possible, including connected pairs plus a separate unit with a carcass side between them, or larger gaps (at least 102 mm or 154 mm) to avoid door and handle collisions.

Water connection for IceMaker

Appliances with IceMaker must be connected to a water supply; only the supply hose delivered with the appliance may be used.
Required water pressure is between 2.8 and 6.2 bar.
A shut–off valve must be installed between hose line and mains water supply and must not be located behind the appliance.
Water quality must comply with local drinking water regulations. A water softener is recommended if water hardness is high, and a filter should be used if solids such as sand are present.
The IceMaker is intended solely for producing ice cubes in normal household quantities and must only be used with water appropriate for this purpose.
Repairs and work on the IceMaker and InfinitySpring (where fitted) must only be carried out by customer service or other trained individuals.

Electrical safety and operation

The appliance must only be operated using alternating current within the permitted voltage and frequency for the country (220–240 V~/2.0 A for this model).
Power sockets must be earthed, electrically protected and easily accessible; they must not be located directly behind the appliance.
Use of extension cables, multi–sockets or inverters is not permitted due to risk of overheating, fire or electrical hazard.
A separate circuit for the appliance is recommended to prevent unintentional defrosting caused by other devices.
The appliance should stand in the installation location for one hour before switching on to allow coolant and lubricant fluids to distribute evenly.
Secure mounting via the anti–tipping device at the base is mandatory.

Ambient temperature and climate class

The climate class SN–T allows operation between 10 °C and 43 °C ambient temperature. Operating the appliance outside this range is not permitted. Refrigerant circuits are checked for tightness and appliances comply with applicable safety regulations.

Downloads

Download product documentation, manuals, and specification sheets.

EGN9471 Spec

PDF

Frequently Asked Questions

What are the required recess dimensions for installing the EGN 9471?

The specified recess dimensions for the EGN 9471 are 213.4 cm (height), 76.2 cm (width) and 63.5 cm (depth). For inset installation use a height of 2029 mm and width of 756 mm; for overlay installation use 2032 mm height and 762 mm width plus the panel overlap.

Does the EGN 9471 need manual defrosting?

No. The EGN 9471 uses NoFrost technology with automatic defrosting. Cooled re–circulated air freezes food while removing humidity so the freezer compartment remains ice–free and manual defrosting is not necessary.

How much ice can the IceMaker produce and store?

The automatic IceMaker creates 1.6 kg of filtered ice in 24 hours. Depending on model, the storage volume is between 1.8 kg and 3.5 kg. Activating the SuperFrost function can increase ice production capacity.

What water pressure and connection are required for the IceMaker?

The IceMaker uses a fixed 3/4' water connection. Water pressure must be between 2.8 and 6.2 bar. Only the supply hose provided with the appliance may be used, and a shut–off valve must be installed in an accessible position, not behind the appliance.

Can the door hinge of the EGN 9471 be reversed?

Yes. The EGN 9471 is supplied with a left door hinge that is reversible. Door reversal must be performed by an authorised Liebherr Monolith customer service engineer using a door hinge exchange set.

In what ambient temperature range can the EGN 9471 be operated?

The climate class SN–T permits operation between 10 °C and 43 °C ambient temperature. The appliance must not be operated outside of this temperature range.
