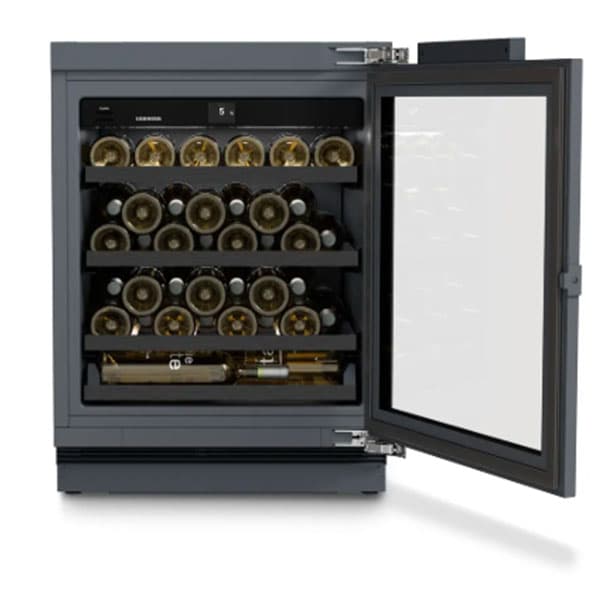

Liebherr Vinidor UWpri3661 Winecellar

The Liebherr UWpri 3661 Vinidor Selection is a fully integrated under counter wine fridge designed for built–in use with a fixed furniture door. It offers storage for up to 44 Bordeaux bottles in a single temperature zone, with precise control from +5 °C to +20 °C. Quiet operation, LED zone lighting, a FreshAir activated charcoal filter and an integrated SmartDeviceBox support convenient wine storage and monitoring in modern kitchens and living spaces.

SKU:UWPRI3661

EAN:

Category::Wine Cellars

Quantity:

Key Features

Fully integrated under counter design – Fixed door / under–worktop appliance for integrated use in an 82–88 cm niche.

Capacity for up to 44 Bordeaux bottles – Stores a maximum of 44 x 0.75 L bottles in line with norm NF H 35–124.

Single temperature zone – One temperature zone with adjustable range from +5 °C to +20 °C.

TempProtect Plus – Two sensors constantly measure temperature and trigger an alert if a critical change is detected.

HumiditySelect – Humidity can be set to “Standard humidity” or “High humidity” to help keep corks moist and bottles tightly sealed.

UVProtect glass door – Insulated glass door with two protective layers, including Low–E coating, to help shield wine from harmful solar radiation.

VibrateSafe storage – Quiet compressors and stable wooden shelves made of solid beech wood support gentle, low–vibration wine storage.

Touch & Swipe 2.4' TFT colour display – Intuitive touch and swipe control for functions and digital temperature display.

Integrated SmartDeviceBox – Network–ready for use with a SmartDevice app, enabling remote viewing and adjustment of many settings and security information.

FreshAir activated charcoal filter – Convection cooling with fresh air supply via FreshAir activated charcoal filter; optional set of 2 filters (988242901) available.

LED zone lighting – Permanently on, dimmable LED interior lighting for the storage zone.

Flexible wooden shelving – Four wooden shelves with aluminium front, all pull–out on telescopic rails.

Quiet operation – Noise output of 34 dB(A) for low–noise performance.

Visual and acoustic alarms – Malfunction and door alarms are both visual and acoustic, with a child–proof function included.

Reversible door hinging – Factory–fitted right–hand hinging, reversible to suit installation requirements.

Compatible accessories – Optional mains cable (Europe, Korea), door opening limitation, stainless steel handles, lock and base trim (subject to availability).

Technical Spec

Product typeFixed door / Under–worktop appliance for integrated use

Model nameUWpri 3661 Vinidor Selection

Energy efficiency classNot stated in source

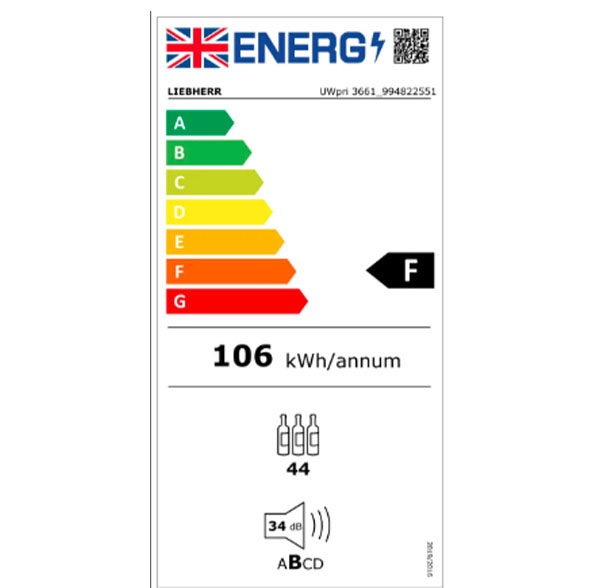

Energy consumption (365 days / 24 h)106 / 0.290 kWh

Maximum number of Bordeaux bottles (0.75 L)44 ¹

Total volume107 l ²

Noise output34 dB(A)

Climate ratingSN–ST (+10 °C to +38 °C)

DoorInsulated glass door

Aperture dimensions (h / w / d)82–88 / 60 / min. 56.5 cm

Type of control2.4' TFT–colour display, touch– & swipe

Digital temperature displayYes

Malfunction alarmVisual and acoustic

Door alarmVisual and acoustic

Child proof functionYes

Temperature zones1

Temperature range+5 °C to +20 °C

Adjustable cooling circuits1

Cooling systemConvection cooling, fresh air supply via FreshAir activated charcoal filter

Interior lightLED zone lighting, permanently on, dimmable

InterfaceSmartDeviceBox included

Shelf materialWooden shelves with aluminium front

Number of storage shelves4

Pull–out shelves4 pull–out shelves on telescopic rails

Door hingesReversible door hinging, right

EAN number9005382260371

Maximum weight of furniture doorFridge compartment: 10 kg

Downloads

Download product documentation, manuals, and specification sheets.

UWPRI3661 Spec

PDF

Frequently Asked Questions

How many wine bottles can the Liebherr UWpri 3661 hold?

The appliance can store up to 44 Bordeaux bottles of 0.75 litres, based on maximum DIN norm Bordeaux bottle capacity in accordance with norm NF H 35–124 (H: 300.5 mm, Ø 76.1 mm).

What temperature range does this wine fridge offer?

The UWpri 3661 has one temperature zone with an adjustable temperature range from +5 °C to +20 °C.

Does the appliance have alarms for malfunctions or an open door?

Yes. It features visual and acoustic alarms in case of malfunction, as well as a visual and acoustic door alarm.

Can I control or monitor the UWpri 3661 remotely?

The appliance includes an integrated SmartDeviceBox and is network–ready. Using a SmartDevice app, you can access the appliance from anywhere, view and change many settings such as temperature while away, and receive security information about the appliance and your wine.

Is the door hinging reversible?

The UWpri 3661 is supplied with right–hand door hinging, and the door hinging is reversible.

What are the required niche dimensions for installation?

The appliance is designed for an aperture height of 82–88 cm, width of 60 cm and minimum depth of 56.5 cm.
