Liebherr UWgbi3682 Vinidor Wine Cellar

The UWgbi 3682 Vinidor Selection is a fully integrated under counter wine fridge designed for storing wine in a fixed–door, under–worktop installation. It offers two temperature zones with a range from +5 °C to +20 °C, allowing flexible storage conditions for up to 32 Bordeaux bottles. With low noise output, LED light columns on both sides and touch– and swipe–controlled 2.4' TFT display, it combines convenient controls with a sleek black insulated glass door.

SKU:UWGBI3682

EAN:

Category::Wine Cellars

Quantity:

Key Features

Fully integrated under counter design – under–worktop appliance with fixed door for seamless kitchen integration.

Two temperature zones – digital temperature display for both wine zones with a range from +5 °C to +20 °C.

Capacity up to 32 Bordeaux bottles – stores a maximum of 32 DIN norm Bordeaux bottles (0.75 L).

Low noise operation – noise output of 32 dB(A) for quiet performance.

Convection cooling with FreshAir filter – forced air system with fresh air supply via FreshAir activated charcoal filter.

LED light columns on both sides – interior lighting is permanently on and dimmable for enhanced presentation.

SmartDeviceBox included – interface equipped with SmartDeviceBox.

2.4' TFT colour display – touch– and swipe–controlled type of control for intuitive operation.

Visual and acoustic alarms – alarm in case of malfunction and door alarm, both visual and acoustic.

Child proof function – child proof function included.

Dual adjustable cooling circuits – 2 adjustable cooling circuits for the 2 temperature zones.

Reversible door hinging – door hinges right as standard, reversible.

Five storage shelves – shelf material Holzborde mit Aluminiumfront with 5 storage shelves, 4 on telescopic rails.

Black insulated glass door – stylish black insulated glass door.

Climate rating SN–ST – suitable for ambient temperatures from +10 °C to +38 °C.

Total volume 95 l – total internal volume of 95 litres.

Energy consumption 83 kWh / 365 days – 0.227 kWh per 24 hours.

Technical Spec

Product nameUWgbi 3682 Vinidor Selection

Appliance typeFully integrated under counter wine fridge, fixed door / under–worktop appliance

Energy efficiency classNot stated in source

Energy consumption (365 days / 24 h)83 / 0.227 kWh

Maximum number of Bordeaux bottles (0.75 L)32 ¹

Total volume95 l ²

Noise output32 dB(A)

Climate ratingSN–ST (+10 °C to +38 °C)

DoorBlack insulated glass door

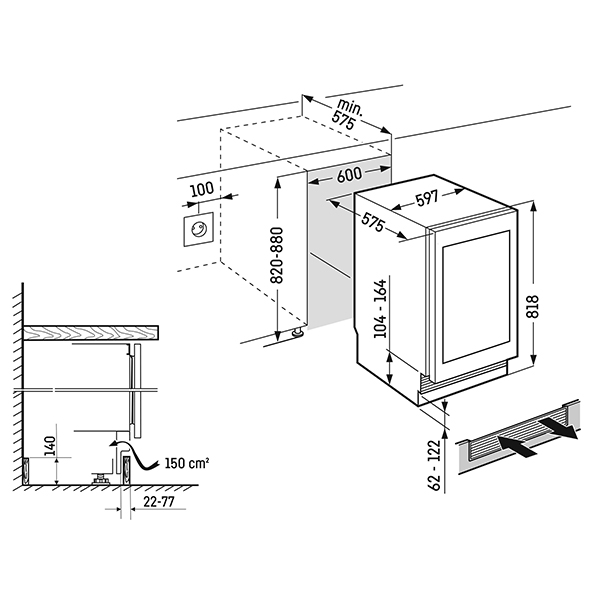

Aperture dimensions (h / w / d)82–88 / 60 / min. 58 cm

Controls – type of control2.4' TFT–colour display, touch– & swipe

Digital temperature displayFor both wine zones

Alarm in case of malfunctionVisual and acoustic

Door alarmVisual and acoustic

Child proof functionYes

Temperature zones2

Temperature range+5 °C to +20 °C

Adjustable cooling circuits2

Forced air systemConvection cooling, fresh air supply via FreshAir activated charcoal filter

Interior lightLED light column on both sides, permanently on, dimmable

InterfaceSmartDeviceBox included

Shelf materialHolzborde mit Aluminiumfront

Storage shelves5

Pull–out shelves on telescopic rails4

Door hingesReversible door hinging, right

EAN number9005382260517

Additional note ¹These models are only bound for storing wine. Maximum DIN norm Bordeaux bottles capacity (0.75 l) as per norm NF H 35–124 (H: 300.5 mm, Ø 76.1 mm).

Additional note ²In accordance with Regulation EU 2019/2016 the total volume is indicated to the nearest integer (rounded off) and the volume of the frozen compartments and refrigeration compartments to one place after the decimal point.

Timestamp11.02.2025 (Subject to modification)

Downloads

Download product documentation, manuals, and specification sheets.

UWGBI3682 Spec

PDF

Frequently Asked Questions

How many wine bottles can the UWgbi 3682 store?

The appliance can store a maximum of 32 DIN norm Bordeaux bottles (0.75 l) as per norm NF H 35–124 (H: 300.5 mm, Ø 76.1 mm).

What is the temperature range of the two wine zones?

Both wine zones can be set between +5 °C and +20 °C. The appliance has 2 temperature zones with a digital temperature display for each zone.

Is this wine fridge suitable for use in different room temperatures?

The climate rating is SN–ST, meaning it is specified for ambient temperatures from +10 °C to +38 °C.

Does the appliance have alarms or safety functions?

Yes. There is an alarm in case of malfunction and a door alarm, both visual and acoustic. A child proof function is also included.

What type of lighting and shelves are inside the fridge?

The interior features LED light columns on both sides, permanently on and dimmable. The shelf material is Holzborde mit Aluminiumfront, with 5 storage shelves, 4 of which are pull–out shelves on telescopic rails.
