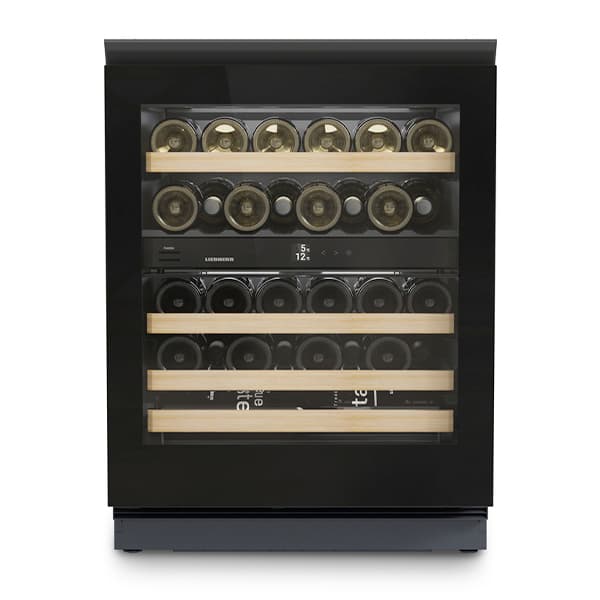

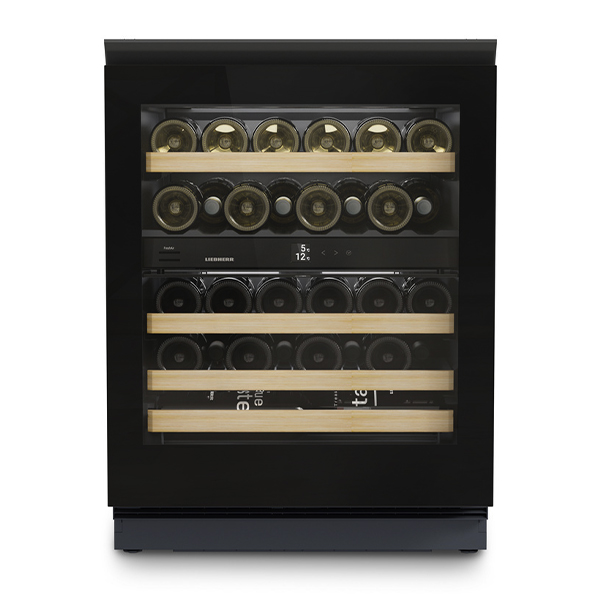

Liebherr UWgb3632 Vinidor Wine Cellar

The UWgb 3632 is a fully integrated under counter Vinidor wine fridge designed as a fixed door, under-worktop appliance for storing wine. It offers two temperature zones with a digital display for each, accommodating up to 32 Bordeaux bottles within a total volume of 98 l. With quiet 36 dB(A) operation, convection cooling, FreshAir activated charcoal filtration and dimmable LED zone lighting, it provides controlled storage for wine in a glass door cabinet with a black frame.

SKU:UWGB3632

EAN:

Category::Wine Cellars

Quantity:

Key Features

Fully integrated under counter design – fixed door, under-worktop appliance for seamless built-in installation.

Two temperature zones – temperature range from +5 °C to +20 °C for flexible wine storage.

Stores up to 32 Bordeaux bottles – capacity based on 0.75 l DIN norm Bordeaux bottles as per NF H 35-124.

Total volume 98 l – indicated in accordance with Regulation EU 2019/2016.

Quiet performance – noise output of 36 dB(A).

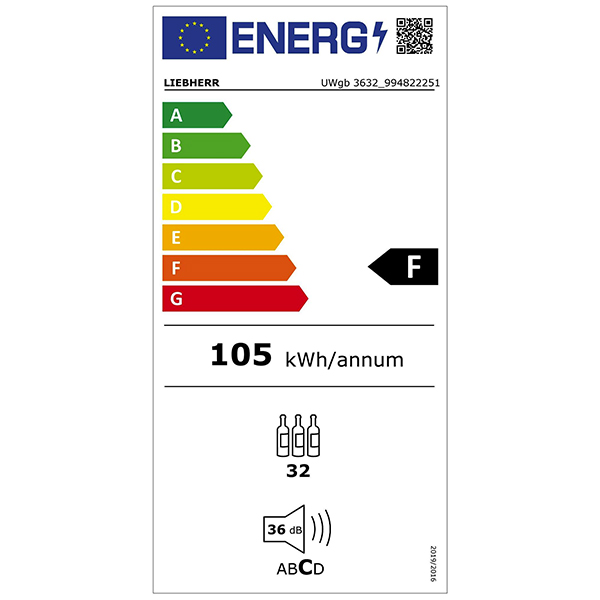

Energy consumption – 105 kWh per 365 days / 0.287 kWh per 24 h.

Climate rating SN–ST – suitable for ambient temperatures from +10 °C to +38 °C.

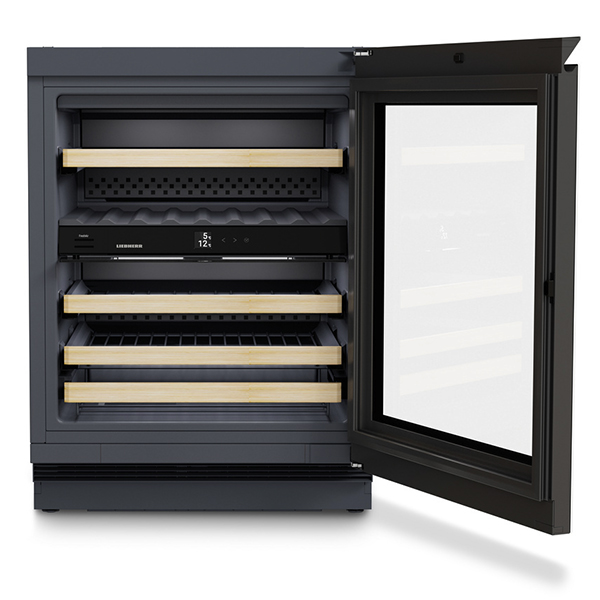

Glass door with black frame – with recessed handle and reversible right-hand door hinging.

Convection cooling with FreshAir filter – forced air system with fresh air supply via FreshAir activated charcoal filter.

LED zone lighting – interior LED zone lighting, permanently on and dimmable.

LC monochrome touch display – touch electronic controls with digital temperature display for both wine zones.

Visual and acoustic alarms – alarm in case of malfunction and door alarm, both visual and acoustic.

Child proof function – child lock feature for added control.

Adjustable cooling circuits – 2 cooling circuits to serve the two temperature zones.

Flexible shelving – 5 storage shelves with metal shelf material and wooden front, 3 on telescopic rails.

Smart connectivity ready – interface for SmartDeviceBox as an optional accessory.

Designed for wine storage – models only bound for storing wine.

Technical Spec

ModelUWgb 3632

Product typeFully integrated under counter wine fridge, Vinidor, fixed door / under-worktop appliance

Energy efficiency classNot stated in source

Energy consumption (365 days / 24 h)105 / 0.287 kWh

Maximum number of Bordeaux bottles (0.75 l)32 ¹

Total volume98 l ²

Noise output36 dB(A)

Climate ratingSN–ST (+10 °C to +38 °C)

DoorGlass door, frame black

Aperture dimensions (H / W / D)82–88 / 60 / min. 58 cm

Type of controlLC monochrome display, touch electronic

Digital temperature displayFor both wine zones

Alarm in case of malfunctionVisual and acoustic

Door alarmVisual and acoustic

Child proof functionYes

Temperature zones2

Temperature range+5 °C to +20 °C

Adjustable cooling circuits2

Cooling systemConvection cooling, fresh air supply via FreshAir activated charcoal filter

Interior lightingLED zone lighting permanently on, dimmable

HandleRecessed handle

InterfaceSmartDeviceBox: optional accessory

Shelf materialMetal shelf with wooden front

Storage shelves5

Pull-out shelves on telescopic rails3

Door hingingReversible door hinging, right

EAN9005382260319

Product timestampSubject to modification. Timestamp: 11.02.2025

Additional Details and Installation Information

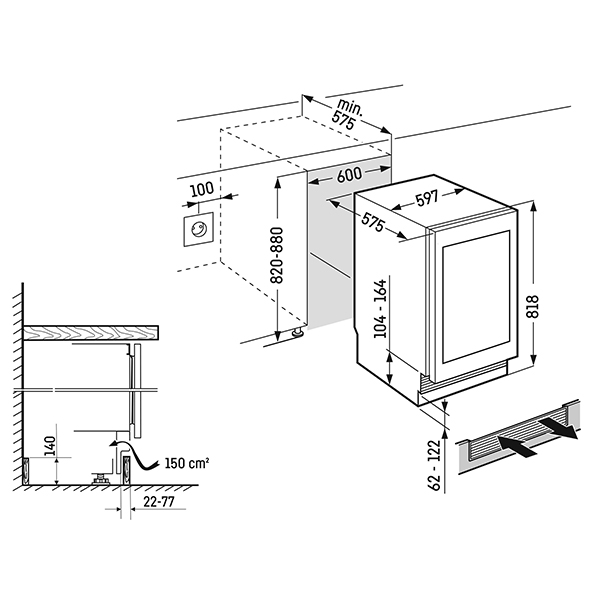

The UWgb 3632 is designed as an under-worktop appliance with aperture dimensions of 82–88 cm height, 60 cm width and minimum 58 cm depth. Installation drawings indicate a minimum installation depth of 575 mm and integration beneath a worktop, with provision for ventilation and an electrical socket positioned behind or adjacent to the appliance area.

The forced air convection cooling system uses a FreshAir activated charcoal filter to supply fresh air to the cabinet. LED zone lighting can be left permanently on and is dimmable to suit presentation and visibility needs. Reversible door hinging to the right and a recessed handle support flexible integration into cabinetry.

Safety and control features include a visual and acoustic alarm in case of malfunction, a visual and acoustic door alarm, and a child proof function. Two adjustable cooling circuits support the two temperature zones, with settings managed via the LC monochrome touch electronic control and digital temperature display for both wine zones.

Downloads

Download product documentation, manuals, and specification sheets.

UWGB3632 Spec

PDF

Frequently Asked Questions

How many wine bottles can the UWgb 3632 store?

The UWgb 3632 can store up to 32 Bordeaux bottles of 0.75 l. This capacity is based on DIN norm Bordeaux bottles as per norm NF H 35-124 with a height of 300.5 mm and diameter of 76.1 mm.

What is the temperature range for the wine zones?

The wine fridge has two temperature zones, each with a temperature range from +5 °C to +20 °C. Temperatures are shown on a digital display for both wine zones and are set via the LC monochrome touch electronic controls.

Is this appliance suitable for built-in under-worktop installation?

Yes. The UWgb 3632 is a fully integrated under counter, under-worktop appliance with a fixed door. It is designed for installation in an aperture with dimensions of 82–88 cm height, 60 cm width and minimum 58 cm depth, as shown in the installation drawings.

What kind of door and handle does the UWgb 3632 have?

The appliance features a glass door with a black frame and a recessed handle. The door hinging is right as standard, and the hinging is reversible to suit different kitchen layouts.

Does the wine fridge have alarms or safety functions?

Yes. It has a visual and acoustic alarm in case of malfunction and a visual and acoustic door alarm. A child proof function is also included to help prevent unauthorised changes to settings.

Is the UWgb 3632 network-capable or smart-home ready?

The UWgb 3632 has an interface for a SmartDeviceBox, which is available as an optional accessory. Details of specific smart functions are not stated in source.
