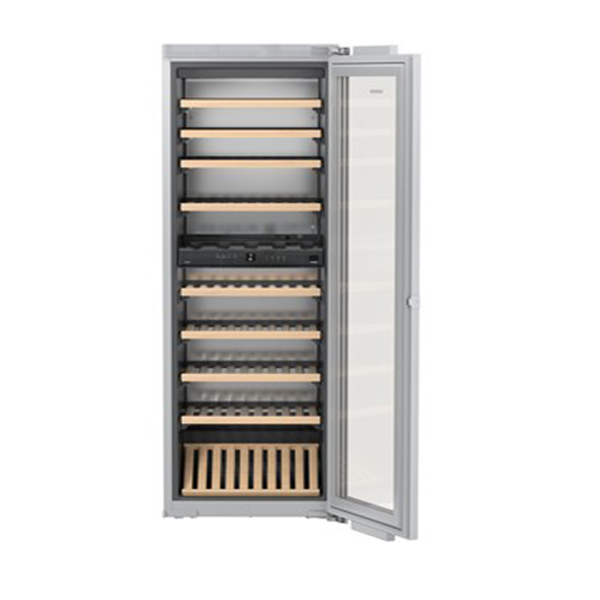

Liebherr EWTdf3553 Vinidor Winecellar

The Liebherr EWTdf 3553 Vinidor is a built-in wine cabinet designed for storing wine in optimal conditions. With a total volume of 254 litres and capacity for up to 80 standard Bordeaux bottles, it offers two independently controlled temperature zones from +5°C to +20°C. SuperSilent operation at 32 dB(A), FreshAir activated charcoal filtration and dimmable LED interior lighting support high-quality wine storage in a climate rating of SN–ST (+10°C to +38°C).

SKU:EWTdf3553

EAN:9005382234037

Category::Wine Cellars

Quantity:

Key Features

Dual temperature zones – 2 temperature zones with a range from +5°C to +20°C for flexible wine storage.

Capacity up to 80 bottles – stores a maximum of 80 DIN norm Bordeaux bottles (0.75 l) as per NF H 35-124.

Total volume 254 litres – generous internal volume for wine storage only.

Built-in design – type: built-in décor panel with door-on-door assembly for integration into cabinetry.

SuperSilent performance – airborne acoustical noise emissions of 32 dB(A) / B.

FreshAir activated charcoal filter – forced air system helps maintain air quality inside the cabinet.

LED interior lighting – permanently customisable and dimmable LED light to showcase stored bottles.

Convenient shelving – 10 wooden storage shelves (Holzbord) including 8 pull-out shelves on telescopic rails.

LCD control with temperature display – type of control: LCD display with temperature indication.

Child-proof function – integrated child-proof function for added security.

Warning signals – visual and audible fault warning plus audible door-open warning signal.

Reversible door hinges – door hinges on the right, reversible for installation flexibility.

Overlay-ready door – will accept an overlay furniture panel or a stainless steel overlay kit accessory.

Energy information – energy consumption 175.93 (365 days/24 h); energy efficiency class: Not stated in source.

Climate rating SN–ST – suitable for ambient temperatures from +10°C to +38°C.

Technical Spec

Product nameEWTdf 3553 Vinidor

Model classification2 (Appliances with cooling- und cellar-box)

Energy efficiency classNot stated in source

Energy consumption175.93 (365 days/24 h)

Total volume254 litre

Maximum Bordeaux bottles (0.75 l)80 (maximum DIN norm Bordeaux bottles capacity (0.75 l) as per norm NF H 35-124, H: 300.5 mm, Ø 76.1 mm)

Climate ratingSN–ST (+10°C to +38°C)

Airborne acoustical noise emissions32 dB(A) / B, SuperSilent

Frequency / voltage50 Hz / 220–240 V~

Connection rating1.0 A

DoorWill accept an overlay furniture panel or a s/steel overlay kit accessory

Temperature zones2

Temperature range+5°C to +20°C

Adjustable cooling circuits2

Type of controlLCD display

Temperature displayNot stated in source

Forced air systemFreshAir activated charcoal filter

Interior lightPermanently customisable / dimmable; LED; yes / yes

Child-proof functionYes

Fault: warning signalVisual and audible

Door open: warning signalAudible

Shelf materialHolzbord wooden shelf

Storage shelves10

Pull-out shelves on telescopic rails8

Door hingesRight, reversible

Type of applianceType Built-in dècor panel

Door assemblyDoor on Door

Height177.2–178 cm

Width56–57 cm

Depthmin. 55 cm

EAN number9005382234037

Downloads

Download product documentation, manuals, and specification sheets.

EWTdf3553 Spec

PDF

Frequently Asked Questions

How many wine bottles can the cabinet hold?

The cabinet can store a maximum of 80 DIN norm Bordeaux bottles (0.75 l) as per norm NF H 35-124, with a bottle height of 300.5 mm and diameter of 76.1 mm.

What temperature range can be set?

The available temperature range is from +5°C to +20°C. There are two temperature zones and two adjustable cooling circuits for flexible settings.

Is this appliance suitable for built-in installation?

Yes. It is a built-in décor panel appliance with door-on-door assembly. The door will accept an overlay furniture panel or a stainless steel overlay kit accessory.

How noisy is the EWTdf 3553 Vinidor?

Airborne acoustical noise emissions are 32 dB(A) / B, described as SuperSilent.

What safety features are included?

The appliance includes a child-proof function, a visual and audible fault warning signal, and an audible door-open warning signal.

What are the main dimensions for installation?

The stated dimensions are a height of 177.2–178 cm, width 56–57 cm and minimum depth 55 cm.
