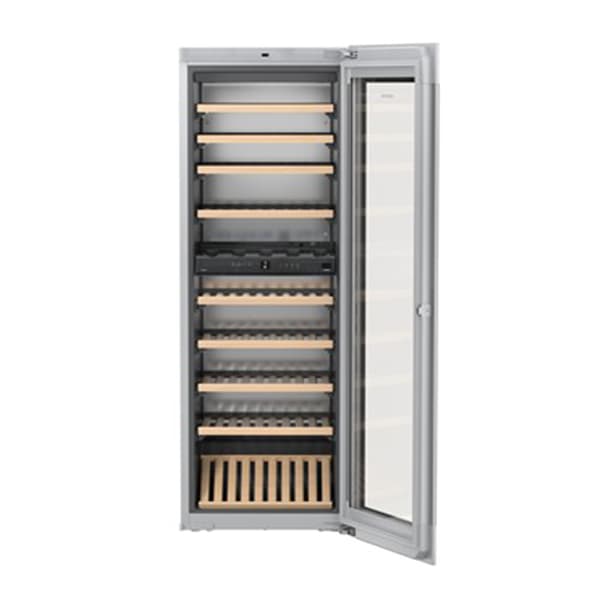

Liebherr EWTgb3583 Vinidor Winecellar

The EWTgb 3583 is a built-in multi–temperature wine fridge designed for integrated use, offering a total volume of 276 l and space for up to 83 Bordeaux bottles (0.75 L). With two independently controlled wine zones, adjustable from +5 °C to +20 °C, it suits users who need flexible storage for different wines. Features such as LCD touch controls, LED lighting and beech wood shelves support practical, attractive wine storage.

SKU:EWTGB3583

EAN:9005382234099

Category::Wine Cellars

Quantity:

Key Features

Built-in, flush design – appliance for integrated use with black insulated glass door, handle and frame free.

Two temperature zones – independent wine zones with digital temperature display for both zones.

Flexible temperature range – adjustable from +5 °C to +20 °C with 2 adjustable cooling circuits.

Generous bottle capacity – stores up to 83 Bordeaux bottles (0.75 L) in accordance with norm NF H 35-124.

Low noise operation – noise output of 32 dB(A) for quiet performance.

Efficient energy use – energy consumption of 165 kWh per 365 days (0.452 kWh / 24 h).

Convection cooling with FreshAir filter – forced air system with fresh air supply via FreshAir activated charcoal filter.

LED interior lighting – permanently on, dimmable lighting to showcase stored bottles.

Quality shelving – beech wood fittings with 10 storage shelves, 8 pull–out on telescopic rails.

User–friendly LCD controls – touch electronic operation with clear LCD display.

Alarm and safety functions – visual and acoustic alarm in case of malfunction, acoustic door alarm and child proof function.

Reversible door hinging – right–hand hinged door, reversible for flexible kitchen planning.

Climate rating SN – suitable for ambient temperatures from +10 °C to +32 °C.

Technical Spec

ModelEWTgb 3583

Product typeBuilt-in multi–temperature wine fridge, Vinidor, flush / Built-in appliance for integrated use

Energy efficiency classNot stated in source

Energy consumption (365 days / 24 h)165 / 0.452 kWh

Total volume276 l

Maximum number of Bordeaux bottles (0.75 L)83 ¹

Noise output32 dB(A)

Climate ratingSN (+10 °C to +32 °C)

DoorBlack insulated glass door, handle and frame free

Aperture dimensions (h / w / d)177.2–178 / 56–57 / min. 55 cm

Type of controlLCD display, touch electronic

Digital temperature displayFor both wine zones

Temperature zones2

Temperature range+5 °C to +20 °C

Adjustable cooling circuits2

Forced air systemConvection cooling, fresh air supply via FreshAir activated charcoal filter

Interior lightLED lighting permanently on, dimmable

Shelf materialBeech wood fittings

Storage shelves10

Pull–out shelves on telescopic rails8

Door hingesReversible door hinging, right

Child proof functionYes

Alarm in case of malfunctionVisual and acoustic

Door alarmAcoustic

EAN number9005382279038

Note on bottle capacityMaximum DIN norm Bordeaux bottles capacity (0.75 l) as per norm NF H 35-124 (H: 300.5 mm, Ø 76.1 mm)

Volume indicationIn accordance with Regulation EU 2019/2016, total volume indicated to the nearest integer (rounded off); volume of frozen and refrigeration compartments to one place after the decimal point.

Downloads

Download product documentation, manuals, and specification sheets.

EWTGB3583 Spec

PDF

Frequently Asked Questions

How many wine bottles can the EWTgb 3583 hold?

The fridge can store up to 83 Bordeaux bottles (0.75 L) based on maximum DIN norm Bordeaux bottle capacity as per norm NF H 35-124 (H: 300.5 mm, Ø 76.1 mm).

What temperature range does this wine fridge offer?

The appliance offers a temperature range from +5 °C to +20 °C across two separate temperature zones, each managed by adjustable cooling circuits and shown on digital displays.

Is the EWTgb 3583 suitable for built–in installation?

Yes. It is a flush, built–in appliance for integrated use. The specified aperture dimensions are 177.2–178 cm in height, 56–57 cm in width and a minimum depth of 55 cm.

How noisy is the wine fridge during operation?

The specified noise output is 32 dB(A).

What safety features are included?

The wine fridge includes a visual and acoustic alarm in case of malfunction, an acoustic door alarm and a child proof function.

What are the door and shelving features?

It has a black insulated glass door that is handle and frame free, with reversible right–hand hinging. Inside, there are beech wood fittings with 10 storage shelves, 8 of which are pull–out on telescopic rails.
