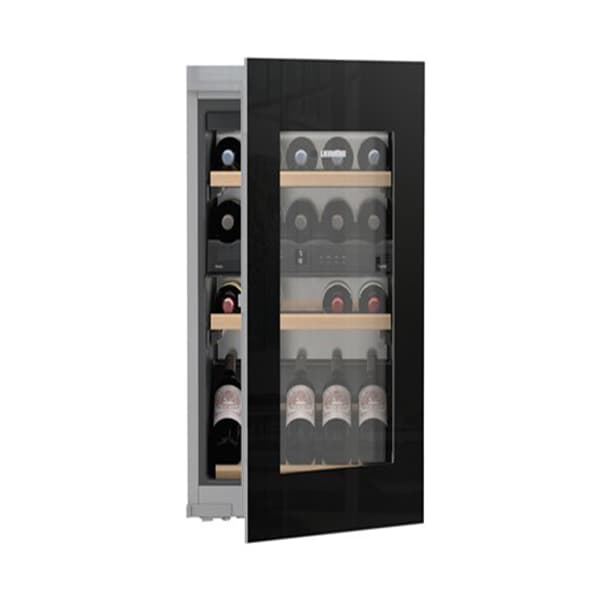

Liebherr EWTgb1683 Vinidor Winecellar

The EWTgb 1683 is a built–in, flush–fit multi–temperature wine fridge from the Vinidor range, designed for integrated use in climate rating SN environments. It offers two temperature zones with a range from +5 °C to +20 °C and storage for up to 33 Bordeaux bottles (0.75 L). With low noise output, LED interior lighting and beech wood shelves, it is suitable for storing wine under controlled conditions at home.

SKU:EWTGB1683

EAN:9005382234051

Category::Wine Cellars

Quantity:

Key Features

Built–in, flush design – appliance designed as a flush / built–in unit for integrated use.

Two temperature zones – dedicated 2 temperature zones with a range from +5 °C to +20 °C.

Capacity up to 33 Bordeaux bottles – stores a maximum of 33 DIN norm Bordeaux bottles (0.75 L) as per norm NF H 35–124.

Low energy consumption – energy consumption of 143 kWh per 365 days / 0.391 kWh per 24 h.

Quiet operation – noise output of 32 dB(A).

Digital LCD controls – LCD display with touch electronic control and digital temperature display for both wine zones.

Convection cooling with FreshAir filter – forced air system with fresh air supply via a FreshAir activated charcoal filter.

LED interior lighting – permanently on, dimmable LED lighting for the cabinet interior.

Beech wood shelves – beech wood fittings with 4 storage shelves, including 2 pull–out shelves on telescopic rails.

Black insulated glass door – handle and frame free black insulated glass door with reversible door hinging (right).

Safety alarms – visual and acoustic alarm in case of malfunction plus acoustic door alarm.

Child proof function – child proof function included.

Adjustable cooling circuits – 2 adjustable cooling circuits for the separate zones.

Total volume 105 l – total volume stated as 105 l in accordance with Regulation EU 2019/2016.

Climate rating SN – suitable for ambient temperatures from +10 °C to +32 °C.

Technical Spec

Product nameEWTgb 1683

Product typeBuilt–in multi–temperature wine fridge, Vinidor; Type flush / Built–in appliance for integrated use

Energy efficiency classNot stated in source

Energy consumption143 / 0.391 kWh (Energy consump. in 365 days / 24 h)

Maximum number of Bordeaux bottles (0.75 L)33 ¹

Bottle standardDIN norm Bordeaux bottles capacity (0.75 l) as per norm NF H 35–124 (H: 300.5 mm, Ø 76.1 mm)

Total volume105 l ²

Noise output32 dB(A)

Climate ratingSN (+10 °C to +32 °C)

Door designBlack insulated glass door, handle and frame free

Door hingesReversible door hinging, right

Aperture dimensions (h / w / d)87.4–89 / 56–57 / min. 55 cm

ControlsLCD display, touch electronic

Digital temperature displayDigital temperature display for both wine zones

Malfunction alarmVisual and acoustic

Door alarmAcoustic

Child proof functionYes

Temperature zones2

Temperature range+5 °C to +20 °C

Adjustable cooling circuits2

Forced air systemConvection cooling, fresh air supply via FreshAir activated charcoal filter

Interior lightLED lighting permanently on, dimmable

Shelf materialBeech wood fittings

Storage shelves4

Pull–out shelves on telescopic rails2

EAN9005382278994

Additional note 1These models are only bound for storing wine.

Additional note 2In accordance with Regulation EU 2019/2016 the total volume is indicated to the nearest integer (rounded off) and the volume of frozen compartments and refrigeration compartments to one place after the decimal point.

Timestamp13.01.2025

Downloads

Download product documentation, manuals, and specification sheets.

EWTGB1683 Spec

PDF

Frequently Asked Questions

How many wine bottles can the EWTgb 1683 store?

The EWTgb 1683 can store a maximum of 33 DIN norm Bordeaux bottles (0.75 L) as per norm NF H 35–124 with a bottle height of 300.5 mm and diameter of 76.1 mm.

What temperature range do the wine zones cover?

Both wine zones operate within a temperature range from +5 °C to +20 °C and are managed by two adjustable cooling circuits with digital temperature display for each zone.

Is this appliance suitable for freestanding use?

The EWTgb 1683 is described as a flush / built–in appliance for integrated use and is intended for installation in a suitable aperture. Freestanding use is not stated in source.

What kind of door does the wine fridge have?

It has a black insulated glass door that is handle and frame free, with reversible door hinging supplied right–hand hinged.

Is the EWTgb 1683 designed only for wine storage?

Yes. These models are stated as only bound for storing wine.

What is the noise level of the appliance?

The noise output is specified as 32 dB(A).
