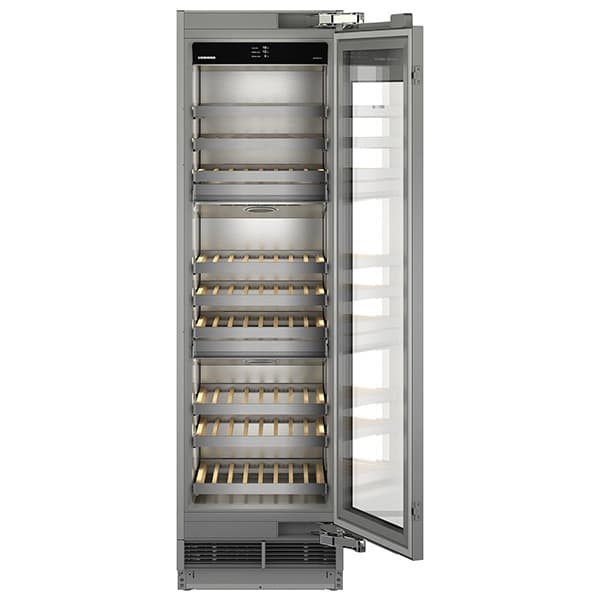

The Liebherr Monolith EWT 9275 is a built-in wine cabinet designed for discerning wine collectors. It offers storage for up to 100 Bordeaux bottles with dual temperature zones from +5°C to +20°C. Features such as InfinityLight, SoftSystem door closing, SoftTelescopic wooden shelves and a FreshAir activated charcoal filter help to protect wine quality. With intuitive InfinitySwipe controls, an insulated glass door and flexible installation options, it suits high-end kitchen designs and side-by-side layouts.
The wine cabinet is designed for flush installation in units with a depth of 635 mm using stainless steel or customer-specific panels. For inset installation, the recess dimensions are H = 2029 mm / W = 603 mm, and for overlay installation H = 2032 mm (plus panel overlap at the top) / W = 610 mm (plus panel overlap on both sides). Panel thickness must be between 16 mm (minimum) and 30 mm (maximum), with a maximum panel weight of 24 kg for this model.
The appliance depth is 610 mm and it can be installed in a fitted unit of standard European depth (610 mm) or deeper cut-outs of 635 mm. Unit depth with overlay door panel installation is 635 mm; for inset door panel installation it is 635 mm plus the thickness of the custom panel. The adjustable feet are fully retracted for the minimum height and can be raised to bring the appliance into contact with the anti-tipping device. To achieve a minimal plinth panel height of 102 mm, the adjustable feet must be raised by 6 to 8 mm; they can be raised by a maximum of 19 mm if a higher plinth is required.
Monolith appliances are ventilated entirely via the plinth panel. Door panels must close at least 102 mm above the floor and the grill in the plinth panel must not be obstructed. Spacers supplied with the appliance must be fitted to separate warm outgoing air from fresh incoming air. Optional stainless steel plinth panels 102 mm high are available in widths including 61.0 cm (article 9901 496 for model EWT 9275).
The space in which the appliance is installed must have a floor capable of bearing the weight of the appliance plus food, be level, and provide correctly measured recess dimensions and a suitably positioned power socket. Monolith appliances should only be installed next to Liebherr refrigerators, freezers or wine cabinets. For Side-by-Side installations where the distance between units is less than 102 mm, a Side-by-Side set is required. Installation options include individual positioning, Side-by-Side in a fitted unit, Side-by-Side in separate units, and combinations with three units.
To prevent door and handle collisions with adjoining elements, a minimum spacing of 76 mm must be included for a door opening limited to 90°. A 90° door opening limiter is included in the scope of supply; the door opening angle is 115° as supplied and can be limited by inserting a peg into the hinge. For back-to-back door positioning with a limiter and opening to the centre, a dividing wall of at least 154 mm is required.
The Anti-tipping device at the base of the appliance must be secured to the floor or wall. Once positioned in the recess, the appliance is raised with the adjustable feet from the front until it contacts the anti-tipping device. Installations behind the appliance are not possible due to the required recess area for cable and water line routing (depth 25 mm, height 140 mm across the entire width).
For best performance, the appliance must be operated within the specified ambient temperature range for its climate class SN–ST (10°C to 38°C). The refrigerant circuit has been checked for tightness and the appliance complies with applicable safety regulations. It is intended for storing wine and is not described for other uses in the source information.
The appliance must only be operated using alternating current within the permitted voltage and frequency. Power sockets must be earthed, electrically protected, not located behind the appliance and easily accessible. A separate electrical circuit is recommended. The appliance must not be connected via extension cables, multi-sockets or inverters due to risk of overheating, fire and damage to control electronics. It must not be connected to unearthed power sockets.
To prevent the appliance from tipping over, the anti-tipping device supplied must be correctly fitted as described in the installation instructions. The manufacturer notes that all repairs and work on components such as InfinitySpring or IceMaker (where fitted on other Monolith models) must only be undertaken by customer service staff or trained individuals. For this wine cabinet, no IceMaker or InfinitySpring is specified in the provided information.
For custom panels, the maximum permitted panel weight of 24 kg must not be exceeded. Other materials made of wood up to 30 mm thick may be used provided this weight limit is respected.
The cabinet can store up to 100 Bordeaux bottles of 0.75 l each. The total internal volume is specified as 320 litres.
The EWT 9275 provides an adjustable temperature range from +5°C to +20°C. It has three temperature zones with an InfinitySwipe control system that can display up to three temperatures for cabinets with multiple zones.
Safety features include a visual and audible temperature alarm, an audible door alarm, a safety thermostat and InfinityProtection with two temperature sensors in each wine safe. The SoftSystem door closing technology minimises vibrations by ensuring the door closes gently.
The appliance requires a recess of approximately 213.4 cm height, 61 cm width and 63.5 cm depth. Panel thickness must be between 16 mm and 30 mm, with a maximum panel weight of 24 kg. Ventilation must be via a 102 mm high plinth panel, and the anti-tipping device must be secured. A minimum spacing of 76 mm is needed to avoid door collisions when the opening angle is limited to 90°.
Yes. The insulated glass door is supplied with a right-hand hinge, and the hinge can be reversed. Reversals must be carried out by authorised Liebherr Monolith customer service using the appropriate door hinge exchange set.
Dedicated accessories include FreshAir activated charcoal filters (9882 471 and 9882 304), a stainless steel bottle presenter (9882 303), a set of 3 bars for wooden shelves (9903 024), a 61.0 cm stainless steel plinth panel (9901 496), various handle options, Side-by-Side sets and stainless steel cleaning products for Monolith models.
