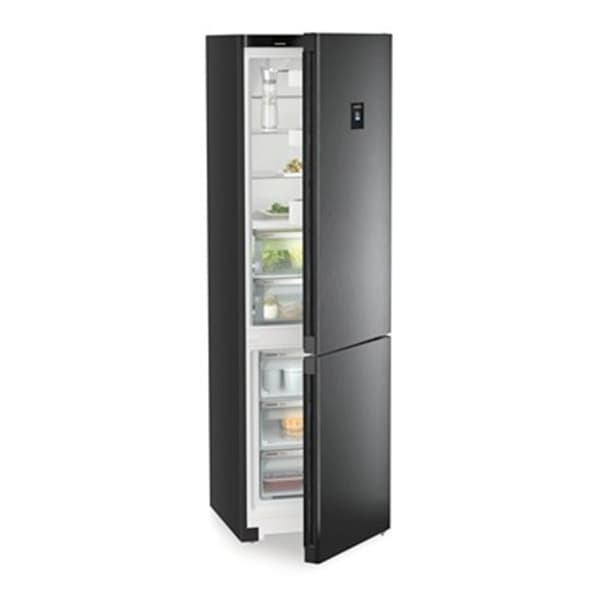

The CBNbdc 573i is a fridge–freezer with BioFresh and NoFrost Plus, offering a total volume of 360 l. It is designed for users who want precise digital control, flexible storage and quiet operation at 35 dB(A). With BlackSteel doors, SmartDeviceBox included and dedicated BioFresh safes for fruit, vegetables, meat and dairy, it combines convenient organisation with efficient cooling and freezing performance.

Key Features

Fridge–freezer with BioFresh and NoFrost Plus for combined refrigeration and freezing with specialised freshness technology.
Total volume 360 l with 158.8 l fridge, 98.9 l BioFresh compartment and 103 l freezer compartment.
Low noise output 35 dB(A) for quiet operation in living spaces.
BlackSteel door and black side walls for a coordinated, dark exterior finish.
2.4' TFT colour display in-the-door with touch & swipe controls and digital temperature display for fridge, BioFresh and freezer compartments.
SmartDeviceBox included providing an interface for connected functionality.
PowerCooling with FreshAir activated charcoal filter for forced air circulation in the fridge compartment.
LED ceiling lighting for clear illumination of the fridge interior.
BioFresh storage with 2 safes on telescopic partial pull-out, including 1 Fruit & Vegetable safe and 1 Meat & Dairy safe.
Freezer compartment with **** star coding, 3 drawers and VarioSpace for flexible storage.
Freezing capacity 10 kg in 24 hours and temperature rise time of 20 hours.
Reversible door hinging (right as delivered) and replaceable door seal for adaptability and maintenance.
Visual and acoustic door alarm and visual and acoustic malfunction alarm for added security.
Plastic door shelves with bottle holder, egg tray and FlexCube plus an integrated bottle shelf for organised storage.
Climate rating SN–T for operation from +10 °C to +43 °C.
Exterior dimensions 201.5 / 59.7 / 67.5 cm (h / w / d) for planning and installation.
Energy consumption 181 kWh per year (0.495 kWh per 24 h) under specified conditions.

Technical Specifications

Product name	CBNbdc 573i – Fridge-freezer with BioFresh and NoFrost Plus
Energy efficiency class	Not stated in source
Energy consumption (365 days / 24 h)	181 / 0.495 kWh
Total volume	360 l
Fridge volume	158.8 l
BioFresh compartment volume	98.9 l
Freezer compartment volume	103 l
Noise output	35 dB(A)
Climate rating	SN–T (+10 °C to +43 °C)
Door / Side walls	BlackSteel / black
Exterior dimensions (h / w / d)	201.5 / 59.7 / 67.5 cm
Type of control	2.4' TFT-colour display in-the-door, touch- & swipe
Temperature display	Digital temperature display for fridge, BioFresh and freezer compartments
Interface	SmartDeviceBox included
Door alarm	Visual and acoustic
Malfunction alarm	Visual and acoustic
Fridge forced air system	PowerCooling with FreshAir activated charcoal filter
Door interior (fridge)	Plastic door shelves with bottle holder, egg tray, FlexCube
Bottle storage	Integrated bottle shelf
Interior light (fridge)	LED ceiling lighting
BioFresh-Safes	2 BioFresh safes with telescopic partial pull-out, 1 Fruit & Vegetable safe, 1 Meat & Dairy safe
Freezer star coding	****
Number of freezer drawers	3 drawers, VarioSpace
Freezing capacity in 24 hours	10 kg
Temperature rise time	20 h
Door hinges	Reversible door hinging, right
Replaceable door seal	Yes
EAN number	4016803129271

To achieve the indicated energy consumption level, the wall spacers provided with the appliance must be used. These increase the appliance depth by approximately 1.5 cm. If the wall spacers are not used, the appliance will remain fully functional, but will have a slightly higher energy consumption level.

In accordance with Regulation EU 2019/2016 the total volume is indicated to the nearest integer (rounded off) and the volume of the frozen compartments and refrigeration compartments to one place after the decimal point.

Subject to modification. Timestamp: 04.12.2024

Additional Details and Usage Information

The appliance is suitable for ambient temperatures between +10 °C and +43 °C (climate rating SN–T). The included SmartDeviceBox provides an interface for connected use. Visual and acoustic alarms warn if a door is left open or in case of malfunction.

In the fridge compartment, the PowerCooling system with FreshAir activated charcoal filter distributes cold air. LED ceiling lighting ensures a well-lit interior. Plastic door shelves with bottle holder, egg tray and FlexCube, together with an integrated bottle shelf, support organised storage.

The BioFresh section offers 2 safes on telescopic partial pull-outs, configured as 1 Fruit & Vegetable safe and 1 Meat & Dairy safe. The freezer compartment has **** star coding, 3 drawers and VarioSpace, with a freezing capacity of 10 kg in 24 hours and a temperature rise time of 20 hours.

The door hinging is right as standard but reversible. The door seal is replaceable. Using the supplied wall spacers increases the depth by approximately 1.5 cm and is required to reach the stated energy consumption.

Frequently Asked Questions

What is the total capacity of the CBNbdc 573i?

The total volume is 360 l, with 158.8 l for the fridge, 98.9 l for the BioFresh compartment and 103 l for the freezer compartment.

What are the exterior dimensions?

The exterior dimensions are 201.5 cm in height, 59.7 cm in width and 67.5 cm in depth. Using the supplied wall spacers increases the depth by approximately 1.5 cm.

How loud is the appliance in operation?

The noise output is 35 dB(A).

Does it support smart connectivity?

Yes. An interface is provided via the SmartDeviceBox, which is included with the appliance.

What kind of alarms does it have?

There is a visual and acoustic door alarm, as well as a visual and acoustic alarm in case of malfunction.

Can I change the door hinging?

Yes. The appliance is supplied with right-hand door hinging, but the door hinging is reversible. The door seal is also replaceable.
