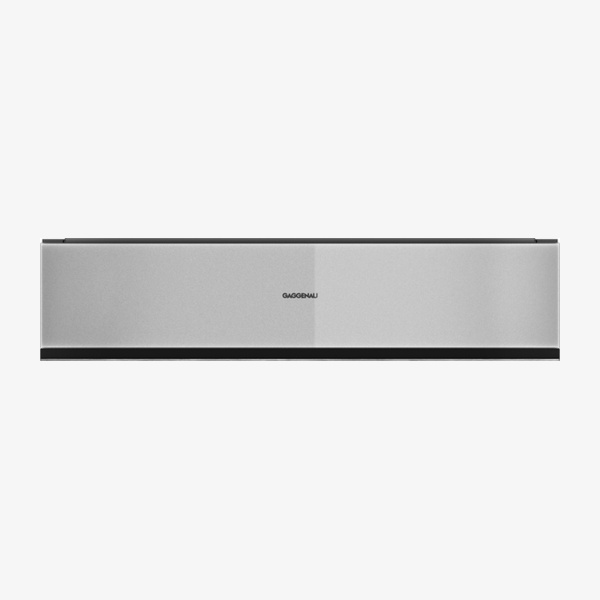

Gaggenau Minimalist 200 Series GV251130 Vacuum Drawer

The Gaggenau GV251130 is a vacuuming drawer from the Minimalistic series, designed for flush, handleless integration in a 14 cm high niche. It offers a hygienic stainless steel vacuuming chamber with up to 99% vacuuming in the chamber and up to 90% outside the chamber. With touch key operation, three vacuuming and heat-sealing levels and included accessories, it supports sous-vide cooking, fast marinating, flavouring and vacuuming of containers and bottles.

SKU:GV251130

EAN:

Category::Warming Drawers

Quantity:

Key Features

Integrable in 14 cm high niche for a seamless fit in compatible kitchen furniture.

Hygienic stainless steel vacuuming chamber with applicable height up to 95 mm.

3 vacuuming levels in the chamber providing up to max. 99% vacuuming.

3 vacuuming levels outside the chamber providing up to max. 90% vacuuming.

Automatic connection recognition for vacuuming outside the chamber.

Flush installation and handleless drawer with push-to-open function for a minimalistic look.

Vacuuming for sous-vide cooking to prepare food in vacuum-sealed bags.

Vacuuming for fast marinating and flavouring of foods.

Vacuuming of containers outside the chamber using compatible vacuuming equipment.

Vacuuming of liquids in bottles outside the chamber with adaptors and plugs.

Net volume 7 litres with maximum capacity load of 10 kg.

3 heat-sealing levels for different strengths of bag material.

Maximum vacuuming bag size of W 240 mm x L 350 mm.

Non-stick, removable sealing bar for easier handling.

Safety glass cover that opens automatically after vacuuming.

Raised vacuuming platform, 44 mm , deployable for flexible positioning.

Utility space in vacuuming chamber of W 210 mm x L 275 mm.

Membrane to avoid reflow of liquids during vacuuming outside the chamber.

Drying programme for vacuuming pump to support maintenance of performance.

Included accessories comprise vacuuming bags, platforms, adaptors, hose and bottle plugs.

Technical Spec

ModelGV251130

Product typeVacuuming drawer Gaggenau Minimalistic series

Front dimensions60 x 14 cm

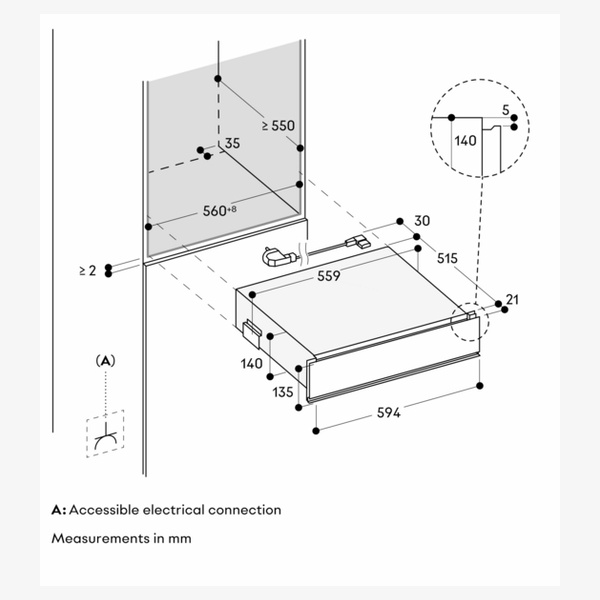

Niche integrationIntegrable in 14 cm high niche; plan niche without back wall

Vacuuming chamber materialHygienic stainless steel

Applicable chamber heightUp to 95 mm

Net volume7 litres

Maximum load capacityMax. 10 kg

Vacuum levels (in chamber)3 levels, max. 99% vacuuming

Vacuum levels (outside chamber)3 levels, max. 90% vacuuming

Maximum bag sizeW 240 mm x L 350 mm

Utility space in chamberW 210 mm x L 275 mm

Raised vacuuming platform44 mm, deployable

ControlsTouch key operation; push-to-open function

Installation styleFlush installation; handleless drawer

Protrusion from cabinet front21 mm from appliance front to furniture cabinet

Heat-sealing levels3 levels for different strengths of bag material

Sealing barNon-stick coating, removable

CoverSafety glass cover, opens automatically after vacuuming

Membrane functionMembrane for avoiding reflow of liquids during vacuuming outside the chamber

Drying programmeDrying programme for vacuuming pump

Included accessories50 x vacuuming bag small; 50 x vacuuming bag big; 1 x raised vacuuming platform; 1 x adaptor for vacuuming outside the chamber; 1 x vacuuming hose; 1 x adaptor for bottle plugs; 3 x plugs for vacuuming of bottles

Special accessoriesPart No. 00578813 vacuuming bags, small; Part No. 00578814 vacuuming bags, big

Appliance combinationsInstallation of GO/GS/GM/GC directly above the drawer without intermediate shelf

Dishwasher planningDrawers installed above a dishwasher need a specific niche

Socket positioningThe socket can be planned behind the appliance

Total connected load0.32 KW

Connection cable1.50 m, pluggable

Downloads

Download product documentation, manuals, and specification sheets.

GV251130 Spec

PDF

Frequently Asked Questions

What is the niche requirement for installing the GV251130 vacuuming drawer?

The vacuuming drawer is integrable in a 14 cm high niche. The niche should be planned without a back wall, and the protrusion from the appliance front to the furniture cabinet is 21 mm.

What vacuum levels does the drawer provide?

There are three vacuuming levels for vacuuming in the chamber with up to a maximum of 99% vacuuming, and three vacuuming levels for vacuuming outside the chamber with up to a maximum of 90% vacuuming.

Which applications is this vacuuming drawer designed for?

It is designed for vacuuming for sous-vide cooking, vacuuming for fast marinating and flavouring, vacuuming of vacuuming containers outside the chamber and vacuuming of liquids in bottles outside the chamber.

What is included with the GV251130 as standard accessories?

Included are 50 small vacuuming bags, 50 big vacuuming bags, one raised vacuuming platform, one adaptor for vacuuming outside the chamber, one vacuuming hose, one adaptor for bottle plugs and three plugs for vacuuming bottles.

Can this vacuuming drawer be combined with other Gaggenau appliances?

Yes. GO, GS, GM and GC appliances can be installed directly above the drawer without an intermediate shelf, according to the planning notes.

Are there special accessories available for vacuuming bags?

Special accessories available as spare parts include Part No. 00578813 for small vacuuming bags and Part No. 00578814 for big vacuuming bags.
