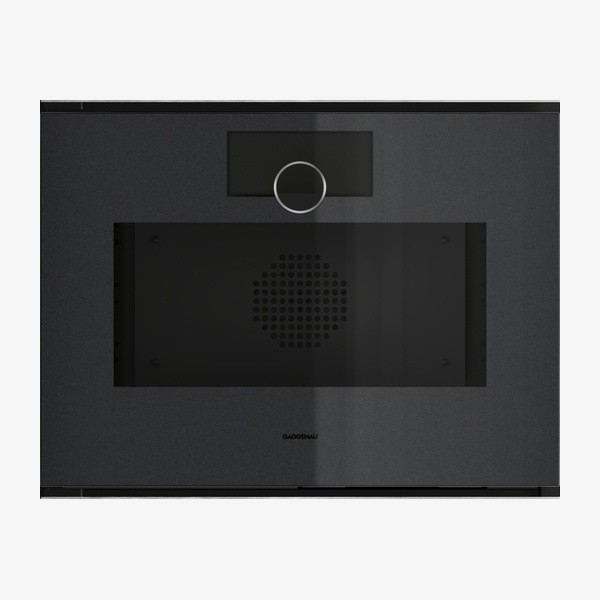

Gaggenau Minimalist Series GS271100 Combi Steam Oven

The GS271100 is a built-in combi-steam oven with a net volume of 50 litres and energy efficiency rating A. It is designed for flush installation with a handleless full glass door, electronic door opening and full touch display with stainless steel control ring. Offering hot air with adjustable humidity levels, sous-vide cooking, grill functions and automatic cleaning with descaling, it suits users seeking precise temperature control, convenient programmes and integrated water connection.

SKU:GS271100

EAN:

Category::Ovens

Quantity:

Key Features

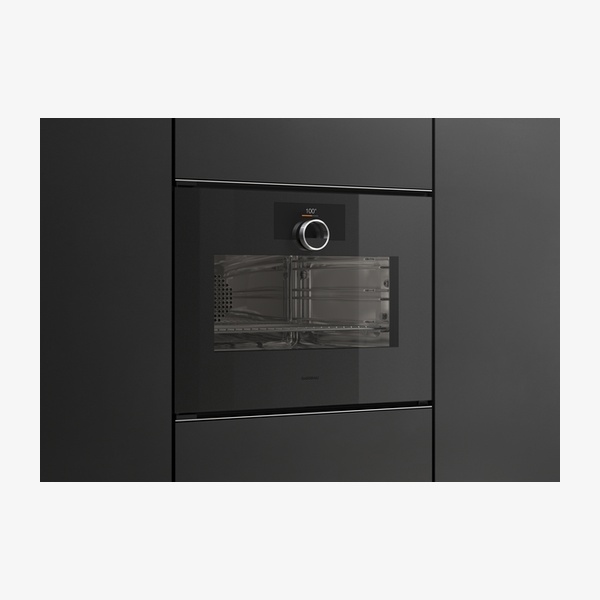

Flush built-in installation with handleless full glass door and electronic door opening.

Full touch display with stainless steel control ring plus light and display response upon user detection.

External steam generation with fixed inlet and outlet water connection and automatic descaling for the steam generator.

Net volume 50 litres cavity with 3 tray levels and optimum visibility thanks to side lighting.

Hot air 30 °C to 230 °C combinable with humidity levels of 0%, 30%, 60%, 80% or 100%.

Sous-vide cooking with accurate temperature regulation and connection for a core temperature probe.

Full surface grill 2 kW behind glass ceramic, combinable with circulated air up to 230 °C and steam.

Automatic cleaning with automatic drying of the cavity and hygienic stainless steel cooking interior.

200 automatic programmes and setting recommendations with option to save up to 30 favourites.

Timer and long-term functions including pre-programmable heating cycles and programmable automatic door opening at cooking time end.

Selected digital services (Gaggenau Home Connect) including remote control and monitoring, software updates and door opening via voice assistant.

Safety features such as child lock, electronic door lock, safety shut-off and thermally insulated triple-glazed door.

Energy efficiency class A with energy efficiency index 94.7 and forced air convection energy consumption of 0.72 kWh per cycle.

Included accessories : outlet hose 3 m, water inlet hose 3 m, cleaning cartridge, wire rack and two cooking inserts (perforated and unperforated).

Technical Spec

ModelGS271100

Product typeBuilt-in combi-steam oven

Built-in / Free-standingBuilt-in

Door openingLateral, cushioned side-opening door with 110 ° opening angle (approx. 92 ° optionally)

Net volume50 litres

Usable volume (2010/30/EC)50

Dimensions (HxWxD)456 x 594 x 547 mm

Required niche size (HxWxD)442–450 x 560–568 x 550 mm

Packed product dimensions (HxWxD)610 x 695 x 680 mm

Net weight45.5 kg

Control panel materialwithout panel

Door materialGlass

Energy efficiency ratingA (range A+++ to D)

Energy efficiency index (2010/30/EC)94.7

Energy consumption (forced air convection)0.72 kWh per cycle

Energy consumption conventional / gasNot stated in source

Total connected load3.1 kW

Voltage220–240 V

Frequency50 Hz

Fuse protection16 A

Plug typeGardy plug w/ earthing

Length of electrical supply cord1.75 m

Number of cavitiesNot stated in source

Heating temperature range (hot air)30 °C to 230 °C

Humidity levels0%, 30%, 60%, 80% or 100%

Grill powerFull surface grill 2 kW

Tray levels3

Water connectionOnly cold water connection; fixed inlet and outlet water connection

Inlet hose3.0 m, connection pipe thread ISO228-G 3/4'' (Ø 26.4 mm), extendable

Outlet hose3.0 m (Ø 25 mm, HT-hose), extendable, maximum 5 m

Water quality requirementSoftened water conductivity > 200 µS/cm for water detection

EAN code4242006309343

Colour variantsGS271100

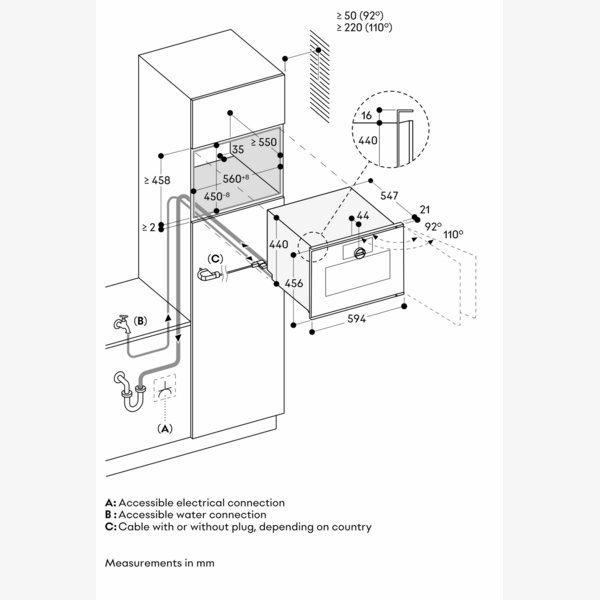

Installation and Planning Notes

Plan the niche without back wall.
Door hinge not reversible.
No other electrical appliances should be installed above the GS.
Protrusion from appliance front to furniture cabinet is 21 mm.
Intended for front flush installation; no protruding front panel, horizontal handle or high cabinet top should be fitted directly above the combi-steam oven.
The edge of a worktop above must be steam resistant as required above a dishwasher.

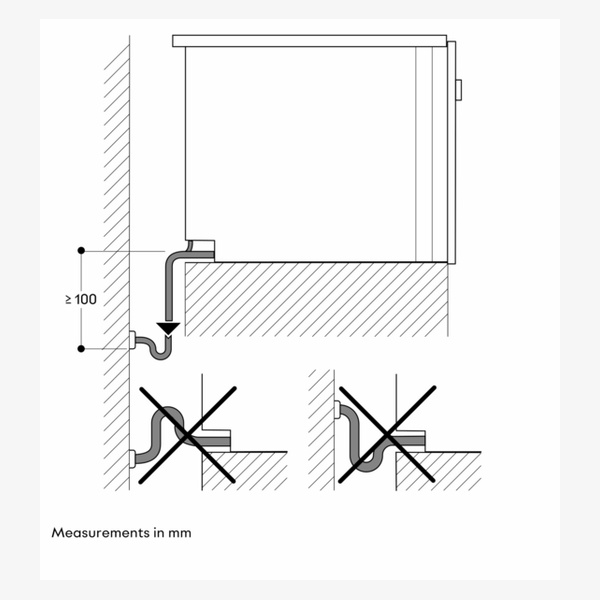

Outlet hose must not be positioned higher than the bottom edge of the appliance and must be at least 100 mm lower than the appliance outlet.
Inlet and outlet hose can be extended once; outlet hose must not exceed a maximum of 5 m.
Water connection for the inlet hose must always be accessible and not located directly behind the appliance.
Connection of the outlet hose to the siphon must not be directly behind the appliance and should be accessible.
When planning a corner solution, allow for the side-opening door and minimum required distance to the wall.
Door opening angle is approx. 110 ° (delivery status), reducible to approx. 92 ° if required.
The mains socket must be accessible and located outside the built-in niche.
Connection cable length is 1.75 m and pluggable.

Downloads

Download product documentation, manuals, and specification sheets.

GS271100 Spec

PDF

Frequently Asked Questions

What is the capacity of the GS271100 combi-steam oven?

The GS271100 has a net volume of 50 litres, with a usable volume of 50 as defined in 2010/30/EC, and provides 3 tray levels.

Which cooking modes and programmes are available?

Cooking modes include hot air with 0%, 30%, 60%, 80% or 100% humidity, grill with circulated air, grill levels 1 and 2 with humidity, sous-vide, low temperature cooking, dough proving, keeping warm, defrosting and regenerating. There are 200 automatic programmes and setting recommendations, and you can save up to 30 favourites.

How does the automatic cleaning work?

The oven has automatic cleaning and automatic descaling for the steam generator. A drying programme and automatic drying of the cavity operate at the end of the cooking process, and all removable parts and accessories, including the strainer filter, are dishwasher-safe.

What safety features are included?

Safety features include a child lock, electronic door lock to prevent unintentional opening, safety shut-off, a thermally insulated door with triple glazing and cooled housing with temperature protection.

What water connection does the appliance require?

The GS271100 requires only a cold water connection with a 3.0 m inlet hose (ISO228-G 3/4'' connection, extendable) and a 3.0 m outlet hose (Ø 25 mm, extendable, maximum 5 m). Softened water must have a conductivity of more than 200 µS/cm to allow water detection.

Is this oven suitable for flush installation?

Yes. The appliance is intended for front flush installation. The niche should be planned without a back wall, and no protruding front panel, horizontal handle or high cabinet top should be fitted directly above it.
