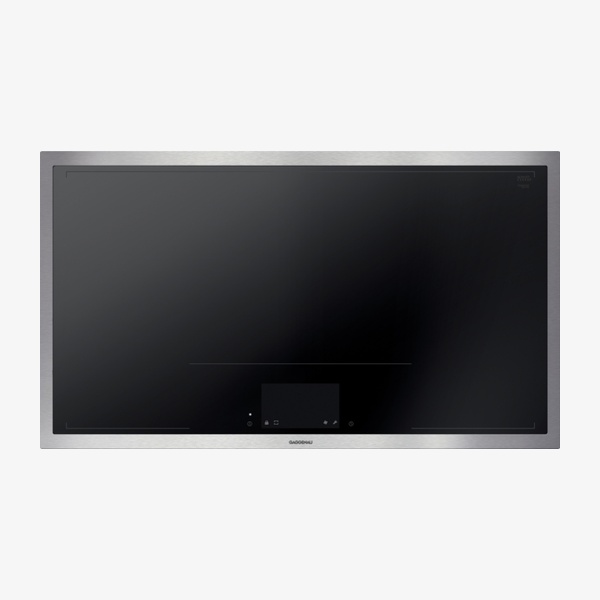

Gaggenau 400 Series CX492111 Induction Hob

The Gaggenau CX492111 is a 90 cm full surface induction cooktop from the 400 series, offering one single large cooking surface of 3200 cm² for up to six items of cookware. A colour graphic TFT touch display provides intuitive control of professional functions, including cooking sensor and Teppan Yaki modes. Precision 3 mm stainless steel design allows surface or flush installation and seamless combination with other Vario appliances of the 400 series.

SKU:CX492111

EAN:4242006294816

Category::Hobs

Quantity:

Key Features

TFT touch display for intuitive control of all functions with easy to use colour graphics.

One single big cooking surface of 3200 cm² for free positioning of cookware in all sizes and formats.

Professional cooking function for splitting the cooktop into predefined heat areas.

Cooking sensor function for temperature control in pots.

Dynamic cooking and Teppan Yaki functions for flexible and specialised cooking applications.

Booster functions for pots and pans and a keep warm function for added convenience.

Individual pot detection with cooking timer for each cooking position, stopwatch and short-term timer.

Powerful performance with max. power output for big cookware of up to 5.5 kW and total connected load of 7.4 kW.

Precision 3 mm stainless steel design for surface installation with visible edge or flush installation.

Home Connect digital services including remote monitoring, remote diagnostics and cooktop-based ventilation control (with suitable hood).

Comprehensive safety features including main switch, residual heat indication, child lock, safety shut-off and pause function.

Compatible optional accessories including Teppan Yaki plates, wireless temperature sensor and connecting strips Serie 400.

Technical Spec

Product typeFull surface induction cooktop 400 series

ModelCX492111

Width90 cm

Cooking surfaceOne unique cooking surface of 3200 cm²

Maximum cookware capacityUp to 6 items of cookware simultaneously

Power settingsElectronic power control in variable 17-stage power settings for each zone

Max. power output for big cookwareUp to 5.5 kW

Total connected load7.4 kW

Power consumption standby (display off)0.5 W

Power consumption standby (network)2 W

Cookware compatibilityOperates with magnetic (induction) iron pots and pans only; sandwich bottom cookware recommended

Incompatible cookwareThe wok pan WP 400 001 cannot be used with this appliance

ControlsEasy to use colour graphic TFT touch display with use indications

Material and designPrecision crafting of 3 mm stainless steel; for surface installation with visible edge or for flush installation

Installation combinationsCan be combined with other Vario appliances of the 400 series; connection strip VA 420 must be placed between appliances

Worktop suitability (flush installation)Installation possible in worktops made of stone, synthetics or solid wood (with heat resistance and watertight sealing of cut edges)

Appliance weightApprox. 30

Connecting cable1.50 m without plug

Wireless connectivityIntegrated WiFi module for digital services (Home Connect)

Digital services availabilityAvailability of Home Connect functionality depends on the availability of Home Connect Services in the country; services not available in every country

Ventilation controlCooktop-based ventilation control with suitable hood

Date of data sheet2025–12–12

Functions, Safety and Installation Information

Cooking functions and features

Cooking sensor function.
Professional cooking function.
Dynamic cooking function.
Teppan Yaki function.
Booster function for pots.
Booster function for pans.
Keep warm function.
Individual pot detection.
Cooking timer for each cooking position.
Stopwatch and short-term timer.
Information key with use indications.
Power management.

Safety features

Main switch.
Residual heat indication.
Child lock.
Safety shut-off.
Pause function.

Installation and planning notes

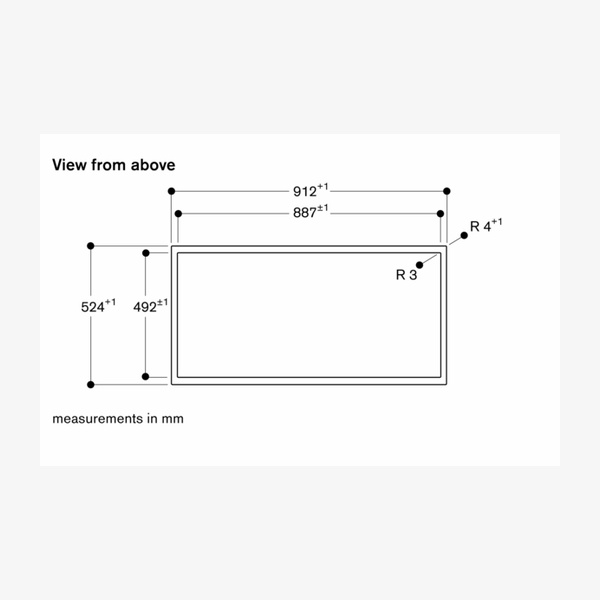

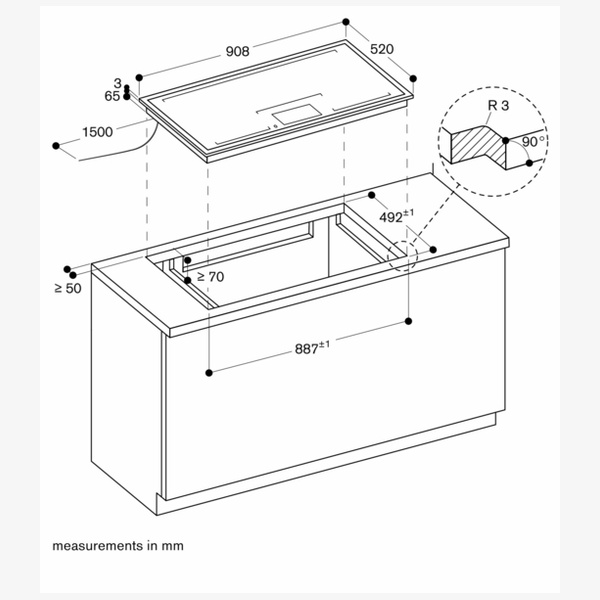

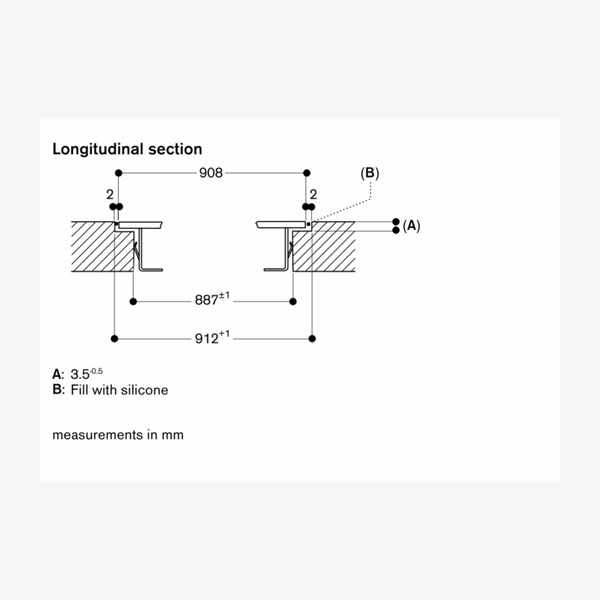

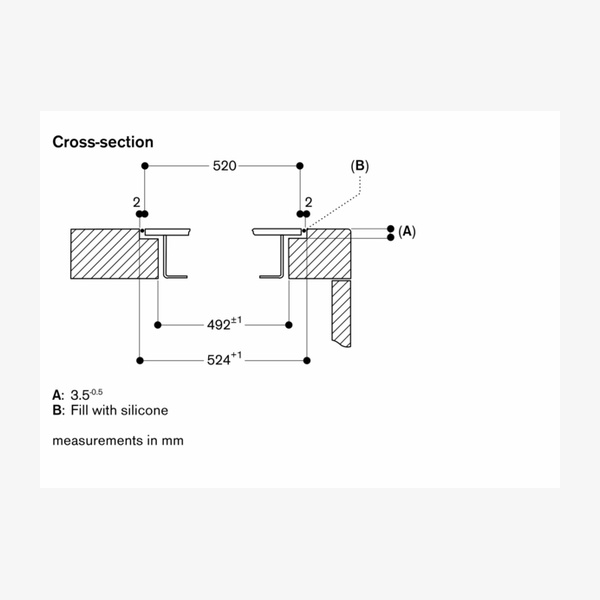

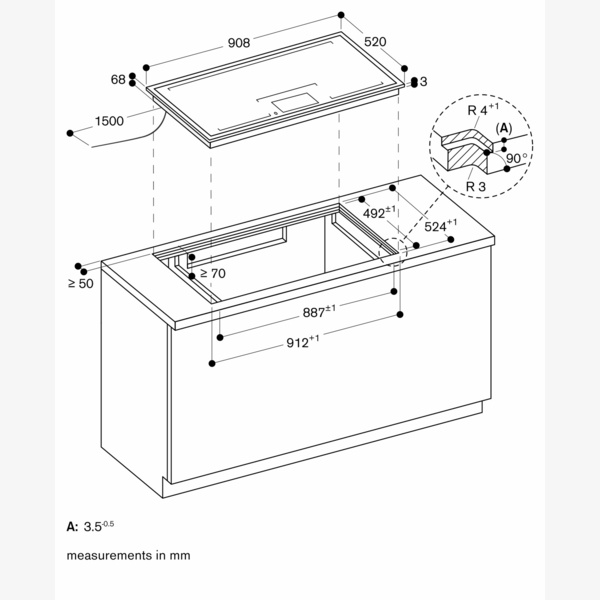

Depending on whether the appliance is surface-mounted or flush-mounted, the specific definition of the cut-out must be observed. If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances, with the corresponding connection strip selected according to the installation type.

The bearing capacity and stability of the worktop, particularly for thin worktops, must be supported by suitable substructures, taking into account the appliance weight and additional loads. For flush installation, installation is possible in worktops made of stone, synthetics or solid wood, with attention to heat resistance and watertight sealing of cut edges. For other materials, the worktop manufacturer should be consulted.

The groove must be continuous and even to ensure uniform placing of the appliance on the gasket; discontinuous lining should not be used. Joint width may vary due to size tolerances of the combinations and the worktop cut-out. When installing several appliances in individual cut-outs, a division bar of minimum 50 mm between individual cut-outs is required.

The appliance operates only with magnetic (induction) iron pots and pans, and the use of sandwich bottom cookware is recommended for optimal heat distribution. The appliance can be snapped into the worktop from above.

Please check the user manual for how to switch off the WiFi module.

Optional accessories

CA051300: Teppan Yaki (large).
CA060300: Wireless temperature sensor for cooktop.
GN232110: Teppan Yaki GN 1/1.
GN232230: Teppan Yaki GN 2/3.

Installation accessories

VA420004: Connecting strip Serie 400, flush, short.
VA420010: Connecting strip Serie 400, top, short.

Downloads

Download product documentation, manuals, and specification sheets.

CX492111 Spec

PDF

Frequently Asked Questions

How many pans can I use on the CX492111 at the same time?

Up to 6 items of cookware can be placed simultaneously on the unique 3200 cm² cooking surface.

What type of cookware is suitable for this induction cooktop?

The cooktop operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, the use of sandwich bottom cookware is recommended. The wok pan WP 400 001 cannot be used with this appliance.

Can the CX492111 be installed flush with the worktop?

Yes, the cooktop is suitable for surface installation with a visible edge or for flush installation. For flush installation, it can be fitted into worktops made of stone, synthetics or solid wood, observing heat resistance and watertight sealing of cut edges.

Does the cooktop include safety features for households with children?

Yes. Safety features include a main switch, residual heat indication, child lock, safety shut-off and a pause function.

What smart functions are available with Home Connect?

Selected digital services include cooktop-based ventilation control with a suitable hood, remote monitoring and remote diagnostics via the integrated WiFi module, subject to the availability of Home Connect Services in the country.
