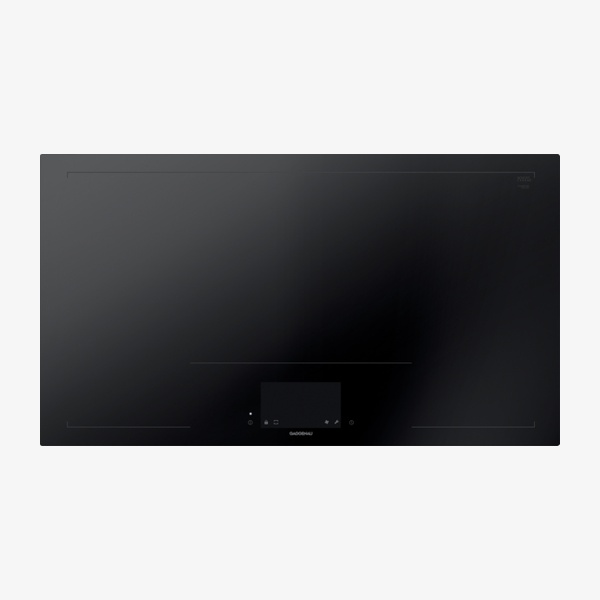

Gaggenau 400 Series CX492101 Induction Hob

The CX492101 is a 90 cm full surface induction cooktop from the 400 series, offering one single large cooking surface of 3200 cm² for up to six pieces of cookware. It features an intuitive TFT touch display, professional and dynamic cooking functions, and cooking sensor temperature control in pots. With frameless flush installation options and integrated WiFi for selected Home Connect digital services, it is designed for flexible, precise and easy–to–clean cooking.

SKU:CX492101

EAN:4242006294298

Category::Hobs

Quantity:

Key Features

Full surface induction cooktop 400 series, 90 cm with one unique cooking surface of 3200 cm².

One single big cooking surface allowing free positioning of cookware in all sizes and formats.

TFT touch display for intuitive control of all functions with colour graphics and use indications.

Professional cooking function for splitting the cooktop into predefined heat areas.

Cooking sensor function for temperature control in pots.

Dynamic cooking function and dedicated Teppan Yaki function.

Booster functions for pots and pans with max. power output for big cookware of up to 5.5 kW.

Variable 17–stage power settings for each cooking position with electronic power control.

Individual pot detection and cooking timer for each cooking position.

Integrated WiFi module enabling selected digital services via Gaggenau Home Connect.

Cooktop–based ventilation control with suitable hood plus remote monitoring and diagnostics.

Frameless for flush installation with Flush–Top Frame option for a seamless transition to the worktop.

Keep warm function , stopwatch, short–term timer and information key with use indications.

Safety features include main switch, residual heat indication, child lock, safety shut–off and pause function.

Optional accessories include Teppan Yaki plates and a wireless temperature sensor for the cooktop.

Technical Spec

Product seriesFull surface induction cooktop 400 series

Product codeCX492101

Width90 cm

Cooking surfaceOne unique cooking surface of 3200 cm²

Maximum cookware itemsUp to 6 items of cookware simultaneously

Power stagesVariable 17–stage power settings for each zone

Max. power outputUp to 5.5 kW for big cookware

Total connected load7.4 kW

Connecting cable1.50 m without plug

Standby power (display off)0.5 W

Standby power (network)2 W

Installation styleFrameless for flush installation; Flush–Top Frame installation possible

Control typeColour graphic TFT touch display

Digital connectivityIntegrated WiFi module; selected digital services (Gaggenau Home Connect)

Appliance weightApprox. 29 (unit not stated in source)

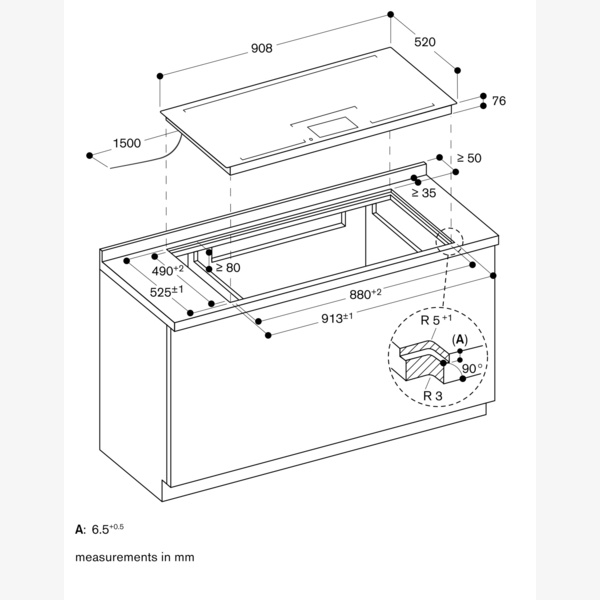

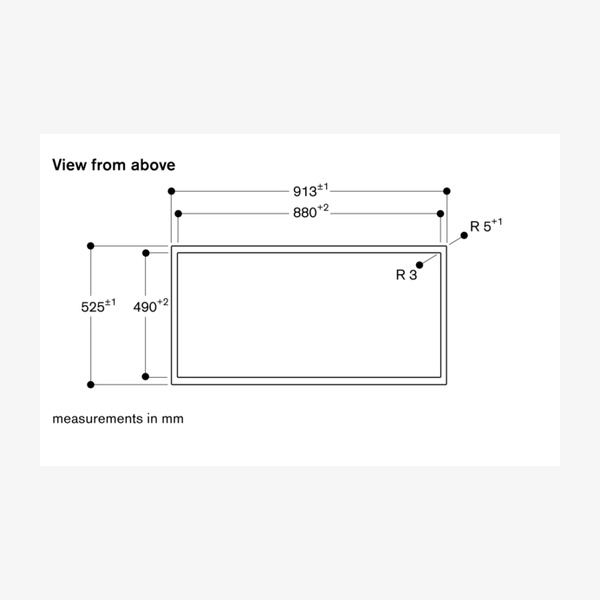

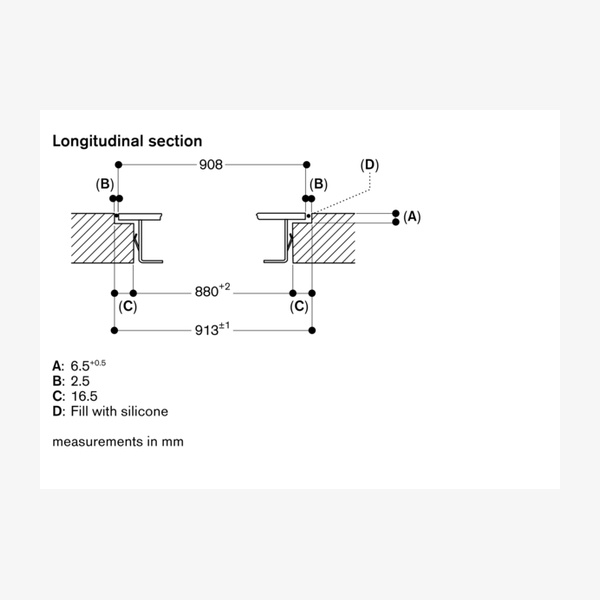

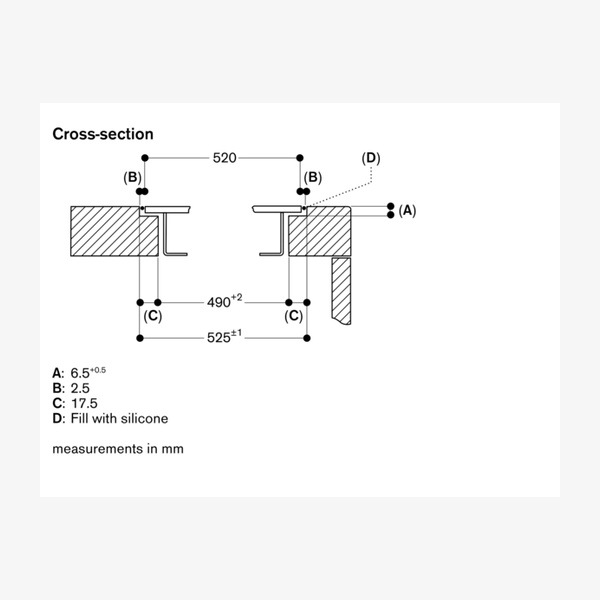

Dimensions (detailed)Full dimensional drawings are provided with cross section, longitudinal section and view from above (measurements in mm).

Downloads

Download product documentation, manuals, and specification sheets.

CX492101 Spec

PDF

Frequently Asked Questions

How many pans can I use at the same time?

Up to six items of cookware can be placed simultaneously on the single large cooking surface of 3200 cm².

What type of cookware is suitable for this induction cooktop?

The appliance operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, the use of sandwich bottom cookware is recommended. The wok pan WP 400 001 cannot be used with this appliance.

Does the cooktop support Home Connect features?

The cooktop has an integrated WiFi module and supports selected digital services via Gaggenau Home Connect, including cooktop–based ventilation control with a suitable hood, remote monitoring and remote diagnostics. Availability of these services depends on the country.

What safety functions are included?

Safety features include a main switch, residual heat indication, child lock, safety shut–off and a pause function.

Can this cooktop be installed flush with the worktop?

Yes. The appliance is frameless for flush installation and offers Flush–Top Frame installation, creating a seamless transition between hob and worktop.
