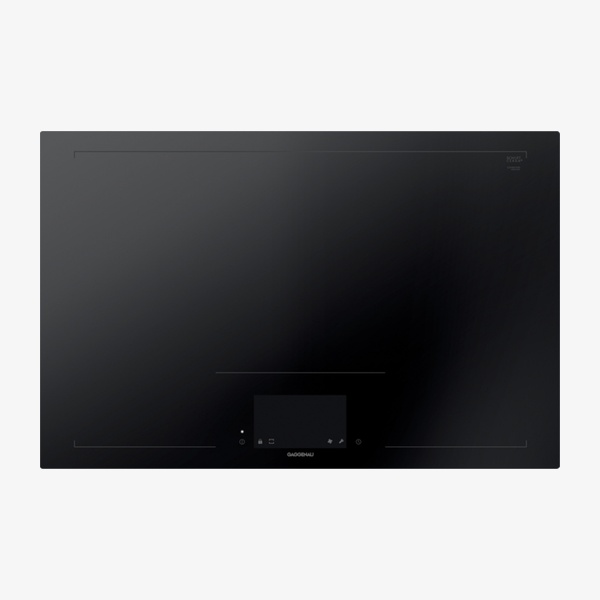

Gaggenau 400 Series CX482101 Induction Hob

The CX482101 is an 80 cm full surface induction cooktop from the 400 series featuring a single large cooking surface of 2750 cm² with free positioning of cookware. It offers TFT touch display control, professional and dynamic cooking functions, booster settings and a Teppan Yaki function. Up to five pieces of cookware can be used simultaneously, supported by advanced safety features and selected digital services via an integrated WiFi module (Home Connect).

SKU:CX482101

EAN:4242006294809

Category::Hobs

Quantity:

Key Features

Full surface induction design – one single big cooking surface of 2750 cm² for free positioning of cookware.

Flexible cookware use – all sizes and formats of induction-compatible cookware can be used, with up to 5 items placed simultaneously.

TFT touch display – easy to use colour graphic TFT touch display with use indications and intuitive control of all functions.

Professional cooking function – enables splitting the cooktop into predefined heat areas for professional-style cooking.

Dynamic cooking function – supports flexible heat management across the cooking surface.

Teppan Yaki function – dedicated function for use with suitable Teppan Yaki accessories.

Cooking sensor function – temperature control in pots for precise cooking management.

High power output – max. power output for big cookware of up to 5.5 kW, with booster functions for pots and pans.

17-stage power settings – electronic power control with variable 17-stage power settings for each cooking zone position.

Keep warm function – helps maintain food temperature on the cooktop.

Individual pot detection – automatically detects the position of each piece of cookware.

Timers and time functions – cooking timer for each cooking position, stopwatch and short-term timer.

Information key – provides use indications directly on the display.

Power management – supports efficient control of the connected load.

Selected digital services – Gaggenau Home Connect functions including cooktop-based ventilation control (with suitable hood), remote monitoring and remote diagnostics.

Integrated WiFi module – enables digital services (Home Connect), subject to local service availability.

Flush-Top Frame installation – seamless transition of hob and worktop makes cleaning easier and integrates the hob neatly.

Frameless for flush installation – designed for elegant, flush integration into the worktop.

Comprehensive safety features – main switch, residual heat indication, child lock, safety shut-off and pause function.

Optional accessories available – Teppan Yaki plates and a wireless temperature sensor for the cooktop are offered as separate accessories.

Technical Spec

Product seriesFull surface induction cooktop 400 series

ModelCX482101

Width80 cm

Cooking surface areaOne unique cooking surface of 2750 cm²

Number of cookware itemsUp to 5 items of cookware can be placed simultaneously

Power settingsVariable 17-stage power settings for each zone position

Max. power outputMax. power output for big cookware of up to 5.5 kW

Total connected load7.4 kW

Connection cableConnecting cable 1.50 m without plug

Standby power – display offPower consumption standby/display off 0.5 W

Standby power – networkPower consumption standby/network 2 W

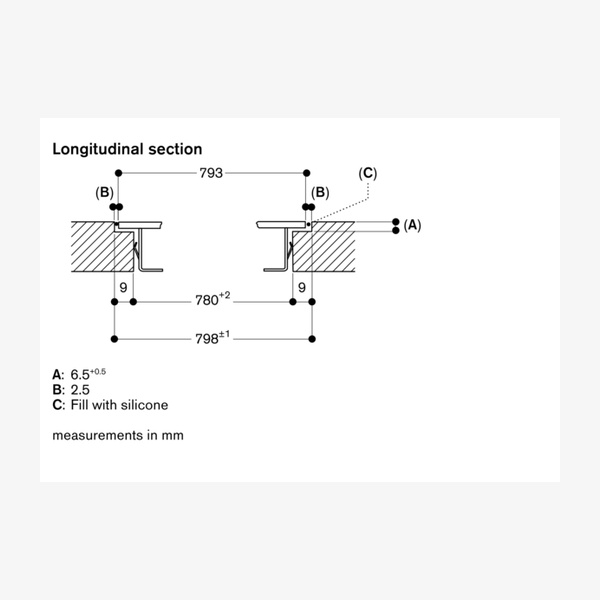

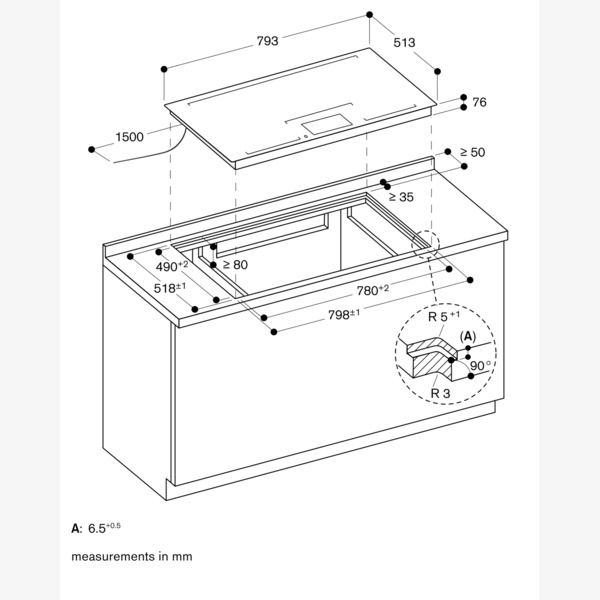

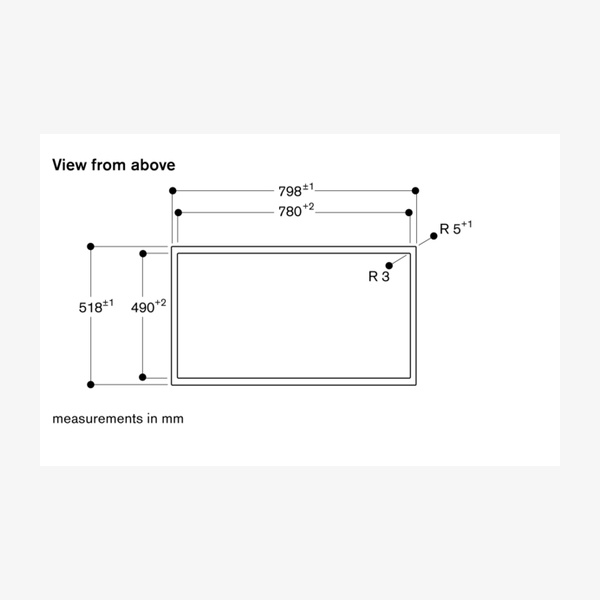

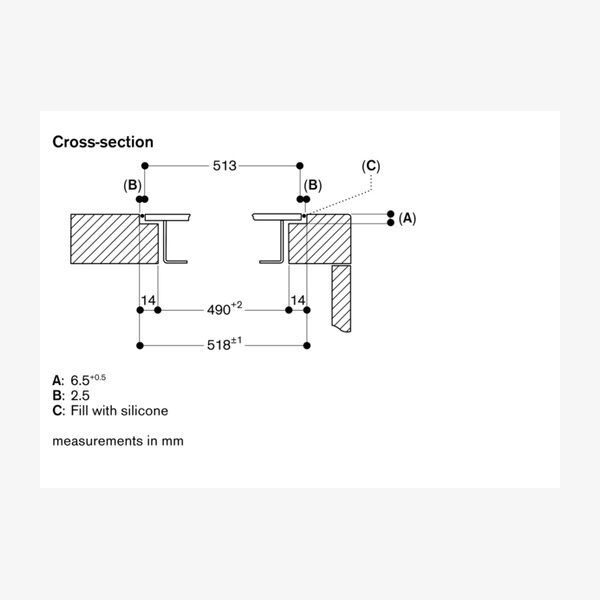

Installation styleFlush-Top Frame installation; frameless for flush installation

Appliance weightAppliance weight: approx. 25

Digital servicesSelected digital services (Gaggenau Home Connect); integrated WiFi module

Home Connect availabilityHome Connect Services are not available in every country; availability dependent on local services

Cookware compatibilityOperates with magnetic (induction) iron pots and pans only; sandwich bottom cookware recommended for optimal heat distribution

Incompatible cookwareThe wok pan WP 400 001 cannot be used with this appliance

Safety featuresMain switch; residual heat indication; child lock; safety shut-off; pause function

Downloads

Download product documentation, manuals, and specification sheets.

CX482101 Spec

PDF

Frequently Asked Questions

What type of cookware can I use on the CX482101?

The cooktop operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, the use of sandwich bottom cookware is recommended. The wok pan WP 400 001 cannot be used with this appliance.

How many pans can I use at the same time?

The unique full surface cooking area of 2750 cm² allows up to 5 items of cookware to be placed simultaneously on the cooktop, with free positioning of cookware.

Does this cooktop include child safety features?

Yes. Safety features include a child lock, main switch, residual heat indication, safety shut-off and a pause function, providing several layers of protection during use.

Can the cooktop connect to my home network?

The CX482101 has an integrated WiFi module for selected digital services via Gaggenau Home Connect, including cooktop-based ventilation control (with suitable hood), remote monitoring and remote diagnostics. Availability of Home Connect Services depends on the services offered in your country and they are not available in every country.

What is the maximum power output of the cooktop?

The total connected load is 7.4 kW. For big cookware, the maximum power output is up to 5.5 kW. Booster functions are available for both pots and pans.
